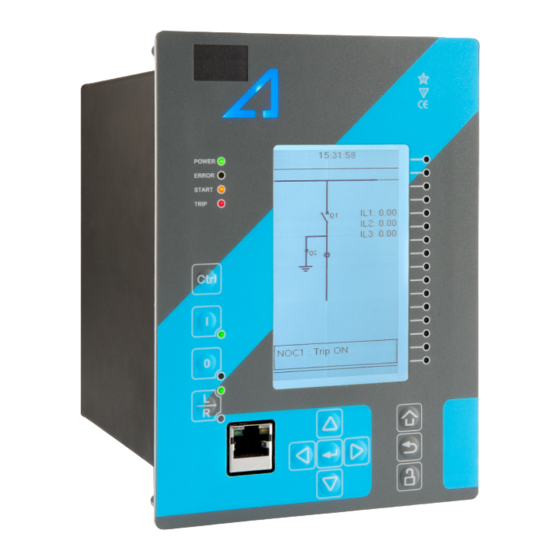

Page 1 AQ-F213 Feeder protection IED Instruction manual ...
Page 2: Table Of Contents
5.1. Functions included in AQ-F213 ........
Page 3: Table Of Contents
7.1. Connections AQ-F213 ........
Page 5 Nothing contained in this document shall increase the liability or extend the warranty obligations of the manufacturer Arcteq Relays Ltd. The manufacturer expressly disclaims any and all liability for any damages and/or losses caused due to a failure to comply with the instructions contained herein or caused by persons who do not ful l the aforementioned requirements.
Page 7: Manual Revision Notes
- Added General-menu description. 1.2. Version 1 revision notes Revision 1.00 Date 7.12.2015 Changes - The rst revision for AQ-F213 IED. Revision 1.01 Date 30.8.2016 Changes - Added password set up guide (previously only in AQtivate user guide) Revision 1.02...
Page 9: Abbreviations
RMS – Root mean square SF – System failure TMS – Time multiplier setting TRMS – True root mean square VAC – Voltage alternating current VDC – Voltage direct current SW – Software uP - Microprocessor © Arcteq Relays Ltd...
Page 10: General
IO requirements and the software determines the available functions. This manual describes the speci c application of the AQ-F255 Feeder Protection IED. For other AQ-200 series products please consult corresponding device manuals. © Arcteq Relays Ltd...
Page 11: Ied User Interface
This can be either a hardware or software error. Start LED (yellow) and Trip LED (red) activation is user settable. Activation and color (green/yellow) of the 16 LEDs on the right side of the display are user settable. © Arcteq Relays Ltd...
Page 12: Mimic And Main Menu
All the settings in this IED type have been divided into main con guration menus. Main con guration menus are presented below. Available menus may vary according to IED type. Figure. 4.2.2. - 3. Main con guration menus. © Arcteq Relays Ltd...
Page 13: General Menu
Protection/Control/Monitor pro le: Displays the status of enabled functions. 4.4. Protection menu Protection menu includes Stage activation sub-menu and sub-menus for different protection functions like Overcurrent, Earthfault, Seq. and balance and Supporting. Valid protection functions vary according IED type. © Arcteq Relays Ltd...
Page 14 Activation of different protection stages is done in Stage activation –sub menu. Each protection stage and supporting function is disabled as standard. Activated menus will appear below the stage speci c sub-menu for example I> appears below Current –module, U< appears below Voltage-module etc. EXAMPLE PROTECTION STAGE © Arcteq Relays Ltd...
Page 15 AQ-F213 Instruction manual Version: 2.00 Figure. 4.4. - 7. Stage navigation and modi cation. Each protection stage and supportive function has ve stage menus Info, Settings, Registers, IO and Events. © Arcteq Relays Ltd...
Page 16 Info view has calculator for function starts, trips and blockings. It is possible to clear calculators by choosing Clear statistics and Clear. Measurements are visible in Info menu. Active setting group and its settings are all visible in Info menu. © Arcteq Relays Ltd...
Page 17 Stage settings vary according different protection functions. With factory settings only one group of eight is activated. To enable more groups go to Control menu and select Setting Groups. Figure. 4.4. - 10. Stage information is divided into two sections. © Arcteq Relays Ltd...
Page 18 Connection to outputs can be either latched |x| or non-latched x. Stage blocking is done in Blocking Input Control menu. Blocking can be done by using digital inputs, logical inputs or outputs, stage start- trip- or blocked information or by using object status information. © Arcteq Relays Ltd...
Page 19 Activation of different protection stages is done in Stage activation –sub menu. Each protection stage and supporting function is disabled as standard. Activated menus will appear below the stage speci c sub-menu for example I> appears below Current –module, U< appears below Voltage-module etc. © Arcteq Relays Ltd...
Page 20 AQ-F213 Instruction manual Version: 2.00 Example protection stage Figure. 4.4. - 14. Stage navigation and modi cation. Each protection stage and supportive function has ve stage menus Info, Settings, Registers, IO and Events. © Arcteq Relays Ltd...
Page 21 Info view has calculator for function starts, trips and blockings. It is possible to clear calculators by choosing Clear statistics and Clear. Measurements are visible in Info menu. Active setting group and its settings are all visible in Info menu. Other setting groups can be set in the Settings -menu. © Arcteq Relays Ltd...
Page 22 Figure. 4.4. - 16. All group speci c settings are done individually in Settings menu. Stage settings vary according different protection functions. With factory settings only one group of eight is activated. To enable more groups go to Control menu and select Setting Groups. © Arcteq Relays Ltd...
Page 23 Operation log can be cleared by choosing Clear registers → Clear . Events generated by the speci c stage can be checked by going to Stage event register. General events cannot be cleared. © Arcteq Relays Ltd...
Page 24 Connection to outputs can be either latched |x| or non-latched x. Stage blocking is done in Blocking Input Control menu. Blocking can be done by using digital inputs, logical inputs or outputs, stage start- trip- or blocked information or by using object status information. © Arcteq Relays Ltd...
Page 25: Control Menu
Control menu includes Controls Enabled sub-menu and sub-menus for different control functions like Setting Groups, Objects, Control Functions and Device IO. Valid control functions vary according IED type. Figure. 4.5. - 20. Control menu view. Functions vary according IED type. © Arcteq Relays Ltd...
Page 26 RTDs and object status information can be used. Event masking for setting groups (masks are off as default). Only masked events appear to event list. Events cannot be cleared. © Arcteq Relays Ltd...
Page 27 Figure. 4.5. - 23. Group changing with pulse control only or with pulses and static signal. Objects Figure. 4.5. - 24. Object controlling. Each activated object is visible in Objects -menu. As default all objects are disabled. Each active object has four setting menus, settings, application control, registers and events. © Arcteq Relays Ltd...
Page 28 Ready- and external Synchrocheck permission have status inputs as well. Digital inputs, Logical inputs or outputs, stage starting- tripping- or blocking, RTDs and object status information can be used to indicate the status. Object open- and close signals of an object are connected to physical output relays. © Arcteq Relays Ltd...
Page 29 LED. Connection to outputs can be either latched |x| or non-latched x. Object blocking is done in Blocking Input Control menu. Blocking can be done by using digital inputs, logical inputs or outputs, stage start- trip- or blocked information or by using object status information. © Arcteq Relays Ltd...
Page 30 Control functions Figure. 4.5. - 28. Stage navigation and modi cation. Each enabled control function is listed below Control Functions menu. Every function includes same sub-menus as protections stages including Info, Settings, Registers, IO and Events. © Arcteq Relays Ltd...
Page 31 (normal open or normal closed), activation (16…200 , step 0.1V) and release (10…200 V , step 0.1V) threshold voltage for each available input AC/DC AC/DC and activation delay (0…1800 s, step 1ms). Binary input statuses can be check from corresponding menu. © Arcteq Relays Ltd...
Page 32 IED via setting le. NOTE! Normal closed signal goes to default position (normal open) in case the relay loses the auxiliary voltage or during System full reset. Normally closed output signal does not open during Communication- or protections reset. © Arcteq Relays Ltd...
Page 33 Description Settings menu the label text of the LED can be modi ed. This label is visible in LEDs quick displays and matrixes. LED color can be chosen between green and yellow in LED Color Settings menu. As default the color is green. © Arcteq Relays Ltd...
Page 34 Programmable control switches (PCS) are switches that can be used to control signals in mimic view. These signals can be used in various situations (controlling logic program, function blocking etc.) You can give each switch a name and set access level to determine who can control the switch. © Arcteq Relays Ltd...
Page 35: Communication Menu
Connections menu. IEDs support following communication protocols: SNTP, IEC61850, ModbusTCP, ModbusRTU, IEC103, IEC101/104, SPA and ModbusIO as a standard. It is also possible to have additional protocols with special extra communication interface modules. © Arcteq Relays Ltd...
Page 36 ModbusTCP can be used at the same time with other Ethernet based protocols like SNTP and IEC61850. ModbusRTU / IEC103 / ModbusIO con guration menus. ModbusRTU like other serial protocols can be used only one at the time over one physical serial communication interface. © Arcteq Relays Ltd...
Page 37: Measurement Menu
It is possible to individually invert polarity of each phase current. Transformers menu also displays more information like scaling factors for CTs and per unit values. FREQUENCY © Arcteq Relays Ltd...
Page 38 Per-unit group has values for fundamental component, TRMS, amplitude- and power THD and peak- to peak values. Primary group has values for fundamental component and TRMS and same applies with Secondary group. Phase Angle group displays the angle of each measured component. © Arcteq Relays Ltd...
Page 39 Harmonics menu displays voltage and current harmonics from fundamental component up to 31th harmonic. It is possible to select whether each component is displayed as Absolute- or Percentage and as primary or secondary amps or per unit values. PHASORS © Arcteq Relays Ltd...
Page 40: Monitoring Menu
Monitoring menu includes Monitoring Enabled, Monitoring Functions, Disturbance REC and Device Diagnostics sub-menus. Valid Monitor functions vary according IED type. Figure. 4.8. - 44. Monitoring menu view. Monitor functions vary according IED type. MONITORS ENABLED Figure. 4.8. - 45. IED Monitors Enabled sub- menu. © Arcteq Relays Ltd...
Page 41 Activated menus will appear in the Monitor functions sub-menu. MONITOR FUNCTIONS Figure. 4.8. - 46. IED function modi cation. Con guring monitor functions is very similar to con guring protection stages. DISTURBANCE REC © Arcteq Relays Ltd...
Page 42 Recording mode is either First in First out or Keep Olds. Sample rate of analogue channels is 8/16/32/62 samples per cycle. Digital channel sample rate is xed 5 ms. Pre triggering time is selectable between 5…95%. © Arcteq Relays Ltd...
Page 43 Device Diagnostics gives detailed feedback of the IED condition generally and whether option cards are installed correctly without problems. In case anything abnormal is noticed in Device diagnostics menu and it cannot be reset please contact closest representative or manufacturer. © Arcteq Relays Ltd...
Page 44: User Level Password Con Guration
Con gurator: Can change most settings like basic protection pick-up levels or time delays, breaker control functions, signal descriptions etc. Can operate breakers or other equipment. Super user: Access to change any setting and can operate breakers or other equipment. © Arcteq Relays Ltd...
Page 45: Functions
5. Functions 5.1. Functions included in AQ-F213 This chapter presents the functions of AQ-F213 Feeder Protection relay with each function package. AQ-F213 includes following functions and amounts of instances of the functions. Table. 5.1. - 1. Protection functions of AQ-F213...
Page 46: Measurements
Rate of change of frequency (8 stages) VJP(1) Z< Vector Jump PGS1 PGx >/< Programmable stage ARC(1) IArc>/I0Arc> 50Arc/50NArc Arc protection (Option) Table. 5.1. - 2. Control functions of AQ-F213 Function package Name ANSI Description Set group settings Object control 0 → 1 Autoreclosing function CLPU...
Page 47 0.2 A in some cases. In following chapter is an example for setting the scaling of the current measurements to the example current transformer and system load. © Arcteq Relays Ltd...
Page 48 CT primary value should be the base for per unitizing. If the per unit scaling is wanted to be according to the CT values then “Scale meas to In” is set to “CT nom p.u.” As presented in the gure below. © Arcteq Relays Ltd...
Page 49 If the settings would be wanted to be scaled to load nominal then the selection “Scale meas to In” would be set to “Object In p.u.” Figure. 5.2.1. - 52. Phase current transformer scalings to protected object nominal current. © Arcteq Relays Ltd...
Page 50 Figure. 5.2.1. - 54. Residual current I02 scaling to ring core CT input. If the scaling was made to CT primary or to object nominal current the measurements will look as follows with nominal current feeding: Figure. 5.2.1. - 55. Scalings to CT nominal. © Arcteq Relays Ltd...
Page 51 Figure. 5.2.1. - 57. If zero sequence current transformer is used it should be connected to I02 channel which has lower CT scaling ranges. Figure. 5.2.1. - 58. Setting example of zero sequence current transformer application. © Arcteq Relays Ltd...
Page 52 Phase unbalance protection trips immediately when it is activated. Earth fault protection trips immediately when it is activated. In following rows few most common cases are presented. © Arcteq Relays Ltd...
Page 53 I2: 0.67 xIn / 60.00 deg I0Calc: 0.67 xIn / -60.00 deg Resolution: - Change wires to opposite in CT module connectors 5 – 6 - Or from the Transformers, Phase CT scaling select IL3 polarity to “Invert”. © Arcteq Relays Ltd...
Page 54 IL3: 1.00 xIn / 240.00 deg Sequence currents I1: 0.00 xIn / 0.00 deg I2: 1.00 xIn / 0.00 deg I0Calc: 0.00 xIn / 0.00 deg Resolution: - Change wires to opposite in CT module connectors 1 - 5 © Arcteq Relays Ltd...
Page 55 P/S /secondary current ratio Table. 5.2.1. - 9. Settings of the residual I02 CT scaling. Name Range Step Default Description I02 CT 0.2… 0.00001A 100.0A Rated primary current of the CT in amperes. primary 25000.0A © Arcteq Relays Ltd...
Page 56 Per unit measurement from calculated I0 current fundamental frequency RMS Calculated I0 0.01xIn 1250.0xIn current. Per unit measurement from I01 residual current channel TRMS current Phase current I01 0.00… 0.01xIn TRMS 1250.0xIn including harmonics up to 31 © Arcteq Relays Ltd...
Page 57 Negative sequence current 0.00…1250.0xIn 0.01xIn Per unit measurement from calculated negative sequence current Zero sequence current 0.00…1250.0xIn 0.01xIn Per unit measurement from calculated zero sequence current Table. 5.2.1. - 19. Primary sequence current measurements. Name Range Step Description © Arcteq Relays Ltd...
Page 58: Voltage Measurements And Scaling
Voltage measurement module (VT-module) is used for measuring the voltages from voltage transformers and processing the measured voltages to measurement database and for use of measurement- and protection functions. For the measurements to be correct it is essential to understand the concept of the IEDs voltage measurements. © Arcteq Relays Ltd...
Page 59 The connection of VTs to the IED measurement inputs and the ratings of the voltage transformers are as in following gure. In gure below two line to line voltages are connected among with zero sequence voltage. Other connection possibilities are presented in this chapter. © Arcteq Relays Ltd...
Page 60 24000V on primary level so 20% increase in this case would be 4000V. Figure. 5.2.2. - 62. Voltage may be based on line to line voltage or line to neutral voltage. This selection is completed in “Measured magnitude” –menu under each voltage protection stage separately. © Arcteq Relays Ltd...
Page 61 There are several different ways to use all four voltage channels. For further information see different voltage measurement mode examples below: 2LL+U0 2LL+U0(Open delta) See connection wirings for the measurement modes below: Figure. 5.2.2. - 64. Example connection for 3 line to neutral voltage measurement. © Arcteq Relays Ltd...
Page 62 In the next gure is presented relay behavior when nominal voltage is injected to the relay and the IED is measuring line to neutral voltages. Part of the available information from the IED is presented as well: © Arcteq Relays Ltd...
Page 63 Range Step Default Description 0:3LN 1:2LL+U0 (3LN) Voltage meas Voltage wiring method to the IED. Voltages are scaled according the set 2:2LL+U0 0:3LN mode voltage measurement mode. (Open delta 2LL) 3:U0 PE Voltage 0:NotUsed measurements 1:U0 © Arcteq Relays Ltd...
Page 64 Secondary measurement from each voltage channel TRMS voltage including UxVolt TRMS 0.00… 0.01V 500.0xUn harmonics up to 31 Table. 5.2.2. - 27. Voltage phase angle measurements Name Range Step Description Ux Angle 0.00…360.00deg 0.01deg Phase angle measurement of the four voltage inputs. © Arcteq Relays Ltd...
Page 65 System volt U0 0.00… Primary measured or calculated fundamental frequency RMS zero sequence U0 0.01V 1000000.00V voltage. System volt U3 0.00… Primary measured fundamental frequency RMS Synchro-check SS voltage. (Valid 0.01V 1000000.00V only in 2LL+U3 and 2LN+U3 mode) © Arcteq Relays Ltd...
Page 66: Power And Energy Calculation
U0 is connected and measured the following equations apply for power calculation: Below is presented formula for three phase apparent power (S) calculation: © Arcteq Relays Ltd...
Page 67 Direction of reactive power is divided in to four quadrants. Reactive power may be inductive or capacitive on both forward and reverse direction. Reactive power quadrant can be indicated simply by using Tan (φ) together with Cos(φ). Tangent phi is calculated according the following formula: © Arcteq Relays Ltd...
Page 68 Description 0:Disabled EP meas 3ph 0:Disabled Enable active energy measurement. 1:Enabled 0:Disabled EQ meas 3ph 0:Disabled Enable reactive energy measurement. 1:Enabled 0:Mega E 3ph M or k 0:Mega Measured energy in kilo –or mega values. 1:Kilo © Arcteq Relays Ltd...
Page 69 Table. 5.2.3. - 37. DC 1…4 Pulse out settings Name Range Step Default Description DC 1…4 Pulse out OUT1…OUTx None selected Controlled physical outputs selection. Power measurements Following power calculations are available when voltage and current cards are available. © Arcteq Relays Ltd...
Page 70 Phase L3 reactive power -1x10 …1x10 kVar L3 Tan(phi) 0.0001 Phase L3 active power direction -1x10 …1x10 L3 Cos(phi) 0.0001 Phase L3 reactive power direction -1x10 …1x10 L3 PF 0.0001 Phase L3 power factor -1x10 …1x10 © Arcteq Relays Ltd...
Page 71 Phase L1 total imported reactive inductive energy kVarh/MVarh kVarh/MVarh L1 Exp/Imp 0.01 Sum of imported and exported phase L1 reactive -1x10 …1x10 React.Ind.E.bal.MVarh kVarh/MVarh inductive energy kVarh/MVarh Table. 5.2.3. - 44. Phase L2 energy calculation Name Range Step Description © Arcteq Relays Ltd...
Page 72 Example for power calculation is represented here. Both wiring methods line to line –and line to neutral are checked with same signal injection. Voltage scaling is set to 20000:100V and current scaling is set to 1000:5A. Voltages (Line to neutral): Currents: =40.825V, 45.00° =2.500V, 0.00° =61.481V, -159.90° =2.500V, -120.00° © Arcteq Relays Ltd...
Page 73 L2 Tan -0.83 L3 Tan 0.11 3PH Tan 0.00 L1 Cos 0.71 L2 Cos 0.77 L3 Cos 0.99 3PH Cos 0.87 Voltages (Line to line): Currents: =100.00V, 30.00° =2.500V, 0.00° =100.00V, -90.00° =2.500V, -120.00° =2.500V, 120.00° © Arcteq Relays Ltd...
Page 74: Frequency Tracking And Scaling
5% in the measured phase currents. From the gure can also be seen that when the frequency is tracked the measurement accuracy is about -0.2% - 0.1% error in the whole frequency range when the sampling is adjusted according to the detected system frequency. © Arcteq Relays Ltd...
Page 75 FFT calculation has always whole power cycle in the buffer. Further improvement for the achieved measurement accuracy is the Arcteq patented method of calibrating of the analog channels against 8 system frequency points for both, magnitude and angle. This frequency dependent correction compensates the used measurement hardware frequency dependencies.
Page 76 When this parameter is enabled it is possible for the user to force Enable stage protection, control and monitoring functions to different statuses like 0:Disabled 0:Disabled forcing START/TRIP. This is done in the function’s info-page with Status force 1:Enabled to parameter. © Arcteq Relays Ltd...
Page 77: Protection Functions
5.4. Protection functions 5.4.1. General properties of a protection function Following flowchart is describes the basic structure of any protection function. Basic structure is composed of analog measurement value comparison to the pick-up values and operating time characteristics. © Arcteq Relays Ltd...
Page 78 Instruction manual Version: 2.00 Protection function is run in a completely digital environment with protection CPU microprocessor which also processes the analog signals transferred to digital form. Figure. 5.4.1. - 68. Principle diagram of protection relay platform. © Arcteq Relays Ltd...
Page 79 The pick-up activation of the function is not directly equal to start-signal generation of the function. Start signal is allowed if blocking condition is not active. Figure. 5.4.1. - 70. Measurement range in relation to the nominal current. © Arcteq Relays Ltd...
Page 80 IDMT mode De nite (Min) operating time delay is also in use de ning the minimum time for protection tripping. If this function is not desired this parameter should be set to 0 seconds. © Arcteq Relays Ltd...
Page 81 Moderately Inverse, Very Inverse, Extremely Inverse characteristics. Param IEEE MI IEEE selection allows the tuning of the constants A, B and C which allows IEEE VI setting of characteristics following the same formula as the IEEE curves IEEE EI mentioned here. Param © Arcteq Relays Ltd...
Page 82 Constant B for IEC/IEEE characteristics. Setting is active and visible when Delay Type is selected to IDMT. 0.0000… 0.0001 0.0200 250.0000 Constant C for IEEE characteristics. Figure. 5.4.1. - 72. Inverse operating time formulas for IEC and IEEE standards. © Arcteq Relays Ltd...
Page 83 AQ-F213 Instruction manual Version: 2.00 Figure. 5.4.1. - 73. De nite time operating characteristics. © Arcteq Relays Ltd...
Page 84 AQ-F213 Instruction manual Version: 2.00 Figure. 5.4.1. - 74. IEC prede ned characteristics NI, VI, LTI and EI © Arcteq Relays Ltd...
Page 85 AQ-F213 Instruction manual Version: 2.00 Figure. 5.4.1. - 75. IEEE ANSI prede ned characteristics EI, LTI, NI and VI © Arcteq Relays Ltd...
Page 86 AQ-F213 Instruction manual Version: 2.00 Figure. 5.4.1. - 76. IEEE prede ned characteristics EI, MI and VI © Arcteq Relays Ltd...
Page 87 IEC or IEEE standards. These functions are Overcurrent stages, Residual overcurrent stages, Directional overcurrent stages and Directional residual overcurrent stages. The setting parameters and their ranges are documented in the function blocks respective chapters. © Arcteq Relays Ltd...
Page 88 Time calculation characteristics selection. If activated the operating time during release counter is continuing until set release time even the pick-up element is reset. time Behavior of stages with different release time con gurations are presented in the following gures. © Arcteq Relays Ltd...
Page 89 AQ-F213 Instruction manual Version: 2.00 Figure. 5.4.1. - 78. No delayed pick-up release. Figure. 5.4.1. - 79. Delayed pick-up release, delay counter is reset at signal drop-off. © Arcteq Relays Ltd...
Page 90 Figure. 5.4.1. - 81. Delayed pick-up release, delay counter value is decreasing during the release time. Resetting characteristics can be set according to the application. Default setting is delayed with 60 ms and the time calculation is held during the release time. © Arcteq Relays Ltd...
Page 91: Non-Directional Overcurrent I> (50/51)
START and TRIP events simultaneously with equivalent time stamp. Time stamp resolution is 1ms. Function provides also cumulative counters for START, TRIP and BLOCKED events. In the following gure is presented the simpli ed function block diagram of the NOC function. © Arcteq Relays Ltd...
Page 92 Table. 5.4.2. - 54. General settings of the function Name Description Range Step Default 1:Disabled Setting control from Activating this parameter permits changing the pick-up level of the 1:Disabled comm bus protection stage via SCADA. 2:Allowed © Arcteq Relays Ltd...
Page 93 User settable variables are binary signals from the system. Blocking signal needs to reach the IED minimum of 5 ms before the set operating delay has passedfor blocking to be active in time. © Arcteq Relays Ltd...
Page 94 Start OFF 1346 NOC2 Trip ON 1347 NOC2 Trip OFF 1348 NOC2 Block ON 1349 NOC2 Block OFF 1350 NOC2 Phase A Start On 1351 NOC2 Phase A Start Off 1352 NOC2 Phase B Start On © Arcteq Relays Ltd...
Page 95 1480 NOC4 Phase B Start On 1481 NOC4 Phase B Start Off 1482 NOC4 Phase C Start On 1483 NOC4 Phase C Start Off 1484 NOC4 Phase A Trip On 1485 NOC4 Phase A Trip Off © Arcteq Relays Ltd...
Page 96: Non-Directional Earth Fault I0> (50N/51N)
START and TRIP events simultaneously with equivalent time stamp. Time stamp resolution is 1ms. Function provides also cumulative counters for START, TRIP and BLOCKED events. In the following gure is presented the simpli ed function block diagram of the NEF function. © Arcteq Relays Ltd...
Page 97 2:Allowed 1:RMS De nes which available measured magnitude is used by the 2:TRMS Measured magnitude 1:RMS function 3:Peak-to- peak 1:I01 Input selection De nes which measured residual current is used by the function. 2:I02 1:I01 3:I0Calc © Arcteq Relays Ltd...
Page 98 Operating time characteristics for trip and reset This function supports de nite time delay (DT) and inverse de nite minimum time (IDMT) delay types. For detailed information on these delay types refer to chapter General properties of a protection function. © Arcteq Relays Ltd...
Page 99 Fault Prefault Trip time Used Date & Time code type current current current remaining dd.mm.yyyy 1664-1861 A-G-R… Start average Trip -20 ms Start -200 ms 0ms -1800s 1 - 8 hh:mm:ss.mss Descr. C-G-F current averages averages © Arcteq Relays Ltd...
Page 100: Directional Overcurrent Idir> (67)
1ms. Function provides also cumulative counters for START, TRIP and BLOCKED events. Simpli ed function block diagram of DOC function is presented in the gure below. Figure. 5.4.4. - 83. Simpli ed function block diagram of the DOC function. © Arcteq Relays Ltd...
Page 101 Table. 5.4.4. - 66. General settings of the function Name Description Range Step Default 1:RMS Measured De nes which available measured magnitude is used by the 2:TRMS 1:RMS magnitude function. 3:Peak-to- peak © Arcteq Relays Ltd...
Page 102 Pick-up center -180.0…180.0° 0.1° 0° Angle Pick-up area ±1.0…170.0° 0.1° ±88° The pick-up activation of the function is not directly equal to start-signal generation of the function. Start signal is allowed if blocking condition is not active. © Arcteq Relays Ltd...
Page 103 User settable variables are binary signals from the system. Blocking signal needs to reach the IED minimum of 5 ms before the set operating delay has passedfor blocking to be active in time. © Arcteq Relays Ltd...
Page 104 Voltage measurable, Blocking Off 4872 DOC2 Measuring live angle On 4873 DOC2 Measuring live angle Off 4874 DOC2 Using voltmem On 4875 DOC2 Using voltmem Off 4928 DOC3 Start ON 4929 DOC3 Start OFF 4930 DOC3 Trip ON © Arcteq Relays Ltd...
Page 105 4800-4997 Descr. Fault type L1-G...L1-L2-L3 Trigger current Start average current Fault current Trip -20ms averages Prefault current Start -200ms averages Trip time remaining 0 s ... 1800 s Used SG 1...8 Setting group Operating angle 0...250 deg © Arcteq Relays Ltd...
Page 106: Directional Earth Fault I0Dir> (67N)
START and TRIP events simultaneously with equivalent time stamp. Time stamp resolution is 1ms. Function provides also cumulative counters for START, TRIP and BLOCKED events. Simpli ed function block diagram of the DEF function is presented in the gure below. © Arcteq Relays Ltd...
Page 107 Selection of the used AI channel is made with a setting parameter. In all possible input channel variations pre-fault condition is presented with 20 ms averaged history value from -20 ms of Start or Trip event. © Arcteq Relays Ltd...
Page 108 I0Cos&I0Sin Broadrange mode ±45.0… Angle Trip area size (Grounded network) 0.1° ±88° 135.0° Angle offset Protection area direction (Grounded network) 0.0…360.0° 0.1° 0.0° Angle blinder Io angle blinder (Petersen coil grounded) -90.0…0.0° 0.1° -90° © Arcteq Relays Ltd...
Page 109 There are many bene ts with Petersen coil grounded network. Amount of automatic reclosing is highly decreased and therefore maintenance of breakers is diminished. Arc faults die on their own and cables and equipment suffer less damage. In emergency situations line with earth fault can be used for certain time. © Arcteq Relays Ltd...
Page 110 –or over compensated. Directly or small impedance grounded network Figure. 5.4.5. - 88. Angle tracking of DEF function in grounded network model. © Arcteq Relays Ltd...
Page 111 Lastly, in a compensated network protection, the relay with traditional algorithms may sporadically detect an earth-fault in a long healthy feeder due to CT errors. For all these reasons, Arcteq has developed an improved alternative to these traditional directional earth fault protections.
Page 112 The measured voltage in the chosen voltage channel. Expected operating time Displays the expected operating time in case a fault occurs Time remaining to trip When the relay has picked up and is counting time towards pick-up © Arcteq Relays Ltd...
Page 113 Table. 5.4.5. - 77. Event codes of the DEF-function instances. Event Number Event channel Event block name Event Code Description 5184 DEF1 Start ON 5185 DEF1 Start OFF 5186 DEF1 Trip ON 5187 DEF1 Trip OFF 5188 DEF1 Block ON 5189 DEF1 Block OFF © Arcteq Relays Ltd...
Page 114 DEF function register content. This information is available in 12 last recorded events for all provided instances separately. Table. 5.4.5. - 78. Register content Column name Content description Event Code dd.mm.yyyy hh:mm:ss.mss © Arcteq Relays Ltd...
Page 115: Current Unbalance I2> (46)
START and TRIP events simultaneously with equivalent time stamp. Time stamp resolution is 1ms. Function provides also cumulative counters for START, TRIP and BLOCKED events. In the following gure is presented the simpli ed function block diagram of the CUB function. © Arcteq Relays Ltd...
Page 116 Name Description Range Step Default Measured De nes if the ratio between positive and negative sequence currents are 1:I2pu 1:I2pu magnitude supervised or if only negative sequence is used in unbalance detection. 2:I2/I1 © Arcteq Relays Ltd...
Page 117 Im (dependent time characteristics). For the IDMT operation is available IEC and IEEE/ANSI standard characteristics as well as user settable parameters. Uniquely to current unbalance protection there is also “Curve2” delay available which follows the formula below: © Arcteq Relays Ltd...
Page 118 Very Inverse, Extremely Inverse, Short Time Inverse, Short Time characteristics Extremely Inverse characteristics. Param selection allows the IEEE tuning of the constants A, B and C which allows setting of characteristics following the same formula as the IEEE curves STEI mentioned here. Param © Arcteq Relays Ltd...
Page 119 Table. 5.4.6. - 83. Event codes of the CUB-function instances. Event Number Event channel Event block name Event Code Description 2048 CUB1 Start ON 2049 CUB1 Start OFF 2050 CUB1 Trip ON 2051 CUB1 Trip OFF © Arcteq Relays Ltd...
Page 120: Harmonic Overcurrent Ih> (50H/51H/68H)
Outputs of the function are Start Trip and Blocked signals. Setting parameters are static inputs for the function which are changed only by user input in the setup phase of the function. Non directional overcurrent function utilizes total of eight separate setting groups which can be selected from one common source. © Arcteq Relays Ltd...
Page 121 RMS values of the harmonic component or harmonic component percentage content compared to fundamental frequency RMS. -20ms averaged value of the selected magnitude is used for pre-fault data registering. Table. 5.4.7. - 85. Analogic magnitudes used by the HOC function. Time Signal Description base © Arcteq Relays Ltd...
Page 122 Measurement Selection of the measurement input either phase currents or residual IL1/IL2/IL3 input currents inputs. Each HOC function instance provides these same settings. Multiple instances of HOC can be set to operate independently of each other. © Arcteq Relays Ltd...
Page 123 In the function is available 12 last registers where the triggering event of the function (start, trip or blocked) is recorded with time stamp and process data values. © Arcteq Relays Ltd...
Page 124: Circuit Breaker Failure Protection Cbfp (50Bf)
CBFP function can be used for Retrip to the failing breaker and if the Retrip fails the upstream breaker can be tripped by using CBFP output. Retrip functionality can be disabled if the breaker does not have two open coils. © Arcteq Relays Ltd...
Page 125 Table. 5.4.8. - 90. Analogic magnitudes used by the CBFP function. Signal Description Time base IL1RMS Fundamental RMS measurement of phase L1/A current 5 ms IL2RMS Fundamental RMS measurement of phase L2/B current 5 ms © Arcteq Relays Ltd...
Page 126 The pick-up activation of the function is not directly equal to start-signal generation of the function. Start signal is allowed if blocking condition is not active. From binary signals the activation of the pick- up is immediate when the monitored signal is activated. © Arcteq Relays Ltd...
Page 127 CBFP start timer, this setting de nes how long the starting condition has to last CBFP 0.005s 0.200s 1800.000s before CBFP signal is activated. A few typical cased of CBFP are presented in the following gures. © Arcteq Relays Ltd...
Page 128 Retrip is wired in parallel from its own output contact in the IED to the second tripping coil of the circuit breaker. CBFP signal to upstream is wired normally from its output contact in the IED to the upstream / incomer breaker. In following are few operational cases presented regarding to the different applications. © Arcteq Relays Ltd...
Page 129 CBFP will be issued to upstream breaker. If the primary protection function clears the fault e.g. the circuit breaker operates normally the counters for retrip and CBFP are reset immediately the current is measured below the threshold settings. © Arcteq Relays Ltd...
Page 130 This con guration allows the CBFP to be controlled on current based functions only and other function trips can be excluded from the CBFP functionality. © Arcteq Relays Ltd...
Page 131 This con guration allows the CBFP to be controlled on current based functions with added security from the current monitoring of the CBFP function and other function trips can be also included to the CBFP functionality. © Arcteq Relays Ltd...
Page 132 Probably the most common application is the case where the circuit breaker trip coil is controlled with the IED trip output and CBFP is controlled with one dedicated CBFP contact. In following are few operational cases presented regarding to the different applications and settings of the CBFP function. © Arcteq Relays Ltd...
Page 133 CBFP will be issued to upstream breaker. If the primary protection function clears the fault e.g. the circuit breaker operates normally the counter for CBFP are reset immediately the current is measured below the threshold settings. © Arcteq Relays Ltd...
Page 134 This con guration allows the CBFP to be controlled on current based functions only and other function trips can be excluded from the CBFP functionality. © Arcteq Relays Ltd...
Page 135 This con guration allows the CBFP to be controlled on current based functions with added security from the current monitoring of the CBFP function and other function trips can be also included to the CBFP functionality. © Arcteq Relays Ltd...
Page 136 CBFP for the upstream breaker tripping. In this example no retripping is utilized and CBFP signal is used for the incomer trip from the outgoing breaker trip signal. The trip signal can be transported in between of the IED:s also by using GOOSE messages if so wanted. © Arcteq Relays Ltd...
Page 137 Table. 5.4.8. - 94. Event codes of the CBFP function instance Event Number Event channel Event block name Event Code Description 2816 CBF1 Start ON 2817 CBF1 Start OFF 2818 CBF1 Retrip ON 2819 CBF1 Retrip OFF 2820 CBF1 CBFP ON © Arcteq Relays Ltd...
Page 138: Restricted Earth Fault / Cable End Differential (Ref) I0D> (87N)
ON/OFF events to the common event buffer from each of the two output signals. Time stamp resolution is 1ms. Function provides cumulative counters for REF Trip and BLOCKED events. In the following gure is presented the simpli ed function block diagram of the REF function. © Arcteq Relays Ltd...
Page 139 The following general settings de ne the general behavior of the function. These settings are static i.e. it is not possible change them with setting group switching. Table. 5.4.9. - 97. General settings of the REF stage (not SG selectable) Name Range Step Default Description © Arcteq Relays Ltd...
Page 140 The pick-up activation of the function is not directly equal to trip-signal generation of the function. Trip signal is allowed if blocking condition is not active. In the following gure is presented the differential characteristics with default settings. Figure. 5.4.9. - 106. Differential characteristics for REF function with default settings. © Arcteq Relays Ltd...
Page 141 User settable variables are binary signals from the system. Blocking signal needs to reach the IED minimum of 5 ms before the set operating delay has passedfor blocking to be active in time. typical applications for this function are presented in the following gures. © Arcteq Relays Ltd...
Page 142 In case of outside earth fault the circulating residual current in the faulty phase winding is not causing tripping because the comparison of measured starpoint current and calculated residual current differential is close to zero. © Arcteq Relays Ltd...
Page 143 To main event buffer it is possible to select status “On” or “Off” messages. 12 last registers are available in the function where the triggering event of the function (Trip activated or blocked) is recorded with time stamp and process data values. © Arcteq Relays Ltd...
Page 144: Overvoltage U> (59)
START and TRIP events simultaneously with equivalent time stamp. Time stamp resolution is 1ms. Function provides also cumulative counters for START, TRIP and BLOCKED events. In the following gure is presented the simpli ed function block diagram of the OV function. © Arcteq Relays Ltd...
Page 145 Table. 5.4.10. - 102. Pick-up characteristics setting Name Description Range Step Default 0: All faults Operation mode Pick-up criteria selection 1: P-P faults 0:All faults 2: Only 3P faults Uset Pick-up setting 50.00 … 150.00%Un 0.1V 120%Un © Arcteq Relays Ltd...
Page 146 (independent time characteristics). Inverse de nite minimum time (IDMT) will give the trip signal in time which is in relation of the set pick-up voltage Uset and measured voltage Um (dependent time characteristics). The IDMT function follows this formula: © Arcteq Relays Ltd...
Page 147 When disabled the operating time counter is release time reset directly after the pick-up element reset. © Arcteq Relays Ltd...
Page 148 5568 Start ON 5569 Start OFF 5570 Trip ON 5571 Trip OFF 5572 Block ON 5573 Block OFF 5632 Start ON 5633 Start OFF 5634 Trip ON 5635 Trip OFF 5636 Block ON 5637 Block OFF © Arcteq Relays Ltd...
Page 149: Undervoltage U< (27)
START and TRIP events simultaneously with equivalent time stamp. Time stamp resolution is 1ms. Function provides also cumulative counters for START, TRIP and BLOCKED events. In the following gure is presented the simpli ed function block diagram of the UV function. © Arcteq Relays Ltd...
Page 150 0.00 … 0.01%Un 10%Un setting in the next chapter. 100.00%Un The pick-up activation of the function is not directly equal to start-signal generation of the function. Start signal is allowed if blocking condition is not active. © Arcteq Relays Ltd...
Page 151 If the blocking signal is not activated when the pick-up element activates, a START signal is generated and the function proceeds to the time characteristics calculation. © Arcteq Relays Ltd...
Page 152 60.00s Time dial / multiplier setting for IDMT characteristics. Setting is active and visible when Delay Type is selected to IDMT. IDMT 0.01… 0.01s 1.00s Multiplier 25.00s IDMT time multiplier in the Um/Uset power. © Arcteq Relays Ltd...
Page 153 5700 Block ON 5701 Block OFF 5702 Undervoltage Block On 5703 Undervoltage Block Off 5760 Start ON 5761 Start OFF 5762 Trip ON 5763 Trip OFF 5764 Block ON 5765 Block OFF 5766 Undervoltage Block On © Arcteq Relays Ltd...
Page 154: Neutral Voltage U0> (59N)
In case line to line voltage of system is 100 V secondary the earth fault is 100% of Un when calculated zero sequence voltage reaches 100/√3 V = 57.74 V. Below is presented the formula for symmetric component calculation and therefore to zero sequence voltage calculation. See zero sequence calculation examples below. © Arcteq Relays Ltd...
Page 155 IDMT. For IDMT operation IEC and ANSI standard time delays are supported as well as custom parameters. The operational logic consists of input magnitude processing, input magnitude selection, threshold comparator, block signal check, time delay characteristics and output processing. © Arcteq Relays Ltd...
Page 156 U0 measurement input selection, pick-up setting and the voltage transformer settings. Expected Displays the expected operating time in case a fault occurs operating time Time remaining to When the relay has picked up and is counting time towards pick-up trip © Arcteq Relays Ltd...
Page 157 User settable variables are binary signals from the system. Blocking signal needs to reach the IED minimum of 5 ms before the set operating delay has passedfor blocking to be active in time. © Arcteq Relays Ltd...
Page 158 Continue time calculation Time calculation characteristics selection. If activated the operating time during release counter is continuing until set release time even the pick-up element is reset. time © Arcteq Relays Ltd...
Page 159 In the register of the NOV function is recorded start, trip or blocked “On” event process data. In the table below is presented the structure of NOV function register content. This information is available in 12 last recorded events for all provided instances separately. © Arcteq Relays Ltd...
Page 160: Sequence Voltage U1/U2>/<(59P/27P/47)
Below is presented the formula for symmetric component calculation and therefore to VUB positive sequence calculation. See positive sequence calculation examples below. Figure. 5.4.13. - 118. Positive sequence component vector examples. Earth fault in isolated network. © Arcteq Relays Ltd...
Page 161 Close distance short circuit between phases 1 and 3. Negative sequence calculation Below is presented the formula for symmetric component calculation and therefore to NSV calculation. See negative sequence calculation examples below. Figure. 5.4.13. - 119. Negative sequence component vector examples. © Arcteq Relays Ltd...
Page 162 Figure. 5.4.13. - 120. Simpli ed function block diagram of the sequence voltage function. Measured input values The function block uses analog voltage measurement values. Function block always utilizes fundamental frequency RMS values. -20 ms averaged value of the selected magnitude is used for the pre-fault data registering. © Arcteq Relays Ltd...
Page 163 Under block setting Ublk the blocking will persist until all of the line voltages have risen over the U< pick-up setting. Please see the image for a visualization of this function. If block level is set to zero, blocking is not in use. © Arcteq Relays Ltd...
Page 164 From blocking of the function a HMI display event as well as time stamped blocking event with information of the startup voltage values and fault type is issued. © Arcteq Relays Ltd...
Page 165 8450 VUB3 Trip ON 8451 VUB3 Trip OFF 8452 VUB3 Block ON 8453 VUB3 Block OFF 8512 VUB4 Start ON 8513 VUB4 Start OFF 8514 VUB4 Trip ON 8515 VUB4 Trip OFF 8516 VUB4 Block ON © Arcteq Relays Ltd...
Page 166: Over- And Underfrequency F>/< (81O/81U)
START and TRIP events simultaneously with equivalent time stamp. Time stamp resolution is 1ms. Function provides also cumulative counters for START, TRIP and BLOCKED events. In the following gure is presented the simpli ed function block diagram of the FRQV function. © Arcteq Relays Ltd...
Page 167 Reset ratio of 97 % is inbuilt in the function and is always related to the pick-up value. Table. 5.4.14. - 128. Pick-up characteristics setting Name Description Range Step Default fset> fset>> Pick-up setting 10.00…80.00Hz 0.01Hz 51Hz fset>>> fset>>>> © Arcteq Relays Ltd...
Page 168 Trip ON 6339 FRQV1 f> Trip OFF 6340 FRQV1 f>> Start ON 6341 FRQV1 f>> Start OFF 6342 FRQV1 f>> Trip ON 6343 FRQV1 f>> Trip OFF 6344 FRQV1 f>>> Start ON 6345 FRQV1 f>>> Start OFF © Arcteq Relays Ltd...
Page 169 FRQV1 f<<< Block OFF 6382 FRQV1 f<<<< Block ON 6383 FRQV1 f<<<< Block OFF In the table below is presented the structure of FSP function register content. This information is available in 12 last recorded events. © Arcteq Relays Ltd...
Page 170: Rate-Of-Change Of Frequency Protection Df/Dt (81R)
Frequency protection utilizes total of eight separate setting groups which can be selected from one common source. The function can operate on instant or time delayed mode. © Arcteq Relays Ltd...
Page 171 The f>/< limit value is used to block the operation of the function near the nominal frequency. Table. 5.4.15. - 132. Pick-up characteristics setting Name Description Range Step Default df/dt>/<(1…8)pick-up Pick-up setting 0.01…10.00Hz/s 0.01Hz/s 0.2 Hz/s © Arcteq Relays Ltd...
Page 172 </> (2) Start ON 6597 DFT1 df/dt </> (2) Start OFF 6598 DFT1 df/dt </> (2) Trip ON 6599 DFT1 df/dt </> (2) Trip OFF 6600 DFT1 df/dt </> (3) Start ON 6601 DFT1 df/dt </> (3) Start OFF © Arcteq Relays Ltd...
Page 173 6638 DFT1 df/dt </> (8) Block ON 6639 DFT1 df/dt </> (8) Block OFF In the table below is presented the structure of FSP function register content. This information is available in 12 last recorded events. © Arcteq Relays Ltd...
Page 174: Over Power P> (32O)
Three phase active power value is used for the function block. For pre-fault data registering -20ms averaged value is used. If the protection relay has more than one CT module parameter Measured side determines which current measurement is used for the power measurement. © Arcteq Relays Ltd...
Page 175 In the function is available 12 last registers where the triggering event of the function (start, trip or blocked) is recorded with time stamp and process data values. © Arcteq Relays Ltd...
Page 176: Under Power P< (32U)
START and TRIP events simultaneously with equivalent time stamp. Time stamp resolution is 1ms. Function provides also cumulative counters for START, TRIP and BLOCKED events. In the following gure is presented the simpli ed function block diagram of the UPW function. © Arcteq Relays Ltd...
Page 177 Pset< and measured magnitude (Pm). Reset ratio of 97 % is inbuilt in the function and is always related to the Pset< value. Figure. 5.4.17. - 127. Activation and deactivation characteristics of the Under Power functions Low Power Blocking. © Arcteq Relays Ltd...
Page 178 Table. 5.4.17. - 141. Event codes of the UPW function. Event Number Event channel Event block name Event Code Description 6464 UPW1 Start ON 6465 UPW1 Start OFF 6466 UPW1 Trip ON 6467 UPW1 Trip OFF © Arcteq Relays Ltd...
Page 179: Reverse Power Pr (32R)
1ms. Function provides also cumulative counters for START, TRIP and BLOCKED events. In the following gure is presented the simpli ed function block diagram of the RPW function. Figure. 5.4.18. - 128. Simpli ed function block diagram of the RPW function. © Arcteq Relays Ltd...
Page 180 5 ms before the set operating delay has passedfor blocking to be active in time. Operating time characteristics for trip and reset This function supports de nite time delay (DT). For detailed information on this delay type refer to chapter General properties of a protection function. © Arcteq Relays Ltd...
Page 181: Vector Jump Protection (78)
Vector jump function (VJP) is used for instant tripping and has only one operating instance VJP1. Vector jump function has algorithm which follows the samples of chosen measured voltages (64samples/cycle). Used reference voltage can be all or any phase- to phase or phase- to neutral voltage. © Arcteq Relays Ltd...
Page 182 Table. 5.4.19. - 147. Analogic magnitudes used by the VJP function. Signal Description Time base Measured Line-to-Line voltage U 5 ms Measured Line-to-Line voltage U 5 ms Measured Line-to-Line voltage U 5 ms Measured Line-to-Neutral voltage U 5 ms © Arcteq Relays Ltd...
Page 183 Δαset and measured magnitude (Δαm) per all selected voltages. VJP stage trip signal lasts for 20 milliseconds and resets automatically after the time has passed. The setting value is common for all measured amplitudes those are used. © Arcteq Relays Ltd...
Page 184 In the function, there are 12 last registers available. The triggering event of the function (alarm, trip or blocked) is recorded with time stamp and process data values. Table. 5.4.19. - 149. Event codes of the VJP Event Number Event channel Event block name Event Code Description 9920 VJP1 Block On © Arcteq Relays Ltd...
Page 185: Line Thermal Overload Protection Tf> (49F)
= Temperature correction factor either from linear approximation or settable 10 point thermal capacity curve. τ = Thermal time constant of the protected object (in minutes) e = Euler’s number t = Calculation time step in seconds (0.005s) © Arcteq Relays Ltd...
Page 186 RTD sensor for the measurement. When the ambient temperature of the protected object is stable it can be set manually (e.g. in case of ground dug cables). © Arcteq Relays Ltd...
Page 187 = Ambient temperature correction factor for the minimum temperature = Ambient temperature reference (can be set in ̊ C or ̊ F , the temperature in which the given manufacturer presumptions apply and the temperature correction factor is 1.0) © Arcteq Relays Ltd...
Page 188 10 pairs of temperature – correction factor pairs. Figure. 5.4.20. - 134. Example of the ground temperature and correction coef cient. In the manufacturer given data the temperature coef cient may be informed as in gure above. © Arcteq Relays Ltd...
Page 189 This information is usually provided by the cable manufacturer. For cable the initial data may be as follows (example data from Prysmian cables datasheet). © Arcteq Relays Ltd...
Page 190 In addition to the ampere-temperature values equally important information is the continuous current capacity presumptions (e.g. in which conditions the given values apply). In following gure the presumptions are given for example to Prysmian cables. © Arcteq Relays Ltd...
Page 191 If the installation conditions vary from the presumption conditions, manufacturers may give additional information of how the current carrying capacity should be corrected in order to match changed conditions. Figure. 5.4.20. - 138. Correction coef cients for the current carrying capacity given by the manufacturer (Prysmian). © Arcteq Relays Ltd...
Page 192 As an example of the k (service factor, current carrying capacity) factor importance let’s calculate cable installation with correct k factor and without setting it to correct value. Initial data for the set-up of the thermal image: © Arcteq Relays Ltd...
Page 193 In = 680 A, Tmax = 90 ̊ C , Tamb = 15 ̊ C , Tref = 15 ̊ C and k = 1.0 Figure. 5.4.20. - 139. Thermal image response with nominal load when the installation is according to the presumptions. © Arcteq Relays Ltd...
Page 194 71.4 kA and its insulation is XLPE. The cables screen circuit is open and the laying of the cable is flat. Its current carrying capacity is 575A in 65 ̊ C and 680A in 90 ̊ C . Reference temperature for ground installation is 15 ̊ C . Cable thermal time constant is 183.8 min. © Arcteq Relays Ltd...
Page 195 If in this case the k factor would not been set the thermal image would show about 68 ̊ C temperature when it in reality would be 96 ̊ C . © Arcteq Relays Ltd...
Page 196 550A current instead of the initial data given current of 680A. Estimating trip time Calculated effective nominal current: × tamb × I , where fact fact is the service factor fact tamb is the ambient temperature factor fact © Arcteq Relays Ltd...
Page 197 ON/OFF events to the common event buffer from each of the two output signal. Time stamp resolution is 1ms. Function provides also cumulative counters for TOLF Trip, Alarm 1, Alarm 2, Inhibit and BLOCKED events. In the following gure is presented the simpli ed function block diagram of the TOLF function. © Arcteq Relays Ltd...
Page 198 Time constant setting. This time constant is used for 0.1… tau (t const) 0.1min 10.0min heating and cooling of the protected object. Setting is 500.0min visible if Set or estimate tau setting is selected to “Set”. © Arcteq Relays Ltd...
Page 199 “Linear est.” 0.01… Temperature correction factor for minimum ambient temperature k at min amb temp 0.01xIn 1.00xIn 5.00xIn setting. Setting is visible if Ambient lin. or curve is set to “Linear est.” © Arcteq Relays Ltd...
Page 200 If the blocking signal is not activated when the pick-up element activates, a Trip signal is generated and the function proceeds to the time characteristics calculation. © Arcteq Relays Ltd...
Page 201 - TF> Alarm 2 time to rel.: Time to theta to reach under Alarm 2 limit when cooling - TF> Inhibit time to rel.: Time to theta to reach under Inhibit limit when cooling Table. 5.4.20. - 159. Counters Name Description / values © Arcteq Relays Ltd...
Page 202: Voltage Memory Function
The determination is made by comparing the angle between the operating quantity (zone/trip area) to actual measured quantity. The function will produce an output in case required terms are met. © Arcteq Relays Ltd...
Page 203 5 ms IL3RMS Fundamental RMS measurement of phase L3/C current 5 ms Fundamental RMS measurement of voltage U 5 ms Fundamental RMS measurement of voltage U 5 ms Fundamental RMS measurement of voltage U 5 ms © Arcteq Relays Ltd...
Page 204 50/60Hz, there could be an error in current magnitude and angle measurement. To minimize errors, it is preferable that while voltages are gone, it is better to measure frequency, and to also perform protection-based sampling from the current. © Arcteq Relays Ltd...
Page 205: Arc Fault Protection Iarc>/I0Arc>(50Arc/50Narc)
This delay can be avoided by using arc protection. To extent the speed of arc protection operation arc protection card has high speed output as well to give tripping signal faster. © Arcteq Relays Ltd...
Page 206 Arc protection card has four sensor channels. Up to three arc point sensors may be connected to each channel. Sensor channels support Arcteq AQ-01 (light sensing) and AQ-02 (pressure and light sensing) units. Optionally protection function can be applied with phase or residual current condition.
Page 207 Example scheme setting The following examples enables better understanding of setting up the arc protection function. In the following cases AQ-101 models are used to extend the protection of Zone2 and to protect each outgoing feeder (Zone3). © Arcteq Relays Ltd...
Page 208 AQ-100 series units to AQ-200 series arc protection card to prevent the pulses from activating ArcB1. Next example is the same as in the rst one but this time each outgoing feeder has AQ-2xx protection relay instead of AQ-101 arc protection relay. © Arcteq Relays Ltd...
Page 209 Arc protection uses sample based current measurement. If required number of samples is found over the setting limit current condition activates. It is possible to use either phase currents or residual current in the tripping decision. © Arcteq Relays Ltd...
Page 210 5 ms before the set operating delay has passedfor blocking to be active in time. Events & registers The ARC function generates events and registers from the status changes of start, trip and blocked. To main event buffer it’s possible to select status “On” or “Off” messages. © Arcteq Relays Ltd...
Page 211 4766 ARC1 Channel 2 Pressure On 4767 ARC1 Channel 2 Pressure Off 4768 ARC1 Channel 3 Light On 4769 ARC1 Channel 3 Light Off 4770 ARC1 Channel 3 Pressure On 4771 ARC1 Channel 3 Pressure Off © Arcteq Relays Ltd...
Page 212: Programmable Stage Pgx >/< (99)
“Activated”, the amount of programmable stages can be set anywhere between 1 to 10 depending on the need of the application. In the example below the amount of programmable stages have been set to 2, which results in PS1 and PS2 appearing. The inactive stages are hidden until they are activated. © Arcteq Relays Ltd...
Page 213 0.00866 multiplier inverses to 100%. This way pre-processed signal is easier to set, but it is also possible to just use scaling factor of 1.0 and set the desired pick-up limit as primary voltage. In the same way any chosen measurement value can be scaled to desired form. © Arcteq Relays Ltd...
Page 214 Any of the signals need to ful ll the pick-up condition. Each signal has their own pick-up setting. Mag3 4:Mag1 AND Mag2 AND All of the signals need to ful ll the pick-up condition. Each signal has their own pick-up setting. Mag3 © Arcteq Relays Ltd...
Page 215 4:Delta Relative change over time. If the measured signal changes more than the set relative pick-up value in 20ms, set(%) +/- > the comparison condition is ful lled. The condition is dependent on direction. © Arcteq Relays Ltd...
Page 216 IL2 13th harmonic in per unit value IL2 15th h. IL2 15th harmonic in per unit value IL2 17th h. IL2 17th harmonic in per unit value IL2 19th h. IL2 19th harmonic in per unit value Description © Arcteq Relays Ltd...
Page 217 I02 17th harmonic in per unit value I02 19th h. I02 19th harmonic in per unit value TRMS Description IL1 TRMS IL1 True RMS in per unit value IL2 TRMS IL2 True RMS in per unit value © Arcteq Relays Ltd...
Page 218 UL2 Primary voltage V UL3Mag UL3 Primary voltage V U0Mag U0 Primary voltage V Angles Description UL12Ang UL12 angle UL23Ang UL23 angle UL31Ang UL31 angle UL1Ang UL1 angle UL2Ang UL2 angle UL3Ang UL3 angle U0Ang U0 angle Calculated Description © Arcteq Relays Ltd...
Page 219 XL31Pri Reactance X L31 primary ohm RL12Sec Resistance R L12 secondary ohm XL12Sec Reactance X L12 secondary ohm RL23Sec Resistance R L23 secondary ohm XL23Sec Reactance X L23 secondary ohm RL31Sec Resistance R L31 secondary ohm © Arcteq Relays Ltd...
Page 220 Positive Reactance X secondary ohm ZSeqPri Positive Impedance Z primary ohm ZSeqSec Positive Impedance Z secondary ohm ZSeqAngle Positive Impedance Z angle GL1Pri Conductance G L1 primary mS BL1Pri Susceptance B L1 primary mS GL2Pri Conductance G L2 primary mS © Arcteq Relays Ltd...
Page 221 Outputs of the function are Start Trip and Blocked signals. Setting parameters are static inputs for the function which are changed only by user input in the setup phase of the function. Programmable stage utilize total of eight separate setting groups which can be selected from one common source. © Arcteq Relays Ltd...
Page 222 User settable variables are binary signals from the system. Blocking signal needs to reach the IED minimum of 5 ms before the set operating delay has passedfor blocking to be active in time. © Arcteq Relays Ltd...
Page 223 8601 PGS1 PS5 >/< Start OFF 8602 PGS1 PS5 >/< Trip ON 8603 PGS1 PS5 >/< Trip OFF 8604 PGS1 PS5 >/< Block ON 8605 PGS1 PS5 >/< Block OFF 8606 PGS1 reserved 8607 PGS1 reserved © Arcteq Relays Ltd...
Page 224 12 last recorded events for all provided instances separately. Table. 5.4.23. - 170. Register content. Trip time Used Date & Time Event code >/< Mag# Mag#/Set# remaining dd.mm.yyyy 8576-8637 Magnitude # Measured magnitude/Pick-up 0ms -1800s 1 - 8 hh:mm:ss.mss Descr. value setting © Arcteq Relays Ltd...
Page 225: Control Functions
2 is selected with signal and when it is released the setting group 1 shall not be automatically selected and the logic needs separate control to set the active setting group back to group 1. © Arcteq Relays Ltd...
Page 226 5:SG5 is speci cally controlled to “On” after force SG is disabled if there is no other 6:SG6 controls the last set SG shall remain active. 7:SG7 8:SG8 © Arcteq Relays Ltd...
Page 227 4161 SG2 Disabled 4162 SG3 Enabled 4163 SG3 Disabled 4164 SG4 Enabled 4165 SG4 Disabled 4166 SG5 Enabled 4167 SG5 Disabled 4168 SG6 Enabled 4169 SG6 Disabled 4170 SG7 Enabled 4171 SG7 Disabled 4172 SG8 Enabled © Arcteq Relays Ltd...
Page 228 4205 SG2 Active Off 4206 SG3 Active On 4207 SG3 Active Off 4208 SG4 Active On 4209 SG4 Active Off 4210 SG5 Active On 4211 SG5 Active Off 4212 SG6 Active On 4213 SG6 Active Off © Arcteq Relays Ltd...
Page 229 In addition to the direct connection below also additional logic can be added to the control similarly to the 1 wire control. By that way single wire loss will not effect to the correct setting group selection. © Arcteq Relays Ltd...
Page 230 In this example the CLPU function output is used for the automatic setting group change. Similarly to this application, any combination of the available signals in the relay database can be programmed to be used for in the setting group selection logic. © Arcteq Relays Ltd...
Page 231: Object Control And Monitoring (Obj)
Time stamp resolution is 1ms. Function provides also cumulative counters for Open and Close act and Open / Close Failed events. In the following gure is presented the simpli ed function block diagram of the OBJ function. © Arcteq Relays Ltd...
Page 232 Link to the physical or software binary input.“1” means that the opening of the object is blocked. Open Block Position indication can be done among binary inputs and protection stage signals by using IEC- Input 61850, GOOSE or logical signals. (SWx) © Arcteq Relays Ltd...
Page 233 CB is selected, settings for WD cart, position indication of the CB, object ready, use synchrocheck and control timings are available. The functionality of the selected object is presented in the table below. Table. 5.5.2. - 177. Object type selection Object type Functionality Description © Arcteq Relays Ltd...
Page 234 500.00s be used in the matrix or the logic editor. The pick-up activation of the function is not directly equal to start-signal generation of the function. Start signal is allowed if blocking condition is not active. © Arcteq Relays Ltd...
Page 235 Table. 5.5.2. - 179. Event codes of the OBJ function instances 1 – 5. Event block name Description OBJ 1...5 Object Intermediate OBJ 1...5 Object Open OBJ 1...5 Object Close OBJ 1...5 Object Bad OBJ 1...5 WD Intermediate © Arcteq Relays Ltd...
Page 236: Indicator Object Monitoring (Cin)
IEC-61850, GOOSE or logical signals. (SWx) Status change of the signals will always cause recorded event also in the indicators continuous status indications. Events can be enabled or disabled according to the application requirements. © Arcteq Relays Ltd...
Page 237: Auto-Reclosing 0 → 1 (79)
Majority of this type of faults can be cleared with high speed autoreclosing and the rest of the faults can be cleared with delayed autoreclosing by de-energizing the faulty line for a longer period of time. © Arcteq Relays Ltd...
Page 238 Also for lower voltage levels the breaker open- close-open cycle capacity gives restrictions for the minimum Dead Time setting while with higher voltage levels the de-ionizing time dictates the minimum Dead Time which makes possible a successful autoreclosing. © Arcteq Relays Ltd...
Page 239 Short circuit protection is used for interlocking of the autorecloser in case of clear short circuit fault in the line. Figure. 5.5.4. - 161. Example of signals assignment for autoreclosing sequences © Arcteq Relays Ltd...
Page 240 For this earth fault autoreclosing scheme directional earth fault protection Trip signal to operate was set as REQ2 starter which has Shot1 and Shot2 enabled with following settings. One rapid shot followed by time delayed shot is set for this scheme. © Arcteq Relays Ltd...
Page 241 5. Circuit Breaker is closed towards the fault which was not cleared by the Shot1 given non- energized time and I0Dir> stage picks up and starts to calculate operating time for trip. Close command is drop off after the breaker closed indication is received and the autorecloser starts to calculate Reclaim time. © Arcteq Relays Ltd...
Page 242 In this example fault persist for the high speed autoreclosing but is cleared by time delayed autoreclosing. Figure. 5.5.4. - 165. Settings for earth fault reclosing with two shots. This type of sequence represents 10-15% of all the faults in the medium voltage overhead line network. © Arcteq Relays Ltd...
Page 243 Autoreclosing reclaim time is running recloser will go directly to nal trip state and lock-out state. This behavior can be controlled with settings. Both of these reclaim times can be set to 0 when they are not needed. Autoreclosing will skip all timers set to 0. © Arcteq Relays Ltd...
Page 244 Recloser starts to calculate the Shot1 Dead Time for closing the breaker. 4. Dead Time for Shot1 is exceeded and autorecloser sends close request for the Object breaker, the close conditions are met and the breaker close command is sent to breaker close coil. © Arcteq Relays Ltd...
Page 245 / arcing times needs to be set accordingly. The main operating time settings of the protection should be longer than the values set to the autorecloser in order the state changes work properly for recloser. © Arcteq Relays Ltd...
Page 246 Running signals. Autorecloser enters to Lock-out state preventing further requests for reclosing. Circuit breaker is opened and I> Start signal is released. Simultaneously REQ1 signal is released and recloser is now in steady Lock-out state waiting for manual reset from user and re-initialization by closing the breaker. © Arcteq Relays Ltd...
Page 247 Recloser starts to calculate the Shot1 Dead Time for closing the breaker. 4. Dead Time for Shot1 is exceeded and autorecloser sends close request for the Object breaker, the close conditions are met and the breaker close command is sent to breaker close coil. © Arcteq Relays Ltd...
Page 248 In this example fault is cleared by the high speed autoreclosing. Figure. 5.5.4. - 173. Settings for overcurrent reclosing with two shots. This type of sequence represents 75-85% of all the faults in the medium voltage overhead line network. © Arcteq Relays Ltd...
Page 249 0. Also is possible to set the AR Reclaim not to be used after successful reclosing cycle. 7. Autoreclosing Reclaim Time is exceeded and Autorecloser is set to Ready state waiting for next request. © Arcteq Relays Ltd...
Page 250 The entering to next state can be controlled by Arcing time and Discrimination time settings. These settings are either or type which means that if Arcing time is selected Discrimination time cannot be selected for same request and same shot simultaneously. © Arcteq Relays Ltd...
Page 251 Autorecloser function can be divided into starter, shot selector state machine, sorter and shot blocks which operate dynamically during the reclosing cycles based on the given settings and input signals monitoring. Autorecloser behavior can be changed dynamically even during the cycle based on programmed reclosing scheme and active requests. © Arcteq Relays Ltd...
Page 252 Input for dynamically block the autoreclosing. When input is activated the recloser will halt its binary spontaneous operation and refuses any further requests. When signal is released recloser will continue its signal in blocking operation as were before receiving this signal. the IED © Arcteq Relays Ltd...
Page 253 AR Running well as into communication protocols. When autorecloser is executing shot requested by AR1 priority this signal is activated. Signal can be AR1 Request On connected to any relay IO as well as into communication protocols. © Arcteq Relays Ltd...
Page 254 Selection of the monitored / controlled breaker object. This selection de nes the Object the 2:Object 3 autorecloser monitoring and control signals are issued. This selection can be changed Object 3:Object 4 dynamically by setting group selection in real time in the IED. Default setting is Object 1. 4:Object 5 © Arcteq Relays Ltd...
Page 255 0.000s Arcing or Discrimination time is disabled in the autoreclosing scheme. This 1,2,3,4,5 step of 0.005s selection can be changed dynamically by setting group selection in real time in the Action time IED. Default setting 0.000s. © Arcteq Relays Ltd...
Page 256 60 second dead time. If AR4 or 5 requests are activated, from the corresponding rows from left to right and from up to down can be seen the autoreclosing schemes for each request. © Arcteq Relays Ltd...
Page 257 The AR function generates events and registers from the status changes of monitored signals as well as control command fails and operations. To main event buffer it is possible to select status “On” or “Off” messages. © Arcteq Relays Ltd...
Page 258 AR5 Request On 4060 AR5 Request Off 4061 Critical Request On 4062 Critical Request Off 4063 AR Running On 4064 AR Running Off 4065 Shot 1 Execute On 4066 Shot 1 Execute Off 4067 Shot 2 Execute On © Arcteq Relays Ltd...
Page 259 AR Status:, AR is ready, AR is not running, AR2 Requested, Executing Shot1 dd.mm.yyyy hh:mm:ss.mss AR Timers: No timers running 0.000 s AR Status:, AR is ready, AR is not running, Start time counting, AR2 Requested, Executing Shot1 dd.mm.yyyy hh:mm:ss.mss AR Timers: Start Delay 0.000 s © Arcteq Relays Ltd...
Page 260 OBJ1 Close Command On dd.mm.yyyy hh:mm:ss.mss 2962 OBJ1 Status Change On dd.mm.yyyy hh:mm:ss.mss 2944 OBJ1 Object Intermediate dd.mm.yyyy hh:mm:ss.mss 2946 OBJ1 Object Close dd.mm.yyyy hh:mm:ss.mss 2961 OBJ1 Close Command Off dd.mm.yyyy hh:mm:ss.mss 4087 AR1 Shot Reclaim Time On © Arcteq Relays Ltd...
Page 261: Cold Load Pick-Up (Clpu)
Outputs of the function are CLPU act and Blocked signals. Setting parameters are static inputs for the function which are changed only by user input in the setup phase of the function. CLPU function utilizes total of eight separate setting groups which can be selected from one common source. © Arcteq Relays Ltd...
Page 262 (Im) per all three phases. Reset ratio of 97 % is inbuilt in the function and is always related to the settingvalue. The setting value is common for all measured phases and single-, dual- or all phases Im exceed of the Iset value will cause pick-up operation of the function. © Arcteq Relays Ltd...
Page 263 Also this parameter operates as “reclaim” time for the CLPU function in case the inrush current is not immediately initiated in the start-up sequence. Few typical cases of CLPU situations are presented in the gures below. © Arcteq Relays Ltd...
Page 264 Tmax time. When the measured current is in between of ILow and IHigh the start-up condition is considered to be over. The CLPU signal can be prolonged over this time by setting Tmin to higher value than 0.000s. © Arcteq Relays Ltd...
Page 265 CLPU signal is issued. If the CLPU is wanted to be activated in shorter time or directly when the measured current is below the ILow setting the Tset parameter can be set to lower value and even to 0.000s delay for immediate operation. © Arcteq Relays Ltd...
Page 266 CLPU activates after current has been under ILow setting for time Tset . When current exceed the IHigh setting the maximum allowed CLPU timer start to count until Tmax time. In this example the measured current is exceeding the IOver setting during the startup situation and causes the CLPU signal immediate release. © Arcteq Relays Ltd...
Page 267 IHigh setting the maximum allowed CLPU timer start to count until Tmax time. In this example the measured current is over the set IHigh setting until Tmax time and causes the release of the CLPU signal. © Arcteq Relays Ltd...
Page 268 CLPU activates after current has been under ILow setting for time Tset. When current exceed the ILow setting but not IHigh the CLPU signal is active until the Tmin time. If no inrush is noticed during the Tmin time the CLPU signal is released. © Arcteq Relays Ltd...
Page 269 Table. 5.5.5. - 191. Event codes of the CLPU function Event Number Event channel Event block name Event Code Description 2688 CLP1 LowStart ON 2689 CLP1 LowStart OFF 2690 CLP1 HighStart ON 2691 CLP1 HighStart OFF 2692 CLP1 LoadNormal ON © Arcteq Relays Ltd...
Page 270: Switch On To Fault (Sotf)
In the following gure is presented the simpli ed function block diagram of the SOTF function. Figure. 5.5.6. - 185. Simpli ed function block diagram of the SOTF function. © Arcteq Relays Ltd...
Page 271 SOTF Init On 3905 SOF1 SOTF Init Off 3906 SOF1 SOTF Block On 3907 SOF1 SOTF Block Off 3908 SOF1 SOTF Active On 3909 SOF1 SOTF Active Off 3910 SOF1 SOTF Trip On 3911 SOF1 SOTF Trip Off © Arcteq Relays Ltd...
Page 272: Ma Output Control
1 0:Disabled Enables mA output cards outputs. Enable mA Out Channels 3&4 1:Enabled Enable mA Out Channels 5&6 0:Disabled mA option card 2 0:Disabled Enables mA output cards outputs. Enable mA Out Channels 7&8 1:Enabled © Arcteq Relays Ltd...
Page 273 Indicates in which option card slot mA output card is 8=SlotH; located in. 9=SlotI; 10=SlotJ; 11=SlotK; mA Output 5-8 Hardware 12=SlotL; found 13=SlotM; 14=SlotN; 15=Too many cards installed Table. 5.5.7. - 200. Measurement values reported by mA output card Name Range Step Description © Arcteq Relays Ltd...
Page 274 For example, a value for the lter time constant is 2 seconds for a 1 second period time of a disturbance oscillation. © Arcteq Relays Ltd...
Page 275 0:Floating point 1:Integer out Scaled value (Floor) 0:Floating Rounds the milliamp signal output as selected, handling 2:Integer point (Ceiling) 3:Integer (Nearest) Input value 1 0...4000 0.00001 Measured milliamp input value at curve point 1. © Arcteq Relays Ltd...
Page 276: Programmable Control Switch
IED and IED CT inputs in case of malfunction or wire breaks. Open CT circuit can generate dangerously high voltages into the CT secondary side as well as cause not intended activation of current balance monitoring functions. © Arcteq Relays Ltd...
Page 277 ON/OFF events to the common event buffer from each of the two output signal. Time stamp resolution is 1ms. Function provides also cumulative counters for CTS alarm and BLOCKED events. Simpli ed function block diagram of CTS functionIn is presented in the following gure . © Arcteq Relays Ltd...
Page 278 Fundamental angle of phase L2/B current 5 ms IL3 Ang Fundamental angle of phase L3/C current 5 ms I01 Ang Fundamental angle of residual input I01 5 ms I02 Ang Fundamental angle of residual input I02 5 ms © Arcteq Relays Ltd...
Page 279 If blocking signal is active when pick-up element activates a BLOCKED signal will be generated and the function shall not process the situation further. If START function has been activated before blocking signal it will reset and the release time characteristics are processed as in case of when pick-up signal is reset. © Arcteq Relays Ltd...
Page 280 General properties of a protection function. Typical CTS cases In following gures are presented few typical cases of CTS situations and setting effects. Figure. 5.6.1. - 193. System in case when all is working properly and no fault is present. © Arcteq Relays Ltd...
Page 281 CTS conditions and as well as in the secondary circuit fault the CTS will issue alarm if this state continues until the set time has been spent. This means that the CTS do not supervise only the secondary circuit but also the primary circuit. © Arcteq Relays Ltd...
Page 282 By adjusting the Iset Highlimit and Iset Lowlimit setting parameters according to the application normal behavior, the operation of the CTS can be set to very sensitive for broken circuit/conductor faults. © Arcteq Relays Ltd...
Page 283 Figure. 5.6.1. - 199. System in case when secondary phase current wiring is broken. When phase current wire is broken all of the conditions are met in the CTS and alarm shall be issued in case if the situation continues until the set alarming time is met. © Arcteq Relays Ltd...
Page 284 Function includes 12 last registers where the triggering event of the function (ALARM activated or blocked) is recorded with time stamp and process data values. Table. 5.6.1. - 207. Event codes of the CTS function instance Event Number Event channel Event block name Event Code Description © Arcteq Relays Ltd...
Page 285: Fuse Failure Vts (60)
Fundamental RMS measurement of voltage U 5 ms Positive sequence voltage 5 ms Negative sequence voltage 5 ms Zero sequence voltage 5 ms Fundamental angle of U voltage 5 ms Fundamental angle of U voltage 5 ms © Arcteq Relays Ltd...
Page 286 If the blocking signal is not activated when the pick-up element activates, a START signal is generated and the function proceeds to the time characteristics calculation. © Arcteq Relays Ltd...
Page 287 VTS function register content. This information is available in 12 last recorded events for all provided instances separately. Table. 5.6.2. - 212. Register content. Event Volt 1,2,3 Input A,B,C Trip time Used Date & Time System status status angle diff remaining code © Arcteq Relays Ltd...
Page 288: Disturbance Recorder (Dr)
U 8/16/32/64s/c 1(2) Line to neutral U or line to line voltage U 8/16/32/64s/c 2(3) Line to neutral U ,line to line voltage U , zero sequence voltage U or synchrocheck voltage 8/16/32/64s/c 3(1) © Arcteq Relays Ltd...
Page 289 Maximum amount of recordings possible to store in the memory of IED. 0…2 recordings Max length 0…1800 s 0.001 Maximum settable length of a single recording, recording Recordings How many recordings stored in the memory of IED. 0…2 in memory © Arcteq Relays Ltd...
Page 290 200ms is recorded before “I> TRIP” and 800ms is recorder after. 4. Sample of each recorder analog signal is taken 64 times in a cycle. With 50Hz system frequency it means that sample is taken every 312.5µs. Digital channels are tracked every 5 milliseconds. © Arcteq Relays Ltd...
Page 291 Though if needed it is also possible to con rm the length by using the following calculation. Please note that the following calculation assumes that DR doesn’t share the 64MB space with any other les in the FTP. © Arcteq Relays Ltd...
Page 292 Recordings are packed comtrade les. Zip- le includes *.cfg and *.dat. AQviewer is capable to open original packed zip les directly or comtrade les as they are as far as both *.cfg and *.dat are located in same directory. Figure. 5.6.3. - 203. Open stored recordings. © Arcteq Relays Ltd...
Page 293 -text appears when moving mouse cursor is on top of the icon. In this example line to neutral voltages UL1, Ul2 and UL3 are selected and moved to the right side. Con rm plotter by pressing OK –key. © Arcteq Relays Ltd...
Page 294 The DR function generates events from the status changes of the function. To main event buffer is possible to select status “On” or “Off” messages. Table. 5.6.3. - 215. Event codes of DR function. Event Number Event channel Event block name Event Code Description 4096 Recorder triggered On © Arcteq Relays Ltd...
Page 295: Measurement Recorder
Record le location can be changed by editing the “Path”- eld. File name can be changed from the “File Name”- eld. Hitting the red “Record”-button will start the recorder. Closing the measurement recorder-dialog will not stop the recording. To stop the recording, blue “Stop”-button must be pressed. © Arcteq Relays Ltd...
Page 296 Res.Curr.I01 TRMS Pri U1Volt Pri L2 Imp.React.Cap.E.kvarh Res.Curr.I02 TRMS Pri U2Volt Pri L2 Exp/Imp React.Cap.E.bal.Mvarh Sec.Pha.Curr.IL1 U3Volt Pri L2 Exp/Imp React.Cap.E.bal.kvarh Sec.Pha.Curr.IL2 U4Volt Pri L2 Exp.React.Ind.E.Mvarh Sec.Pha.Curr.IL3 U1Volt Pri TRMS L2 Exp.React.Ind.E.kvarh Sec.Res.Curr.I01 U2Volt Pri TRMS L2 Imp.React.Ind.E.Mvarh © Arcteq Relays Ltd...
Page 297 P-P Curr.I01 System Volt UL23 mag (kV) Exp/Imp React.Ind.E.bal.Mvarh P-P Curr.I02 System Volt UL31 mag Exp/Imp React.Ind.E.bal.kvarh Pha.angle IL1 System Volt UL31 mag (kV) Other measurements Pha.angle IL2 System Volt UL1 mag TM> Trip expect mode © Arcteq Relays Ltd...
Page 298 Pha.Curr.I”L2 L2 Cos(phi) L1 Char current Pha.Curr.I”L3 L3 Apparent Power (S) L2 Bias current Res.Curr.I”01 L3 Active Power (P) L2 Diff current Res.Curr.I”02 L3 Reactive Power (Q) L2 Char current Calc.I”0 L3 Tan(phi) L3 Bias current © Arcteq Relays Ltd...
Page 299: Circuit Breaker Wear-Monitor (Cbw)
CBW function is integrated into the controllable object function and can be enabled and set under object function. CBW function is independent function and initializes as separate independent instance which has own events and settings not related to the object it is linked © Arcteq Relays Ltd...
Page 300 Alarm 1 and Alarm 2 events. Operations left for each phase can be monitored also in the function. In the following gure the simpli ed function block diagram of the CBW function is presented. Figure. 5.6.5. - 208. Simpli ed function block diagram of the CBW function. © Arcteq Relays Ltd...
Page 301 0 … 200000 Pick-up threshold for remaining operations. When the remaining 100 op operations operation operations is below this setting Alarm 2 signal is activated. Setting example Setting example: Tavrida ISM/TEL-24-16 / 800 – 057 circuit breaker © Arcteq Relays Ltd...
Page 302 Value Current 1 (Inom) 0.80 kA Operation 1 (Inom) 30000 Op Current 2 (Imax) 16.00 kA Operations 2 (Imax) 100 Op Enable Alarm 1 1: Enabled Alarm 1 Set 1000 operations Enable Alarm 2 1: Enabled © Arcteq Relays Ltd...
Page 303: Fault Locator (21Fl) X → Km
Time stamp resolution is 1ms. Function provides also cumulative counter for fault locator triggering events. Measured input values Function block uses analog current and voltage measurements and calculated phase-to-phase loop impedances. © Arcteq Relays Ltd...
Page 304 From blocking of the function a HMI display event as well as time stamped blocking event with information of the startup voltage values and fault type is issued. © Arcteq Relays Ltd...
Page 305: Total Harmonic Distortion Monitor (Thd)
User has possibility to set also the alarming limits for each measured channels if required by the application. THD of the measured signals can be selected either amplitude- or power ratio THD. The difference is in the calculation formula: © Arcteq Relays Ltd...
Page 306 THD Start and Alarm act and BLOCKED events. In the following gure is presented the simpli ed function block diagram of the THD function. Figure. 5.6.7. - 210. Simpli ed function block diagram of the THD function. © Arcteq Relays Ltd...
Page 307 Pick-up setting for THD alarm element from the phase currents. The measured THD 0.10 … IsetPh 0.01% 20.00% value has to be over this setting on at least one of the measured phases to activate 200.00% the alarm signal. © Arcteq Relays Ltd...
Page 308 In the function is available 12 last registers where the triggering event of the function (THD start, alarm or blocked) is recorded with time stamp and process data values. Table. 5.6.7. - 231. Event codes of the THD function Event Number Event channel Event block name Event Code Description © Arcteq Relays Ltd...
Page 309: Measurement Value Recorder
5.6.8. Measurement value recorder This function is included in all function packages of AQ-F213. Measurement value recorder function records the value of selected magnitudes at the time of given trigger signal. An example application for this function is to record fault currents or voltages at the time of tripping the breaker but it can be used also to record the values from any user set trigger signal.
Page 310 Positive sequence resistance, reactance and impedance values and angles RseqAng, XseqAng, ZseqAng GL1, GL2, GL3, G0 BL1, BL2, BL3, B0 Conductances, susceptances and admittances YL1, YL2, YL3, Y0 YL1angle, YL2angle, YL3angle Admittance angles Y0angle Others Description © Arcteq Relays Ltd...
Page 311 VREC function generates events from function triggering. To main event buffer it is possible to select “On” or “Off” status messages. Table. 5.6.8. - 234. Event codes of the VREC function. Event Number Event channel Event block name Event Code Description © Arcteq Relays Ltd...
Page 312 AQ-F213 Instruction manual Version: 2.00 9984 VREC1 Recorder triggered On 9985 VREC1 Recorder triggered Off © Arcteq Relays Ltd...
Page 313: System Integration
Following Modbus function types are supported: Read Holding Register, 3 Write Single Register, 6 Write Multiple Registers, 16 Read/Write Multiple Registers, 23 Following data can be accessed using both Modbus TCP and Modbus RTU Device measurements Device I/O Commands Events Time © Arcteq Relays Ltd...
Page 314: Modbusio
For each of the 8 channels of the IO module connected thermocouple can be selected. T.C. type [+-20mA,Type J, Type K, Type T, Type E, Type R, Type S] Thermocouple type setting. 6.1.4. IEC 61850 IEC 61850 is included in function packages B, C, D & E © Arcteq Relays Ltd...
Page 315 Time synchronization Currently used 61850 setup of the device can be viewed in the IEC61850 tool ( Tools → IEC61850 ). For a list of available Logical Nodes in the Arcteq implementation browse the 61850 tree. See following picture: Figure. 6.1.4. - 211. IEC 61850 tool buttons.
Page 316 BRCB’s. All of these datasets can be edited. By un-checking both of the GOOSE publisher datasets GOOSE publisher service will be disabled. See following picture. Figure. 6.1.4. - 213. DataSets window for adding/removing and editing datasets. © Arcteq Relays Ltd...
Page 317: Goose
Enable setting for GOOSE subscriber. 6.1.5. GOOSE Both GOOSE publisher and subscriber are supported by the Arcteq implementation. GOOSE subscriber is enabled by parameter setting ( Communication → Protocols → IEC61850 → GOOSE subscriber enable ) and GOOSE inputs are con gured using HMI or Aqtivate tool. For each of the Goose inputs there is also an input quality signal which can also be used in the internal logic.
Page 318 GOOSE input signals on the receiving side together with the quality information for that binary signal. The quality information in the incoming frame will be ORed with GOOSE reception timeout supervision information so that quality information for each GOOSE input can be used in relay logic. © Arcteq Relays Ltd...
Page 319: Iec 103
(slave). The IEC 103 protocol can be selected for the available serial ports of the device. A master or primary station can communicate with the Arcteq device and receive information by polling from the slave device. Disturbance recordings transfer is not supported.
Page 320: Spa Protocol
, harmonic 9 , harmonic 11 , harmonic 13 , harmonic h., 15 h., 17 h., 19 , harmonic 17 , harmonic 19 harmonic current. I1,I2,I0Z Positive sequence current, negative sequence current and zero sequence current © Arcteq Relays Ltd...
Page 321 System f. Used tracking frequency at the moment Ref f1 Reference frequency 1 Ref f2 Reference frequency 1 M thermal T Motor thermal temperature F thermal T Feeder thermal temperature T thermal T Transformer thermal temperature © Arcteq Relays Ltd...
Page 322 Scale current values to primary 1:Yes values 0:Currents; 1:Voltages; 2:Powers; Slot 1…8 Magnitude selection Selection of slots measured magnitude category 3:Imp.(ZRX).Adm. (YGB); 4:Others; Described in table Selection of the magnitude in the previously selected Slot 1…8 Magnitude (x) above category © Arcteq Relays Ltd...
Page 323: Applications And Connection Examples
AQ-F213 Instruction manual Version: 2.00 7. Applications and connection examples 7.1. Connections AQ-F213 Figure. 7.1. - 216. AQ-F213 variant without add-on modules. © Arcteq Relays Ltd...
Page 324 AQ-F213 Instruction manual Version: 2.00 Figure. 7.1. - 217. AQ-F213 variant with binary input and output modules. © Arcteq Relays Ltd...
Page 325: Example Feeder Application Connection
AQ-F213 Instruction manual Version: 2.00 Figure. 7.1. - 218. AQ-F213 application example with function block diagram. 7.2. Example feeder application connection Connection example of outgoing feeder application with two lines to line voltages and zero sequence voltage connected. Three phase currents and residual current are connected as well.
Page 326: Phase, 3-Wire Aron Input Connection
Figure. 7.2. - 219. Voltage measurement mode is 2LL+U0. 7.3. 3-phase, 3-wire ARON input connection This chapter presents a connection example of an application with protection current transformers for just two phases. Connection is suitable for both motor –and feeder applications. © Arcteq Relays Ltd...
Page 327: Trip Circuit Supervision (95)
It is recommended to know that trip circuit is on healthy state when the breaker is closed. Application scheme for trip circuit supervision with one digital input is presented in gure below. © Arcteq Relays Ltd...
Page 328 Figure. 7.4. - 222. The digital input used for TCS needs to have normally closed polarity and 1.0 second activation delay to avoid nuisance alarms while circuit breaker is controlled open. Non-latched outputs are seen in the output matrix as hollow circles. Latched contacts are painted. See below presented gure. © Arcteq Relays Ltd...
Page 329 IED. Figure. 7.4. - 224. Trip circuit supervision by using one DI and latched output contact. © Arcteq Relays Ltd...
Page 330 While the breaker is open the logic is blocked. Logical output can be used in output matrix or in SCADA as pleased. Figure. 7.4. - 225. TCS block scheme when non-latched trip output is not used. © Arcteq Relays Ltd...
Page 331: Construction And Installation
For a eld upgrade this means that the add-on module has to be ordered from Arcteq Ltd. or representative who shall provide the add-on module with corresponding unlocking code in order the device to be operating correctly after upgrading the hardware con guration.
Page 332 Comm. port 3 etc. since in the CPU-module already exist Comm. ports 1 and 2. After communication port is detected it is added into the communication space in the IED and corresponding settings are enabled for the IED. © Arcteq Relays Ltd...
Page 333: Cpu, Io And Power Supply Module
Digital input 2 ground. X 5:6 Output relay 1, Normally open contact X 7:8 Output relay 2, Normally open contact X 9:10 Output relay 3, Normally open contact X 11:12 Output relay 4, Normally open contact © Arcteq Relays Ltd...
Page 334 In case the binary input is connected directly to binary output (T1…Tx) it takes additional third 5 millisecond round. When binary input is controlling internally binary output it takes 0…15 milliseconds in theory and 2…13 milliseconds in practice. This delay excludes the mechanical delay of the relay. © Arcteq Relays Ltd...
Page 335: Current Measurement Module
Quantization of the measurement signal is applied with 18 bit AD converters and the sample rate of the signal shall be 64 samples / power cycle in system frequency range of 6 Hz to 75 Hz. For further details refer to the “Technical data” section of this document. © Arcteq Relays Ltd...
Page 336: Voltage Measurement Module
Quantization of the measurement signal is applied with 18 bit AD converters and the sample rate of the signal shall be 64 samples / power cycle in system frequency range of 6 Hz to 75 Hz. For further details refer to the “Technical data” section of this document. © Arcteq Relays Ltd...
Page 337: Binary Input Module (Di8) (Option)
NO/NC (normally open/-closed) selection. Naming convention of the binary inputs provided by this module is presented in the chapter 6 Construction and installation. For technical details refer to the “Technical data” section of this document © Arcteq Relays Ltd...
Page 338 User settable normal state (normally open/normally closed) de nes if the digital input is considered activated when the digital input channel is energized. Figure. 8.5. - 231. Digital input state when energizing and de-energizing the digital input channels. © Arcteq Relays Ltd...
Page 339: Binary Output Module (Do5) (Option)
All output contacts are mechanical type. Rated voltage of the NO/CO outputs is 250VAC/DC. Naming convention of the binary outputs provided by this module is presented in the chapter Construction and installation. For further details refer to the “Technical data” section of this document. © Arcteq Relays Ltd...
Page 340: Arc Protection Module (Option)
Notice that the delay of binary input lies between 5…10ms. BI and HSO1…2 are not visible in Device IO → Binary Inputs or Binary Outputs -menus. Binary input and high speed outputs are programmable only in Arc Matrix menu. © Arcteq Relays Ltd...
Page 341: Rtd & Ma Input Module (Option)
Supported Thermocouple: Type K, Type J, Type T and Type S Two mA-input channels are also available in the option card. If mA-input channels are used only the four rst channels are available for RTD and TC measurements. © Arcteq Relays Ltd...
Page 342: Serial Rs232 Communication Module (Option)
AQ-F213 Instruction manual Version: 2.00 Figure. 8.8. - 235. Connection of different sensor types. 8.9. Serial RS232 communication module (option) Figure. 8.9. - 236. AQ-2xx Serial RS232-card connectors © Arcteq Relays Ltd...
Page 343 Option card includes two serial communication interfaces. COM E is a serial ber interface with glass/plastic option. COM F is a RS-232 interface. To use COM F IRIG-B time sync Time sync source should be set to IRIG-B in General menu. © Arcteq Relays Ltd...
Page 344: Lc100 Ethernet Communication Module (Option)
Optional LC 100 Mbps Ethernet card supports HSR and PRP protocols according to IEC 61850 substation communication standard. Card has IEEE1588 (PIP) clock sync functionality. Card has two PRP/HSR ports which are 100Mbps ber ports and can be con gured to 100Mbps or 10 Mbps. © Arcteq Relays Ltd...
Page 345: Maout & Mainput Module (Option)
When installing to rack, the device will take ¼ of the rack width and total of four devices can be installed to same rack in parallel. Device panel installation and cut-outs are described below. © Arcteq Relays Ltd...
Page 346 AQ-F213 Instruction manual Version: 2.00 Figure. 8.12. - 239. Dimensions of the IED. Figure. 8.12. - 240. Installation of the IED © Arcteq Relays Ltd...
Page 347 AQ-F213 Instruction manual Version: 2.00 Figure. 8.12. - 241. Panel cut-out and spacing of the IED. © Arcteq Relays Ltd...
Page 348: Technical Data
10xIn…150xIn < ±0.5% < ±0.2 ° (I > 0.05A) Angle measurement inaccuracy < ±1.0 ° (I ≤ 0.05A) Burden (50Hz/60Hz) <0.1VA Transient overreach <5% Fine residual current input (I02) Rated current In 0.2A (con gurable 0.2A…10A) © Arcteq Relays Ltd...
Page 349: Voltage Measurement
Solid or stranded wire Maximum wire diameter 4 mm2 Burden (50Hz/60Hz) <0.02VA 300V continuous Thermal withstand 9.1.1.3. Power and energy measurement Table. 9.1.1.3. - 247. Power and energy measurement accuracy Power measurements (P,Q,S) Frequency range 6…75 Hz © Arcteq Relays Ltd...
Page 350: Frequency Measurement
< 15 % Terminal block connection Maximum wire diameter: Solid or stranded wire Phoenix Contact MSTB2,5-5,08 2.5mm 9.1.2.2. CPU communication ports Table. 9.1.2.2. - 251. Front panel local communication port Port Port media Copper Ethernet RJ-45 © Arcteq Relays Ltd...
Page 351: Cpu Binary Inputs
Table. 9.1.2.3. - 254. CPU model isolated binary inputs with thresholds de ned by order code. Rated values Rated auxiliary voltage 24, 110, 220V(AC/DC) Pick-up threshold Order code de ned: 19, 90,170V Release threshold Order code de ned: 14,65,132V Scanning rate 5 ms Settings © Arcteq Relays Ltd...
Page 352: Cpu Binary Outputs
48VDC at 110 VDC 0.4A at 220 VDC 0.2A Control rate 5 ms Settings Polarity Software settable: Normally On / Normally Off Terminal block contact Maximum wire diameter: Solid or stranded wire Phoenix Contact MSTB2,5-5,08 2.5mm © Arcteq Relays Ltd...
Page 353: Option Cards
Table. 9.1.3.3. - 259. Arc protection module technical data Connections Input arc point sensor S1, S2, S3, S4 (pressure and light or light only) Performance Pick-up light intensity 8000, 25000 or 50000 Lux (sensor selectable in order code) © Arcteq Relays Ltd...
Page 354: Maout & Main Module
Table. 9.1.3.4. - 262. mA output & mA input module technical data Signals Output magnitudes 4 x mA output signal (DC) Input magnitudes 1 x mA input signal (DC) mA input Range (hardware) 0...33 mA Range (measurement) 0...24 mA Inaccuracy ±0.1 mA © Arcteq Relays Ltd...
Page 355: Rtd & Ma Input Module
Table. 9.1.3.7. - 265. LC 100 Mbps Ethernet communication module technical data Protocols Protocols HSR and PRP Sync IEEE1588 (PIP) clock sync Ports Quantity of ber ports LC ber connector. Communication port C & D Wavelength 1300nm Con gurable to 10Mbps or 100Mbps © Arcteq Relays Ltd...
Page 356: Display
Retardation time (overshoot) <25 ms Instant operation time Start time and instant operation time (trip): (Im/Iset ratio > 3) <35 ms (typically 25 ms) (Im/Iset ratio 1.05…3) <50 ms Reset Reset ratio 97 % of pick-up current setting © Arcteq Relays Ltd...
Page 357: Non-Directional Earth Fault (50N/51N) I0
Instant reset time and start-up reset <50 ms Note! Operation and reset time accuracy won’t apply with 1…20mA measured primary current when I02 channel is used. Pick-up is tuned more sensitive and operation times will vary due to this. © Arcteq Relays Ltd...
Page 358: Directional Overcurrent (67) Idir
Minimum voltage for direction solving is 1.0 V secondary. During three phase short circuits the angle memory is active for 0.5 seconds in case the voltage drops below 1.0 V. 9.2.1.4. Directional earth fault (67N) Iodir> Table. 9.2.1.4. - 270. Directional earth fault (67N) technical data Input signals © Arcteq Relays Ltd...
Page 359 Inaccuracy: Reset time ±1.0 % or ±45 ms Instant reset time and start-up reset <50 ms Note! While U0 direction is 180º, 3I0 current injected to +90 º angle is considered as negative Sine value (inductive). © Arcteq Relays Ltd...
Page 360: Current Unbalance (46/46R/46L) I2
Phase current IL1/IL2/IL3 TRMS Input magnitudes Residual current I01 TRMS Residual current I02 TRMS Pick-up Harmonic selection 2nd, 3rd, 4th, 5th, 7th, 9th, 11th, 13th, 15th, 17th or 19th Harmonic per unit xIn Used magnitude Harmonic relative Ih/IL © Arcteq Relays Ltd...
Page 361: Circuit Breaker Failure Protection (50Bf/52Bf) Cbfp
±3 mA (0.005…10.0 x I -Starting I01 (1 A) -Starting I02 (0.2 A) ±1.5 %I0 or ±1.0 mA (0.005…25.0 x I -Starting I0Calc (5 A) ±1.0 %I0 or ±15 mA (0.005…4.0 x I Operation time © Arcteq Relays Ltd...
Page 362: Restricted Earth Fault / Cable End Differential (87N) Iod
De nite time function operating time setting 0.00…1800.00 s, setting step 0.005 s Inaccuracy -De nite Time (Um/Uset ratio 1.05→) ±1.0 % or ±35 ms IDMT operating time setting (ANSI / IEC) 0.02…1800.00 s, setting step 0.001 x parameter © Arcteq Relays Ltd...
Page 363: Undervoltage (27) U
-IDMT operating time ±1.5 % or ±20 ms -IDMT minimum operating time; 20 ms ±20 ms Instant operation time Start time and instant operation time (trip): -Um/Uset ratio 1.05→ <65 ms Retardation time (overshoot) <30 ms © Arcteq Relays Ltd...
Page 364: Neutral Overvoltage (59N) U0
Instant reset time and start-up reset <50 ms 9.2.1.12. Sequence voltage (47/27PN/59PN) U1/2>/< Table. 9.2.1.12. - 278. Sequence voltage (47/27PN/59PN) technical data Input signals P-E voltage fundamental frequency RMS Input magnitudes P-P voltage fundamental frequency RMS + U0 © Arcteq Relays Ltd...
Page 365: Over-/Under Frequency (81O/81U) F
±20 mHz (I > 30 % of rated secondary) Operation time De nite time function operating time setting 0.00…1800.00 s, setting step 0.005 s Inaccuracy -De nite Time (Im/Iset ratio +/- 50mHz) ±1.5 % or ±50 ms (max step size 100mHz) Instant operation time © Arcteq Relays Ltd...
Page 366: Rate-Of-Change-Of-Frequency (81R) Df/Dt
Reset ratio (Frequency limit) 0.020 Hz Instant reset time and start-up reset (fm/fset ratio +/- 50mHz) <2 cycles or <60 ms (max step size 100mHz) Note! Frequency is measured 2 seconds after a signal is received. © Arcteq Relays Ltd...
Page 367: Line Thermal Overload (49L) Tf
(Pm/Pset ratio 1.05→) <50 ms Reset Reset ratio 0.97/1.03 x Pset Reset time setting 0.000 … 150.000 s, step 0.005 s Inaccuracy: Reset time ±1.0 % or ±35 ms Instant reset time and start-up reset <50 ms Note! © Arcteq Relays Ltd...
Page 368: Resistance Temperature Detector Alarm (49Rtd) T
or ±30 mV -Voltage Instant operation time Alarm and trip operation time: (Im/Iset ratio > ±0.15 ° to pick-up) <20 ms (typical 15 ms) Reset Reset ratio -Voltage angle 2.0 ° Alarm and trip reset time <50 ms © Arcteq Relays Ltd...
Page 369: Arc Protection (50Arc/50Narc) Iarc> I0Arc> (Option)
Common for all installed functions which support setting groups Control mode Local Any digital signal available in the device Remote Force change overrule of local controls either from setting tool, HMI or SCADA Operation time Reaction time <5 ms from receiving the control signal © Arcteq Relays Ltd...
Page 370: Object Control (Obj)
Trip delay inaccuracy +25 ms (Protection + AR delay) Dead time ±1.0 % or ±35 ms (AR delay) Action time ±1.0 % or ±30 ms (AR delay) Instant starting time Instant operation time: Protection activation delay + 15 ms (Protection + AR delay) © Arcteq Relays Ltd...
Page 371: Cold Load Pick-Up (Clp)
SOTF instant release time <40 ms (measured from trip contact) 9.2.2.6. Synchrocheck (25) Table. 9.2.2.6. - 291. Synchrocheck (25) technical data Input signals P-P voltage fundamental frequency RMS Input magnitudes P-E voltage fundamental frequency RMS Pick-up © Arcteq Relays Ltd...
Page 372: Monitoring Functions
±1.0 mA (0.005…25.0 x I Time delay for alarm De nite time function operating time setting 0.00…1800.00 s, setting step 0.005 s Inaccuracy -De nite Time (Im/Iset ratio > 1.05) ±2.0 % or ±80 ms © Arcteq Relays Ltd...
Page 373 9.2.3.3. Disturbance recorder (DR) Table. 9.2.3.3. - 294. Disturbance recorder (DR) technical data Recorded values Recorder analogue 0…9 channels channels Freely selectable 0…32 channels Recorder digital channels Freely selectable analogue and binary signals 5ms sample rate (FFT) Performance © Arcteq Relays Ltd...
Page 374: Circuit Breaker Wear Monitor (Cbw)
Im/Iset < 3 Reset Reset time Typically <10 ms Reset ratio 97 % 9.2.3.6. Fault locator (21FL) X → km Table. 9.2.3.6. - 297. Fault locator (21FL) technical data Input signals Input magnitudes Phase current fundamental freq RMS © Arcteq Relays Ltd...
Page 375: Voltage Memory (Integrated In 67,21G)
9.3. Tests and environmental Electrical environment compatibility Table. 9.3. - 299. Disturbance tests All tests CE approved and tested according to EN 60255-26 Emissions Conducted emissions: 150kHz - 30 MHz EN 60255-26 Ch. 5.2, CISPR 22 © Arcteq Relays Ltd...
Page 376 Operational: 25-55°C, 97-93% Rh, 12+12h Dry Heat Storage: 70°C, 16h EN 60255-1, IEC 60068-2-2 Operational: 55°C, 16h Cold Test Storage: -40°C, 16h EN 60255-1, IEC 60068-2-1 Operational: -20°C, 16h Table. 9.3. - 303. Environmental conditions IP classes © Arcteq Relays Ltd...
Page 377 Device dimensions (W x H x D mm) Casing height 4U, width ¼ rack, depth 210 mm Device weight 1.5kg With package Package dimensions (W x H x D mm) 245(w) x 170(h) x 223(d) mm Weight © Arcteq Relays Ltd...
Page 378: Ordering Information
Arcteq Ltd. (8000 Lux threshold) AQ-02B Pressure and light point sensor unit Max. cable length 200m Arcteq Ltd. (25000 Lux threshold) AQ-02C Pressure and light point sensor unit Max. cable length 200m Arcteq Ltd. (50000 Lux threshold) © Arcteq Relays Ltd...
Page 379: Contact And Reference Information
Wolf ntie 36 F 12 65200 Vaasa, Finland Contacts Phone: +358 10 3221 370 Fax: +358 10 3221 389 URL: url: www.arcteq. email sales: sales@arcteq. Technical support site: https://arcteq. /support-landing/ Technical support: +358 10 3221 388 (EET 8:00 – 16:00) © Arcteq Relays Ltd...
