  • Page 1 GRUNDFOS INSTRUCTIONS LC A2 Installation and operating instructions...

  • Page 2: Table Of Contents

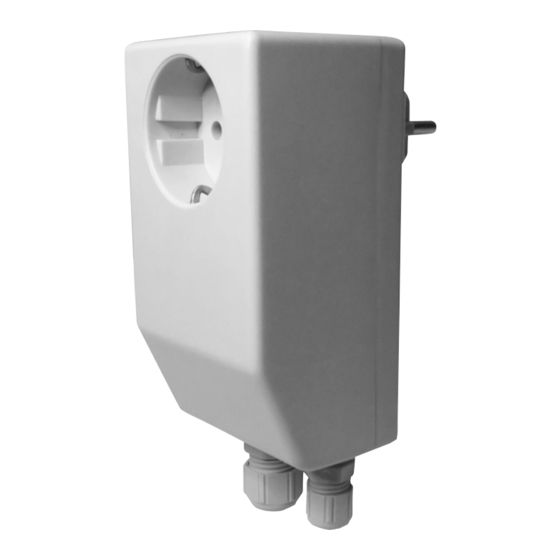

    Warning Prior to installation, read these installation 3. Applications and operating instructions. Installation and The LC A2 is intended for the monitoring of pumping operation must comply with local stations and small lifting stations. regulations and accepted codes of good practice.

  • Page 3: Installation

    Sololift2 C-3, Sololift+ C-3 and Liftaway C. 1. Install the level switch. See examples on page 6. 2. Remove the four screws at the back of the LC A2 and lift off the cover carefully. 3. Disconnect wires, if any, to the buzzer.

  • Page 4: Electrical Connection

    Alarm relay Fig. 5 Connection of several LC A2 units It is also possible to lock the LC A2 to disable automatic restarting. In case of alarm, the LC A2 must be pulled out of the socket. See example in fig.

  • Page 5: Technical Data

    1. Use the public or private waste collection service. 2. If this is not possible, contact the nearest Grundfos company or service workshop. The crossed-out wheelie bin symbol on a product means that it must be disposed of separately from household waste.
  • Page 6 Appendix Double socket LC A2 Fig. 1 Installation with Liftaway B Double socket LC A2 Fig. 2 Installation with Liftaway C...
  • Page 7 Double socket LC A2 Fig. 3 Installation with Sololift2 C-3 Fig. 4 Vertical level switch in Sololift2 C-3...
