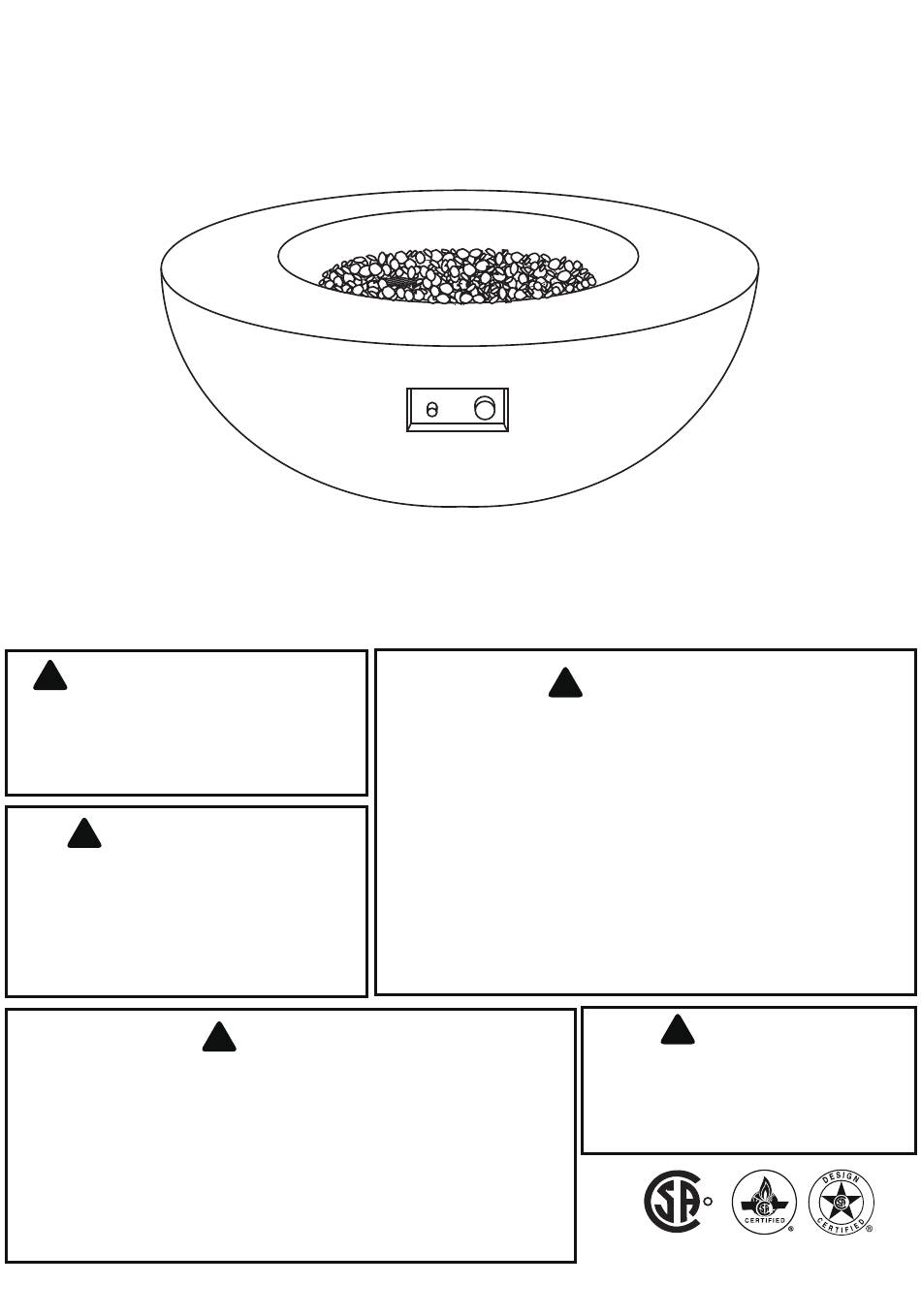

Manual No.: ANGE11EN-G101-A5
!
!
IMPORTANT
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
!
WARNING
Do not store or use gasoline or other
flammable vapors and liquids, in the
vicinity of this or any other appliance.
This unit is not for use with propane.
Use only with Natural gas.
FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open flame.
• If odor continues, leave the area immediately.
• After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion,
which could cause property damage, personal injury, or death.
ELEMENTI
THE ART OF FIRE

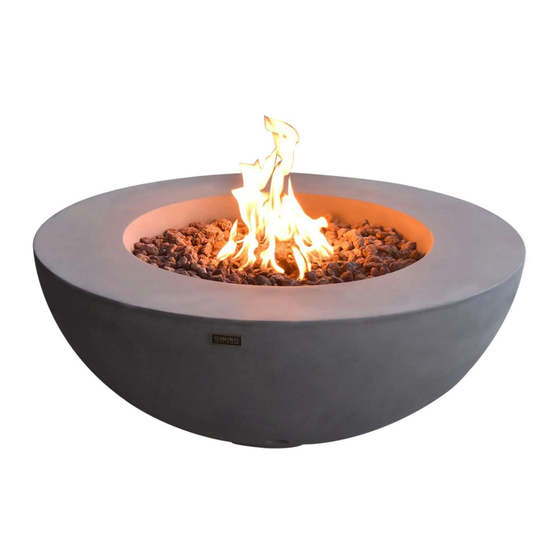

Lunar Bowl Fire Table
!
DANGER
!
• If the information in this manual is not followed exactly,
a fire or explosion may result causing property damage
personal injury or loss of life.
•
Installation and service must be
performed by a qualified installer,
service agency or gas supplier.
•
Improper Installation, adjustment,
alteration, service or maintenance
can cause injury or property
damage.
OFG101NG
Owner's Manual
Gas type: Natural Gas
WARNING
•
Read the installation, operation
and maintenance instructions
thoroughly before installing or
servicing this equipment.
•
Save these instructions for
future reference. If you are
assembling this unit for someone
else, give this manual to him or her
to read and savefor future
reference.
!
WARNING
For outdoor use only
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.
R
C
US
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ELEMENTI OFG101NG
Summary of Contents for ELEMENTI OFG101NG
- Page 1 Manual No.: ANGE11EN-G101-A5 ELEMENTI THE ART OF FIRE OFG101NG Lunar Bowl Fire Table Owner's Manual Gas type: Natural Gas IMPORTANT WARNING INSTALLER: • If the information in this manual is not followed exactly, Leave this manual with the appliance. a fire or explosion may result causing property damage CONSUMER: personal injury or loss of life.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Information -----------------------------------------------------------------------3 Natural Gas Warnings -------------------------------------------------------------------------------5 Parts List ------------------------------------------------------------------------------------------------7 Pre-use Instructions ---------------------------------------------------------------------------------12 Lighting Instructions ---------------------------------------------------------------------------------13 Care and Cleaning -----------------------------------------------------------------------------------14 Gas Component Connection Checks -----------------------------------------------------------15 Troubleshooting --------------------------------------------------------------------------------------17 Warranty -----------------------------------------------------------------------------------------------19 DANGER CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY IF YOU SMELL GAS • Shut off gas supply to the fire table. • Extinguish any open fame. • Do not try lighting any appliance. • Do not touch any electrical switch; do not use any phone in your building. •... - Page 4 IMPORTANT SAFETY INFORMATION • DO NOT use this outdoor gas fire table for indoor heating. Toxic carbon monoxide fumes can accumulate and cause asphyxiation. • NEVER leave this gas fire pit unattended when in use. • Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing ignition.
-
Page 5: Natural Gas Warnings
If the hose is damaged,cracked or cut, it must be replaced before using the gas fire table. The hose assembly can only be replaced with a hose assembly specified by the manufacturer. Please contact Elementi at 800-678-7294 for technical support. Use only replacement parts from the manufacturer. - Page 6 NATURAL GAS DANGERS AND WARNINGS • Never store or use gasoline or other volatile substance in the vicinity of this fire table. Natural Gas Connection Connect a manual shut-off valve to gas supply line. Apply sealing compound or pipe thread tape of the type resistant to the action of natural gas on all male pipe threads.
-
Page 7: Parts List
Item Picture Description Qty. WARNING Burner 1 pc For technical support or replacement parts or missing parts please contact Elementi at 800-678-7294. Guard 1 pc Fixed block 4 pcs Air inlet pipe A 1 pc Air inlet pipe C 1 pc... - Page 8 ASSEMBLY INSTRUCTIONS Install the AAA battery as shown in the diagram below. Battery not included. Place lava rock by hand. DO NOT dump bag out in to the tray to avoid clogging the burner with dust. Position the lava rock to a level about 1” above the t op of the burner.
- Page 9 ASSEMBLY INSTRUCTIONS Adjustable feet has pre-installed on the bottom of fire pit already. Please adjust the hight of feet to make sure all fire pit was on level always, or increase the height of fire table as your preference. Please make sure the height was safty before you complete. FIREPIT FIREPIT Connecting your Fire Table to the Natural Gas Source...
- Page 10 ASSEMBLY INSTRUCTIONS Connecting the Socket Coat the gas supply pipe nipple with gas resistant pipe compound or approved Teflon PTFE tape. Screw socket onto gas supply pipe (house gas source) as shown to the right, and wrench tighten. The quick disconnect socket should never be connected to the fire table.
- Page 11 ASSEMBLY INSTRUCTIONS Using the Quick Connect Socket Pull back the sleeve on the quick disconnect socket and insert the unattached end of the gas hose into the socket. Release the sleeve and continue pushing the hose into the socket until the sleeve snaps into the locked position. After making all connections, perform a leak test as described on page 12 of this manual.
-
Page 12: Pre-Use Instructions
If any bubbles appear turn natural gas off, reconnectand re-test. If you continue to see bubbles after several attempts, disconnect natural gas source and contact Elementi at Check for leaks at these locations 800-678-7294 for assistance. -
Page 13: Lighting Instructions
LIGHTING INSTRUCTIONS Using the Ignitor 1. Read instructions before lighting. 2. Burner control knob must be in the “OFF” position. 3. Connect natural gas source (see above pages). 4. Open the natural gas supply to the unit. 5. Push and hold igniter but t urn to create sparks. 6. -
Page 14: Care And Cleaning
DO NOT tamper with this appliance. This is DANGEROUS and will void the warranty. Any part found to be faulty must be replaced with an approved part, WARNING confirmed by manufacturer. For technical support contact Elementi at 800-678-7294. General Care and Cleaning This outdoor fireplace should be cleaned regularly to ensure safe use and extend product life. -
Page 15: Gas Component Connection Checks
CARE AND CLEANING Please see below for recommendations on maintaining your fireplace surface for years of extended use: • Clean any spills immediately to prevent permanent surface(s) staining or damage to your fireplace. • Blot any liquid spills with a clean, dry cloth to avoid spreading of the spill to the rest of the fireplace. •... - Page 16 GAS COMPONENT CONNECTION CHECKS 2. Make sure that the pilot housing is unobstructed. Clear any debris on top of the pilot housing and make sure there is no debris between the igniter pin, thermocouple and the burner tube. CORRECT INCORRECT 5mm / Thermocouple 0.196”...
-
Page 17: Troubleshooting
-Call ELEMENTI at 800-678-7294 for technical support. Possible Cause 4: Wire loose or disconnected. -Reference page 15, step 1, reconnect wire. Call ELEMENTI at 800-678-7294. Possible Cause 5: Wire is shorting (sparking) between igniter and electrode. -Call ELEMENTI at 800-678-7294 for support. - Page 18 TROUBLESHOOTING Problem: Sudden drop in gas flow, or a reduced flame height Possible Cause 1: Out of gas. -Call your local gas company. Possible Cause 2: Excess flow safety device may have been activated. -Turn control knob to “OFF”, wait 30 seconds and light outdoor fire table. If flames are still too low reset the excessive flow safety device by turning off the control knob and the gas supply.
-
Page 19: Warranty
1 year from the date of purchase. In the event of such defects Elementi will, at its option, repair or replace the defective product. The foregoing is at the discretion of Elementi. - Page 20 ELEMENTI THE ART OF FIRE Ocean Rock USA INC. 692 Parkridge Ave Norco, CA 92860, USA www.elementifire.com info@elementifire.com Tel: 800-678-7294...
