ST-408 – user's manual
ATTENTION: if the valve controller operates, at the same time, in a
circulation common with the furnace controller, the pump can be connected
from the furnace controller (the outlet of such pumps from ST-408 type
regulator or from an additional module will remain disconnected).
The control takes place with the use of pulse generator knob. Entering
MENU and settings confirmation proceeds by pressing the knob. When turning
it, a user operates in MENU functions. To go to the higher level menu, use exit
button. Any settings may be changed in a similar manner.
II.a) Main page

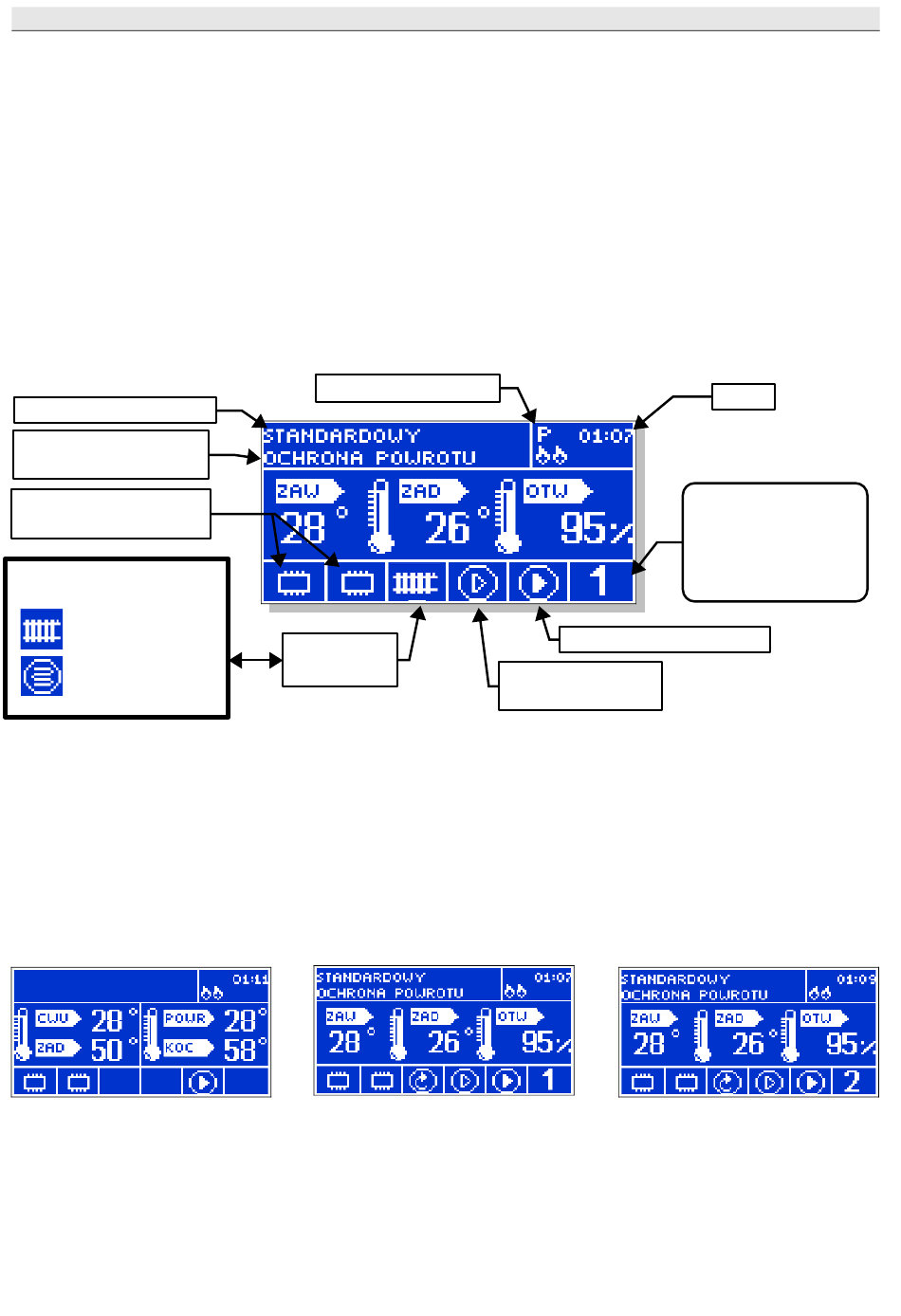

During normal regulator operation , graphic display shows the
homepage, on which the following are displayed:
OPERATION MODE
BOILER
PROTECTION
ACTIVE MODULES
ADDITIONAL
Valve type:
- C.H.
- FLOOR
By turning the pulse generator, the preset temperature can be easily
changed (the change is set for the currently visible main screen). After
pressing pulse generator knob, the user moves to the main menu.
To change homepage appearance for the boiler temperature view,
another valve or one of the additional valves (if active), EXIT key should be
pressed. Then, after choosing another screen, homepage view is changed.
- 6 -
ROOM CONTROL
ACTIVE
VALVE
HUW PUMP WORK
VALVE PUMP
WORK
HOUR
NUMBER OF THE
VALVE, THE
PARAMETERS OF
WHICH ARE
VISIBLE
