Application Note AN-69
LinkSwitch-4 Family
Design Guide and Considerations
Introduction
The LinkSwitch™-4 family of ICs dramatically simplifies low power
CV/CC charger/adapter design by eliminating an optocoupler and
secondary control circuitry. The LinkSwitch-4 family adaptive BJT drive
technology uses combined base and emitter switching to boost switching
performance and deliver higher efficiency, wider Reverse Bias Safe
Operating Area (RBSOA) margin and the flexibility to accommodate a
wide range of low cost BJT. The device incorporates a multimode PWM
/ PFM controller with quasi-resonant switching to maximize the efficiency,
meets <30 mW no-load and at same time maintains fast transient
response greater than 4.3 V with a load change from 0% to 100%.
Advanced Performance Features
Dynamic base drive technology provides flexibility in choice of BJT
•
transistor by dynamically optimizing BJT switching characteristics
Extends RBSOA of BJT
•
Dramatically reduces sensitivity to BJT gain
•
Compensates for transformer inductance tolerances
•
Compensates for input line voltage variations
•
Compensates for cable voltage drop
•
Compensates for external component temperature variations
•
Very accurate IC parameter tolerances using proprietary trimming
•
technology
Frequency up to 65 kHz to reduce transformer size
•
The minimum peak current is fixed to improve transient load
•
response
Advanced Protection/Safety Features
Single fault output overvoltage and short-circuit
•
Over-temperature protection
•
EcoSmart™ – Energy Efficient
Meets DoE 6 and CoC V5 2016 via an optimized quasi-resonant
•
switching PWM / PFM control
No-load consumption of <30 mW at 230 VAC input
•
Green Package
Halogen free and RoHS compliant package
•
Applications
Chargers for cell/cordless phones, PDAs, MP3/portable audio
•
devices, adapters, etc.
LinkSwitch-4 Family
There are four main family groups covering a power range of nominally
2 W to 18 W and they come in either a SOT23-6 or SO-8 package.
Groups are further subdivided by cable drop compensation levels of
0%, 3% and 6%.
LNK43xxx and LNK4x15D devices have an enhanced base drive
optimization for reduced BJT losses. For example, the LNK4322S can
output 5 W using a TO92 13003 BJT instead of a TO251 13005 and
remain thermally safe. The LNK43x3 devices also include a debounce
delay after a low output voltage is detected to prevent false UVP
foldback being triggered in noisy environments.
www.power.com
Output Power Table
Product
3,4
Features
LNK43x2S
13003 Drive
LNK40x2S
STD
LNK40x3S
STD
LNK4323S
STD
LNK40x3D
STD
LNK4323D
STD
LNK40x4D
STD
LNK4114D
Easy Start
LNK4214D
Easy Start + Constant Power
LNK4115D
Easy Start
LNK4215D
Easy Start + Constant Power
Table 1.
LinkSwtich-4 Selection Table Based on Output Power.
D Package (SO-8)
(LNK40x3D, LNK4323D)
1
CS
2
VCC
3
SBD
4
BD
D Package (SO-8)
(LNK40x4D, LNK4114D, LNK4214D,
LNK4115D, LNK4215D)
1
CS
2
VCC
3
BD
4
SBD

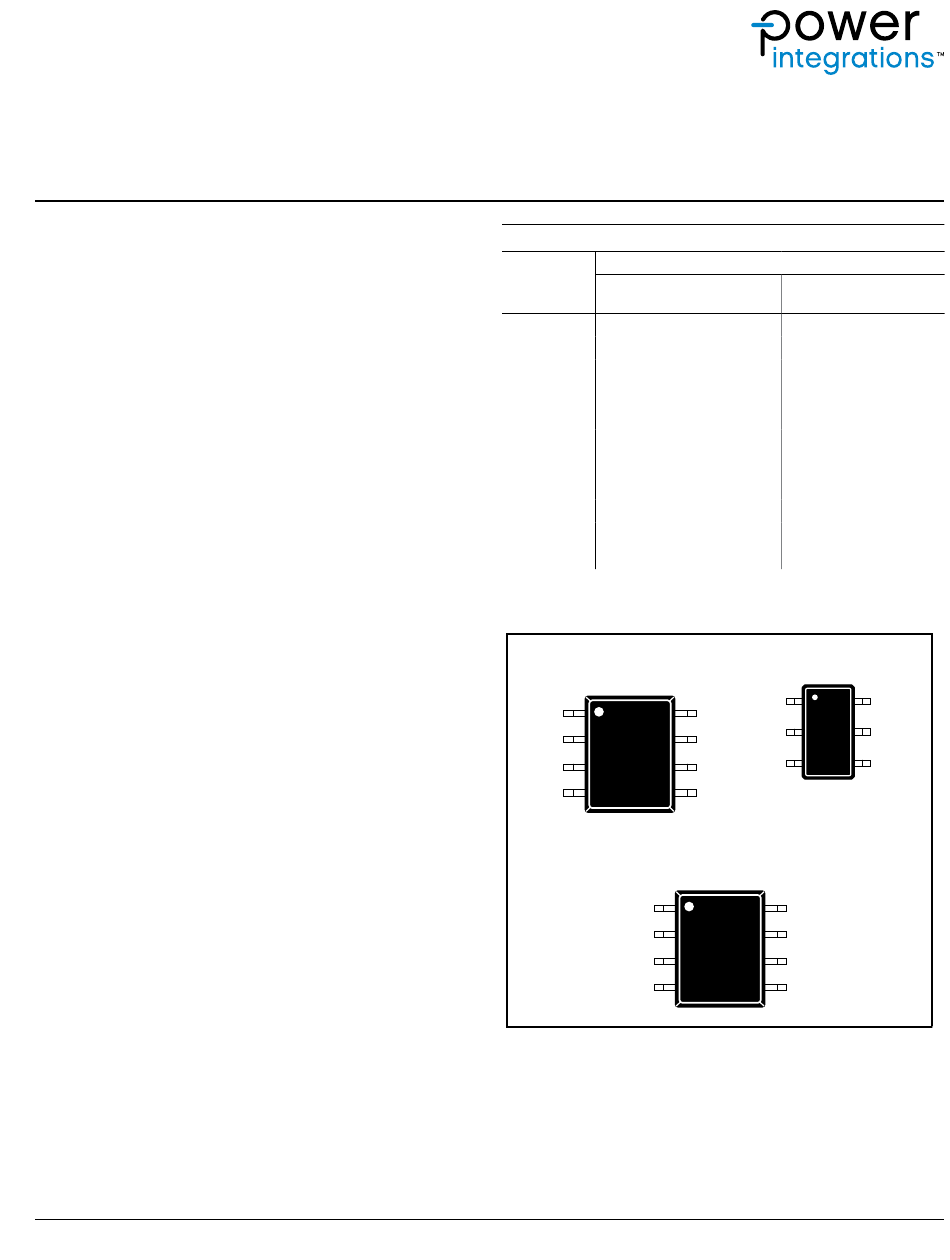

Figure 1.
LinkSwitch-4 Packages.
Note that the LNK4xx3D and LNK4xx4D SO-8 packages have the
SUPPLEMENTARY BASE DRIVE (SBD) pin and BASE DRIVE (BD) pins
swapped. This is to avoid problems with charger/adapter reliability.
The 10 W rated LNK40X3D would otherwise work in a 15 W LNK40X4D
design and may pass production final test, but it would be over-
stressed and probably result in field failures.
85 - 265 VAC
Adapter
5
Open Frame
5 W
6.5 W
8 W
8 W
10 W
10 W
15 W
15 W
15 W
18 W
18 W
S Package (SOT-23-6)
1
6
FB
8
FB
2
5
7
GND
GND
3
4
6
ED
GND
5
ED
8
FB
7
GND
6
GND
5
ED
PI-7673-061516
1
2
CS
VCC
BD
October 2017
