LinkSwitch-LP
Flyback Design Guide
Application Note AN-39
Introduction
The LinkSwitch-LP family is designed to replace inefficient
line frequency linear transformer based power supplies with
output powers < 2.5 W in applications such as cell/cordless
phones, PDAs, digital cameras, and portable audio players.
LinkSwitch-LP may also be used as auxiliary supplies employed
in applications such as white goods.
LinkSwitch-LP combines a high voltage power MOSFET switch
with an ON/OFF controller in one device. It is completely
self-powered from the DRAIN pin, has a jittered switching
frequency for low EMI and is fully fault protected. Auto-restart
limits device and circuit dissipation during overload and output
short circuit conditions while hysteretic over-temperature
protection disables the internal MOSFET during thermal
faults. EcoSmart
technology enables designs to easily attain
®
< 150 mW no-load consumption, meeting worldwide energy
efficiency requirements.
LinkSwitch-LP is designed to operate without the need for a
primary-side clamp circuit for output powers below 2.5 W and

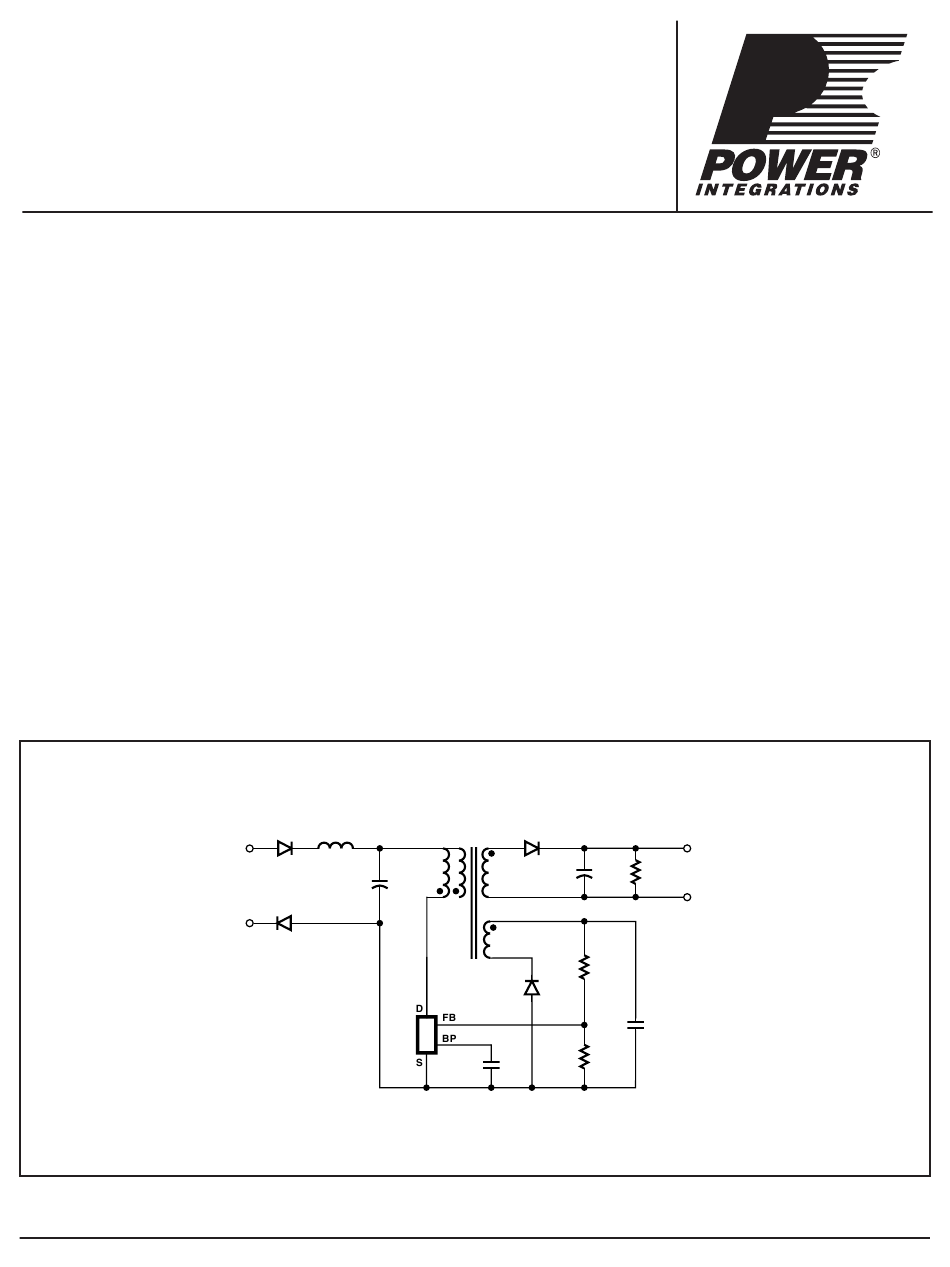

Figure 1. Basic Circuit Schematic Using LinkSwitch-LP in a Clampless™ Design.
®
D1
L1
1N4937
3.3 mH
L
C1
90-265
10 µF
VAC
400 V
N
D4
1N4007
LinkSwitch
U1
LNK564P
thus, dramatically reduces component count and total system
cost. Figure 1 shows a LinkSwitch-LP based 2 W power supply
without a primary-side clamp. The LinkSwitch-LP family
has been optimized to give an approximate CV/CC output
characteristic when feedback is provided from an auxillary or
bias winding on the transformer. This is ideal for applications
replacing a line frequency transformer, providing a compatible
output characteristic but with reduced overload, short circuit
current and variation with input line voltage.
Scope
This application note is for engineers designing an isolated
AC-DC flyback power supply using the LinkSwitch-LP family of
devices. It provides guidelines to enable an engineer to quickly
select key components and complete a transformer design for an
application requiring either a constant voltage (CV) or constant
voltage and constant current (CV/CC) output. To simplify the
task of transformer design, this application note refers directly
to the PI Xls design spreadsheet that is part of the PI Expert™
design software suite.
C5
D6
220 µF
T1
UF4002
25 V
EE16
2
7
1
6
4
D5
1N4005
5
R1
37.4 kΩ
R2
C3
3 kΩ
0.1 µF
50 V
PI-4063-101005
R4
6 V,
2 kΩ
0.33 A
RTN
C4
0.33 µF
50 V
July 2006
