TOP200-4/14
TOPSwitch Family
Three-terminal Off-line PWM Switch
Product Highlights
Low Cost Replacement for Discrete Switchers
• 20 to 50 fewer components - cuts cost, increases reliability
• Source-connected tab and Controlled MOSFET turn-on
reduce EMI and EMI filter costs
• Allows for a 50% smaller and lighter solution
• Cost competitive with linears above 5 W
Up to 90% Efficiency in Flyback Topology
• Built-in start-up and current limit reduce DC losses
• Low capacitance 700 V MOSFET cuts AC losses
• CMOS controller/gate driver consumes only 6 mW
• 70% maximum duty cycle minimizes conduction losses
Simplifies Design - Reduces Time to Market
• Supported by many reference design boards
• Integrated PWM Controller and 700 V MOSFET in a
industry standard three pin TO-220 package
• Only one external capacitor needed for compensation,
bypass and start-up/auto-restart functions
System Level Fault Protection Features
• Auto-restart and cycle by cycle current limiting functions
handle both primary and secondary faults
• On-chip latching thermal shutdown protects the entire
system against overload
Highly Versatile
• Implements Buck, Boost, Flyback or Forward topology
• Easily interfaces with both opto and primary feedback
• Supports continuous or discontinuous mode of operation
Description
The TOPSwitch family implements, with only three pins, all
functions necessary for an off-line switched mode control
system: high voltage N-channel power MOSFET with controlled
turn-on gate driver, voltage mode PWM controller with
integrated 100 kHz oscillator, high voltage start-up bias circuit,
bandgap derived reference, bias shunt regulator/error amplifier
for loop compensation and fault protection circuitry. Compared
to discrete MOSFET and controller or self oscillating (RCC)
switching converter solutions, a TOPSwitch integrated circuit
can reduce total cost, component count, size, weight and at the
same time increase efficiency and system reliability. These
®
AC
IN
DRAIN
SOURCE
CONTROL
TOPSwitch

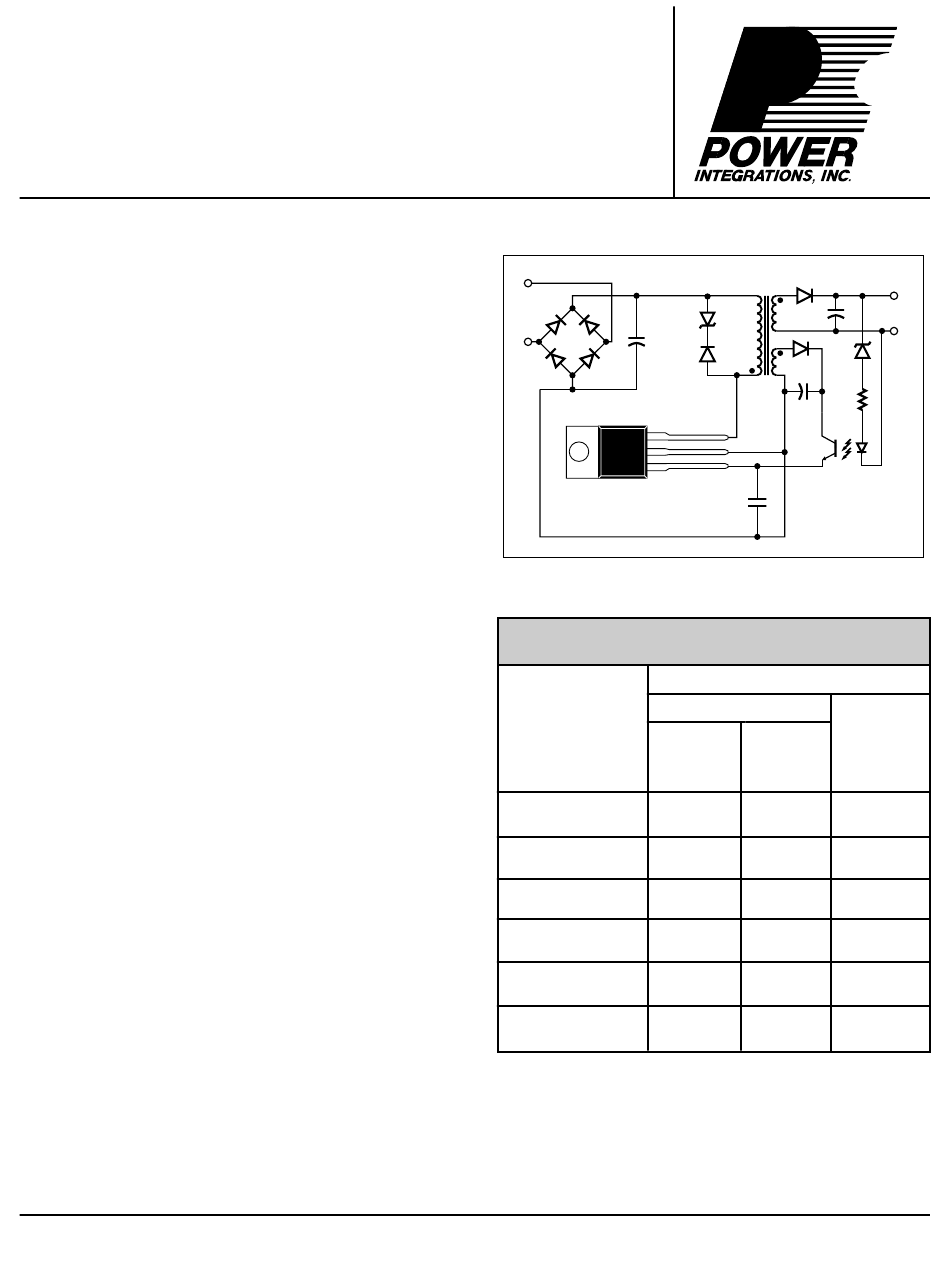

Figure 1. Typical Application.
TOPSwitch SELECTION GUIDE
ORDER
PART
230 VAC or
NUMBER
110 VAC
w/Doubler
TOP200YAI*
0-25 W
TOP201YAI*
20-45 W
TOP202YAI*
30-60 W
TOP203YAI*
40-70 W
TOP214YAI*
50-85 W
TOP204YAI*
60-100 W 30-50 W
* Package Outline: Y03A
devices are intended for 100/110/230 VAC off-line Power
Supply applications in the 0 to 100 W (0 to 50 W universal)
range and 230/277 VAC off-line power factor correction (PFC)
applications in the 0 to 150 W range.
PI-1703-112995
OUTPUT POWER RANGE
PFC/
FLYBACK
BOOST
85-265
230/277
VAC
0-12 W
0-25 W
10-22 W
20-50 W
15-30 W
30-75 W
20-35 W
50-100 W
25-42 W
60-125 W
75-150 W
®
VAC
July 1996
