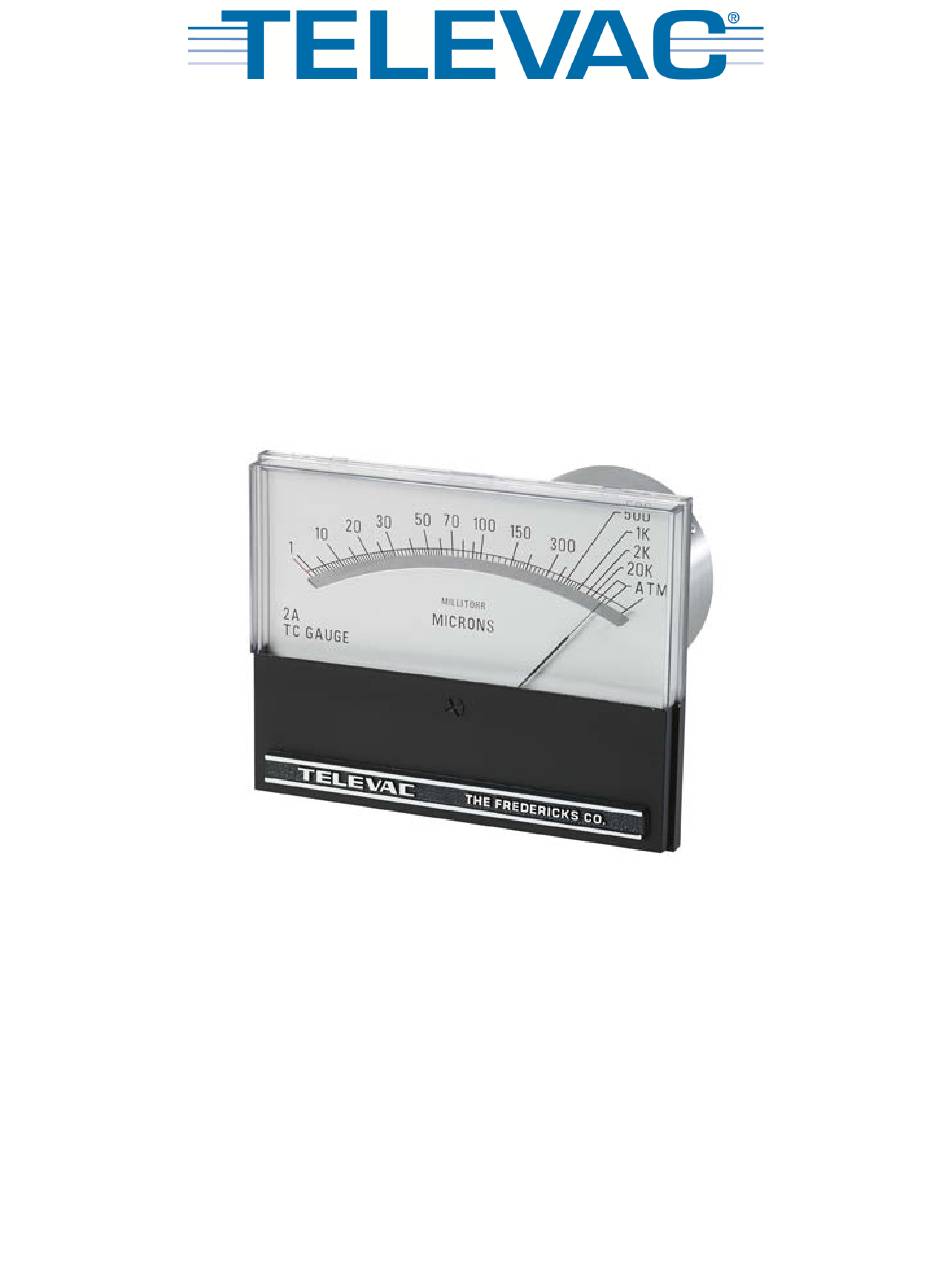

- Page 1 The Fredericks Company Compact 2A Thermocouple Controller Instruction Manual The Fredericks Company - Televac 2400 Philmont Avenue Huntingdon Valley, PA 19006 web: www.frederickscompany.com email: sales@frederickscompany.com tel: +1 215 947 2500 fax: +1 215 947 7464...
-
Page 2: Table Of Contents
Compact 2A Analog Output ........ -
Page 3: Introduction
Torr to 20 Torr. It utilizes a Televac thermocouple vacuum sensor, part number 2-2100-10 or 2-2126-0YY . It has an easy-to-read analog display that indicates pressure in units of mTorr. The Compact 2A has a 0-10 Volt analog output. 1.3 Operating Specifications Table 1: Operating Specifications... -
Page 4: Safety Information
START BY READING THESE IMPORTANT SAFETY INSTRUCTIONS AND NOTES In these instructions the word “product” refers to the Compact 2A and all of its approved parts and ac- cessories. NOTE: These instructions do not and cannot provide for every contingency that may arise in connection with the installation, operation, or maintenance of this product. -
Page 5: Dimensions
Compact 2A cable until the correct alignment is obtained and the Compact 2A cable is able to slide onto the 2A sensor. Connect the RJ14 end of the Compact 2A cable into the port on the back of the Compact 2A. It is recommended that the ground connector on the cable is also connected to the port on the back of the Compact 2A labeled with the universal earth ground symbol. -
Page 6: Electrical Information
2.2 Electrical Information 2 SETUP 2.2 Electrical Information The Compact 2A has several connectors located on the rear of the unit. A connection diagram is provided for convenience. Figure 2: Compact 2A Electrical Connection Information Label Description Thermocouple Sensor Input... -
Page 7: Analog Output
2 SETUP 2.4 Analog Output The Compact 2A contains a 0-10 V Non-Linear analog output for use with voltmeters, programmable logic controllers or other data acquisition devices. To convert the analog output signal to a pressure, refer to Figure 3. -
Page 8: Part Numbers
3 PART NUMBERS 3 Part Numbers Table 2: Controller, Cable, and Sensor Part Numbers Compact 2A Controller 2-3014-042 2A Sensor 1/8” NPT Nickel-Plated Brass 2-2100-10 2A Sensor Stainless Steel 1/8” NPT 2-2126-001 2A Sensor Stainless Steel NW16 (DN16 ISO-KF) 2-2126-030...
