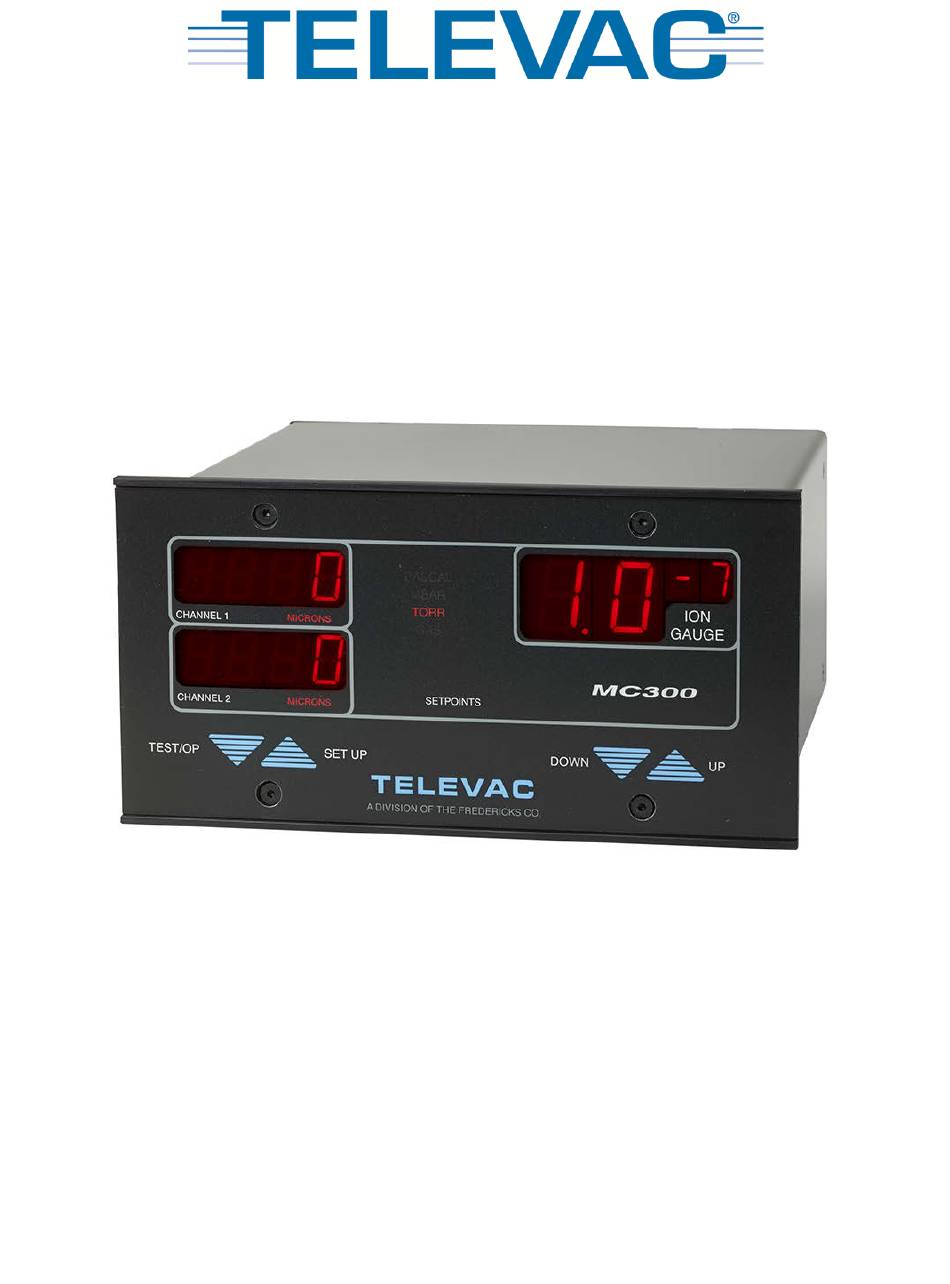

- Page 1 The Fredericks Company MC300 Vacuum Sensor Controller Instruction Manual The Fredericks Company - Televac 2400 Philmont Avenue Huntingdon Valley, PA 19006 web: www.frederickscompany.com email: sales@frederickscompany.com tel: +1 215 947 2500 fax: +1 215 947 7464...
-
Page 2: Table Of Contents
Turn on MC300 ........ - Page 3 Mini Bayard-Alpart Analog Output ........MC300 Configuration Part Numbers ........
-
Page 4: Introduction

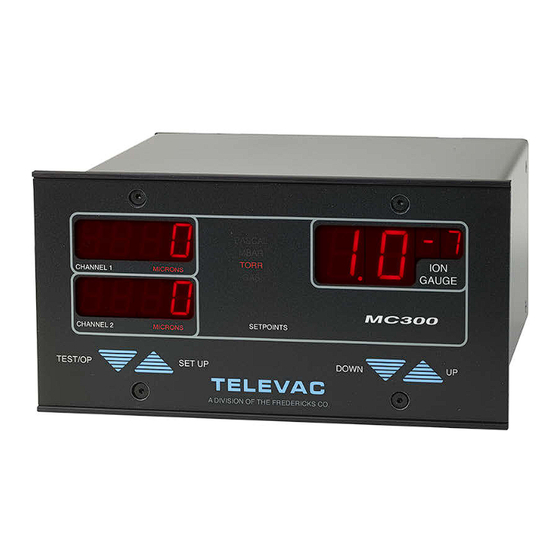

The MC300 is a rack-mountable vacuum controller, which operates up to three vacuum sensors, including cold cathode, mini Bayard-Alpert, thermocouple convection, and thermocouple sensors. The capability of controlling a wide range of sensors allows the MC300 to provide a maximum vacuum measurement range of 1 Torr to 1,000 Torr. -
Page 5: Dimensions
START BY READING THESE IMPORTANT SAFETY INSTRUCTIONS AND NOTES In these instructions the word “product” refers to the MC300 and all of its approved parts and accessories. NOTE: These instructions do not and cannot provide for every contingency that may arise in connection with the installation, operation, or maintenance of this product. -
Page 6: Setup
Connect the power cord provided with the MC300 to a suitable power supply. 2.1.4 Turn on MC300 Flip the power switch on the power supply on the back of the MC300 (next to where the power cord is connected). email: sales@frederickscompany.com tel: +1 215 947 2500 web: frederickscompany.com... -
Page 7: Check Display
To configure the set points, complete the following steps. For more information, see Section 2.4.1, Assigning Set Points and Values. 1. Press SETUP three times. SP 1 will appear on one display with CH 1, CH 2 or CH 3 (MC300 with ion sensors only) on a second display. -
Page 8: Lock Switch
Restart your MC300. It should be ready for use. Contact the Fredericks Company with any comments or questions. 2.2 Installation The MC300 can be installed as a benchtop unit, rack mounted, or panel mounted. Please see Section 1.4, Dimensions, for the relevant mounting dimensions. 2.3 Electrical Information 2.3.1 Power Requirements... -
Page 9: Assigning Set Points And Values
To change the assignment of the set points or change their values, follow the steps below. 1. Press SETUP three times. SP 1 will appear on one display with CH 1, CH 2 or CH 3 (MC300 with ion sensors only) on a second display. -
Page 10: Analog Outputs
2 SETUP 2.5 Analog Outputs Each sensor on the MC300 ships with two different analog output formats for ease of use by the customer. Consult the appropriate section below to learn more about each sensor output. The MC300 will return to its normal operating mode after the fourth relay has been set up or 60 seconds have elapsed since the last button press. - Page 11 2.5 Analog Outputs 2 SETUP Table 3: 2A Analog Output Pressure Traditional Linear (Torr) Output (V) Output (V) -0.005 10.59 -0.05 -0.001 10.16 -0.01 0.001 9.84 0.01 0.005 9.41 0.05 0.01 8.92 0.02 8.03 0.03 7.23 0.04 6.63 0.05 6.13 0.06 5.69 0.07...
-
Page 12: Thermocouple Convection Sensor
The Traditional Output option mimics the output of the raw signal from the 4A sensor. The voltage can be converted to a pressure by using a linear interpolation table. To receive an MC300 with a 4A sensor analog output set to Traditional, the user must specify this change during ordering. -
Page 13: Analog Output
2.5 Analog Outputs 2 SETUP Table 4: 4A Analog Output Linear by Pressure Traditional Linear Decade (Torr) Output (V) Output (V) Output (V) 0.001 0.013 0.01 0.005 0.065 0.05 0.01 0.124 0.02 0.238 0.03 0.344 0.04 0.45 0.05 0.546 0.06 0.638 0.07 0.73... -
Page 14: Penning Magnetron Cold Cathode
2.5 Analog Outputs 2 SETUP 2.5.3 7B Penning Magnetron Cold Cathode The 7B Penning Magnetron Cold Cathode sensor has two analog output settings. The Linear Output option provides a linear signal from 1 Torr to 1 Torr. The voltage can be converted to a pressure via an equation. - Page 15 2.5 Analog Outputs 2 SETUP Table 5: 7B Analog Output Linear by Pressure Linear Decade (Torr) Output (V) Output (V) 1.10E-03 10.11 10.11 1.00E-03 9.00E-04 8.00E-04 7.00E-04 6.00E-04 5.00E-04 4.00E-04 3.00E-04 2.00E-04 1.00E-04 9.00E-05 8.00E-05 7.00E-05 6.00E-05 5.00E-05 4.00E-05 3.00E-05 2.00E-05 1.00E-05 9.00E-06...
-
Page 16: 7F/7Fc Double Inverted Magnetron Cold Cathode
2.5 Analog Outputs 2 SETUP 2.5.4 7E/7F/7FC Double Inverted Magnetron Cold Cathode The 7E/7F/7FC Double Inverted Magnetron cold cathode sensor has two analog output settings. The Logarithmic Output option provides a logarithmic signal from 1 Torr to 1 Torr. The voltage can be converted to a pressure via an equation. -
Page 17: 7F/7Fc Analog Output
2.5 Analog Outputs 2 SETUP Table 6: 7E/7F/7FC Analog Output Linear by Pressure Logarithmic Decade (Torr) Output (V) Output (V) 1.00E-11 2.51E-11 0.251 6.31E-11 0.631 1.00E-10 2.51E-10 1.251 6.31E-10 1.631 1.00E-09 2.51E-09 2.251 3.98E-09 2.398 6.31E-09 2.631 1.00E-08 2.51E-08 3.251 3.98E-08 3.398 6.31E-08... -
Page 18: Mini Bayard-Alpert Sensor
2.5 Analog Outputs 2 SETUP 2.5.5 Mini Bayard-Alpert Sensor The Mini Bayard-Alpert sensor has two analog output settings. The Logarithmic Output option provides a logarithmic signal from 1 Torr to 1 Torr. The voltage can be converted to a pressure via an equation. -
Page 19: Mini Bayard-Alpart Analog Output
2.5 Analog Outputs 2 SETUP Table 7: Mini Bayard-Alpart Analog Output Pressure Logarithmic (Torr) Output (V) “CABLE” 1.00E-10 2.00E-10 1.00E-09 2.00E-09 5.00E-09 1.00E-08 2.00E-08 5.00E-08 1.00E-07 2.00E-07 5.00E-07 1.00E-06 2.00E-06 5.00E-06 1.00E-05 2.00E-05 5.00E-05 1.00E-04 2.00E-04 5.00E-04 1.00E-03 2.00E-03 5.00E-03 1.00E-02 1.40E-02 8.15... -
Page 20: Calibration
MC300 via a potentiometer until the MC300 reads the same pressure as a NIST calibrated reference gauge. -
Page 21: Configurations
3 CONFIGURATIONS 3 Configurations The MC300 can be configured to run two low vacuum sensors and an optional high vacuum sensor. The low vacuum sensors available are the 2A Thermocouple sensor and the 4A Thermocouple Convection sensor. The two low vacuum sensors must be the same type. The optional high vacuum sensors are the 7B Penning Magnetron cold cathode, 7E/F/FC Double Inverted Magnetron cold cathode, and the Mini Bayard-Alpart sensor. -
Page 22: Penning Magnetron Cold Cathode
3.1 Sensor Descriptions 3 CONFIGURATIONS 3.1.3 7B Penning Magnetron Cold Cathode The 7B Penning Magnetron cold cathode sensor has a measurement range from 1 10 up to 1 10 Torr. It indirectly measures absolute pressure by ionizing gas in the presence of a magnetic field. Unlike hot filament sensors, the 7B is resistant to in-rushes of gas. -
Page 23: Sensor And Cable Part Numbers
High vacuum versions of the MC300 include automatic operation of the high vacuum sensors based on the low vacuum sensor in Channel 1. Channel 2 is also a low vacuum sensor. The high vacuum sensor is labeled "ION GAUGE" on the MC300 display and is referred to as Channel 3. 4.1 Cold Cathodes Configurations For MC300 configurations that contain a cold cathode (either 7B or 7E/7F/7FC), the cold cathode... -
Page 24: On/Off
4.2 Mini Bayard-Alpert Configurations 4 HIGH VACUUM VERSIONS AND OPERATION 4.2.1 ON/OFF The first SETUP position on Mini Bayard-Alpert configurations allows the mini BA sensor to be toggled between ON and OFF using the UP and DOWN arrows. If the sensor is set to OFF, the sensor will not turn on under any circumstances.
