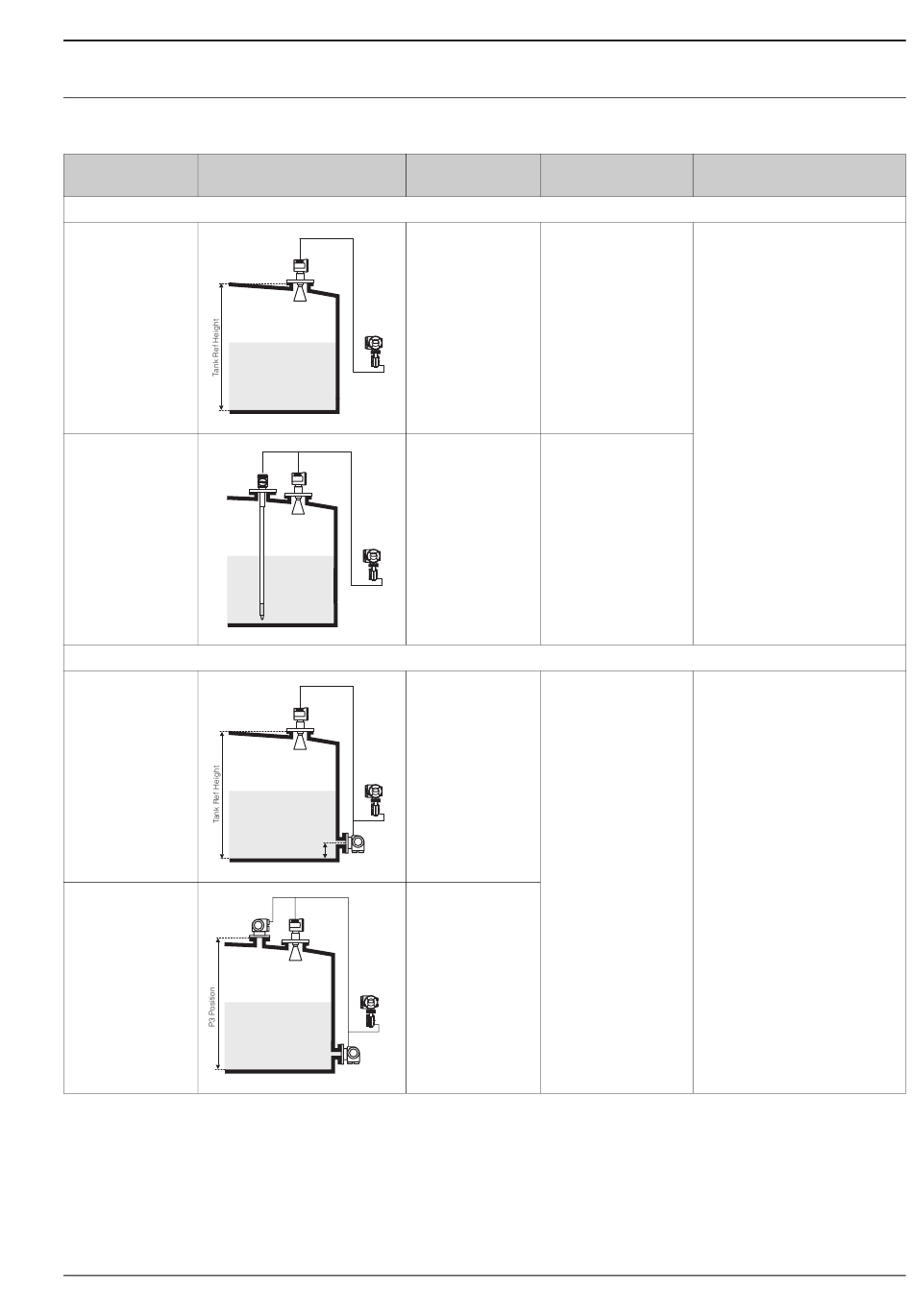

Typical Tank calculations
Setup preset
Installation example
Direct level measurement
Level only
Level + Temperature
Prothermo
Hybrid Tank Measuring System (HTMS)
HTMS + P1
HTMS + P1,3
Note!
This mode should be
used in non-
atmospheric tanks
(e.g. pressurised tanks)
Endress+Hauser
Sensors
• Level sensor
Micropilot
Tank Side
Monitor
L00-NRF590-14-00-08-yy-002
• Level sensor
• Temperature sensor
(RTD or
Micropilot
HART device;
optionally with bottm
water probe)
Tank Side
Monitor
L00-NRF590-14-00-08-yy-003
• Level sensor
• Pressure sensor
Micropilot
(P1, bottom)
Tank Side
Monitor
P1
P1 Position
L00-NRF590-14-00-08-yy-004
• Level sensor
• Pressure sensor
P3
Micropilot
(P1, bottom)
• Pressure sensor
(P3, top)
Tank Side
Monitor
P1
L00-NRF590-14-00-08-yy-005
measured/
required parameters
calculated values
• level
• Tank Ref Height
• level
• temperature
• level
• Tank Ref Height
• density of the measured
• P1 Position
medium (calculated)
• Min HTMS
(minimum level at which HTMS
measurement is possible; should be
slightly above the position of the P1
sensor)
• local gravity
• vapour density
• air density
• P3 Position (only for the "HTMS +
P1,3" mode)
