Operating concept

Remote operation

Endress+Hauser

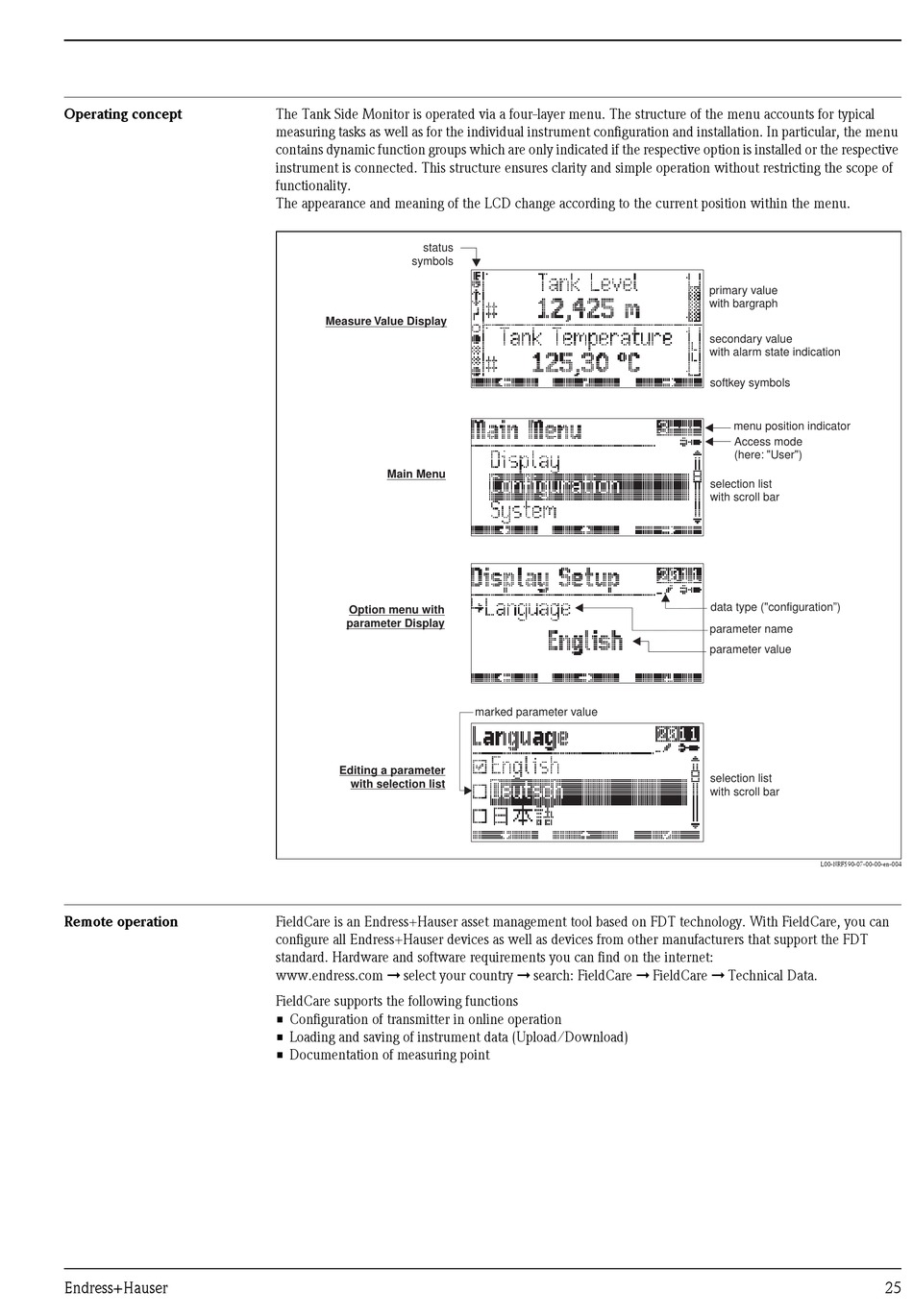

The Tank Side Monitor is operated via a four-layer menu. The structure of the menu accounts for typical
measuring tasks as well as for the individual instrument configuration and installation. In particular, the menu
contains dynamic function groups which are only indicated if the respective option is installed or the respective
instrument is connected. This structure ensures clarity and simple operation without restricting the scope of
functionality.
The appearance and meaning of the LCD change according to the current position within the menu.
status
symbols
Measure Value Display
Main Menu
Option menu with
parameter Display
Editing a parameter
with selection list
FieldCare is an Endress+Hauser asset management tool based on FDT technology. With FieldCare, you can
configure all Endress+Hauser devices as well as devices from other manufacturers that support the FDT
standard. Hardware and software requirements you can find on the internet:
www.endress.com È select your country È search: FieldCare È FieldCare È Technical Data.
FieldCare supports the following functions
• Configuration of transmitter in online operation
• Loading and saving of instrument data (Upload/Download)
• Documentation of measuring point
marked parameter value
primary value
with bargraph
secondary value
with alarm state indication
softkey symbols
menu position indicator
Access mode
(here: "User")
selection list
with scroll bar
data type ("configuration")
parameter name
parameter value
selection list
with scroll bar
L00-NRF590-07-00-00-en-004
