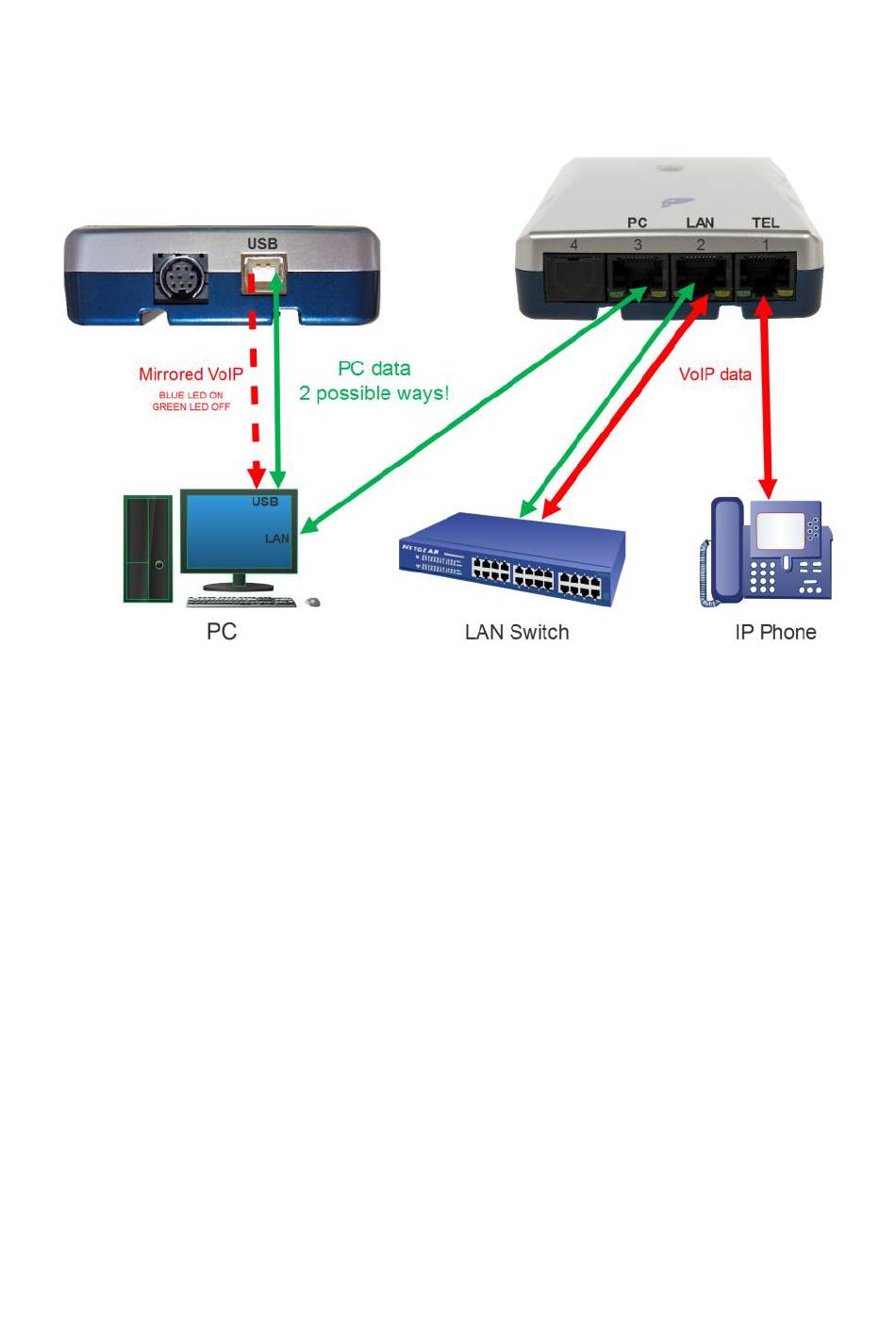

2.2 Hardware installation – USB mode
•
Connect the LAN cable from the Telephone to the CR-VoIP port 1 "TEL".
•
Connect the 'Wall' (LAN switch) to the CR-VoIP port 2 "LAN".
•
Connect the PC-USB to the CR-VoIP "USB" (used for power & data)!

2.3 Powering the IP Phone

Using a CR-VoIP does not change the powering of the IP Phone.
The IP Phone can be powered by its own mains adaptor or by PoE
(Power over Ethernet).
With PoE, the CR-VoIP always passes the PoE to the IP Phone, so the IP
Phone is always PoE-powered when PoE is applied.
Note that the CR-VoIP does NOT supply PoE, it simply passes PoE from
the VoIP-LAN, whenever available, to the IP Phone.
More, the CR-VoIP itself is not powered by PoE. CR-VoIP always needs a
PC or a USB mains adapter for powering. PoE is only used for IP Phone.
