2 Getting started

The Call Recorder VoIP is set up in a sequence of steps. The following
paragraphs will describe the steps involved. They are:
•
Decide to use the CR-VoIP in 'LAN' mode or 'USB' mode
•
Hardware installation in the desired mode
Install, setup and license the PC software
•
2.1 Hardware installation – LAN mode
•

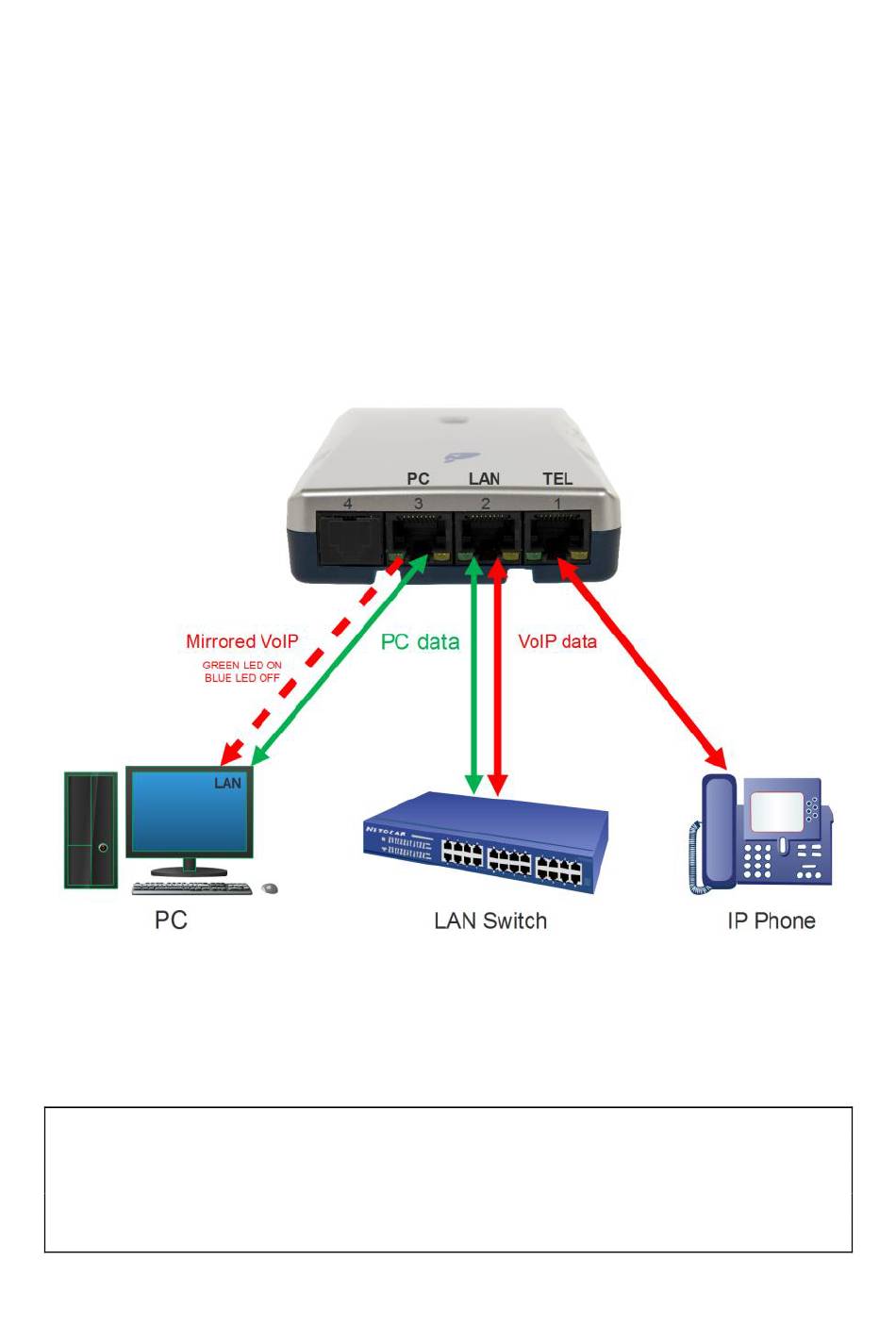

Connect the LAN cable from the Telephone to the CR-VoIP port 1 "TEL".
•
Connect the 'Wall' (LAN switch) to the CR-VoIP port 2 "LAN".
•
Connect the LAN cable from the PC to the CR-VoIP port 3 "PC".
•
Connect the PC-USB to the CR-VoIP "USB" (used for power supply only).
Note:
Compared with ART 010.01210, the 'LAN-only' CR-VoIP ART 010.01207,
has 1 extra LAN port on position '4'.
On ART 010.1210, a cap is placed on that position to prevent usage.
Don't remove the cap as the LAN signals are used internally.
