MaxxMar Domlux Operation And Programming Instructions

Hide thumbs Also See for Domlux:

Advertisement

Table of Contents

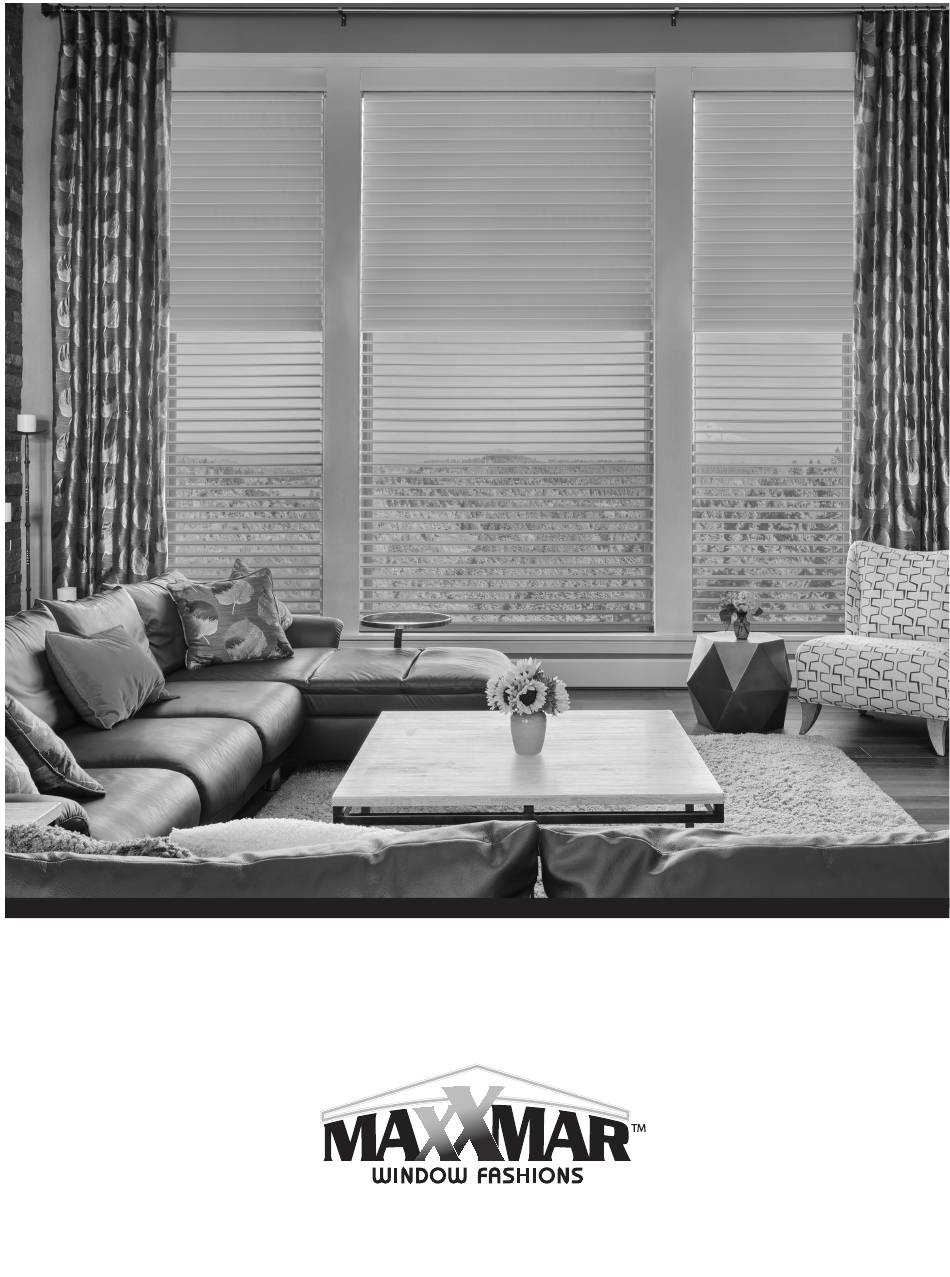

MAXX MOTORS
by
OPERATION AND PROGRAMMING INSTRUCTIONS
JANUARY 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Domlux and is the answer not in the manual?

Questions and answers

Related Manuals for MaxxMar Domlux

Summary of Contents for MaxxMar Domlux

  • Page 1 MAXX MOTORS OPERATION AND PROGRAMMING INSTRUCTIONS JANUARY 2018...

  • Page 2: Table Of Contents

    New Generation Maxx Motors Original Maxx Motors (with Bluetooth) (without Bluetooth) Solo – A1 Solo – A1 14-15 Domlux Domlux 16-17 Cool Motion Cool Motion 16-17 HWM-10 MaxxLink Controller HWM-20 Remote Transmitters MaxxLink Controller Bluetooth Connection Instructions 9-13...

  • Page 3: New Generation Maxx Motors

    New Generation Maxx Motors with Bluetooth Operation & Programming Instructions Solo-A1 - New Generation Smart Motor • New and Quieter Generation Smart Motor with Bluetooth • Rechargeable Wand Control System with Internal Battery Motor • 12V DC with Battery charger Visit link: neosmartblinds.com/motors-accessories/ Wand Buttons and Controls 1.
  • Page 4 3. Advanced Operations Command Description Key Combination Enter-Settings-Mode Put the motor into Settings Mode. (The motor will jog, and LED Hold SET for 5 seconds will turn ON.) Hold HEAD for 3 seconds Enter-Settings-Mode, then Leave-Settings- Return the motor to Normal Mode. (This will happen automati- Mode cally if no action is taken for 30 seconds.

  • Page 5: Domlux

    Rechargeable Internal Battery Hardwire - 110V AC Motor Control plugs into Electrical Outlet Motor with Remote Control Note: ALL 4 MOTORS - DOMLUX, 24V DC Low Voltage with 12V DC with battery charger COOL MOTION, HWM-10 & HWM-20 WORK WITH BLUETOOTH Transformer 1.
  • Page 6 New Generation MaxxMotors (Domlux, Cool Motion, HWM-10, HWM-20) New and Quieter Generation Smart Motor with Bluetooth Visit link: neosmartblinds.com/motors-accessories/ 3. Advanced Operations Enter Setting Mode • Put the motor into Settings Mode by Hold SET button for 3 seconds: the red LED light will turn on indicating the blind is in setting mode.

  • Page 7: Maxxlink Controller

    New Generation MaxxMotors (Domlux, Cool Motion, HWM-10, HWM-20) New and Quieter Generation Smart Motor with Bluetooth Reverse rotation correction • To Reverse the rotation of the blind: you must first place the blind in set mode. You may do this by pressing and holding the set button located on the back of the remote.
  • Page 8 Blue Link – Overview BLUETOOTH SECTION - SEE LINK: neosmartblinds.com/bluelink/ Antenna Micro USB/wand port/charging port Red led light Set/program Bluetooth port Set/program - use to program motor to a remote erase memory and save functions Red led light - indicating motor is in program mode Bluetooth port - used to install Bluetooth adapter Micro USB/wand port/charging port - used to charge motor or used as port for wand control Antenna - used to receive signal from remote control...
  • Page 9 Troubleshooting 1. Choose a blind Tap on the blind you want to adjust the limits. Visit the link below for detailed instructions. 2. Tap on the more menu http://neosmartblinds.com/smartcontroller-help/ The more menu (three dots) is located in the upper right side of the screen.
  • Page 10 Creating a new schedule 2. Tap on schedule, then use the trash icon to delete it Tap on the schedule you want to delete, then tap on the trash 1. Access the Schedule tab can icon. Tap on Confirm to permanently delete the schedule. Tap on the blind you want to create a new schedule, then tap on the Schedule tab.
  • Page 11 Troubleshooting (See Link: neosmartblinds.com/bluelink-troubleshooting/ ) Blue Link - Frequently asked questions How to setup a blind? 1. First download the Blue Link app to your device: Neo Smart Blinds Blue. For each motorized blind, add the Neo Blue Link to the motor using the Neo Blue Link connector.
  • Page 12 Troubleshooting (See Link: neosmartblinds.com/bluelink-troubleshooting/ ) Blue Link - Frequently asked questions Will the schedules still work when I’m not at home? Yes. The app doesn’t need to be open, neither in range of the blinds in order for the schedules run automatically. When I’m not at home, how can I operate my blinds? You can’t manually change the blind’s position if you are not physically in range.

  • Page 13: Original Maxx Motors

    Original MAXX MOTORS (without Bluetooth) Operation & Programming Instructions Switch Solo-A1 - Original Maxx Motor Rechargeable Wand Control System with Internal Battery Motor Charging Stop Settings port Down 12V DC with Battery Charger Command Item Operation Result Illustration Motor unit Fix Switch wand with motor using two screws assembling Screws...
  • Page 14 Original MAXX MOTORS (without Bluetooth) Operation & Programming Instructions Solo-A1 - Original Maxx Motor Rechargeable Wand Control System with Internal Battery Motor 12V DC with Battery Charger Command Item Operation Result Illustration Upper limit Press UP button Motor goes up setting Press STOP button Motor stops...

  • Page 15: Domlux

    Original MAXX MOTORS (without Bluetooth) The following operation and programming instructions apply to the following Maxx Motors: Domlux Cool Motion Motor with Transformer and Remote Rechargeable Internal Battery Control plugs into House Outlet Motor with Remote Control 24V DC Low Voltage with...

  • Page 16: Domlux

    Original MAXX MOTORS (without Bluetooth) The following operation and programming instructions apply to the following Maxx Motors: Domlux Cool Motion Motor with Transformer and Remote Rechargeable Internal Battery Control plugs into House Outlet Motor with Remote Control 24V DC Low Voltage with Transformer...

  • Page 17: Maxxlink Controller

    MaxxLink Controller for Original Maxx Motors State-of-the-art WiFi Technology allows you to control your shades from anywhere in the world: • Easy to connect with an Android or iPhone • Compatible with Control 4 smart home system • Can be used with Maxx Motor with remote control Quick Start Instructions Step 1 Download the app by searching “Neo Smart Blinds”...

  • Page 18: Remote Transmitters

    MaxxLink Controller for Original Maxx Motors Two remote transmitters to choose from: Instruction for transmitter Channel No. 1. Up 4. Channel 2. Stop 5. Limit (Setting) 3. Down 6. Power supply / Group controlling Stop Down • Press “Power supply” key on transmitter, then the LCD screen will light. At that time, the transmitter is entering into the operation state.
  • Page 19 MAXX MOTORS www.maxxmar.com...
