Propaq
®
LT
Vital Signs Monitor
Directions for Use

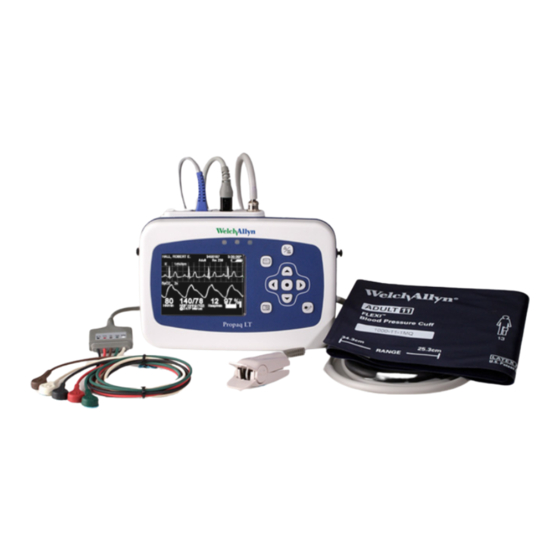

901061 Patient monitor
Software version 1.60.XX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Propaq LT and is the answer not in the manual?

Questions and answers

Related Manuals for Welch Allyn Propaq LT

Summary of Contents for Welch Allyn Propaq LT

  • Page 1 Propaq ® Vital Signs Monitor Directions for Use 901061 Patient monitor Software version 1.60.XX...
  • Page 2 Welch Allyn. Welch Allyn assumes no responsibility for any injury to anyone, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or statement of intended use published in this manual.

  • Page 3: Table Of Contents

    Contents 1 - Introduction ..........1 Intended use.
  • Page 4 Contents Welch Allyn Propaq LT Vital Signs Monitor About ParamSet ..........85 Responding to an alarm .

  • Page 5: Introduction

    Introduction Intended use The Propaq LT Series (802LTAN, 802LTAS, 802LT0N, 802LTRN, 802LT0S, and 802LTRS) monitors are portable devices intended to be used by clinicians and medically qualified personnel for single- or multiparameter vital-signs monitoring of ambulatory and nonambulatory patients, including neonate, pediatric and adult patients. These devices are indicated for ECG, noninvasive blood pressure (NIBP), respiration and SpO .
  • Page 6 Introduction Welch Allyn Propaq LT Vital Signs Monitor Table 2. Control buttons Monitor Power - Turn the monitor power on or off. Down - Move the cursor down to the next display item. Action - Act based on what is highlighted.
  • Page 7 Directions for Use Introduction Table 3. Status indicators (continued) (red) The battery is near failure; the monitor will shut down soon. If this indicator appears while the monitor is in the cradle, the battery cannot be charged and must be replaced. The battery is near failure and is charging.

  • Page 8: Safety

    Introduction Welch Allyn Propaq LT Vital Signs Monitor Table 4. Labels Lithium ion battery. This monitor (2.4 GHz) is approved for use Li ++ during all phases of flight aboard U.S. Army aircraft. AWR: MIL STD: 461E. Army: CE101, CS101, T, CS115, S116, RE102, RE103.
  • Page 9 Directions for Use Introduction General warnings These statements apply to all aspects of patient monitoring. Statements which apply specifically to one aspect of monitoring, such as NIBP or SpO monitoring, are presented in the corresponding sections of the manual. WARNING Many environmental variables, including patient physiology and clinical application, can affect the accuracy and performance of the monitor.
  • Page 10 145 for disclosure of the pacemaker pulse rejection capability of this instrument. WARNING Use only accessories approved by Welch Allyn. The use of any other accessories can result in inaccurate patient data, can damage the equipment, and can void your product warranty. Refer to the accessory list or www.welchallyn.com.
  • Page 11 Caution Autoclave accessories only if the manufacturer's instructions clearly direct you to do so. Many accessories can be damaged by autoclaving. Caution Changes or modifications not expressly approved by Welch Allyn could void the purchaser’s authority to operate the equipment.

  • Page 12: Controls, Indicators, And Connectors

    Introduction Welch Allyn Propaq LT Vital Signs Monitor Controls, indicators, and connectors Figure 1. Controls Display Cycle to the next configured display format, or cancel the current control, setup, or pop-up menu. Power Turn the monitor power on or off.
  • Page 13 Directions for Use Introduction HALL, ROBERT E. 3456187 3:00:06P Adult, Rm 239 II 1mV/cm Figure 3. Indicators: cradle SpO2 40/78 HR/min HR/min NIBP mmHg (102) NIBP mmHg (102) Resp/min Resp/min SpO2 SpO2 @2:47P Manual @2:47P Manual Battery is full or monitor is not in the cradle Green Battery is charging Yellow...

  • Page 14: Features And Functions

    Monitoring of neonate, pediatric and adult patients • Display of ECG, SpO , and Resp waveform traces • Accurate reading of NIBP in the presence of motion artifact, using Welch Allyn’s ® patented Smartcuf motion-tolerant technology • monitoring with advanced technology for accuracy under conditions of low perfusion ™...

  • Page 15: Accessories

    • AC power adapter WARNING Use only accessories approved by Welch Allyn. The use of any other accessories can result in inaccurate patient data, can damage the equipment, and can void your product warranty. Refer to the accessory list or www.welchallyn.com.

  • Page 16: Hipaa Considerations

    No physiological data transmitted by radio from the monitor is in clear text. All data sent is encoded using Welch Allyn's proprietary PSI Communications Protocol and can only be decrypted by a Welch Allyn Acuity Central Station residing on the local Welch Allyn FlexNet network. By default, data transmitted using the 802.11a standard is also encrypted using AES (Advanced Encryption Standard).

  • Page 17: Overview Of Monitor Operation

    Diagnostics in progress Application Version 1.00.00 Application Version 1.00.00 Bootcore Version 1.00.00 Bootcore Version 1.00.00 Welch Allyn 2005 Welch Allyn 2005 4. The splash screen is replaced by one of the power-on screens shown here: Figure 7. Power-up screens Portland Westside Hospital...

  • Page 18: Selecting A Language

    If you do change this setting, the change stays in effect through power cycles. For information about using the service menus, refer to the Propaq LT Monitor Service Manual (810-1811-XX). The monitor always powers on in this language until the setting is changed again. The setting can be changed again only if one of the following occurs: •...
  • Page 19 About the USB data transfer option A cradle configured with the optional USB communication port and connected to a PC with the Propaq LT Configuration Utility and the Propaq LT AutoPrint Utility can be used for the following: •...
  • Page 20 Overview of monitor operation Welch Allyn Propaq LT Vital Signs Monitor 2. Connect the AC adapter to an AC power outlet and to the cradle. The indicator (green) on the front of the cradle indicates that the AC power adapter is connected.

  • Page 21: Displaying Data

    Directions for Use Overview of monitor operation Displaying data Patient vital signs appear on the 3.5-inch (diagonal measurement) monitor display and optionally on the Large Color Display screen. Figure 12. Components of the vital-signs display (A) HALL, ROBERT E. HALL, ROBERT E. 3456187 3456187 3:00:06P...
  • Page 22 Overview of monitor operation Welch Allyn Propaq LT Vital Signs Monitor Figure 13. Components of the vital-signs display (B) HALL, ROBERT E. HALL, ROBERT E. 3456187 3456187 3:00:06P 3:00:06P Adult Adult Rm 239 Rm 239 1mV/cm 1mV/cm SpO2 SpO2 140/78...
  • Page 23 Directions for Use Overview of monitor operation About display formats The monitor can be configured to display any of these formats: Table 5. Display formats Large numerics HALL, ROBERT E. HALL, ROBERT E. 3456187 3456187 3:00:06P 3:00:06P Adult Adult Rm 239 Rm 239 80 80 97 97...
  • Page 24 Overview of monitor operation Welch Allyn Propaq LT Vital Signs Monitor The monitor can be configured to cycle quickly through three of the five available display formats when you press . For example, if the configuration specifies three formats— Large Numerics, Single Waveform, and Tabular Trends—you can press repeatedly to cycle through those formats.
  • Page 25 Directions for Use Overview of monitor operation Locking out the display, back light, and buttons If lock-outs are enabled, you can lock out one or more of the following elements: Buttons To prevent unauthorized use Back Light To extend the battery run life Display To prevent unauthorized viewing of patient information The monitor configuration defines which of these, if any, can be locked out.
  • Page 26 Overview of monitor operation Welch Allyn Propaq LT Vital Signs Monitor Note If the interface box is attached to the cradle, the bed rail hook cannot be used. Figure 15. Interface box mounted on the large screen Interface box mounted on...
  • Page 27 Directions for Use Overview of monitor operation Figure 16. Interface box mounted on the cradle Interface box mounted on the cradle Power conditioner Figure 17. Interface box and cradle mounted on the large screen Interface box and cradle mounted on the large screen Power conditioner...
  • Page 28 Overview of monitor operation Welch Allyn Propaq LT Vital Signs Monitor Large display viewing options The large display shows vital signs numerics and either four or nine waveforms. Figure 18. Large color display viewing options HR/min HR/min HR/min HR/min STEWART, ANN...
  • Page 29 Directions for Use Overview of monitor operation Leads I, II, and III are viewable. The waveform for the lead selected at the monitor is displayed on the large color display. Lead V cannot be displayed. When using a 5-lead cable with all electrodes attached, only leads II and V are Note available in the 4-waveform view.
  • Page 30 Overview of monitor operation Welch Allyn Propaq LT Vital Signs Monitor When the interface box is not used, the AC power adapter is attached to the cradle. When the interface box is used, the AC power adapter is connected to it and not to the cradle.
  • Page 31 Directions for Use Overview of monitor operation Detaching the bed rail hook from the cradle If you are attaching the interface box to the cradle and if the cradle and the bed rail hook are attached, you must first detach the bed rail hook from the cradle. 1.
  • Page 32 Overview of monitor operation Welch Allyn Propaq LT Vital Signs Monitor Assembling the large color display Refer to Figure Figure 25 on page 29, or Figure 26 on page 30. Figure 24. Mounting the interface box (with face plate) on the large display mounting bracket...
  • Page 33 Directions for Use Overview of monitor operation Figure 25. Mounting the interface box on the cradle 40-mm screws 620-0432-00 18-mm screws 620-0433-00 Short cables between box and cradle: 008-0947-00 (USB) 008-0949-00 (AC Power) Power conditioner...
  • Page 34 Overview of monitor operation Welch Allyn Propaq LT Vital Signs Monitor Figure 26. Mounting the interface box and the cradle on the large display mounting bracket 60-mm screws 620-0431-00 40-mm screws 620-0432-00 Short cables between box and cradle: 008-0947-00 (USB)

  • Page 35: About Navigation

    Directions for Use Overview of monitor operation About navigation You navigate the monitor screens using , and (arrow buttons), (action button), (display button). Using the arrow buttons to do the following: • Highlight an item on the display. (See “Using the highlights” on page 31.) •...
  • Page 36 Overview of monitor operation Welch Allyn Propaq LT Vital Signs Monitor Figure 27. Examples of highlighted elements HALL, ROBERT E. HALL, ROBERT E. 3456187 3456187 12:41:32 12:41:32 Waveform Size Waveform Size Drop-down menu Adult Adult Rm 239 Rm 239 0.2 mV/cm 0.2 mV/cm...

  • Page 37: Menus

    Directions for Use Overview of monitor operation Menus Using control menus Figure 29. SpO control menu (example) HALL, ROBERT E. HALL, ROBERT E. 3456187 3456187 3:00:06P 3:00:06P Control context Adult Adult Rm 239 Rm 239 II 1mV/cm II 1mV/cm Parameters Current settings 140/78 140/78...
  • Page 38 Overview of monitor operation Welch Allyn Propaq LT Vital Signs Monitor 2. Scroll (using ) to HR/PR Tone, and press either or as many times as needed to highlight Off. When you change a setting (for example, by turning off an alarm limit or by Note increasing or decreasing an alarm limit), the change takes effect immediately.
  • Page 39 Directions for Use Overview of monitor operation About the NIBP control menu The NIBP control has submenus Manometer, Systolic, Diastolic, and Mean. Press to select one. Figure 30. NIBP control menu STEWART, ANN STEWART, ANN 7762940 7762940 3:00:06P 3:00:06P Adult Adult Rm 263 Rm 263...
  • Page 40 Overview of monitor operation Welch Allyn Propaq LT Vital Signs Monitor About the Resp control menu Parameter Options Parameter Options Resp Monitoring Off On Lower Alarm Off On Upper Alarm Off On Lower Limit Upper Limit Adult 2 - 148...
  • Page 41 Directions for Use Overview of monitor operation Use the Setup -> Configuration menu to change the monitor configuration without using the Configuration Utility. Option Note Configuration Select ( ) to save current settings. Replace the power-up defaults with the current parameter settings.

  • Page 42: About Monitor Information Screens

    Overview of monitor operation Welch Allyn Propaq LT Vital Signs Monitor About monitor information screens Both the start-up information screen and the monitoring information screen provide information about the monitor. To view the start-up information screen From the power-on screen (Figure 7 on page 13), highlight Info.
  • Page 43 Directions for Use Overview of monitor operation To view the monitoring information screen Highlight (in the upper right corner of the vital-signs display) and press Figure 33. Monitoring information HALL, ROBERT E. HALL, ROBERT E. 3456187 3456187 12:41:32 12:41:32 Adult Adult Rm 239 Rm 239...

  • Page 44: Using Demo Mode

    Overview of monitor operation Welch Allyn Propaq LT Vital Signs Monitor Using demo mode In Demo mode, the monitor displays simulated patient data for all vital signs. You can use Demo mode to familiarize yourself with the following: • Viewing vital-signs displays •...
  • Page 45 Directions for Use Overview of monitor operation Figure 35. Demo mode: initial display ID: 01018VDO9PBH ID: 01018VDO9PBH 3:00:06P 3:00:06P Adult Adult Rm 239 Rm 239 SIMULATION SIMULATION 80 80 97 97 HR/min HR/min SpO2 SpO2 12 12 NIBP mmHg NIBP mmHg Resp/min Resp/min When you enter Demo mode, the monitor is in ‘Demo mode low’.
  • Page 46 Overview of monitor operation Welch Allyn Propaq LT Vital Signs Monitor The Timings menu specifies the Demo mode—Demo mode low, which simulates normal vital signs, and Demo mode high, which simulates a higher heart rate (HR), higher respiration rate (Resp), and lower oxygen saturation (SpO 3.
  • Page 47 Directions for Use Overview of monitor operation Figure 39. Demo mode high: simulated alarm condition Flashing red: patient alarm HR limit violation (red) limit violation (red) ID: 01018VDO9PBH ID: 01018VDO9PBH 3:00:06P 3:00:06P HALL, ROBERT E. HALL, ROBERT E. 3456187 3456187 3:00:06P 3:00:06P Select ( ) for controls...

  • Page 48: Power Saving

    Overview of monitor operation Welch Allyn Propaq LT Vital Signs Monitor Power saving To maximize battery life, the monitor display shuts off when the following conditions are all true: • No button press for a period of n seconds. (n is configurable.) See “Timing out the...

  • Page 49: Transporting The Monitor With The Patient

    Directions for Use Overview of monitor operation Transporting the monitor with the patient An ambulatory patient can wear or carry the monitor using the wearable strap or the patient carry strap (optional accessories). Medical personnel can use the transport stretcher carry strap to keep the monitor with a patient during stretcher transport. WARNING When the patient is wearing or carrying the monitor, carefully route any patient cabling to reduce the possibility of patient entanglement or strangulation.
  • Page 50 Overview of monitor operation Welch Allyn Propaq LT Vital Signs Monitor To use the patient carry strap WARNING Do not use the patient carry strap to lift or carry both the monitor and the cradle. The patient carry strap is not intended to support (and cannot support) the weight of both the monitor and the cradle.

  • Page 51: Standalone Monitoring

    The monitor is available in standalone models (802LT0N and 802LT0S) and in wireless models (802LTAN, 802LTAS, 802LTRN and 802LTRS). This chapter describes the operation of the standalone monitor and of the wireless ® monitor when it is not in communication with the Welch Allyn Flexnet network and an ® Acuity Central Station.
  • Page 52 Standalone monitoring Welch Allyn Propaq LT Vital Signs Monitor Figure 45. Start-up with saved data Portland Westside Hospital Portland Westside Hospital Emergency Department Emergency Department Note! Note! There is patient data stored for There is patient data stored for Hall, Robert E. ID: 3456187 Hall, Robert E.
  • Page 53 Directions for Use Standalone monitoring Figure 48. Patient information entry Last Last Middle Middle First First Entry fields A B C D E F G H I J K L M N O P Q R S T U V Character field W X Y Z 1 2 3 4 5 6 7 8 9 0 - Backspace...
  • Page 54 Standalone monitoring Welch Allyn Propaq LT Vital Signs Monitor Figure 50. Changing patient mode Patient Mode Patient Mode Patient Mode Patient Mode Adult Adult Adult Adult Pediatric Pediatric Pediatric Pediatric Neonate Neonate Neonate Neonate c. A confirmation screen appears: Figure 51. Confirming a change of patient mode HALL, ROBERT E.

  • Page 55: Continuing To Monitor A Patient On Power-Up

    Directions for Use Standalone monitoring Figure 53. Time/date screen: 12-hour format HALL, ROBERT E. HALL, ROBERT E. 3456187 3456187 14:49:54 14:49:54 Adult Adult Rm 239 Rm 239 1mV/cm 1mV/cm HR/min HR/min NIBP mmHg NIBP mmHg Resp/min Resp/min SpO2 SpO2 Time Format Time Format 12 Hour 12 Hour...

  • Page 56: Monitoring Ecg And Resp

    Standalone monitoring Welch Allyn Propaq LT Vital Signs Monitor Figure 55. Start-up with saved data Portland Westside Hospital Portland Westside Hospital Emergency Department Emergency Department Note! Note! There is patient data stored for There is patient data stored for Hall, Robert E. ID: 3456187 Hall, Robert E.
  • Page 57 WARNING Always use the provided garment clips to route ECG cables away from the patient’s head. WARNING Use only accessories approved by Welch Allyn. The use of any other accessories can result in inaccurate patient data, can damage the equipment, and can void your product warranty.
  • Page 58 Standalone monitoring Welch Allyn Propaq LT Vital Signs Monitor Monitoring ECG 1. Inspect the ECG cable. Replace it if it shows any signs of wear, breakage, or fraying. 2. Plug the cable into the monitor. 3. Select electrode sites on the patient, choosing flat areas and avoiding fatty or bony areas and major muscles.
  • Page 59 Directions for Use Standalone monitoring Figure 57. ECG leads - placement displays, 5-lead and 3-lead The locations of the circles displayed on the monitor (Figure 57) for each lead are fixed, and do not indicate the exact placement of the electrodes on the patient. If the monitor detects that some lead wires are not connected, it displays an “ECG Fault”...
  • Page 60 Standalone monitoring Welch Allyn Propaq LT Vital Signs Monitor Figure 60. Waveform source: II STEWART, ANN STEWART, ANN 7762940 7762940 15:14:28 15:14:28 Adult Adult Rm 263 Rm 263 1mV/cm 1mV/cm Waveform Source Waveform Source Lead I Lead I Lead II...
  • Page 61 Directions for Use Standalone monitoring About pacemakers and ECG monitoring If the patient being monitored has a pacemaker, the monitor detects and can indicate the occurrence of pacemaker signals. If the Pacer Indicator setting is ON, the monitor displays and prints vertical dashed lines to indicate detected pacemaker signals. If Pacer Indicator is OFF, the monitor continues to detect the pacemaker signals but does not display or print the pacer markers.
  • Page 62 Monitoring respiration Resp is based on impedance pneumography, where respirations are sensed from the ECG electrodes. Note All ECG cables listed for the Propaq LT monitor in the accessory list or at www.welchallyn.com permit respiration monitoring and electrosurgical interference suppression.
  • Page 63 Directions for Use Standalone monitoring Figure 65. Resp waveform, default size (2x) HALL, ROBERT E. HALL, ROBERT E. 3456187 3456187 3:08:16 3:08:16 Adult Adult Rm 239 Rm 239 Resp Resp 80 80 12 12 97 97 HR/min HR/min NIBP mmHg NIBP mmHg Resp/min Resp/min...

  • Page 64: Monitoring Spo

    Standalone monitoring Welch Allyn Propaq LT Vital Signs Monitor Monitoring SpO The monitor can be purchased with the Nellcor or the Masimo SpO option. Most of this chapter pertains to either configuration. Monitors with the Masimo technology, however, can provide additional SpO data.
  • Page 65 Directions for Use Standalone monitoring WARNING Interfering substances: Carboxyhemoglobin can erroneously increase readings; the level of increase is approximately equal to the amount of carboxyhemoglobin present. Methemoglobin and other dysfunctional hemoglobins can also cause erroneous readings. Further assessment beyond pulse oximetry is recommended. Intravascular dyes, or any substances containing dyes, that change usual arterial pigmentation can cause erroneous readings.
  • Page 66 Standalone monitoring Welch Allyn Propaq LT Vital Signs Monitor the patient is in cardiac arrest or shock the patient has hypotension, severe vasoconstriction, severe anemia, or hypothermia • If poor perfusion affects performance for an adult, consider using the adult nasal sensor.
  • Page 67 Directions for Use Standalone monitoring Figure 68. SpO monitoring turned off HALL, ROBERT E. HALL, ROBERT E. 3456187 3456187 3:11:24P 3:11:24P Adult Adult Rm 239 Rm 239 80 80 Monitoring is Off HR/min HR/min SpO2 @ 3:03P SpO2 @ 3:03P NIBP mmHg NIBP mmHg Resp/min...
  • Page 68 Standalone monitoring Welch Allyn Propaq LT Vital Signs Monitor Figure 71. SpO spot check: pulse rate reading HALL, ROBERT E. HALL, ROBERT E. 3456187 3456187 3:12:13P 3:12:13P Adult Adult Rm 239 Rm 239 78 78 98 98 PR/min PR/min SpO2 @ 3:05P...

  • Page 69: Monitoring Blood Pressure (Nibp)

    Directions for Use Standalone monitoring Normal For typical monitoring. APOD For monitoring when the probe is likely to detach from the patient because of wet skin, motion, or other unusual circumstances. Maximum For monitoring patients with extremely low perfusion. Averaging Time The period (in seconds) over which multiple SpO2 measurements are taken and a result is derived.
  • Page 70 Standalone monitoring Welch Allyn Propaq LT Vital Signs Monitor To monitor blood pressure 1. Select cuff size based on limb circumference. Use only hoses and cuffs listed in the accessory list or at www.welchallyn.com. 2. Squeeze all the air from the cuff before placing the cuff on the patient.
  • Page 71 Directions for Use Standalone monitoring Figure 74. NIBP: reading in progress STEWART, ANN STEWART, ANN 7762940 7762940 3:00:06P 3:00:06P NIBP in progress. NIBP in progress. Adult Adult Rm 263 Rm 263 1mV/cm 1mV/cm HR/min HR/min NIBP mmHg NIBP mmHg Resp/min Resp/min SpO2 SpO2...
  • Page 72 Standalone monitoring Welch Allyn Propaq LT Vital Signs Monitor Note The message ???/???/(???) in an NIBP TREND display or printout indicates that the monitor could not complete an NIBP measurement during that period. Note On-demand NIBP readings (manual or turbo) are delayed by 8 seconds if they are started while the monitor is in a power-saving mode such as display time-out.

  • Page 73: Changing The Default Settings

    Directions for Use Standalone monitoring To stop automatic NIBP readings 1. Highlight NIBP and press 2. Highlight NIBP Mode and select Manual. Taking NIBP readings using Turbo mode In Turbo mode, the monitor starts an NIBP reading and then takes as many more readings as possible within five minutes.
  • Page 74 Standalone monitoring Welch Allyn Propaq LT Vital Signs Monitor • Download another configuration from a PC. (See “Using the Configuration Utility to configure the monitor” on page 116.) ID: 01018VDO9PBH 3:00:06P To save the current settings as the new default settings...

  • Page 75: To Discontinue Monitoring

    Directions for Use Standalone monitoring ID: 12549M6I9ERF ID: 12549M6I9ERF 03:53:45 03:53:45 Adult Adult Note! You are changing the Note! You are changing the default settings to factory default settings to factory settings. settings. If this is correct, highlight If this is correct, highlight HR/min HR/min SpO2...
  • Page 76 Standalone monitoring Welch Allyn Propaq LT Vital Signs Monitor...

  • Page 77: Monitoring In Communication With Acuity

    Monitoring in communication with Acuity About wireless monitoring The model 802LTAN, 802LTAS, 802LTRN and 802LTRS wireless monitors can operate either in standalone mode or in communication with a Welch Allyn Acuity Central Station. (See “Standalone monitoring” on page 47.) While the wireless monitor is connected to the FlexNet network, patient data gathered by the monitor is continuously stored at Acuity.

  • Page 78: Establishing Communication With Acuity

    Monitoring in communication with Acuity Welch Allyn Propaq LT Vital Signs Monitor Note When the monitor is used in Canada: To provide maximum shielding (to prevent radio interference to the licensed service), the monitor is intended to be operated indoors and away from windows.

  • Page 79: Monitoring A Patient Outside Of Network Range

    Directions for Use Monitoring in communication with Acuity Monitoring a patient outside of network range Monitors are typically deployed in an active wireless network environment where devices continually communicate with a central station. These monitors occasionally leave the wireless coverage area during transport to a procedure room (for example, a trip to X-ray). When a monitor goes outside of the network range, monitoring continues locally.

  • Page 80: About Acuity Message Menus

    • Before removing monitors from a wireless coverage area, disconnect them from the wireless infrastructure. Propaq LT monitors include this software feature for clinicians. About Acuity message menus When the monitor first establishes communication with Acuity and the clinician selects to start a new patient, the monitor presents a series of screens to determine the location (unit and room number) and the name and ID number of the monitored patient.
  • Page 81 Directions for Use Monitoring in communication with Acuity Figure 79. Acuity patient list STEWART, ANN STEWART, ANN 7762940 7762940 12:41:32 12:41:32 Adult Adult Rm 263 Rm 263 1mV/cm 1mV/cm HR/min HR/min NIBP mmHg NIBP mmHg Resp/min Resp/min SpO2 SpO2 SELECT SELECT PATIENT PATIENT...
  • Page 82 Monitoring in communication with Acuity Welch Allyn Propaq LT Vital Signs Monitor Press to clear the message. When the monitor re-establishes communication with Acuity (after an interruption of at least 30 seconds), it prompts you to confirm that the patient being monitored is the same patient that was being monitored when communication was interrupted.
  • Page 83 Directions for Use Monitoring in communication with Acuity To disconnect from the network Note Disconnecting the monitor from the network while the monitor is outside of network range greatly extends battery life. However, connection with the network must first have been established before this is possible. 1.
  • Page 84 Monitoring in communication with Acuity Welch Allyn Propaq LT Vital Signs Monitor...

  • Page 85: Alarms And Alerts

    Alarms and alerts Overview An Alarm warns of a patient condition, such as a vital-sign reading that is outside of acceptable limits. When an alarm occurs, the red light on the monitor flashes and the numerics of the violating alarm limits on the display turn red. If tones are not suspended, the alarm tone sounds.

  • Page 86: Suspending The Alarm Tone

    Alarms and alerts Welch Allyn Propaq LT Vital Signs Monitor Figure 86. Sample alarm screen HALL, ROBERT E. HALL, ROBERT E. 3456187 3456187 3:00:06P 3:00:06P Adult Adult Rm 239 Rm 239 II 1mV/cm II 1mV/cm 140/78 140/78 HR/min HR/min NIBP mmHg (102)
  • Page 87 Directions for Use Alarms and alerts • If it is configured to Always On and you set Suspend Audible Alarms to On, then the alarm tone remains suspended until: • you set Suspend Audible Alarms to Off or • monitor power is turned off and then turned on again or •...

  • Page 88: Changing Alarm Limits

    Alarms and alerts Welch Allyn Propaq LT Vital Signs Monitor • A countdown timer appears below the line to indicate the time remaining in the suspension period. • ‘Audio alarms suspended’ appears in yellow in the upper left corner of the screen.

  • Page 89: About Paramset

    LL Lead Failed LL Lead Failed @2:47P Manual @2:47P Manual ACKNOWLEDGE ACKNOWLEDGE Propaq LT Text on a yellow field identifies the alert condition. To respond at the monitor to an alert 1. Press to silence the tone for 90 seconds; press to clear the alert.

  • Page 90: About Battery Charge Status

    Alarms and alerts Welch Allyn Propaq LT Vital Signs Monitor To respond at Acuity to an alert For a monitor in communication with Acuity, either the monitor or Acuity can detect alarms and alerts. The alarms are displayed in both places. See Acuity Directions For use.

  • Page 91: Alert Messages And Status Messages

    Directions for Use Alarms and alerts Alert messages and status messages Table 7. Alert messages Alert type Message Possible cause and suggested response ECG Fault. Lead XX (LA, LL, RA, C, or RL) has very poor contact or no XX lead failed. contact with the patient.
  • Page 92 Alarms and alerts Welch Allyn Propaq LT Vital Signs Monitor Table 7. Alert messages Alert type Message Possible cause and suggested response NIBP Fault. The patient mode setting is incorrect or the wrong hose or No valid blood pressure found.
  • Page 93 Directions for Use Alarms and alerts Table 7. Alert messages Alert type Message Possible cause and suggested response Charger Charger Fault. Service required. Service charger. Charger Disabled. The battery is too cold or too hot to charge. Normalize the Battery temperature too high or low. battery temperature before attempting to charge it.
  • Page 94 Alarms and alerts Welch Allyn Propaq LT Vital Signs Monitor Table 8. Status messages Message Notes NIBP calibrating. The monitor will resume operation when the calibration is complete. Button pad locked. Buttons (including the on/off button) remain locked until you unlock them or until an alarm or an alert sounds.

  • Page 95: Storing And Reviewing Patient Data

    Resp/min SpO2 SpO2 @2:47P Manual @2:47P Manual Propaq LT Press to take a Snapshot Press to capture a 21-second period of numeric and waveform patient data. The monitor captures the 14 seconds preceding and the 7 seconds following the button press.

  • Page 96: Reviewing Data At The Monitor

    Storing and reviewing patient data Welch Allyn Propaq LT Vital Signs Monitor Reviewing data at the monitor Snapshots and trend data can be reviewed at the monitor. Reviewing snapshots To review snapshots From any main display screen (such as Large numerics, Dual waveform...): 1.
  • Page 97 Directions for Use Storing and reviewing patient data 6. To change the source of the displayed waveform, see “To change the waveform selection” on page 55. 7. To change the size of the waveform, see “To change the waveform size” on page 56.
  • Page 98 Storing and reviewing patient data Welch Allyn Propaq LT Vital Signs Monitor Figure 95. Trends display, 1-minute interval STEWART, ANN STEWART, ANN 7762940 7762940 04:45:10P 04:45:10P Adult Adult Rm 263 Rm 263 Tabular Tabular 120/72(88) 120/72(88) Time Time HR/min HR/min...

  • Page 99: Reviewing Data At A Pc

    Directions for Use Storing and reviewing patient data Figure 98. Trends display, 10-minute interval STEWART, ANN STEWART, ANN 7762940 7762940 04:45:17P 04:45:17P Adult Adult Rm 263 Rm 263 119/72(88) 119/72(88) Tabular Tabular Time Time HR/min HR/min NIBP mmHg NIBP mmHg Resp/min Resp/min SpO2...
  • Page 100 Storing and reviewing patient data Welch Allyn Propaq LT Vital Signs Monitor...

  • Page 101: Printing Patient Data

    Printing patient data Overview You can print patient data in two ways. • If the monitor is in communication with an Acuity Central Station, press to print vital signs at the Acuity system printer. • If a PC with the Autoprint Utility is connected to a cradle with the USB option, you can print directly to a printer connected to the PC simply by inserting the monitor in the cradle.

  • Page 102: Printing

    To print the patient data stored in a monitor 1. Install the AutoPrint Utility on a PC. a. Insert the Propaq LT Monitor PC Utility Program in the CD-ROM drive of the PC. b. Follow the on-screen instructions to install the AutoPrint Utility.
  • Page 103 Directions for Use Printing patient data Note For monitors equipped with Masimo SpO2 technology, the printout includes Perfusion Index readings. Figure 100. Printout (trends page) Monday, June 20, 2005 09:23:28 3456187 HALL, ROBERT E. 1 of 1 Name Patient ID # Location Page 09:23...

  • Page 104: Autoprint Options

    NIBP = OFF 11:45:09 11:45:16 II 1.00mV III 1.00mV V 1.00mV AutoPrint options Enable/disable AutoPrint To enable or disable the AutoPrint function 1. Start -> All Programs -> Welch Allyn -> Propaq LT Monitor -> AutoPrint On-Off Figure 102. AutoPrint On/Off...
  • Page 105 You can use the AutoPrint Utility to print automatically (the default function) or manually. Printing manually To print manually 1. Start -> All Programs -> Welch Allyn -> Propaq LT Monitor -> AutoPrint On-Off 2. Click Off. 3. Start -> All Programs -> Welch Allyn -> Propaq LT Monitor ->...
  • Page 106 In the Printer and Faxes dialog, right-click on the newly installed PDF writer and check Set as Default. 3. On the PC, start the AutoPrint Utility: Start > Programs > Welch Allyn > Propaq LT AutoPrint Utility The AutoPrint Utility immediately begins transferring data files from the monitor to the PC.

  • Page 107: Monitor Configuration

    Monitor configuration Overview The monitor can be configured in various ways. Each facility can define as many default configurations as required to both meet the needs of individual departments and units and to conform to the facility’s general methods and standards. •...

  • Page 108: About Default Configuration

    Creating a custom default configuration requires the following: • A Propaq LT Monitor Configuration Utility running on a PC, and • A cradle with the USB data transfer option For information about the monitor Configuration Utility, refer to “Using the Configuration...

  • Page 109: Parameter Configuration Matrix

    Directions for Use Monitor configuration Parameter configuration matrix This table lists the factory settings and the possible values for all parameters, and indicates which parameters and settings can be defined by Acuity, through the Configuration Utility, or by the clinician through the monitor buttons. Note This table shows only those parameters that can be changed.
  • Page 110 Monitor configuration Welch Allyn Propaq LT Vital Signs Monitor Table 10. Parameter configuration matrix (continued) Parameter Factory setting Possible values Where set Time Format 24-Hr 12-Hr, 24-Hr Monitor, Configuration Utility Configured Language English Dutch, English, French, German, Italian, Monitor, Acuity,...
  • Page 111 Directions for Use Monitor configuration Table 10. Parameter configuration matrix (continued) Parameter Factory setting Possible values Where set ECG aVF Wave Size 1 mV/cm 8 mV/cm, 4 mV/cm, 2 mV/cm, 1 mV/cm, Monitor 0.5 mV/cm, 0.2 mV/cm Wave Size 1x, 2x, 4x, 8x Monitor Resp Wave Size 0.5x, 1x, 2x, 4x, 8x, 16x...
  • Page 112 Monitor configuration Welch Allyn Propaq LT Vital Signs Monitor Table 10. Parameter configuration matrix (continued) Parameter Factory setting Possible values Where set Display 2 Format Single waveform Large Numerics, Single Waveform, Monitor, Configuration Dual Waveform, Tabular Trends, Utility Tabular Trends with Waveform...
  • Page 113 Directions for Use Monitor configuration Table 10. Parameter configuration matrix (continued) Parameter Factory setting Possible values Where set HR/PR adult Upper Alarm Limit 120 beats/min 27 - 300 beats/min Monitor Lower Alarm Limit 50 beats/min 25 - 298 beats/min Monitor HR/PR pediatric Upper Alarm Limit 150 beats/min...
  • Page 114 Monitor configuration Welch Allyn Propaq LT Vital Signs Monitor Table 10. Parameter configuration matrix (continued) Parameter Factory setting Possible values Where set NIBP pediatric Auto Interval (minutes) 1, 2, 3, 5, 10, 15, 30, 60 Monitor, Configuration Utility Mode Manual...
  • Page 115 Directions for Use Monitor configuration Table 10. Parameter configuration matrix (continued) Parameter Factory setting Possible values Where set pediatric Upper Alarm Limit 100% 52% - 100% Monitor, Acuity Lower Alarm Limit 50% - 98% Monitor, Acuity neonatal Upper Alarm Limit 52% - 100% Monitor, Acuity Lower Alarm Limit...
  • Page 116 Monitor configuration Welch Allyn Propaq LT Vital Signs Monitor...

  • Page 117: Pc Utility

    PC utility Introduction Use the Propaq LT Monitor PC utility to install either or both of the following utilities on a PC: • Propaq LT Monitor Configuration utility • Propaq LT Monitor AutoPrint utility These utilities can then be used to control the behavior of any Propaq LT monitor.

  • Page 118: Installation

    PC utility Welch Allyn Propaq LT Vital Signs Monitor Installation System requirements PC on which you have administrator privileges 800 MHz or faster Hard drive 20 GB or more CD ROM drive Available RAM 256 MB or more Available Port USB 1.1...
  • Page 119 Directions for Use PC utility Figure 104. Accepting the terms of the software license 4. Determine whether you want to install the Configuration utility only, the AutoPrint utility only, or both utilities. Figure 105. Complete or Custom installation • To install both utilities, click Complete. •...

  • Page 120: Using The Configuration Utility To Configure The Monitor

    PC utility Welch Allyn Propaq LT Vital Signs Monitor Figure 107. Menu of installation options 5. The installation prompts you occasionally for information. At each prompt, provide the requested information and then click Next. The installation continues until it is finished.
  • Page 121 Directions for Use PC utility Modifying a configuration file To modify a configuration file 1. Open the file. 2. Modify the settings. 3. Save the file. Configuring a monitor “System requirements” on page 114. To configure a monitor 1. Connect the PC to a cradle, using the supplied USB cable. 2.

  • Page 122: Configuration Settings

    PC utility Welch Allyn Propaq LT Vital Signs Monitor Configuration settings Configuration pages Figure 108. Configuration file display: Identification page Click the page tabs (Identification, Default Settings, Display Settings, Mode Settings, ParamSet, and Feature Enable) to navigate to the settings of interest.
  • Page 123 Configuration Utility and the monitor. Message Communication with the monitor failed. Verify that the monitor is powered on and properly seated in the cradle. Verify that the cable is connected. Could not read patient data from the monitor. Please contact Welch Allyn customer service.
  • Page 124 Message The configuration file did not install on the monitor. Verify all connections between monitor, cradle, and PC and try again. If problems continue, contact Welch Allyn customer service. The configuration File: [file name] that you are attempting to read is in the wrong format.

  • Page 125: About Autoprint

    Directions for Use PC utility The feature Back Light Lockout Enable has a factory-default value of Yes (enabled), so it is, by default, available to clinicians. To make this feature unavailable to clinicians, change the value to No in the custom configuration. Factory defaults remain in effect until you reconfigure the monitor by downloading a custom configuration file to it from the PC or until you replace them with the current settings.
  • Page 126 PC utility Welch Allyn Propaq LT Vital Signs Monitor...

  • Page 127: Configuration Worksheet

    Directions for Use Configuration worksheet Identification ............124 Define monitor ownership and support responsibility, define parameters related to your locale, and name the configuration.

  • Page 128: Identification

    Welch Allyn Propaq LT Vital Signs Monitor Identification Facility Facility Name (Up to 40 characters.) Contact Name (Up to 40 characters.) Department or Unit (Up to 40 characters.) Contact Telephone (Up to 40 characters.) Country Settings Language __ English __ Dutch...
  • Page 129 Directions for Use Time Format __ 12-hour AM/PM __ 24-hour Decimal Format __ Dot __ Comma You can configure the monitor to use a dot (for example, 195.18) or a comma (195,18) to display the decimal point. Regulatory Set __ US __ European EC __ Japan Metrology Configuration...

  • Page 130: Default Settings

    Welch Allyn Propaq LT Vital Signs Monitor Default Settings Default Selections Patient Mode Default __ Adult __ Pediatric __Neonatal Alarm Tone Level Default __ Low __ Medium __ High ECG Bandwidth Default __ Monitor __ Extended ECG Bandwidth refers to the frequency range used to display and print patient data.
  • Page 131 Directions for Use Audible Alarms Suspension Time Default __ Disable (alarm tones cannot be suspended) __ 90 seconds __ 2 minutes __ 3 minutes __ 4 minutes __ 5 minutes __ 10 minutes __ 15 minutes __ 30 minutes __ 60 minutes __ Always On (alarm tones always suspended) While monitoring a patient, the clinician can use the settings menu to suspend all alarm tones for all parameters for a configurable period.

  • Page 132: Display Settings

    Welch Allyn Propaq LT Vital Signs Monitor Display Settings The monitor interface includes a Display button: . Pressing cycles the display quickly through the three views you specify below. In the configuration, you can choose any three of the five display choices shown below for quick display with .
  • Page 133 Directions for Use Display Format Display 1 Display 2 Display 3 __ Large Numerics __ Large Numerics __ Large Numerics __ Single Waveform __ Single Waveform __ Single Waveform __ Dual Waveform __ Dual Waveform __ Dual Waveform __ Tabular Trends __ Tabular Trends __ Tabular Trends __ Tabular Trends with...
  • Page 134 Welch Allyn Propaq LT Vital Signs Monitor Display Format (continued) If Dual Waveform display is enabled, display this signal as the default lower waveform: Display 1 Display 2 Display 3 __ Lead I __ Lead I __ Lead I __ Lead II...

  • Page 135: Mode Settings

    (such as convulsions or shivering), ambient vibration, vehicle motion, weak pulse, a sudden change in blood pressure, or sudden cuff movement. When these factors are present, Welch Allyn’s patented Smartcuf technology can greatly increase the accuracy of NIBP measurements. Note...
  • Page 136 Welch Allyn Propaq LT Vital Signs Monitor Resp On Default Adult Pediatric Neonatal (Yes) (Yes) (Yes) (No) (No) (No) Alarm Limits HR/PR Adult Pediatric Neonatal Upper On Off 120 ___ Upper On Off 150 ___ Upper On Off 200 ___...

  • Page 137: Paramset Settings

    Directions for Use ParamSet Settings ParamSet Enable (Yes) (No) Note If you select (No), disregard the rest of the ParamSet settings. HR/PR ParamSet % Upper Limit + 20% (5, 10, 15, 20, 25) Lower Limit - 20% (5, 10, 15, 20, 25) Resp ParamSet % Upper Limit + 5% (5, 10, 15, 20, 25)
  • Page 138 Welch Allyn Propaq LT Vital Signs Monitor Note The ParamSet default values can be changed only by downloading another monitor configuration. When monitor power is cycled, the factory default alarm limits and ParamSet default values are again in effect. ParamSet can be used multiple times for any alarm limit. Each time you press ParamSet for a given vital sign, the alarm limit expands by the configured percentage.

  • Page 139: Feature Enable

    (No) If SpO Spot Check is enabled, a clinician can perform a quick SpO measurement when monitoring is turned off. For detailed information, see Propaq LT Vital Signs Monitor Directions for Use. Lockouts the Left Arrow, Right Arrow, If lockouts are enabled, simultaneously pressing...
  • Page 140 Welch Allyn Propaq LT Vital Signs Monitor Back Light Lockout Enable (Yes) (No) locks out the monitor If back light lockout is enabled, the 3-button combination display back light until the combination is repeated or until an alarm or alert condition arises.
  • Page 141 Directions for Use Masimo SpO Perfusion Index (Enable) (Disable) Signal IQ (Enable) (Disable) Sensitivity (Enable) (Disable) If enabled: Normal, Maximum, APOD FastSAT (Enable) (Disable) Default On (Yes) (No) Averaging Time (Enable) (Disable) If enabled: 2, 4, 8, 10, 12, 14, 16 (seconds)

  • Page 142: Authorization

    Welch Allyn Propaq LT Vital Signs Monitor Authorization The information on this page relates only to this worksheet, and is not entered into the monitor configuration. Users are encouraged to provide their own procedures for defining, categorizing, storing, and approving configuration files.

  • Page 143: Maintenance

    Maintenance Recharging the battery The monitor battery is recharged whenever the monitor is placed into a cradle that is connected to a suitable power source. Recharging occurs whether the monitor is on or off. While in a cradle that is connected to AC power, the monitor also receives operating power from the cradle, thus preserving battery power for use when the monitor is removed.

  • Page 144: Inspecting And Cleaning The Monitor And Accessories

    WARNING Do not incinerate, submerge, crush, disassemble, or autoclave the lithium-ion battery. Caution Do not remove or replace the battery unless you are a Welch Allyn qualified service technician. Caution Do not use the monitor while the battery is being replaced.

  • Page 145: Recycling Monitor Components

    For more specific disposal information, see www.welchallyn.com/weee, or contact Welch Allyn Customer Service. Outside the EU When the monitor, the cradle, or the battery reaches end of life, recycle it locally according to national, state, and local regulations, or return it to Welch Allyn.
  • Page 146 Maintenance Welch Allyn Propaq LT Vital Signs Monitor...

  • Page 147: A - Specifications

    Sample rate 363.64 Hz (181.82 Hz to Acuity) Input protection Protected against electrosurgery and defibrillator when used with ECG cables specified in the accessory list or at www.welchallyn.com. Electrosurgery interference Included on all vectors when Welch Allyn-approved cables are used. suppression...
  • Page 148 Specifications Welch Allyn Propaq LT Vital Signs Monitor Lead fail sense current 70 nA DC typical for active leads 280 nA DC typical for reference electrode, depending on number attached. Tall T wave rejection Meets AAMI (USA) EC13 2002, section 4.1.2.1.c, up through 1.2 mV, using AAMI test...
  • Page 149 Directions for Use Specifications Pacer pulse rejection Does not count as heartbeats approximately 95% of pacemaker pulses within pacer pulse detection range*, with or without AAMI (EC 13 2002) tails of 4, 8, 15, 25, 50, 75, or 100 ms decay time constant, whose tail amplitudes meet either EC 13’s method A or method B criteria for single pacer pulses, or A V sequential pulses (150 ms and 250 ms separation), all per AAMI tests 4.1.4.1 and 4.1.4.2.
  • Page 150 Specifications Welch Allyn Propaq LT Vital Signs Monitor Resp Characteristic Specification Connector (shared with ECG) Hypertronics 9 pin, female D01 latching connector Input protection Electrosurgery and defibrillator protected and Resp fully functional when used with any of the ECG cables specified in the accessory list or at www.welchallyn.com.
  • Page 151 Directions for Use Specifications All sensors have a measurement range of 70% - 100%. SpO complies with EN ISO 9919:2005. Characteristic Specification Saturation (% SpO Range 1% to 100%, but limited by sensors and by sensor manufacturers’ technology Resolution Alarm limits 50% to 98% (lower) 52% to 100% (upper) Probe accuracy (adult, pediatric,...
  • Page 152 Specifications Welch Allyn Propaq LT Vital Signs Monitor NIBP Characteristic Specification Method Oscillometric Regulatory standards Meets AAMI SP10:2002, IEC 60601 1:1990, IEC 60601 30:1999(E); EN 1060 1:1996, EN 1060 3:1997 Control Automatic (at selected intervals), turbo, and manual Auto intervals...
  • Page 153 Directions for Use Specifications Normal overpressure limit Adult 280 mmHg Pediatric 200 mmHg Neonate 141 mmHg Single fault overpressure limit Adult 308 mmHg Pediatric 220 mmHg Neonate 154 mmHg Leak rate After a 1-minute settling period, not more than 1 mmHg per second at 200 (manufacturing spec) mmHg when connected to a volume of at least 15 cc.
  • Page 154 Specifications Welch Allyn Propaq LT Vital Signs Monitor Patient alarm [100 ms on, 80 ms off, 100 ms on, 80 ms off, 100 ms on, 260 ms off, 100 ms high priority limit violation on, 80 ms off, 100 ms on, 1 sec off, 100 ms on, 80 ms off, 100 ms on, 80 ms off, 100 ms on, 260 ms off, 100 ms on, 80 ms off, 100 ms on, 4 sec off];...
  • Page 155 Directions for Use Specifications Adult 100% Adult Pediatric 100% Pediatric Neonate Neonate NIBP Systolic Adult Adult Pediatric Pediatric Neonate Neonate NIBP Diastolic Adult Adult Pediatric Pediatric Neonate Neonate NIBP MAP Adult Adult Pediatric Pediatric Neonate Neonate Display Characteristic Specification Type Color transflective;...
  • Page 156 Specifications Welch Allyn Propaq LT Vital Signs Monitor WARNING In the event a radar signature is detected, the access point moves to a new channel, which can temporarily interrupt patient monitoring. Caution If the device is operated near a military radar, the radar could cause damage to the device.
  • Page 157 For example, the tables below shows ECG waveform aspect ratios and sensitivities for a representative selection of displays. Note Welch Allyn has tested only the information for the 17” @ 5:4 display. 17-inch display Display size...
  • Page 158 Specifications Welch Allyn Propaq LT Vital Signs Monitor Environmental Caution The monitor might not meet performance specifications if it is not used or stored within these environmental specifications. Note The specifications apply when the battery is installed and the battery cover is in place.
  • Page 159 Directions for Use Specifications Degree of protection against electric shock, for See monitor labels. Type CF, defibrillator protected. parts applied to patients Method of cleaning Not suitable for autoclaving. See “Inspecting and cleaning the monitor and accessories” on page 140. Flammable anesthetics Not suitable for use with flammable anesthetics.
  • Page 160 Specifications Welch Allyn Propaq LT Vital Signs Monitor Power Characteristic Specifications Operating times on a new fully-charged battery for ambient temperature 20 º ECG and Resp only: 24 hrs Standalone . NIBP every 15 min.: 8 hours Continuous monitoring with minimal display use...
  • Page 161 Directions for Use Specifications Battery Characteristic Specification Type 7.4 V, rechargeable, lithium ion. Field replaceable by service technician. Capacity > 1800 mA hr minimum Charger Contained in the cradle. Batteries are charged in place in the monitor. Fuse rating 5A, 125V – User cannot access the fuse. Note: Internal electronic overload circuitry is used as the primary method of protection.
  • Page 162 Specifications Welch Allyn Propaq LT Vital Signs Monitor Vibration, random 0.02g /Hz from 10 to 500 Hz, ramping down to 0.002g /Hz at 2000 Hz. Superimposed sine frequencies of 30 Hz at 2.5 g and 60, 90, and 120 Hz at 1.5 g.

  • Page 163: B - Compliance

    This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Stock No. 004-000-0034504. Welch Allyn is not responsible for any radio or television interference caused by unauthorized modification of the devices included with this Welch Allyn product, or the substitution or attachment of connecting cables and equipment other than specified by Welch Allyn.
  • Page 164 Hierbij verklaart Welch Allyn dat het toestel RLAN device in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Bij deze verklaart Welch Allyn dat deze RLAN device voldoet aan de essentiële eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC.
  • Page 165 Šiuo Welch Allyn deklaruoja, kad šis RLAN device atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Spanish Por medio de la presente Welch Allyn declara que el RLAN device cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
  • Page 166 • Portable and mobile RF communications equipment can affect the behavior of medical electrical equipment. Propaq LT Series monitors and accessories comply with all applicable and required standards for electromagnetic interference. • They do not normally affect nearby equipment and devices.
  • Page 167 175. Guidance and manufacturer’s declaration—electromagnetic emissions The battery-operated Propaq LT Series monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the monitor should assure that it is used in such an environment.
  • Page 168 Welch Allyn Propaq LT Vital Signs Monitor Guidance and manufacturer’s declaration—electromagnetic immunity The battery-operated Propaq LT Series monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the monitor should assure that it is used in such an environment.
  • Page 169 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the battery-operated Propaq LT Series monitor is used exceeds the applicable RF compliance level above, the battery-operated Propaq LT Series monitor should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the battery-operated Propaq LT Series monitor.
  • Page 170 The battery-operated Propaq LT Series monitor is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the battery-operated Propaq LT Series monitor can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the battery-operated Propaq LT Series monitor as recommended below, according to the maximum output power of the communications equipment.
  • Page 171 The Charging/Communication Cradle with Propaq LT Series monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the Charging/Communication Cradle with Propaq LT Series monitor should assure that it is used in such an environment.
  • Page 172 Guidance and manufacturer’s declaration—electromagnetic immunity The Charging/Communication Cradle with Propaq LT Series monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the monitor should assure that it is used in such an environment.
  • Page 173 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Charging/Communication Cradle with Propaq LT Series monitor is used exceeds the applicable RF compliance level above, the Charging/Communication Cradle with Propaq LT Series monitor should be observed to verify normal operation.
  • Page 174 Cradle with Propaq LT Series monitor can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Charging/Communication Cradle with Propaq LT Series monitor as recommended below, according to the maximum output power of the communications equipment.
  • Page 175 The Propaq LT Series monitor with Charging/Communication Cradle and Large Color Display Interface is intended for use in the electromagnetic environment specified below. The customer or the user of the The Propaq LT Series monitor with Charging/Communication Cradle and Large Color Display Interface should assure that it is used in such an environment.
  • Page 176 The Propaq LT Series monitor with Charging/Communication Cradle and Large Color Display Interface is intended for use in the electromagnetic environment specified below. The customer or the user of the The Propaq LT Series monitor with Charging/Communication Cradle and Large Color Display Interface should assure that it is used in such an environment.
  • Page 177 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Propaq LT Series monitor with Charging/Communication Cradle and Large Color Display Interface is used exceeds the applicable RF compliance level above, the Propaq LT Series monitor with Charging/Communication Cradle and Large Color Display Interface should be observed to verify normal operation.
  • Page 178 Propaq LT Series monitor with Charging/Communication Cradle and Large Color Display Interface The Propaq LT Series monitor with Charging/Communication Cradle and Large Color Display Interface is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the...
  • Page 179 163. Guidance and manufacturer’s declaration—electromagnetic emissions The battery-operated Propaq LT Series monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the monitor should assure that it is used in such an environment.
  • Page 180 Welch Allyn Propaq LT Vital Signs Monitor Guidance and manufacturer’s declaration—electromagnetic immunity The battery-operated Propaq LT Series monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the monitor should assure that it is used in such an environment.
  • Page 181 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the battery-operated Propaq LT Series monitor is used exceeds the applicable RF compliance level above, the battery-operated Propaq LT Series monitor should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the battery-operated Propaq LT Series monitor.
  • Page 182 The battery-operated Propaq LT Series monitor is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the battery-operated Propaq LT Series monitor can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the battery-operated Propaq LT Series monitor as recommended below, according to the maximum output power of the communications equipment.
  • Page 183 The Charging/Communication Cradle with Propaq LT Series monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the Charging/Communication Cradle with Propaq LT Series monitor should assure that it is used in such an environment.
  • Page 184 Guidance and manufacturer’s declaration—electromagnetic immunity The Charging/Communication Cradle with Propaq LT Series monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the monitor should assure that it is used in such an environment.
  • Page 185 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Charging/Communication Cradle with Propaq LT Series monitor is used exceeds the applicable RF compliance level above, the Charging/Communication Cradle with Propaq LT Series monitor should be observed to verify normal operation.
  • Page 186 Cradle with Propaq LT Series monitor can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Charging/Communication Cradle with Propaq LT Series monitor as recommended below, according to the maximum output power of the communications equipment.
  • Page 187 The Propaq LT Series monitor with Charging/Communication Cradle and Large Color Display Interface is intended for use in the electromagnetic environment specified below. The customer or the user of the The Propaq LT Series monitor with Charging/Communication Cradle and Large Color Display Interface should assure that it is used in such an environment.
  • Page 188 The Propaq LT Series monitor with Charging/Communication Cradle and Large Color Display Interface is intended for use in the electromagnetic environment specified below. The customer or the user of the The Propaq LT Series monitor with Charging/Communication Cradle and Large Color Display Interface should assure that it is used in such an environment.
  • Page 189 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Propaq LT Series monitor with Charging/Communication Cradle and Large Color Display Interface is used exceeds the applicable RF compliance level above, the Propaq LT Series monitor with Charging/Communication Cradle and Large Color Display Interface should be observed to verify normal operation.
  • Page 190 Propaq LT Series monitor with Charging/Communication Cradle and Large Color Display Interface The Propaq LT Series monitor with Charging/Communication Cradle and Large Color Display Interface is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the...

  • Page 191: Limited Warranty

    For two years (one year for remanufactured monitors) from the date of the original delivery to the buyer, the Propaq LT monitor, the Large Color Display Interface, and the Propaq LT monitor charging/communications cradle are warranted to be free from...
  • Page 192 Limited warranty Welch Allyn Propaq LT Vital Signs Monitor...

  • Page 193: Index

    Index failure fault indicator accessories recharging action recycling Acuity status indicators communication blood pressure disconnecting see NIBP indicators on the monitor display button marking snapshot events at monitor release monitor data stored at snapshot overriding monitor settings using patients, arrhythmia-prone (warning) Button Stuck reconnecting a patient responding to alarms at...
  • Page 194 Index Welch Allyn Propaq LT Vital Signs Monitor dual waveform display maintenance operator messages for alerts monitor changing waveform scale transporting with the patient lead placement monitoring electrosurgery (warning) blood pressure equipment alert new patient messages NIBP error detection paced patients...
  • Page 195 Directions for Use Index pulse patient carry amplitude transport stretcher and NIBP measurement accuracy wearable pulse rate symbols effect on SpO readings pulse rate (PR) vs. heart rate (HR) pulse rejection, pacemaker (warning) tabular trends display pulse tone tabular trends with single waveform display adjusting volume of teaching mode see Demo mode...
  • Page 196 Index Welch Allyn Propaq LT Vital Signs Monitor...

Table of Contents
