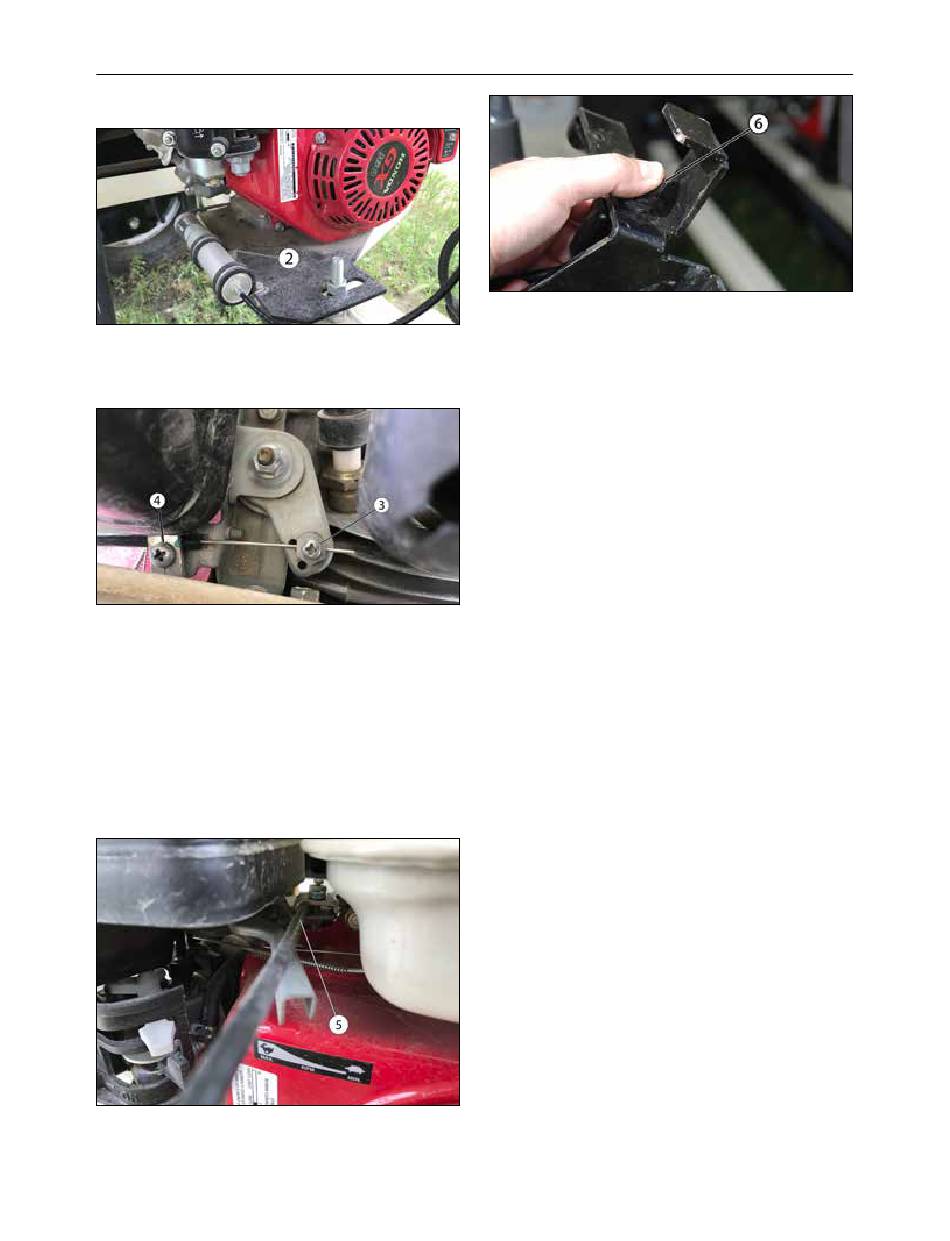

2. Remove both bolts (2).
3. Loosen screw on wire holder, (3).and loosen
screw on cable holder (4).Then remove the
actuator cable from the holders.

10.5.2 Actuator Installation

1. Connect the cable of the new actuator to
engine harness connector (1).
2. Line up the cable end (5) with the cable/wire
holders. Tighten screw on cable holder (4)
Use actuator switch (6) on the delivery tube
to position the wire. Once wire is positioned,
tighten wire holder screw (3).
3. Ensure all personnel are clear of unit. Start
the engine and test the actuator by pressing
actuator switch (6) to ensure the engine speed
increases and decreases as designed.
