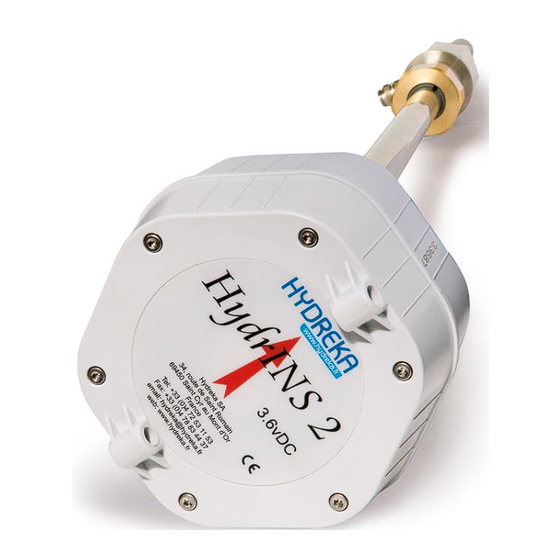

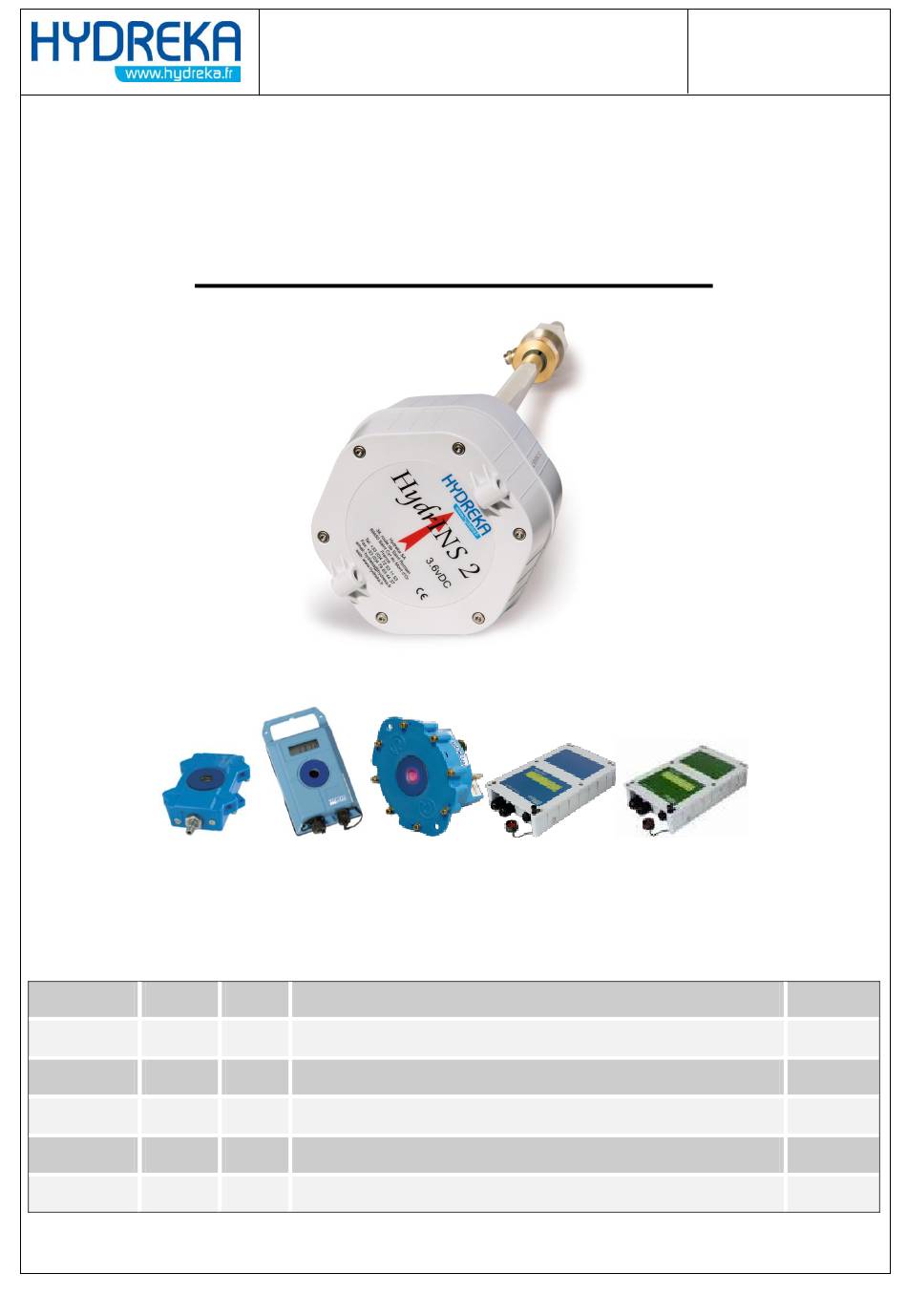

HydrINS 2 and HydrINS 2 Mini
electromagnetic insertion flow meters
Programming of data logging
Revision
Date
01
08/06/11
00
1/04/10
HydrINS 2 / HydrINS 2 Mini flow meter
Programming of data logging with Winfluid
Author
GSE
Validation
MRE
Updated
Modifications
Page 1/77
Signature
GSE
