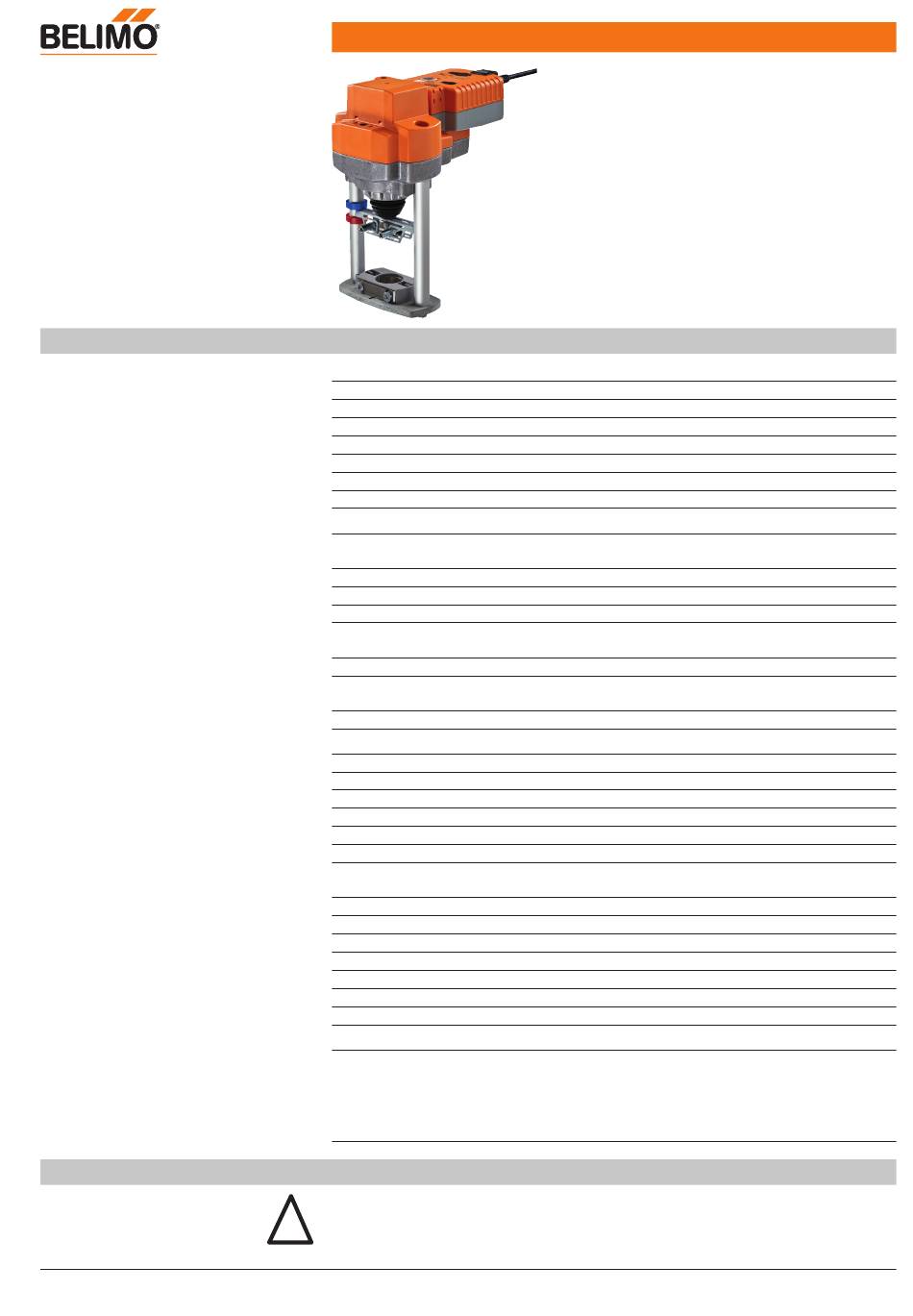

Belimo AVK230A-3 Technical Data Sheet

Globe valve actuator with emergency
control function for 2-way and 3-way
globe valves
• Actuating force 2000 N
• Nominal voltage AC 230 V
• Control 3-point
• Nominal stroke 32 mm
• Design life SuperCaps: 15 years
Technical data
Functional data
Safety notes
www.belimo.eu
Technical data sheet
Electrical data Nominal voltage
Nominal voltage frequency
Nominal voltage range
Power consumption in operation
Power consumption in rest position
Power consumption for wire sizing
Connection supply / control
Parallel operation
Actuating force motor
Setting emergency setting position (POP) Actuator spindle retracted / extended,
Manual override
Nominal stroke
Actuating time motor
Actuating time emergency control
function
Sound power level motor
Sound power level emergency control
position
Position indication
Safety Protection class IEC/EN
Protection class UL
Degree of protection IEC/EN
Degree of protection NEMA/UL
EMC
Low voltage directive
Certification IEC/EN
Certification UL
Mode of operation
Rated impulse voltage supply / control
Control pollution degree
Ambient temperature
Non-operating temperature
Ambient humidity
Maintenance
Weight Weight
Terms Abbreviations
• This device has been designed for use in stationary heating, ventilation and air
!
conditioning systems and must not be used outside the specified field of application,
especially in aircraft or in any other airborne means of transport.
AVK230A-3 • en-gb • 2017-03-09 • subject to changes
AC 230 V
50/60 Hz
AC 85...265 V
3.5 W
1.5 W
6.5 VA
Cable 1 m, 4 x 0.75 mm²
Yes (note the performance data)
2000 N
adjustable (POP rotary button)
with push-button
32 mm
150 s / 32 mm
35 s / 32 mm
60 dB(A)
60 dB(A)
Mechanically, 5...32 mm stroke
II reinforced insulation
UL Class 2 Supply
IP54
NEMA 2, UL Enclosure Type 2
CE according to 2014/30/EU
CE according to 2014/35/EU
IEC/EN 60730-1 and IEC/EN 60730-2-14
cULus according to UL 60730-1A, UL 60730-2-
14 and CAN/CSA E60730-1:02
Type 1.AA
4 kV
3
0...50°C
-40...80°C
95% r.h., non-condensing
Maintenance-free
4.4 kg
POP = Power off position / emergency setting
position
CPO = Controlled power off / controlled
emergency control function
PF = Power fail delay time / bridging time
AVK230A-3
1
