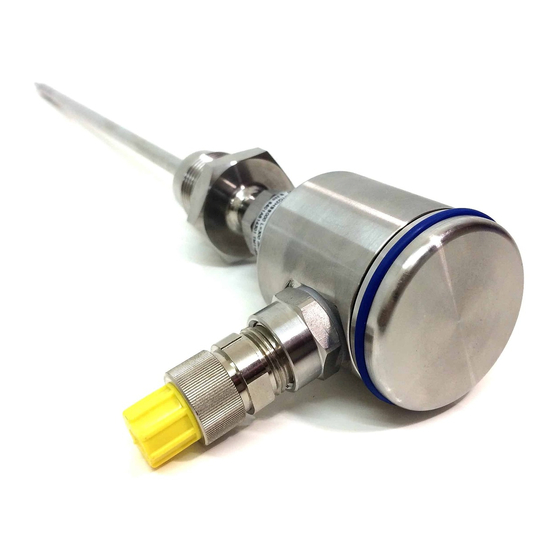

omnigrad M TR 44, TR 45
Hygienic RTD temperature sensor assembly
With or without thermowell and M.I. replaceable insert
PCP (4...20 mA), HART
The Omnigrad M type TR 44 and TR 45 temperature sensors are
resistance thermometers especially designed for hygienic appli-
cations (food, pharmaceutical and fine chemicals industry).
They consists of a measurement probe with (TR 45) or without
(TR 44) a protection well, and a housing, which may contain the
transmitter for the conversion of the measured variable.
Due to their modular design, TR 44 and TR 45 fit to all sanitary
industrial processes
5
74-02
Features and benefits
®
• 3-A
and EHEDG certification
• SS 316L/1.4435 for "wetted" parts (BN 2 compliance on
request)
• Most common hygienic process connections supplied as
standard; other on request
TI244T/02/en
N° 60018846
®
or PROFIBUS-PA
• Customized immersion length
• Small probe diameter or reduced tip for fast response time (TR
44)
• Tapered or reduced tip and thermoconductive paste for fast
response time (TR45)
• Surface finishing down to Ra < 0.4 mm, with or without elec-
tropolishing
• Stainless steel, aluminum or plastic housing, all of which are eas-
ily cleanable and IP65 to IP67
• Replaceable mineral insulated insert (TR 45), which is installed
inside the thermowell, avoids plant shut down during the substi-
tution or the verification of the instrument
• PCP (4...20 mA, also with enhanced accuracy), HART
PROFIBUS-PA
• Pt100 sensing element with class A accuracy (DIN EN 60751) or
1/3 DIN B
• Double Pt100, for redundancy purposes
• Pt100 with 4 wires connection, double Pt100 with 3 wires
• ATEX 1 or 1/2 GD EEx ia certification (TR 45)
• Material certification (3.1.B, ...)
• EA calibration certificate
• Ferrite content determination
• Sensor matching calibration
®
electronic safety
®
2-wire transmitters
®
and
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser omnigrad M TR 44
Summary of Contents for Endress+Hauser omnigrad M TR 44
- Page 1 Technical Information omnigrad M TR 44, TR 45 Hygienic RTD temperature sensor assembly With or without thermowell and M.I. replaceable insert ® ® PCP (4...20 mA), HART or PROFIBUS-PA electronic safety • Customized immersion length The Omnigrad M type TR 44 and TR 45 temperature sensors are •...
-
Page 2: Areas Of Application
Equipment architecture The Omnigrad M TR 44 and TR 45 temperature sensors are made up of a measurement probe, with (TR 45) or without (TR 44) a protection well, and a housing (head), which may contain a transmitter or the terminals for the electrical connection. - Page 3 The "4 wires" configuration ensures no additional errors in case of long connecting cables (without head- mounted transmitter). Generally speaking, there is a higher guarantee of accuracy in the "4 wires" configuration. Measurement range • TR 44 -50…250°C • TR 45 -50…400°C Endress+Hauser...
-
Page 4: Installation
Negligible when E+H iTEMP transmitters are employed. Installation Omnigrad M TR 44 and TR 45 can be mounted on the wall of pipes or vessels. The counterparts for the process connections and the respective gaskets or sealing rings, are generally... - Page 5 To avoid problems due to condensation when the ambient has a high humidity rate and the process is at a low temperature, a plastic housing (i.e. model TA20B) can be an effective choice. ® Fig. 4: Installation with the Tri-Clamp component 7IMPS Endress+Hauser...
-
Page 6: System Components
M TR 44, TR 45 System components Housing The housing which contains the electric terminals or the transmitter, can be of different types and materials (plastic, painted aluminium, stainless steel). The way in which it fits to the rest of the probe and the gland for the cable entry ensures an IP grade of 65 at minimum (also refer to the figure below). -
Page 7: Extension Neck
DN 25 DN 10/15 DN 25 Varivent Suggested immersion length (L) 30÷50 mm 17 mm 30 mm 17 mm (low viscosity fluids) (low viscosity fluids) (special 17 mm 17 mm option) (high viscosity fluids) (high viscosity fluids, special option) Endress+Hauser... - Page 8 M TR 44, TR 45 Probe In TR 45, the measuring probe is constituted by a mineral insulated insert positioned inside the thermowell. For its replacement, the insert length (IL) must be chosen depending on the immersion length (L) of the ther- mowell.
- Page 9 MTR 44, TR 45 Reduced R= 3.2 Ø 5.3 Fig. 9: TR 44 structure and tip designs Endress+Hauser...
-
Page 10: Certificates And Approvals
M TR 44, TR 45 Certificates & Approvals Sanitary compatibility Certifications from external bodies: ® • EHEDG Type EL certification (TNO report n. V3912). EHEDG accepted process connections are: Varivent IDF type ISO 2853, APV (acc. DIN 11864), APV Inline, DIN 11851 (only in combination with EHEDG cer- tified gasket from Siersema), Suedmo, Naue, Neumo. -
Page 11: Product Structure
Straight tip, for pipe D = 6 mm Reduced tip (stepped), for pipe D = 8 mm Special version Terminal type Flying leads Ceramic terminal block RTD type and wiring diagram 1 Pt100 class A, 3-wire 2 Pt100 class A, 3-wire 1 Pt100 class A, 4-wire Endress+Hauser... - Page 12 M TR 44, TR 45 1 Pt100 1/3 DIN B, 3-wire 2 Pt100 1/3 DIN B, 3-wire 1 Pt100 1/3 DIN B, 4-wire Special version Housing material, cable entry, IP grade TA20D Aluminium, high lid., M24x1.5 IP66 TA20B Polyamide black, M20x1.5...
- Page 13 Tapered, for L >= 65 mm + thermocond. paste Special version Terminal type Flying leads Ceramic terminal block RTD type and wiring diagram 1 Pt100 class A, 3-wire 2 Pt100 class A, 3-wire 1 Pt100 class A, 4-wire 1 Pt100 1/3 DIN B, 3-wire Endress+Hauser...
- Page 14 M TR 44, TR 45 2 Pt100 1/3 DIN B, 3-wire 1 Pt100 1/3 DIN B, 4-wire Special version Housing material, cable entry, IP grade TA20A Aluminium, M20x1.5 conduit IP66/IP67 TA20A Aluminium, Pg16, IP66/IP68 TA20A Aluminium, PROFIBUS ® connector...
-
Page 15: Built-In Head Transmitter
® 2-wire, isolated programmable from...to...°C PROFIBUS-PA TMT184-E ® ATEX II3G EEx-nA 2-wire, isolated programmable from...to...°C PROFIBUS-PA TMT184-F ® ATEX II3D 2-wire, isolated programmable from...to...°C PROFIBUS-PA Special transmitter Application and services Assembled into position Special version ⇐ Order code THT1- Endress+Hauser... - Page 16 M TR 44, TR 45 Accessories G1" Liquiphant M type weld-in adapter for flush-mounting of "EA" process – mat. nr.: 60017886 connection Ø 41 Ø 60 Thermoconductive paste – mat. nr.: 60007126 ---------------------- max temperature: 200°C _______________ G1/2” metal-to-metal weld-in adapter –...
-
Page 17: Supplementary Documentation
RTD insert for temperature sensors - Omniset TPR 100 TI 268T/02/en TA fittings & sockets Omnigrad TA50, TA55, TA60, TA70, TA75 TI 091T/02/en Safety instructions for use in hazardous areas XA 003T/02/z1 E+H Thermolab - Calibration certificates for industrial thermometers. RTD and thermocouples TI 236T/02/en Endress+Hauser... - Page 18 International Head Quarter Endress+Hauser GmbH+Co. KG Instruments International Colmarer Str. 6 79576 Weil am Rhein Germany Tel. +49 76 21 9 75 02 Fax +49 76 21 9 75 34 5 www.endress.com info@ii.endress.com TI 244T/02/en_1204 60018846 FM+SGML6.0...
