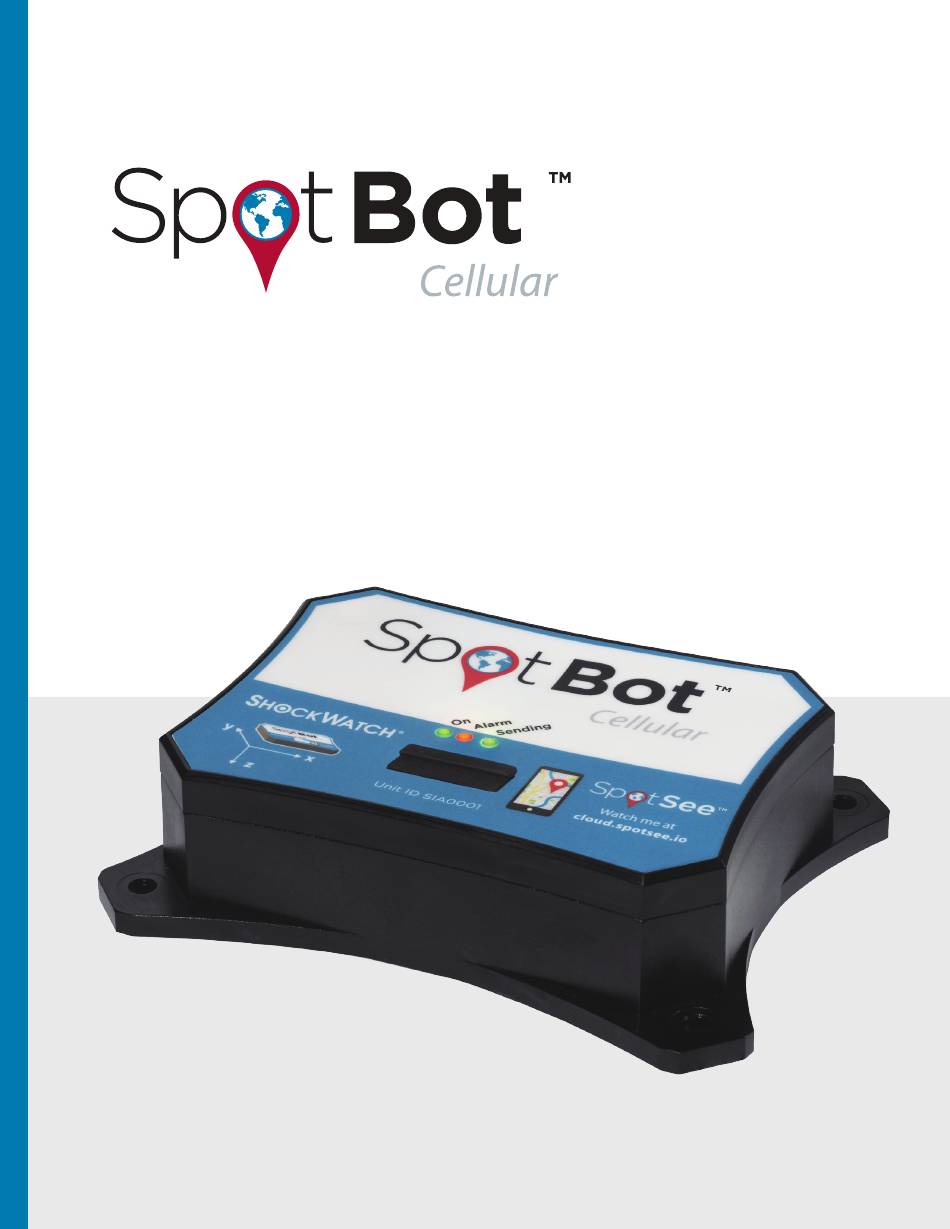

- Page 1 PRODUCT MANUAL...
-
Page 2: Table Of Contents
4. How to use your SpotBot ..................12 A. Begin Monitoring ...................... 12 B. Stop Monitoring ......................12 5. The SpotSee Platform ................... 13 A. The Dashboard ......................13 B. Asset Page ........................ 15 C. Asset Page Settings ....................20 6. -
Page 3: Introduction
• Track your shipment with hourly location updates. • Monitor your cargo environment with hourly temperature readings. And, you can access all this information - wherever you are - through our web-based SpotSee Cloud. SPOTBOT MAIN SPECIFICATIONS Impact Monitoring: 3-axis detection Operating Temperature Range: -40°C to 85°C / -40°F to 185°F... -
Page 4: Initial Setup
4. Follow the link in the email to create your password. Note: Steps 3 and 4 will only be necessary the first time an account is set up on the SpotSee Cloud. 5. A message will prompt you to select an available contract for the unit. -
Page 5: Adding Or Editing Users
PRODUCT MANUAL B. ADDING OR EDITING USERS 1. Navigate to cloud.spotsee.io and log in using the ADMIN email address and password created in STEP 1 The admin will be able to view and manage other users and assets inside your company. -
Page 6: Login And Password Recovery
Once you are finished inputting all the fields for a new user, click the Add button C. LOGIN AND PASSWORD RECOVERY Go to cloud.spotsee.io and enter your email and password. If you forgot your password, click Forgot Password to receive a password reset email. -
Page 7: Spotbot Unit Activation
PRODUCT MANUAL D. SPOTBOT UNIT ACTIVATION 1. To activate your new SpotBot unit so that it will be visible in the SpotSee Cloud, navigate to the activation website: activate.spotsee.io 2. Enter “Customer Number” and “Unit ID” and click “Activate” Access Port... -
Page 8: Configure Your Spotbot
PRODUCT MANUAL 3. CONFIGURE YOUR SPOTBOT 1. Navigate to cloud.spotsee.io and log in using your email and password 2. Click on Configure Unit in the column on the left side of the web page 3. Go to “Initial Setup” and follow the steps for your chosen browser. Click Launch Configuration Application to launch and run the SpotBot Software. - Page 9 PRODUCT MANUAL 4. Remove the rubber cover from the front of your SpotBot unit 5. Connect your computer to the SpotBot using the micro-USB cable provided Access Port Unit ID Number On/Off Reset Micro USB Port 6. Push the On/Off button on the front of the SpotBot unit Unit ID will appear within the profile pop-up window (shown below) 7.
- Page 10 After you press Save, the SpotBot will send a summary message with the new settings to the SpotSee Cloud via the cellular network. Before you start a trip, verify you can see your SpotBot in the SpotSee Platform. Login to your account at cloud.spotsee.io...
-
Page 11: Firmware Updates
PRODUCT MANUAL A. FIRMWARE UPDATES Beginning with firmware revision 5.2.2, SpotBot firmware can be updated via the ClickOnce application on the SpotSee Cloud. This feature ensure that users can benefit from the latest tools and firmware fixes. To upgrade your firmware: Login to your account at cloud.spotsee.io... -
Page 12: How To Use Your Spotbot
This way stopping the trip is a deliberate action. As long as there is cellular coverage, a notice will be sent to the SpotSee user if the trip has been stopped or the device has been reset, so you know immediately if someone has tampered with the device. -
Page 13: The Spotsee Platform
5. SPOTSEE PLATFORM A. THE DASHBOARD The SpotSee Cloud enables you to monitor and control your assets from any location. Upon logging into the cloud platform you will see your dashboard. This page will show the last known location of all your SpotBot units (referred to as assets), a list of all your active assets and the most recent alarm for each one. - Page 14 PRODUCT MANUAL It is possible to export the data recorded in the SpotSee Cloud for multiple devices through the Consolidated Report feature. Select the devices of interest from the list and click Select The consolidated report will be downloaded and analyzed in Excel.
-
Page 15: Asset Page
SpotBot. THE MAP On the map you will see all the locations your SpotBot reported to the SpotSee Platform. The map will show the location pin (alarms and summaries) clustered by proximity. By clicking the numbers on the map, the map will zoom in until you can see individual pins. - Page 16 PRODUCT MANUAL A blue pin represents a summary (with location and count of all alarms registered by the unit since the last data reset). A red pin represents an alarm issued by the SpotBot. The SpotBot will issue an alarm if the impact is higher than the alarm threshold as defined in Section 3 - Configure your SpotBot.
- Page 17 PRODUCT MANUAL The SpotSee platform will trace the trip path by default when you open the unit page. If you do not wish to see the path, you can remove it by clicking the lines icon. The map will then show all the location points without the path.
- Page 18 Hovering the cursor over the bars in the chart will allow you to see the individual values for each impact. This is true for all the graphs represented on the SpotSee platform. This document is written and published by ShockWatch, Inc. All rights reserved.
- Page 19 PRODUCT MANUAL IMPACT HISTOGRAM Below the “Impacts Over Time” graph, you will find the “Impact Histogram.” This chart tells you how many impacts you had over a certain impact level. This graph divides the impact values into intervals called bins. Each bar on the histogram represents the number of measurements falling within a bin.
-
Page 20: Asset
Update to save the list. The emails you choose to receive notifications will receive an email every time the SpotSee platform receives an alarm from that specific SpotBot. Please make sure to check the spam and clutter folders and add no-reply@shockwatch.com to your address book to... - Page 21 PRODUCT MANUAL CHANGE ASSET NAME While on the “Assets” page, you can edit the Asset’s Name by clicking the pencil icon next to the unit name. Enter the chosen name and click Update. This document is written and published by ShockWatch, Inc. All rights reserved.
-
Page 22: Managing Data Recorded In Your Spotbot
A. ACCESS A PDF OR CSV REPORT IN YOUR SPOTBOT In addition to viewing data on the SpotSee Cloud, you can download a PDF report of the trip directly from the device using the USB port. This report is saved on the unit in case cellular transmission is poor or there is no network when an impact occurs. - Page 23 We recommend downloading the PDF report from the device directly after each trip. If damage occurs to your asset during the trip but there is no alert showing in the SpotSee Cloud, the device may have recorded an impact that it was unable to send due to limited cellular reception (i.e.
-
Page 24: Clear The Trip Data
This action will clear all the data on the device and in the report tables, allowing you to start a new monitoring. NOTE: All transmitted data from the trip will still be stored in the SpotSee platform. 7. CONTACTS TECHNICAL SUPPORT CUSTOMER SUPPORT Email: techsupport@shockwatch.com... -
Page 25: Regulatory Compliance
PRODUCT MANUAL 8. REGULATORY COMPLIANCE Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
