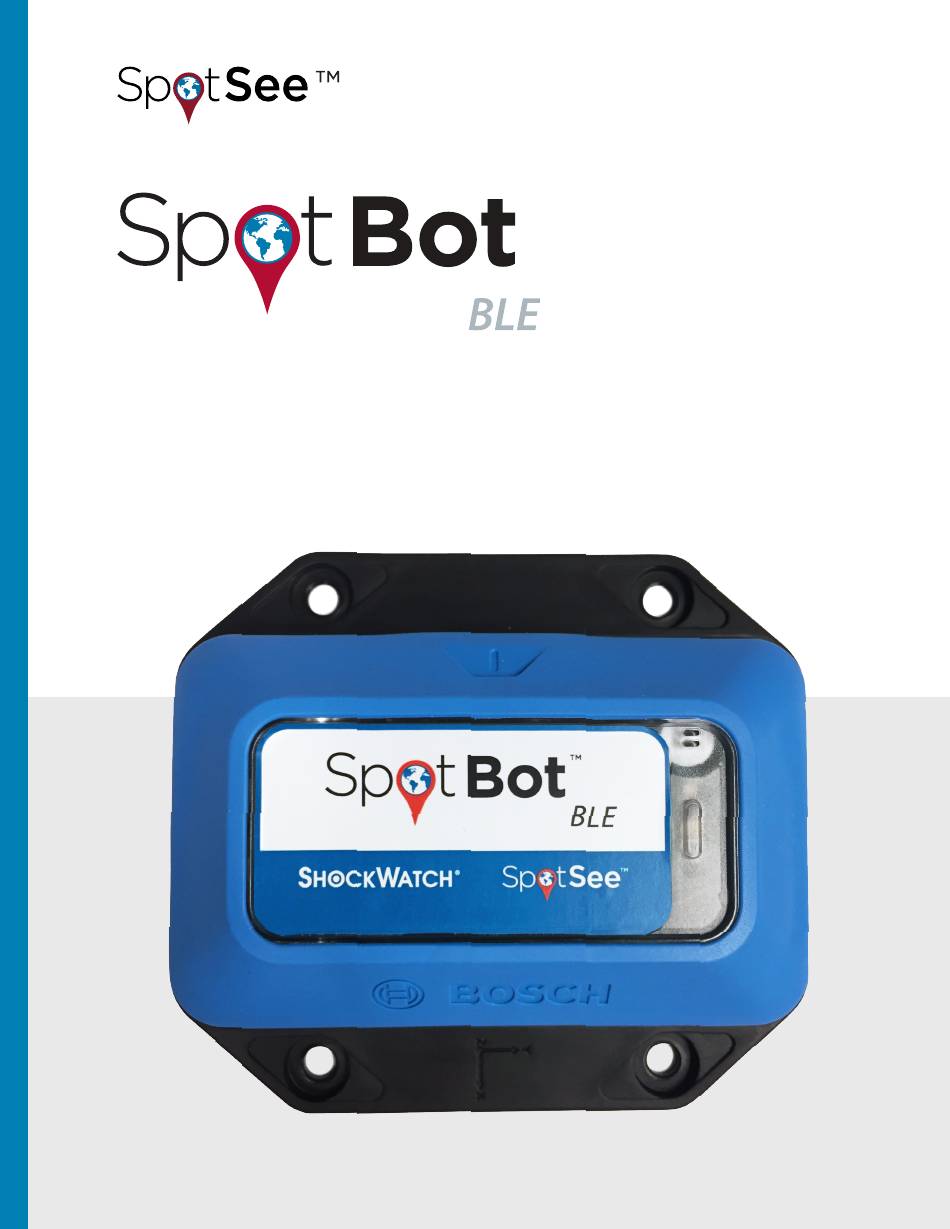

- Page 1 ™ PRODUCT MANUAL...
-
Page 2: Table Of Contents
3. Mounting the SpotBot BLE 3.1. Mounting with Screws 3.2. Mounting with Adhesive Tape 4. Operation 4.1. Installing the App 4.2. Connecting to the SpotBot BLE 4.3. Configuring the SpotBot BLE 4.4. Settings 4.5. Reading and Transferring Data 4.6. Blinking Patterns 5. - Page 3 ™ PRODUCT MANUAL CONTENTS 8. Regulatory Notices 8.1. Recycling 8.2. EU Declaration of Conformity 8.3. Federal Communications Commission (FCC) Notice 8.4. ISED Canada (IC) Notice 8.5. IMDA Singapore Notice 8.6 Japanese Radio Law ( ) Notice 8.7. China Notice 8.8 Australia Notice 8.9.
-
Page 4: Introduction And Intended Use
1.1. Intended Use The SpotBot BLE is designed according to the information provided in the data sheet. Any use or operation which requires specific requirements and standards which aren’t explicitly mentioned in the data sheet must be validated and tested on customer’s own risk. -
Page 5: Technical Specifications
™ PRODUCT MANUAL 2. Technical Specifications 2.1. Measured Parameters Temperature • Humidity • Tilt • Shock 2.2. Device Specification TABLE 1 I DEVICE SPECIFICATIONS Attribute Value Dimension (W x H x D): 91mm x 102mm x 25mm Weight: 100g Power Supply: CR 123A Lithium Battery Battery Lifetime: 2 Years (10min measuring cycle, +25°C) -
Page 6: Accuracies
™ PRODUCT MANUAL 2.5. Accuracies TABLE 4 I ACCURACIES Attribute Value Temperature 0.5°C ±5 % rH / ±10 % rH Humidity: ±10% Acceleration/Shock:... -
Page 7: Mounting The Spotbot Ble
™ PRODUCT MANUAL 3. Mounting the SpotBot BLE The SpotBot BLE comes with an integrated mounting plate at the bottom side. The mounting plate provides four mounting holes for screw fastening purposes. 1 Screwdriver 2 Screw 3 Mounting holes FIGURE 2 Mounting the SpotBot BLE Using Screws In general, the SpotBot BLE can be mounted in any position as required. -
Page 8: Operation
PRODUCT MANUAL 4. Operation You need to install the SpotBot BLE app to use the SpotBot BLE. The required app SpotBot BLE is available on the Google Play Store or Apple App Store. The app runs on Android version 5 (Lollipop) or higher and on iOS version 9 or higher. -
Page 9: Configuring The Spotbot Ble
™ PRODUCT MANUAL 4.3 Configuring the SpotBot BLE To configure your SpotBot BLE, follow the steps shown in the app. INFO Only defined characters are allowed for the e-mail address and SpotBot BLE name. Allowed characters: [A-Z] [a-z] [0-9] [@.,;/\|+-*_] 1. - Page 10 The device confirms the disconnection by flashing three times the red LED three times. b. Press the button on the SpotBot BLE for 2 to 5 seconds when you want to start logging. The SpotBot BLE blinks green three times to confirm that logging has started.
-
Page 11: Settings
4.4. Settings You can change the settings of your SpotBot BLE at any time. Any change to the settings is protected by the PIN. To change settings, please connect to the respective SpotBot BLE. Logging is stopped during the SpotBot BLE configuration process. - Page 12 å 4.4.3. Clearing the Data 1. Tap Clear Data to clear the logging data. A new window Do you want to clear all logged data stored on the SpotBot BLE? appears. 2. Tap Clear to clear the data. 4.4.4. Reset 1.
-
Page 13: Reading And Transferring Data
PRODUCT MANUAL 4.5. Reading and Transferring Data 4.5.1. Reading the Data 1. Connect your smartphone to a configured SpotBot BLE. TIP - Overview Screen This screen provides an overview of the four parameters, showing you at a glance if any violations have occurred during the logging period. - Page 14 2. Tap Send report. 3. Your smartphone will start your e-mail program and open an e-mail with the predefined address (see Configuring the SpotBot BLE on page 11). You can add additional addressees if required. The email contains: • General information, such as SpotBot BLE identification number, SpotBot BLE name and duration of the transport •...
-
Page 15: Blinking Patterns
™ PRODUCT MANUAL 4.6. Blinking Patterns The SpotBot BLE is equipped with a two-color LED to indicate the status of the SpotBot BLE. FIGURE 3 LED on the SpotBot BLE... -
Page 16: Maintenance
Always fasten the screws with a torque of 0.5 Nm. Otherwise the specified å protection class can be lost! 5.1. Changing the Battery The battery is accessible from the bottom of the SpotBot BLE. 1 Screws (4x Torx T6) Torque 0.5 Nm 2 Mounting plate... - Page 17 5. Change the battery (CR 123A Lithium Battery). 6. Position the mounting plate on the SpotBot BLE. 7. Fasten the four screws with a torque of 0.5 Nm. The SpotBot BLE is now ready for use and can be configured (see Operation on page 10).
-
Page 18: About These Operating Instructions
™ PRODUCT MANUAL 6. About these Operating Instructions Ensure that the SpotBot BLE is working correctly by reading these instructions carefully before using the SpotBot BLE. 6.1. Meanings of the used signal words CAUTION Indicates a hazard that could lead to minor or moderate injuries. -
Page 19: Safety And Environment
™ PRODUCT MANUAL 7. Safety and Environment CAUTION Lithium Battery! The device contains a lithium battery. Handling the battery incorrectly could cause a fire. Use only original or approved batteries. å å Read and follow the valid transportation regulations. CAUTION Opening the Casing without Authorization! Opening the casing without authorization will void any warranty and includes risks of injury to the user. -
Page 20: Regulatory Notices
8.2. EU Declaration of Conformity Hereby, Bosch Connected Devices and Solutions GmbH declares that the radio equipment type SpotBot BLE is in compliance with Directive 2014/53/EU (Radio Equipment Directive). • Radio power max. 4 mW •... -
Page 21: Ised Canada (Ic) Notice
™ PRODUCT MANUAL 8.4. ISED Canada (IC) Notice Industry Canada (now ISED Canada) has granted to Bosch Connected Devices and Solutions GmbH the IC ID: 12595A-TDL110. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference, including interference that may cause undesired operation. -
Page 22: Bluetooth
Due to legal regulations the device is not available in the following countries or regions: Cuba, Crimea, Iran, North Korea, Syria and Ukraine. Neither the SpotBot BLE nor a potential product derivation, are designed, intended, or authorized for use as components in systems intended for surgical implant into the body,...
