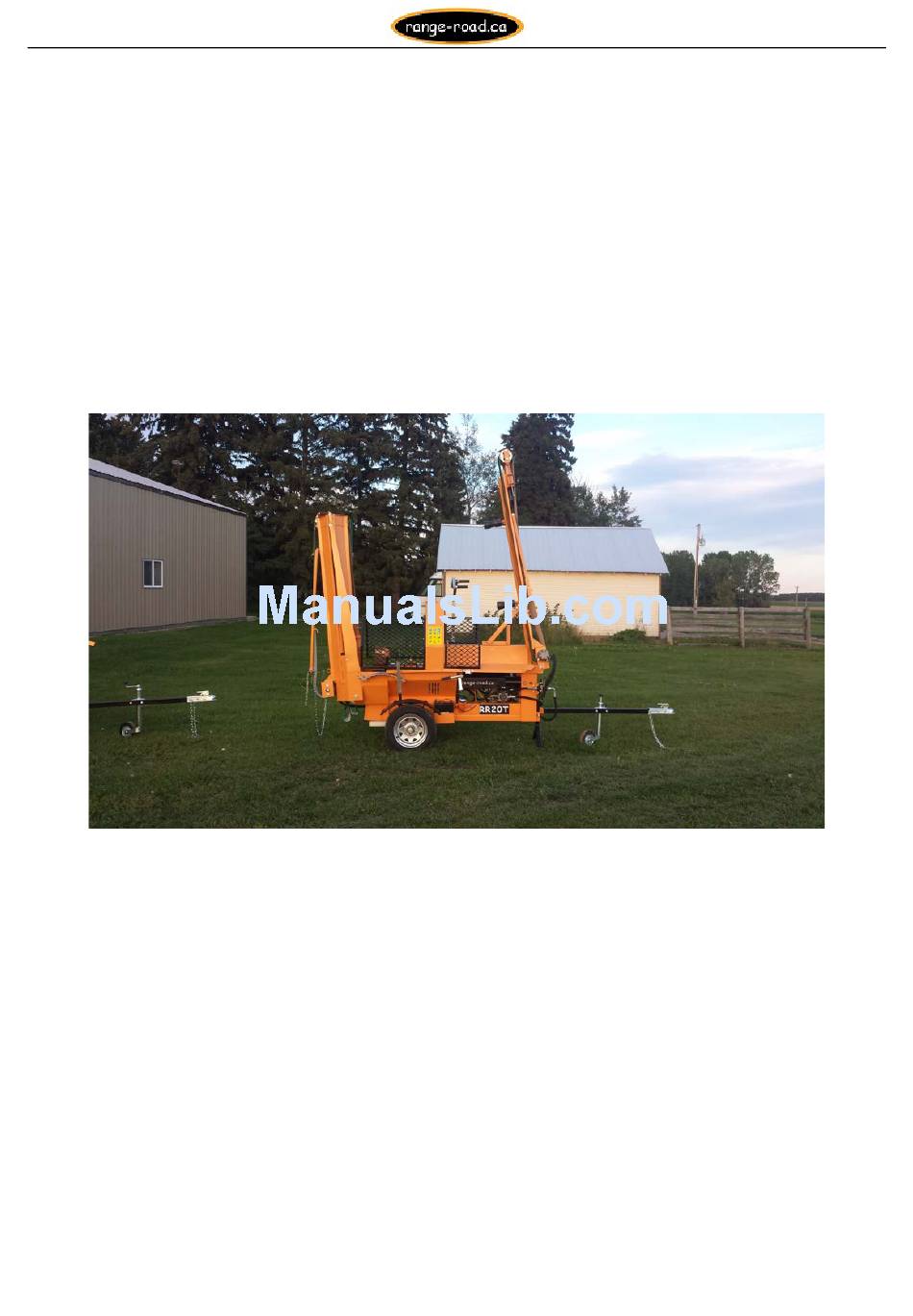

- Page 1 Range Road RR20T Series Firewood Processor Owners Manual...
-
Page 2: Table Of Contents
Table of Contents Warnings ..................3 Identification..................6 Operation ..................7 Maintenance ................. 8 Adjustments …..…................9 Troubleshooting ................11 Specifications ................12 Spare Parts…................14 Note: Any modification to Processor will void all warranty Range Road Enterprises Ltd Page 2 Box 944 Eckville AB T0M 0X0 www.range-road.ca... -
Page 3: Warnings
The wedges can cut through skin and break bones. Keep both hands away from wedges and ram cylinder. Serious accidents can happen when other people are allowed inside the work zone. Keep everyone else out of the work zone while operating Processor. Range Road Enterprises Ltd Page 3 Box 944 Eckville AB T0M 0X0 www.range-road.ca... - Page 4 Never ride or transport cargo on the firewood processor. Drive the vehicle with the firewood processor securely attached. Choose a level surface to operate the firewood processor. Block the firewood processor wheels to prevent unintended movement. Range Road Enterprises Ltd Page 4 Box 944 Eckville AB T0M 0X0...
- Page 5 Poisonous fumes from engine can kill you. Do not operate indoors even if ventilated. For outdoor use only. Do not touch the muffler as you may get burned. Note: Any modification to Processor will void all warranty Range Road Enterprises Ltd Page 5 Box 944 Eckville AB T0M 0X0...
-
Page 6: Identification
12. Saw Bar Handle: Use the saw bar handle to draw the chain saw bar down, run the chain, and to move the splitter ram forward. 13. Bar Oil Tank: Fill this with bar oil to lubricate the cutting chain. Range Road Enterprises Ltd Page 6 Box 944 Eckville AB T0M 0X0 www.range-road.ca... - Page 7 21. Output Conveyor: Shown folded up in travel mode, when unfolded the conveyor can be adjusted to the output height needed. 22. Conveyor Leg: When conveyor is unfolded the safety chain must be attached to this leg to keep the conveyor at the desired height. Range Road Enterprises Ltd Page 7 Box 944 Eckville AB T0M 0X0...
-
Page 8: Operation
Refer to the engine owner’s manual for engine maintenance. Failure to do regular maintenance will void warranty Only Use AW Series Hydraulic Oil, Use of any other Oil will Void All Warranties Range Road Enterprises Ltd Page 8 Box 944 Eckville AB T0M 0X0 www.range-road.ca... - Page 9 Check level and cleanliness Use 10/30 Oil Hydraulic Oil Check level and cleanliness Use AW Series Hydraulic Oil Only Air Filter Check & Clean Engine Air Filter if Necessary Range Road Enterprises Ltd Page 9 Box 944 Eckville AB T0M 0X0 www.range-road.ca...
-
Page 10: Adjustments
(Fig. 1)disengaging the chain. Fig. 2 shows when the engagement arm is pulled forward, allowing the valve to automatically move to the on position, starting the saw motor. Range Road Enterprises Ltd Page 10 Box 944 Eckville AB T0M 0X0 www.range-road.ca... -
Page 11: Troubleshooting
N-Coupler between engine and hydraulic Ensure the rubber coupler is in place and pump disconnected tighten hex screw. O-Dirty Air Filter Clean or Replace Filter Range Road Enterprises Ltd Page 11 Box 944 Eckville AB T0M 0X0 www.range-road.ca... -
Page 12: Specifications
Note: Any modification to Processor will void all warranty Failure to do regular maintenance will void warranty Only Use AW Series Hydraulic Oil, Use of any other Oil will Void All Warranties Range Road Enterprises Ltd Page 12 Box 944 Eckville AB T0M 0X0 www.range-road.ca... -
Page 13: Spare Parts
95 Series Lovejoy Rubber Coupler RR2138 18mm Hydraulic Pump Coupler RR2167 1” Engine Coupler RR2158 P55-1551 Donaldson Hydraulic Filter (or equivalent) RR2144 Chainsaw Drive Sprocket RR2143 Saw Motor Oil Seal Range Road Enterprises Ltd Page 13 Box 944 Eckville AB T0M 0X0 www.range-road.ca... - Page 14 (Honda, Lifan, Kohler, Princess Auto, Subaru, Etc.) The warranty begins on the date of sale and is warranted by Range Road Enterprises Ltd. to the original purchaser only. This Warranty does not cover items that have been damaged by accident, alteration, abuse or improper lubrication.
