Summary of Contents for Sony SU-PT3M

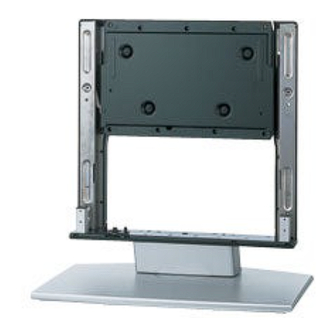

- Page 1 2-179-717-E1 (1) For Customers and Sony Dealers Table-Top Stand SU-PT3M © 2004 Sony Corporation...
- Page 2 Sony is not liable for any damages or injury caused dropping can result. by mishandling or improper installation.
- Page 3 Do not lean on or hang from the TV CAUTION with the TV installed on the Table- Top Stand. If the following precautions are not observed, injury or property damage may occur. The Table-Top Stand may topple over, or the TV may fall and cause serious injury or Do not install any equipment other death.
-
Page 4: Checking The Parts
To Sony Dealers Name Quantity The following instructions are for Bottom plate Sony Dealers only. Be sure to read safety precautions described above thoroughly and pay special attention to safety during the installation, maintenance, checking and repair of Rear panel this product. -
Page 5: Assembling The Table-Top Stand
Assembling the Table- Secure the rear panel to the bottom plate. Top Stand 1 Place the rear panel on the bottom plate so that the projections on both ends of the metal part of the bottom plate fit into the slots on WARNING the base of the rear panel. -
Page 6: Installing The Tv
Installing the TV Secure the TV. 1 Insert the anchor attachments in the second screw holes from the top on the left and right pillars of the rear panel and tighten them to Place the TV on the Table-Top secure the TV at the center of its rear. Stand. -
Page 7: Checking The Operation Of The Woofer Speaker
Checking the operation Bundle the mains lead and the connecting cables. of the woofer speaker 1 Attach the cable band to the left pillar of the rear panel with the supplied cable band screw, and then pass the mains lead through This Table-Top Stand is equipped with a woofer the cable band. -
Page 8: Safety Measures To Prevent Toppling Over
Safety measures to Specifications prevent toppling over WARNING Be sure to take measures to prevent the stand from toppling over. If you fail to do so, the TV may topple over and cause injury. Anchor the TV to a wall, pillar, etc., to prevent it from toppling over.
