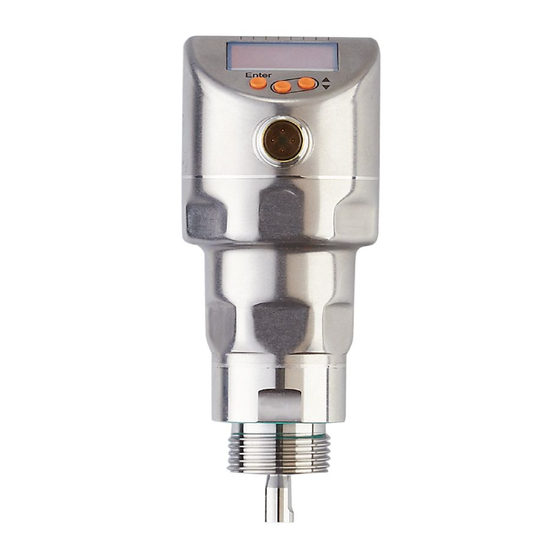

- Page 1 Operating instructions Electronic level sensor LR2059...
-
Page 2: Table Of Contents
Contents 1 Preliminary note ....................5 1.1 Symbols used ....................5 2 Safety instructions ....................5 3 Items supplied......................6 4 Getting started .....................6 5 Functions and features ..................7 5.1 Applications ....................7 5.2 Restriction of the application area ..............7 6 Function .......................8 6.1 Measuring principle ..................8 6.2 Outputs ......................9 6.3 Other features of the unit ................9 6.3.1 Display functions ..................9... - Page 3 7.4.2 Installation of the coaxial pipe ............21 7.5 Probe length ....................22 7.5.1 Shorten the probe ................22 7.5.2 Determine probe length L for single probes........23 7.5.3 Shortening of the coaxial pipe ............23 7.5.4 Determine probe length L for coaxial probes ........24 7.6 Installation of the unit with single probe ............24 7.6.1 Installation to G¾...
- Page 4 11.4.5 Set switch-off delay for switching outputs .........40 11.4.6 Set output function for OUT2 ............40 11.4.7 Scale analogue signal ...............40 11.4.8 Set output logic for switching outputs ..........40 11.4.9 Set response of the outputs in case of a fault ........41 11.4.10 Set damping for the measured signal ..........41 11.4.11 Set delay time in case of a fault ............41 11.5 Reset all parameters to factory setting ............41...
-
Page 5: Preliminary Note
1 Preliminary note 1.1 Symbols used ► Instructions > Reaction, result […] Designation of keys, buttons or indications → Cross-reference Important note Non-compliance may result in malfunction or interference. Information Supplementary note. 2 Safety instructions • Read this document before setting up the product and keep it during the entire service life. -
Page 6: Items Supplied
• mounting material (if necessary, a launching plate (→ 12.1) ► In the event of incomplete or damaged items supplied please contact ifm electronic. ► Only use accessories from ifm electronic. Accessories: www.ifm.com The optimum function is not ensured when using components from other manufacturers. -
Page 7: Functions And Features
5 Functions and features The unit continuously detects the level in tanks. 5.1 Applications • Water, water-based media • Oils, oil-based media (only for operation with coaxial probe) • Compatible with G ¾ process connections Application examples: - Detection of cleaning liquid in a parts cleaning system - Monitoring of hydraulic oil in a hydraulic power unit (only for operation with coaxial probe) - Detection of cooling water in an industrial cooling system... -
Page 8: Function
• The unit is not suitable for applications where the probe is subjected to permanent and high mechanical stress (e.g. fast moving viscous media or fast flowing media). • In case of operation with single probe: When used in plastic tanks, deterioration caused by electromagnetic interference may occur (noise immunity to EN61000-6-2). -
Page 9: Outputs
6.2 Outputs The unit generates output signals according to the parameter setting. 2 outputs are available. They can be set separately. OUT1 switching signal for level limit / IO-Link (→ 6.3.7) OUT2 • analogue signal proportional to level 4...20 mA / 20...4 mA •... -
Page 10: Analogue Function
6.3.2 Analogue function The unit provides an analogue signal proportional to level. The analogue output (OUT2) can be configured. • [OU2] defines the output function of the analogue output: - current output rising ([ou2] = [I]) or - current output falling ([ou2] = [InEG]) (→ 11.4.6) •... - Page 11 Curve of the analogue signal (measuring range scaled): I [mA] ASP2 AEP2 ① L: level [ou2] = I (factory setting) ② A: active zone = probe length L - (I1 + I2) [ou2] = [InEG] I1: inactive zone 1 ASP2: analogue start point I2: inactive zone 2 (→...
-
Page 12: Switching Functions
6.3.3 Switching functions Via switching output OUT1 (factory setting) or additionally via OUT2 (can be set) the unit signals that a set limit level has been reached or that the level is below the limit. The following switching functions can be selected: •... -
Page 13: Probes For Different Tank Heights
"smoothed" by means of a mean filter; the result is a steady curve. Damping can be set by means of the parameter [dAP] (→ 11.4.10). [dAP] indicates in seconds after what time 63 % of the final value is reached in the event of a sudden jump. -
Page 14: Io-Link
6.3.7 IO-Link This unit has an IO-Link communication interface which requires an IO-Link capable module (IO-Link master) for operation. The IO-Link interface enables direct access to the process and diagnostic data and provides the possibility to set the parameters of the unit during operation. In addition, communication is possible via a point-to-point connection with a USB IO-Link master. -
Page 15: Minimum Distances For Installation In Closed Metal Tanks
7.2.1 Minimum distances for installation in closed metal tanks Fig. 7-1 Fig. 7-2 without adjustment Installation distances with adjustment (→ Installation distances without adjustment *) 7.2.7) 10 mm *) A1: 10 mm *) 20 mm A2: 50 mm 20 mm to structures in the tank (B) A3: 50 mm to structures in the tank (B) 50 mm to other sensors type LR 50 mm to other sensors type LR... -
Page 16: Applications With Viscous And Fast Flowing Media
7.2.3 Applications with viscous and fast flowing media ► If possible, install the unit in a bypass pipe / still pipe (→ 7.2.2). ► In addition, the following aspects have to be considered: Fig. 7-3 ► Probe must not be in contact with the tank wall / structures. -
Page 17: Heavy Soiling
7.2.5 Heavy soiling If the medium is highly polluted, there is the risk that a bridge forms between the probe and the tank wall or structures in the tank. ► Increase minimum distances depending on the pollution intensity. 7.2.6 Heavy foam build-up and turbulence Heavy foam build-up and turbulence may lead to incorrect measurements. -
Page 18: Notes On Tank Adjustment
With increased foam build-up the setting [MEdI] = [MId] is recommended (→ 11.2.3). 7.2.7 Notes on tank adjustment Tank adjustment (parameter [tREF]) reduces the effect of interference and ensures a higher excess gain in difficult application conditions. Carry out the tank adjustment only when the unit is installed. For the tank adjustment it is necessary to enter an "adjustment distance"... -
Page 19: Unit With Coaxial Probe
No tank adjustment is necessary if all installation distances (→ 7.2) are adhered to. The unit is then ready for operation without tank adjustment. ► In case of doubt carry out a tank adjustment (recommended!). Carry out a tank adjustment with empty tank, if possible, to detect any possible sources of interference. -
Page 20: Installation Of The Probe
7.4 Installation of the probe The probe is not supplied, but one of the optional items must be ordered separately (→ 3 Items supplied). 7.4.1 Attaching the probe ► Screw the probe to the unit and tighten it. Recommended tightening torque: 4 Nm. For ease of installation and removal the probe connection can be rotated without restriction. -
Page 21: Installation Of The Coaxial Pipe
7.4.2 Installation of the coaxial pipe This subchapter is only relevant if the unit is to be operated with a coaxial probe. The coaxial pipe and the probe must be of the same length. The coaxial pipe can be shortened (→ 7.5.2). ►... -
Page 22: Probe Length
7.5 Probe length 7.5.1 Shorten the probe The probe can be shortened to adapt to different tank heights. Ensure that the probe length is not below the minimum permissible probe length (Lmin) of 150 mm. The unit does not support probe lengths below 150 mm. -
Page 23: Determine Probe Length L For Single Probes
7.5.2 Determine probe length L for single probes ► Precisely measure the probe length L. The reference point is the lower edge of the process connection (Fig. 7-8). ► Note the value. It is needed for setting the device parameters (→ 11.2). 7.5.3 Shortening of the coaxial pipe The coaxial pipe and the probe must be of the same length: ►... -
Page 24: Determine Probe Length L For Coaxial Probes
7.5.4 Determine probe length L for coaxial probes ► Measure the exact total length L of the coaxial pipe (Fig. 7-9, on the right). ► Deduct 9 mm from the total length of the coaxial pipe: L – 9 mm = L. ►... -
Page 25: Installation To G¾ Process Connection Directly In The Tank Lid
7.6.1 Installation to G¾ process connection directly in the tank lid The elastomer seal on the sensor is used as Fig. 7-10 process seal. The supplied flat seal can be used to smooth out unevenness on the tank lid process connection. -
Page 26: Installation In Open Metal Tanks
► Ensure cleanliness and evenness of the sealing areas; especially if the tank is under pressure. Tighten the fixing screws sufficiently. ► Lightly grease the sensor thread with a suitable paste. ► Insert the unit into the process connection. ► Tighten it using a spanner. Tightening torque: 35 Nm. 7.6.3 Installation in open metal tanks ►... -
Page 27: Installation In Plastic Tanks
7.6.4 Installation in plastic tanks min. 150 mm launching plate To enable sufficient transfer of the measured signal, note in case of installation in plastic tanks or metal tanks with plastic lid: ► The plastic lid must be provided with a drill hole with a minimum diameter of 150 mm. -
Page 28: Installation Of The Unit With Coaxial Probe
► Tighten it using a spanner. Tightening torque: 35 Nm. 7.7 Installation of the unit with coaxial probe ► Seal the process connection: - For coaxial pipes with G¾ process connection: Slide the supplied seal onto the thread of the coaxial pipe. - For coaxial pipes with ¾"... -
Page 29: Electrical Connection
8 Electrical connection The unit must be connected by a qualified electrician. The national and international regulations for the installation of electrical equipment must be adhered to. Voltage supply according to EN 50178, SELV, PELV. For marine applications (if approval available for the device), additional surge protection is required. -
Page 30: Operating And Display Elements
9 Operating and display elements 1 to 8: Indicator LEDs LEDs Selected unit of measurement. 1 - 3 LEDs Not used. 4 - 6 LED 7 Only active if the switching output [ou2] = [I] or [InEG] is selected; then: switching status OUT2 (on when output 2 is switched). -
Page 31: Menu
10 Menu 10.1 Menu structure Menu items highlighted in grey, e.g. [ SP2 ], are only active when assigned parameters have been selected (→ 10.2.1). main menu (→ 10.2.1) EF level (→ 10.2.2) - Page 32 Menu items highlighted in grey, e.g. [ dS2 ], are only active when assigned parameters have been selected (→ 10.2.3). III : CFG level (→ 10.2.3) ENV level (→ 10.2.4) SIM level (→ 10.2.5)
-
Page 33: Explanation Of The Menu
10.2 Explanation of the menu 10.2.1 Main menu [I] tREF Carry out tank adjustment. Menu item only visible if [LEnG] ≥ 260 mm and [Prob] = [rod]. SP1 / rP1 Set point 1 / reset point 1 at which OUT1 switches. Menu item only visible if hysteresis function is selected ([ou1] = [H..]). -
Page 34: Cfg Level (Configuration) [Iii]
10.2.3 CFG level (configuration) [III] Output configuration for OUT1: • switching signal for level limit. Hysteresis or window function, normally closed or normally open. Output configuration for OUT2: • analogue signal for current level, 4…20 mA or 20…4 mA • switching signal for level limit. Hysteresis or window function, normally closed or normally open. -
Page 35: Parameter Setting
11 Parameter setting During parameter setting the device remains in the operating mode. It continues to monitor with the existing parameters until the parameter setting has been completed. 11.1 Parameter setting in general Select parameter ► Press [Enter] to get to the menu. ►... - Page 36 • Change from menu level 1 to menu level 2: ► Press [Enter] to get to the menu. ► Press [▲] or [▼] until [EF] is displayed. ► Press [Enter]. > The first parameter of the submenu is displayed (here: [rES]). •...
-
Page 37: Basic Settings (Set-Up)
11.2 Basic settings (set-up) On delivery of the unit, you must first enter the basic settings. The complete user menu then opens. 11.2.1 Enter type of probe used ► Apply operating voltage. > The initial display is shown. ► Select [Prob] and set: ►... -
Page 38: Set To The Medium
11.2.3 Set to the medium ► Select [MEdI] and set: [HIGH] = For water and water-based media Operating mode is optimised for suppression of deposits on the probe. [MId] = For water-based media and media with a medium dielectric constant value, e.g. oil-in-water emulsions. Operating mode optimised for the detection of media with increased foam build-up. -
Page 39: Configure Display (Optional)
11.3 Configure display (optional) ► Select [SELd] and set type of indication: [L] = The level is indicated in mm. [%] = The level is indicated in percent of the measuring range / scaled measuring range. The level in percent depends on the parameters: [ASP2]: set value corresponds to 0 % [AEP2]: set value corresponds to 100 % [OFF] =... -
Page 40: Set Switch-On Delay For Switching Outputs
► Select [FLx] and set the lower limit of the acceptable range. [FLx] is always lower than [FHx]. The unit only accepts values which are lower than the value for [FHx]. 11.4.4 Set switch-on delay for switching outputs ► Select [dSx] and set the value between 0.0 and 60 s. The switch-on delay reacts according to VDMA* 11.4.5 Set switch-off delay for switching outputs ►... -
Page 41: Set Response Of The Outputs In Case Of A Fault
11.4.9 Set response of the outputs in case of a fault ► Select [FOU1] / [FOU2] and set the value: [On] = Output switches ON in case of a fault. Analogue output switches to a value > 21 mA in case of a fault. [OFF] = Switching output switches OFF in case of a fault. -
Page 42: Change Basic Settings
11.6 Change basic settings Required after changes to the probe or application. 11.6.1 Change the type of probe used Menu item only visible if [MEdI] = [HIGH] or [MId]. ► Select [Prob]. ► Press [Enter]. ► Press [▲] or [▼] for min. 1 s and set the value: [rod] = Single probe [COAX] =... -
Page 43: Simulation
11.7 Simulation 11.7.1 Set simulation value ► Select [S.LvL]. ► Set the process value to be simulated: [Numerical level in mm value] = [FULL] = full state [SEnS] = weak measured signal [Err] = electronic fault found [EPTY] = empty state ►... -
Page 44: Operation
12 Operation 12.1 Operation with single probe The single probe is made up of one individual rod. Operation with a single probe is suited for the detection of aqueous media, in particular of heavily soiled aqueous media. For correct function with single probe, the unit needs a sufficiently large metal launching surface / launching plate. -
Page 45: Operation Indication
12.4 Operation indication ---- continuous Initialisation phase after power on On delivery the unit is not operational. Basic settings required (→ 11.2). [----] Level below the active zone Numerical value + Current level in mm LED 1 Numerical value + Current level in % of the scaled measuring range LED 3 LED 7... -
Page 46: Change The Display Unit In The Operating Mode
12.6 Change the display unit in the operating mode Switching between length indication (mm) and percentage. ► Briefly press [▲] or [▼] in the operating mode. > The selected unit is displayed for 30 s, the corresponding LED is on. With each push of the button the display type is changed. -
Page 47: Output Response In Different Operating States
12.8 Output response in different operating states OUT1 OUT2* Initialisation according to the level and according to the level 4...20 Normal operation [ou1] setting OFF for [FOU1] = [OFF] < 3.6 mA at [FOU2] = [OFF] Fault ON for [FOU1] = [On] >... -
Page 48: Maintenance / Transport
The setting ranges for analogue start point [ASP2] and analogue end point [AEP2] depend on the probe length (L). In general the following applies: [ASP2] [AEP2] L - 30 Step increment • Minimum distance between [ASP2] and [AEP2] = 20 % of the active zone. 14 Maintenance / transport ►... -
Page 49: Factory Setting
15 Factory setting Factory setting User setting tREF nonE 50% VMR* 5 mm below SP1 ASP2 0% VMR* AEP2 100% VMR* FOU1 FOU2 SELd Prob nonE LEnG nonE MEdl nonE S.LVL 50 % LEnG S.Tim S.On * VMR = final value of the measuring range = LEnG value minus 30 (in millimetres). When the LEnG value is entered, the unit calculates the basic setting. -
Page 50: Notes On Parameter Setting Via Io-Link
16 Notes on parameter setting via IO-Link On delivery the unit is not operational. During set-up, valid basic settings have to be sent to the device once even if the default settings correspond to the connected device. Make sure that the basic settings are entered correctly according to the attached probe and the medium to be detected. -
Page 51: Unit Locking / Data Storage (As From Io-Link V1.1)
After a factory reset (button "Restore Factory Settings"), the device reboots and the factory settings are restored. 16.2 Unit locking / data storage (as from IO-Link V1.1) The IO-Link master stores all parameters of the connected sensor (except tank adjustment, see above) if configured in the master (data storage). When a sensor is replaced by a sensor of the same type, the parameters of the old sensor are automatically written to the new sensor if configured in the master and if the new sensor has the factory settings.
