Page 1 Industry Automation ___________________ Preface Installation and EMC ___________________ guidelines General technical ___________________ SIMATIC TDC specifications ___________________ Rack SIMATIC TDC hardware ___________________ CPU modules ___________________ Signal modules System Manual ___________________ Communication modules ___________________ Interface module ___________________ Submodules ___________________ Service & Support...
Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
Page 3: Preface
This manual is valid for SIMATIC D7-SYS as of version 8.1. Position in the information landscape This manual is part of the documentation package for the Technology and Drive Control components FM 458, SIMATIC TDC and SIMATIC D7-SYS. Title Content...
Page 4 Just a few steps away from the first project tion Configuration D7-SYS This section provides an extremely simple introduction into the methodology of the structure (http://support.automation. and programming of the SIMATIC TDC control system. It is interesting especially for first-time siemens.com/WW/ users. view/de/8776461/0/en)
Page 5 ● You can find information on the technical support offer in the appendix (Page 221) to this documentation. ● You can find the offer for technical documentation for the individual SIMATIC products and systems on the Internet (http://www.siemens.com/simatic-tech-doku-portal). ● You can find the online catalog and online ordering system on the Internet (http://mall.automation.siemens.com).
Page 6 Siemens accepts no liability for the use of the open source software over and above the intended program sequence, or for any faults caused by modifications to the software.
Page 7: Table Of Contents
ESD Directives ........................35 General technical specifications ......................37 Climatic conditions ........................37 Electrical protection and safety requirements ................. 37 External supply of the SIMATIC TDC modules (digital outputs) ..........37 Mechanical requirements ......................38 Electromagnetic requirements (industry) ................38 SIMATIC TDC hardware...
Page 8 Status and fault displays ......................68 3.3.5 Power supply .......................... 68 3.3.6 Voltage monitoring ......................... 70 3.3.7 Battery backup ........................71 3.3.8 Ventilation/cooling ........................72 3.3.9 Technical specifications ......................73 Slot covers ..........................74 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 9 Status and fault displays ....................... 124 6.1.4 Application notes and immunity to interference ..............125 6.1.5 Connection options ....................... 125 6.1.6 Additional components......................126 6.1.7 Pin assignments ........................127 6.1.8 Technical specifications/performance features ..............128 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 10 6.6.4 Application notes and immunity to interference ..............171 6.6.5 Connection options ......................172 6.6.6 Additional components ......................172 6.6.7 Pin assignments ........................173 6.6.8 Technical specifications/performance features ..............173 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 11 Technical specifications ......................216 Submodules ............................217 Program memory modules CPU555 ..................217 Program memory modules CPU550/551 ................219 Service & Support ..........................221 Service & Support ......................... 221 Index..............................225 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 12 Aotewell Ltd www.aotewell.com Industry Automation Table of contents SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 13: Installation And Emc Guidelines
Furthermore, the contents of these Operating Instructions shall not become a part of or modify any prior or existing agreement, commitment, or legal relationship. All obligations on the part of Siemens AG are contained in the respective sales contract which also contains the complete and solely applicable warranty conditions. These contractual guarantee provisions are neither broadened nor restricted by the text in these operating instructions.
Page 14: Danger And Warning Information
Lifting and carrying heavy loads Note the regulations/notes on lifting and carrying heavy loads. NOTICE Cleaning the devices Use only a vacuum cleaner and dry cloths to clean the devices. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 15: Introduction
(control and drive system). Proper functioning of SIMATIC TDC can only be ensured if all of these measures have been observed in compliance with legal provisions (2004/108/EC).
Page 16: Ce Label
SIMATIC products are designed for use in industrial environments. Industrial aera of applicaion ● Interference emission requirements to EN 61000-6-4: 2007 + A1:2011 ● Immunity to interference requirements to EN 61000-6-2: 2005 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 17: Low-Voltage Directive
Only expert personnel may configure, commission, service and operate SIMATIC TDC. Input of external voltages An external voltage source (e.g. pulse encoder) that is connected to SIMATIC TDC module inputs must be shut down simultaneously with the shutdown or failure of the SIMATIC TDC power supply. Installation...
Page 18: Fire Protection
As output power exceeds the limit of circuitry with power limiting to IEC 61010-1 / IEC 61131-2, malfunction of a SIMATIC TDC component may pose the risk of fire according to IEC 61010-1 / IEC 61131-2. In order to prevent spreading of fire, suitable measures must be taken to prevent ignition of adjacent parts or components as a result of burning parts that possibly drop out of a component.
Page 19 1.9 Fire protection Minimum size of the fire protection barrier ① Rack ② Vertical projection of the rack ③ from the vertical projection profile ④ Minimum size of the barrier SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 20: Control Cabinet
● If contactors without protective circuit are operated in a control cabinet next to the SIMATIC TDC cabinet, the cabinets must be partitioned by means of a sheet steel panel. ● All control cabinets in which SIMATIC TDC components are operated must be equipped with a shielding busbar that must be connected directly at both ends to the cabinet frame.
Page 21 Installation and EMC guidelines 1.10 Control cabinet Arrangement and clearances The following minimum dimensions must be maintained for stacked installations of SIMATIC TDC racks: e.g. control cabinet 2200 x 600 x 600 mm SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 22: Equipotential Bonding
(exception: components with fiber-optic connections). Equipotential busbar An equipotential busbar should be provided in each control cabinet to facilitate wiring. All internal and external components must be interconnected with this equipotential busbar. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 23 Aotewell Ltd www.aotewell.com Industry Automation Installation and EMC guidelines 1.11 Equipotential bonding Schematic circuit diagram SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 24 Aotewell Ltd www.aotewell.com Industry Automation Installation and EMC guidelines 1.11 Equipotential bonding Practical application examples Termination of an external shielded cable The shield must be connected to the shielding bus. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 25 Termination of an external shielded cable with supply via interface module The shield must be connected to the shielding bus. Ground of the external power supply must be wired to the shielding busbar, or to the equipotential busbar. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 26 Termination of an internal power supply via interface module The shield must be connected to the shielding bus. Ground of the internal power supply must be connected to the shielding busbar, or to the equipotential busbar. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 27 Aotewell Ltd www.aotewell.com Industry Automation Installation and EMC guidelines 1.12 Protective ground Example of grounding and potential equalization SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 28: Protective Ground
Protective ground Protective ground is bonded to the cabinets or components via PE conductor. It is required in SIMATIC TDC for safe operation and as interference suppression measure. The protective conductor must be routed and dimensioned in accordance with IEC 61131-2 (11.9).
Page 29: Power Losses In The Control Cabinet
In the SHUTDOWN MODE, the internal output voltages of the rack are switched off. External voltages connected to the module input must be switched off simultaneously (refer to section Machinery directive (Page 17)). SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 30: Power Supply
Installation and EMC guidelines 1.14 Power supply Air intake temperature The maximum air intake temperature on the SIMATIC TDC may not be exceeded. The following limits are valid, depending on the "shutdown mode" switch setting. Shutdown mode Maximum air intake temperature up to 2000 m above...
Page 31 Installation and EMC guidelines 1.14 Power supply Potentials of power supply In SIMATIC TDC, the ground connections of all secondary voltages are grouped and bonded to the rack enclosure in order to improve the signal to interference ratio and to ensure proper grounding.
Page 32: Rack
● All modules and front panels must be screwed onto the rack. This rule also applies to commissioning phase! ● Unused slots must be provided with SIMATIC TDC dummy front panels type SR 51 6DD 1682-0DA1. ● The connectors must be screwed/interlocked to the front panel.
Page 33 If interface modules are used, the shields of system-side cables and of routed the interface module to SIMATIC TDC must be bonded to ground directly above or below the interface module. Unshielded conductors that are terminated to screw terminals should be kept as short as possible.
Page 34 The cable wired to connector X1 on the rack must be shielded. The shield should be terminated as close as possible to connector X1. You can connect conductor cross-sections from 0.5 mm to 1.5 mm Comment: We recommend using ferrules when using flexible cables. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 35: Esd Directives
1.17 ESD Directives 1.17 ESD Directives Almost all of the SIMATIC TDC modules contain highly integrated components. Due to their technology, these components are highly sensitive to overvoltage and, therefore, to ESD. The abbreviation stands for electrostatic discharge Modules equipped with such components are identified by the following warning label on...
Page 36 The following figure once again emphasizes the necessary ESD protective measures. Conductive flooring ESD coat ESD tables = ESD chain ESD shoes Ground connection of the cabinets ESD bracelet SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 37: General Technical Specifications
Protection class I (with PE/ground conductor) Protection against the ingress of foreign parti- IP 20 cles and water External supply of the SIMATIC TDC modules (digital outputs) Safety extra low voltage (SELV/PELV circuit) to IEC 60364-4-41. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 38: Mechanical Requirements
EN 61000-6-2 : 2005 NOTICE Using two-way radios and mobile telephones The use of two-way radios and mobile phones in the immediate range of SIMATIC TDC can influence the operation of the device. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 39: Rack

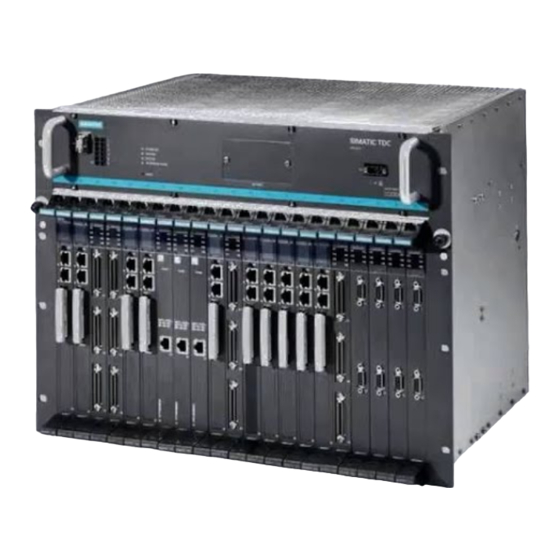

3.1.1 Areas of application Rack UR6021 with 21 slots forms the mechanical base for SIMATIC TDC The system power supply is installed in the rear area of rack. There is a fan tray in the upper part of the rack, which includes the monitoring and signaling functions in addition to the fans.
Page 40: Mechanical Layout
Fan tray (6DD1683-0CH3) The fan tray is inserted and screwed into the upper part of the rack. The fan tray contains six fans and the control and monitoring functions for the rack. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 41: Control And Display Elements
The four LEDs signal the operating state of the rack. RESET You can restart all modules by pressing the submerged pushbutton (rack RESET). BATTERY Backup battery compartment (1 x AA lithium battery) Line voltage connection SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 42: Status And Fault Displays
It is recommended to use a standard 16 A thermo magnetic circuit-breaker (B characteristic). Alternatively, a slow-acting fuse may be used. Note A mains disconnect unit must be provided during installation of the rack. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 43: Wiring Diagram
The PE/ground terminal on the rack (min. 6 mm ) is inappropriate. The PE/ground conductor must be green with yellow stripe (green/yellow). Ungrounded installation of the rack is not planned. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 44: Voltage Monitoring
Select the "Object properties" in the "STOP" tab of HW Config to configure the response of the relevant module to a system failure alarm (bus signal *SYSFAIL=low): ● The other modules also change to STOP ● The other modules remain in RUN SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 45: Battery Backup
Rated voltage 3.6 V Rated capacity 2.3 Ah You may only use batteries that have been approved by Siemens! WARNING Handling lithium batteries Risk of injury, damage to assets, and emission of pollutants. Improper handling of a Lithium battery may cause its explosion and incorrect disposal of used lithium batteries may lead to emission of pollutants.
Page 46 To prevent data loss, you should always replace the battery while the rack is powered on. See also Ventilation/cooling (Page 48) SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 47: Modules
3.1.10 Power supply potentials In SIMATIC TDC, the ground connections of all secondary voltages are grouped and bonded to the rack enclosure in order to improve the signal to interference ratio and to ensure proper grounding.
Page 48: Ventilation/Cooling
The battery compartment cover must be unscrewed to actuate switch S1. NOTICE ESD Directives Observe the corresponding ESD directives. The operating mode setting is indicated by the "SHUTDOWN MODE" LED on the front panel. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 49 3. Remove the power connector X2. 4. If necessary, remove the wires to X1 (including the strain relief and shield connection). 5. Loosen the 8 screws on the top and bottom of the fan tray. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 50 Signaling relay Terminal X1 Contact in switched off state Contact in error-free op- LED in error-free operation eration SYSFAIL Closed Closed POWER Open Closed green is on FAN FAIL Open Closed SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 51: Technical Specifications
Rated value (AC) 50/60 Hz • • (DC) (0 Hz) Permissible range 47-63 Hz • • Power factor EN 61000-3-2 Pollution degree Overvoltage category Power failure backup min. 20 ms SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 52 Contacts consisting of combinations of safety extra-low voltage and hazardous voltages are not permitted. Dimensions Number of rack slots Dimensions W x H x D [mm] approx. 482.6 x 354.9 x 343 Weight Approx. 20 kg SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 53 Aotewell Ltd www.aotewell.com Industry Automation Rack 3.1 Rack UR6021 (6DD1682-0CH3) Dimensional drawing Dimensions in mm Figure 3-3 Dimension drawing of rack UR6021 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 54: Rack Ur5213 (6Dd1682-0Ch2)
3.2.1 Areas of application Rack UR5213 with 21 slots forms the mechanical base for SIMATIC TDC and features an integrated system power supply and integrated system fans. A high-performance 64-bit backplane bus supports high-speed data exchange between the inserted modules.
Page 55: Control And Display Elements
The four LEDs signal the operating state of the rack. RESET You can restart all modules by pressing the submerged pushbutton (rack RESET). BATTERY Backup battery compartment (1 x AA lithium battery) Line voltage connection SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 56: Status And Fault Displays
16 A thermo magnetic circuit-breaker (B characteristic). Alternatively, a slow-acting fuse may be used. Note A mains disconnect unit must be provided during installation of the rack. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 57: Wiring Diagram
The PE/ground conductor must be connected to the power supply. A PE/ground terminal on the rack is inappropriate. The PE/ground conductor must be green with yellow stripe (green/yellow). Ungrounded installation of the rack is not planned. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 58: Voltage Monitoring
(bus signal *SYSFAIL=low): ● Modules can reset their digital and analog outputs ● CPU modules can go into the "STOP" state ("H" is displayed permanently) SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 59: Battery Backup
(max. temperature 100° C), or recharge the battery - risk of explosion! Do not open the battery and always replace it with one of the same type. Always order replacements from Siemens. This ensures that you are in possession of a short circuit- proof type.
Page 60: Modules
Observe this particularly at slot 1, as a metal spring has been installed in this slot. 3.2.10 Power supply potentials In SIMATIC TDC, the ground connections of all secondary voltages are grouped and bonded to the rack enclosure in order to improve the signal to interference ratio and to ensure proper grounding.
Page 61: Ventilation/Cooling
35 °C. The power supply is not shut down on failure of a single fan, but the corresponding backplane bus signal (FANAL*) is activated and can be detected by the configuration software. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 62 Signaling relay Terminal X1 Contact in switched off Contact in error-free op- LED in error-free operation state: eration SYSFAIL Closed Closed POWER Open Closed green is on FAN FAIL Open Closed SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 63: Technical Specifications
Max. inrush current < 40 A Line frequency 50/60 Hz Rated value • 47-63 Hz Permissible range • Power factor EN 61000-3-2 Overvoltage category Pollution degree Power failure backup min. 20 ms SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 64 Rated voltage (AC) 230 V (max. 264 V) Rated current Dimensions Number of rack slots Dimensions W x H x D [mm] approx. 482.6 x 354.9 x 343 Weight Approx. 20 kg SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 65 Aotewell Ltd www.aotewell.com Industry Automation Rack 3.2 Rack UR5213 (6DD1682-0CH2) Dimensional drawing Figure 3-6 Dimensional drawing of rack UR5213 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 66: Rack Ur5213 (6Dd1682-0Ch0)
3.3.1 Areas of application Rack UR5213 with 21 slots forms the mechanical base for SIMATIC TDC and features an integrated system power supply and integrated system fans. A high-performance 64-bit backplane bus supports high-speed data exchange between the inserted modules.
Page 67: Control And Display Elements
Compartment for backup batteries (2 x 1.5 V leak-proof alkaline manganese cells type AA) POWER Mains switch Line voltage connection Front panel Figure 3-8 Front view of the power supply unit SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 68: Status And Fault Displays
It is recom- mended to use a standard 16 A thermo magnetic circuit-breaker (B characteristic). Alternatively, a slow-acting fuse may be used. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 69 3.3 Rack UR5213 (6DD1682-0CH0) WARNING The PE/ground conductor must be connected to the power supply. A PE/ground terminal on the rack is inappropriate. The PE/ground conductor must be green with yellow stripe (green/yellow). SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 70: Voltage Monitoring
(bus signal *SYSFAIL=low): ● Modules can reset their digital and analog outputs ● CPU modules can go into the "STOP" state ("H" is displayed permanently) SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 71: Battery Backup
You should always replace the battery while the rack is powered on in order to prevent data loss. Note that while installing the battery you also need to take corresponding measures in preparation for its replacement. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 72: Ventilation/Cooling
Signaling relay Terminal X1 Contact in switched off state Contact in error-free op- LED in error-free operation eration SYSFAIL Closed Closed POWER Open Closed green is on FAN FAIL Open Closed SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 73: Technical Specifications
60 A +12 V -12 V All outputs are sustained short circuit-proof and do not need a basic load. Battery Current load approx. 10 µA for each inserted CPU module SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 74: Slot Covers
Slot cover SR51 is used to protect unused slots of the rack. This is necessary to ensure proper ventilation and EMC compatibility of the system. Article number Slot cover SR51 6DD1682-0DA1 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 75: Cpu Modules
Note the following for operation with other CPUs: • Operation of the CPU555 together with a CPU551 is not approved. • Operation of the CPU555 together with a CPU550 is not approved. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 76: Control And Display Elements
The acknowledge button can be used to clear sporadic or non-critical fault displays on the 5x7 dot matrix LED. An additional fault is displayed after the first one has been acknowledged. ● Digital signal input can be evaluated using the ASI function block. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 77 Aotewell Ltd www.aotewell.com Industry Automation CPU modules 4.1 CPU module CPU555 Front panel Figure 4-1 Front view of CPU555 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 78: Status And Fault Displays
Partial power failure, FPGA1 failure or errors on the module: User program is not running Hardware failure => replace CPU555 • Fatal hardware fault => contact the Hotline • Colored circle Initialization phase: flashing User program is not running SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 79 User stop results in a stop of all CPUs in the same rack. Permanent "d": • Module is in STOP, triggered by another CPU. Flashing "d" • Module is in STOP, triggered by this CPU itself. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 80 Permanent "H": Faults on a different module • For more information on diagnostics functions, refer to the manual "D7-SYS - STEP 7, CFC and SFC configuring (http://support.automation.siemens.com/WW/view/de/8776786/0/en)", chapter Basic software, section "Diagnostics". SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 81: Application Notes And Immunity To Interference
For more information on EMC and environmental conditions, refer to section "General technical specifications (Page 37)". Note Shutdown behavior of various CPU modules The various CPU modules exhibit slight time differences in their shutdown behavior when the power supply is interrupted. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 82: Connection Options
Designation Article No. SIMATIC NET, Industrial Ethernet TP XP CORD 6XV1870-3R... RJ45/RJ45, dressed with 2 x RJ45 connectors, length ... For information on additional products, refer to: Product catalog (https:eb.automation.siemens.com) SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 83: Pin Assignments
Note that a firmware update cannot take place during operation but only at plant standstill. NOTICE Qualified Personnel Only qualified personnel are permitted to perform the firmware update (see Qualified personnel (Page 13))! SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 84: Technical Specifications/Performance Features
64-bit Intel CPU Clock frequency 2 GHz Communications processor 32-bit CPU Clock frequency 450 MHz Note Removal and insertion Removal and insertion of the module is not permitted during operation. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 85 The program memory must be located in the CPU module slot provided (X4). Direct user program download from the PC to program memory in the CPU module via PROFINET interface (online loading). SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 86 1) All X1 interfaces have the same IP address I/O address range Inputs 8192 bytes Outputs 8192 bytes Process image partition Quantity Address area Inputs, max. 8192 bytes Outputs, max. 8192 bytes SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 87 Number of slots required in the rack Dimensions W x H x D [mm] 20 x 233 x 160 Weight 0.34 kg Degree of protection Degree of protection according to DIN 40050 IP00 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 88: Cpu Module Cpu550/Cpu551
Operation with CP53M0 Note CPU551 with CP53M0 To operate the CPU module CPU551 (6DD1600-0BA3) with the communications module CP53M0, use only a communications module CP53M0 with a functional status > 5. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 89 Please note that if you have selected the option "Use substitute values for invalid Real values" that the calculation with invalid Real values (NaN) can return different results with versions 6DD1600-0BA1 and 6DD1600-0BA2 of CPU module CPU551. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 90: Control And Display Elements
5x7 dot matrix LED. An additional fault is displayed after the first one has been acknowledged. ● Digital signal input can be evaluated using the ASI function block. Front panel Figure 4-3 Front panel of CPU551 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 91: Status And Fault Displays
For example, missing, low backup battery • Missing program memory module • Fan failure • Invalid floating value (substitute value will be used) • SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 92 User stop results in a stop of all CPUs in the same rack. Permanent "d": • Module is in STOP, triggered by another CPU. Flashing "d" • Module is in STOP, triggered by this CPU itself. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 93 Permanent "H": Faults on a different module • For more information on diagnostics functions, refer to the manual "D7-SYS - STEP 7, CFC and SFC configuring (http://support.automation.siemens.com/WW/view/de/8776786/0/en)", chapter Basic software, section "Diagnostics". SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 94: Application Notes And Immunity To Interference
Shutdown behavior of various CPU modules The various CPU modules exhibit slight time differences in their shutdown behavior when the power supply is interrupted. 4.2.6 Connection options Figure 4-4 Connection options of CPU550/CPU551 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 95: Additional Components
GND (Ground) DSR (Data Set Ready) n.c. n.c. RTS (Request to Send) n.c. n.c. CTS (Clear to Send) n.c. n.c. RI (Ring Indicator) n.c. n.c. (n.c.) n.c. n.c.: n.c. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 96 Digital input 1 (supports interrupts) Digital input 2 (supports interrupts) Digital input 3 (supports interrupts) Digital input 4 Digital input 5 Digital input 6 Digital input 7 Ground n.c.: n.c. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 97: Technical Specifications/Performance Features
6DD1600-0BA2 and the third for modules with the article number 6DD1600-0BA3. 6DD1600-0BA1 6DD1600-0BA2 6DD1600-0BA3 Processor 64 bit RISC processor Clock frequency 266 MHz 500 MHz 800 MHz SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 98 8 MB 1 MB Module slots Number Allocation of the slots Program memory MC5xx • PMC plug-in cards • PMC plug-in cards are currently not provided. Time Resolution 0.1 ms SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 99 Flash EPROM (2, 4 or 8 MB) and 8 KB EEPROM cache memory. The following program memory may be used optionally, depending on the size of the user program: ● MC500 (4 MB) ● MC510 (8 MB) ● MC521 (2 MB) SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 100 +5 V 1.5 A 1.3 A +3.3 V 2.0 A 1.7 A +12 V 40 mA 20 mA -12 V 40 mA 20 mA Backup battery 2.2 / 3 µA SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 101 Fan required Dimensions 6DD1600-0BA1 6DD1600-0BA3 6DD1600-0BA2 Number of slots required in the rack Dimensions W x H x D [mm] 20 x 233 x 160 Weight 0.6 kg 0.5 kg SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 102 Aotewell Ltd www.aotewell.com Industry Automation CPU modules 4.2 CPU module CPU550/CPU551 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 103: Signal Modules
H1 (green) and H2 (red) Module status display H3 (green) and H4 (green) Can be controlled by means of function block BIQ8 (digital output). H5 (green) and H6 (green) H7 (green) and H8 (green) SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 104 Aotewell Ltd www.aotewell.com Industry Automation Signal modules 5.1 SM500 signal module Front panel Figure 5-1 Front panel of SM500 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 105: Status And Fault Displays
● The module may not be inserted or removed while the rack is on live voltage. Note For more information on fan operation, refer to chapter "Rack (Page 39)"! For more information on EMC and environmental conditions, refer to chapter "General technical specifications (Page 37)"! SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 106: Connection Options
Aotewell Ltd www.aotewell.com Industry Automation Signal modules 5.1 SM500 signal module 5.1.5 Connection options Figure 5-2 Connection options of SM500 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 107: Additional Components
6DD1681-0AG2 8 digital outputs, conversion, 24 V to 120 V (change- over relay), LED, electrical isolation Interface module SB71 6DD1681-0DH1 8 digital outputs, conversion 25 V to 48 V (transistor) SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 108: Incremental Encoder Input Settings
Encoder 2 A/VW S1, 4 B/RW S1, 5 S1, 6 Encoder 3 A/VW S2, 1 B/RW S2, 2 S2, 3 Encoder 4 A/VW S2, 4 B/RW S2, 5 S2, 6 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 109 The Switches S1.7 / S1.8 and S2.7 / S2.8 are without function. Switches S1 and S2 for setting the threshold for incremental encoders (see encoder synchronization) Position of switches S1 and S2 on the module SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 110: Pin Assignments
Integrating analog input 3 - Integrating analog input 2 + Integrating analog input 4 + Integrating analog input 2 - Integrating analog input 4 - Ground, analog input Ground, analog input SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 111 Absolute encoder 4, data D- Absolute encoder 3, clock C+ Absolute encoder 4, clock C+ Absolute encoder 3, clock C- Absolute encoder 4, clock C- Ground, encoder SSI Ground, encoder SSI SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 112 Connector X3 with cable SC62 Only specific signal types are available at the cable ends of SC62 which can only be used for the matching interface modules (refer to "Connection options (Page 106)"). SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 113 Digital output 5 5/55 51/52/54 5/55 Digital output 6 6/56 61/62/64 6/56 Digital output 7 7/57 71/72/74 7/57 Digital output 8 8/58 81/82/84 8/58 Ext. power supply +24V External ground SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 114 Digital input 4 4/54 44/42/41 4/14/54 Digital input 5 5/55 54/52/51 5/15/55 Digital input 6 6/56 64/62/61 6/16/56 Digital input 7 7/57 74/72/71 7/17/57 Digital input 8 8/58 84/82/81 8/18/58 External ground SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 115 Absolute encoder 1, clock C- Ground, encoder SSI Absolute encoder 2, data D+ Absolute encoder 2, data D- Absolute encoder 2, clock C+ Absolute encoder 2, clock C- Ground, encoder SSI SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 116: Technical Specifications/Performance Features
± 0.3% Gain error, max. • ± 5 LSB Offset error, max. • Input resistance 20 kΩ Input filter 34 kHz Reverse polarity protection Yes, as differential inputs are used SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 117 External power supply • Short-circuit current, max. 250 mA Total current of outputs (up to 60 °C) 16 x 50 mA Limiting of inductive cut-off voltages ext. Supply voltage +1 V SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 118 Input current 5 mA 15 V – encoder (typ., abs.) • 1.5 mA 5 V – encoder (typ., abs.) • Monitoring output Not available Monitoring input Specification as for digital inputs SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 119 2 MHz Electrical isolation Input voltage RS485 signal level Sensor supply voltage Version Typical output voltage 13.5 V Output current, max. 150 mA (short circuit-proof, short-circuit current approx. 250 mA) SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 120 Typical power losses 12.5 W Fan required Dimensions Number of slots required in the rack Dimensions W x H x D [mm] 20 x 233 x 160 Weight, approx. 0.7 kg SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 121: Communication Modules
Function for routing to other CP modules Communication memory ---- SDRAM, 1MB Buffer memory module DRAM, 8 MB SDRAM, 8 MB VMEbus configuration memory ---- NOR Flash, 512 KB SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 122 Typical power losses 5.5 W Fan required Slots required Dimensions W x H x D (mm) 20 x 233 x 160 20 x 233 x 160 Weight 0.34 kg 0.6 kg SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 123: Control And Display Elements
LEDs H1, H2, H7 and H8 indicate the operating state of communication module CP50M1. LEDs H3 to H6 provide information about the current operating state of the two PROFIBUS DP channels. Front panel Figure 6-1 Front panel of CP50M1 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 124: Status And Fault Displays
H5 (green) CP50M1, PB-DP2 is initialized and ready H6 (red) CP50M1, PB-DP2 bus error Flashing CP50M1, one or several slaves connected to the PB-DP2 interface are not responding Module is defective SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 125: Application Notes And Immunity To Interference
For more information on fan operation, refer to chapter "Rack (Page 39)"! For more information on EMC and environmental conditions, refer to chapter "General technical specifications (Page 37)"! 6.1.5 Connection options Figure 6-2 Connection options of CP50M1 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 126: Additional Components
● 6XV1830-2AH30 (3 m; PG) ● 6XV1830-2AH50 (5 m; PG) ● 6XV1830-2AN10 (10 m; PG) Note You can find more information in the SIMATIC NET Catalog IK PI or in the SIMATIC S7 Catalog. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 127: Pin Assignments
Ground P5, electrically isolated (to supply OLMs) 1/2P5EXT P5 electrically isolated (to OLM supply) (5 V DC/90 mA) PB1/2_P24MPI P24, non-isolated (24 V DC/150 mA) PB1/2_RS458_A Line A PB1/2_RTSPG RTS from programming device (n.c.) Enclosure Shield SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 128: Technical Specifications/Performance Features
PG/OP services can be used E.g. coupling with the configuration station • • (CFC in test mode) Power supply to Optical Link Modules (OLM) with See Pin assignments (Page 127) electrical isolation SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 129 Typical power losses Fan required Yes, external fan Dimensions Number of slots required in the rack Dimensions W x H x D [mm] 20 x 233 x 160 Weight 0.34 kg SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 130: Cp51M1 Communication Module
● Exchange of process data with third-party systems (e.g. process computers) ● Central commissioning and diagnostics of all CPU modules in the rack ● Buffer memory for data exchange between CPU modules ● Time synchronization for uniform system time SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 131: Control And Display Elements
LEDs H1, H2, H7 and H8 indicate the operating state of communication module CP51M1. LEDs H3 to H6 provide information about the current network traffic. Front panel Figure 6-3 Front panel of CP51M1 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 132: Status And Fault Displays
H5 (green) CP51M1 is communicating via Fast Ethernet (100 Mbps) Flashing CP51M1 is in the "auto-sensing phase“ H6 (green) CP51M1 is connected (link) to an Ethernet compatible device (hub, switch, PC) SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 133: Application Notes And Immunity To Interference
For more information on fan operation, refer to chapter "Rack (Page 39)"! For more information on EMC and environmental conditions, refer to chapter "General technical specifications (Page 37)"! 6.2.5 Connection options Figure 6-4 Connection options of CP51M1 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 134: Additional Components
6XV1870-3R... RJ45/RJ45, dressed with 2 x RJ45 connectors, length ... You can find more information in the SIMATIC NET Catalog IK PI or in the Siemens Industry Mall (https://mall.industry.siemens.com). For more information on networks and their cabling, refer to the following documentation: ●...
Page 135: Technical Specifications/Performance Features
Dielectric strength to IEEE 802.3 • Voltage, currents Rated voltages at 25 °C Typical current consumption +5 V DC (from rack) 1.044 A External battery (min. 2.2 V, typically 3.0 V) 350 nA SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 136 5.22 W Fan required Yes, external fan Dimensions Number of slots required in the rack Dimensions W x H x D [mm] 20 x 233 x 160 Weight 0.34 kg SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 137: Gdm Memory Module Cp52M0
CP52IOs inserted in the GDM rack and detects and evaluates the central operating state of all fiber-optic interfaces. The results is made available at the digital outputs of CP52M0 for further analysis. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 138: Control And Display Elements
Display of error states (see Status and fault dis- plays (Page 132)) H5 (green) and H6 (red) H7 (green) and H8 (green) Front panel Figure 6-6 Front panel of CP52M0 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 139: Status And Fault Displays
Logical status "0" => Error at FOC interface, or CP52IO is missing • DA16 Logical status "1" => RUN operating state • Logical status "0" => STOP operating state • SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 140 Software time monitoring • If the basic sampling time is not processed four times in succession. The basic clock cycle timer is re-initialized with the configured basic sampling time and processing continued. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 141: Application Notes And Immunity To Interference
Fan operation, EMC and environmental conditions • For more information on fan operation, refer to chapter "Rack (Page 39)". • For more information on EMC and environmental conditions, refer to chapter "General technical specifications (Page 37)". SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 142 1. Install a suppressor diode between the shield and +24 . 2. Install a suppressor diode between the shield and M (ground). Figure 6-7 Circuit for the suppressor diodes on the lightning arrestor SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 143 Type: BTV AD 24 available under the number: 918 402 DEHN + SÖHNE GmbH + Co KG Postfach 1640 92306 Neumarkt, Germany ● Suppressor diode Type: 1.5KE36CA (1500W) Manufacturer: e.g. STMicroelectronics, Vishay SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 144: Connection Options
Designation Article number Cable for digital outputs SC63 6DD1684-0GD0 (50-pole/50-pole) PC connecting cable SC67 6DD1684-0GH0 (10-pole/9-pole) Interface module SU13 6DD1681-0GK0 Direct wiring (1:1 wiring), 50 screw terminals, no signal conversion SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 145: Pin Assignments
Digital output 8 n.c. Ext. power supply +24V n.c. External ground External ground Digital output 9 n.c. Digital output 10 n.c. Digital output 11 n.c. Digital output 12 n.c. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 146 Digital output 15 n.c. Digital output 16 n.c. Ext. power supply +24V n.c. External ground External ground n.c. n.c. n.c. n.c. n.c. n.c. n.c. n.c. n.c. n.c. n.c.: not connected SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 147: Technical Specifications/Performance Features
External power supply • Short-circuit current, max. 250 mA Total current of outputs (up to 60 °C) 16 x 50 mA Limiting of inductive cut-off voltages ext. Supply voltage +1 V SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 148 Typical power losses 4.5 W Fan required Dimensions Number of slots required in the rack Dimensions W x H x D [mm] 20 x 233 x 160 Weight, approx. 0.6 kg SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 149: Cp52Io Gdm Interface Module
Each rack that is coupled with GDM must be equipped with a CP52A0 access module. These racks are interconnected with GDM by means of fiber-optic cables in a star topology. Figure 6-9 Example of a GDM system with 5 racks that are coupled with FOCs SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 150: Control And Display Elements
FOC interface 2 receives data H5 (green) FOC interface 3 transmits data H6 (yellow) FOC interface 3 receives data H7 (green) FOC interface 4 transmits data H8 (yellow) FOC interface 4 receives data SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 151 Aotewell Ltd www.aotewell.com Industry Automation Communication modules 6.4 CP52IO GDM interface module Front panel Figure 6-10 Front panel of CP52IO SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 152: Status And Fault Displays
See also: • For more information on fan operation, refer to chapter "Rack (Page 39)". • For more information on EMC and environmental conditions, refer to chapter "General technical specifications (Page 37)". SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 153: Connection Options
Aotewell Ltd www.aotewell.com Industry Automation Communication modules 6.4 CP52IO GDM interface module 6.4.5 Connection options Figure 6-11 Connection options of CP52IO SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 154: Additional Components
Über der Elz 2 79312 Emmendingen 6.4.7 Pin assignments FOC interfaces X1 to X4 The fiber-optic cables are connected to the front connectors X1 to X4 by means of Duplex SC connector. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 155: Technical Specifications/Performance Features
Typical power losses 18 W Fan required Dimensions Number of slots required in the rack Dimensions W x H x D [mm] 20 x 233 x 160 Weight 0.6 kg SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 156: Cp52A0 Gdm Access Module
Each rack that is coupled with GDM must contain a CP52A0 access module. These racks are interconnected with GDM by means of fiber-optic cables in a star topology. Figure 6-12 Example of a GDM system with 5 racks that are coupled with FOCs SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 157: Using The Cp52A0 - 6Dd1660-0Bh1
H3 (green) FOC interface is transmitting data H4 (yellow) FOC interface is receiving error-free data H5 (green) Startup ID H6 (yellow) Send authorization for clock triggers or base sampling time SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 158 Aotewell Ltd www.aotewell.com Industry Automation Communication modules 6.5 CP52A0 GDM access module Front panel Figure 6-13 Front panel of CP52A0 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 159: Status And Fault Displays
The clock trigger and basic sampling time have been parameterized for transmission but have no transmit authorization from the CP52IO (priority logic is inhibiting one of the two signals) The brightness of the LED indicates the density of periodic data traffic. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 160: Application Notes And Immunity To Interference
See also: • For more information on fan operation, refer to chapter "Rack (Page 39)". • For more information on EMC and environmental conditions, refer to chapter "General technical specifications (Page 37)". SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 161: Connection Options
The max. cable length for the connection between CP52IO and CP52A0 is 200 m. The fiber-optic cables must be assembled in accordance with the plant topology and can be ordered from the following supplier: Ehret GmbH Über der Elz 2 79312 Emmendingen SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 162: Pin Assignments
Power losses/fan Typical power losses Fan required Dimensions Number of slots required in the rack Dimensions W x H x D [mm] 20 x 233 x 160 Weight 0.6 kg SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 163: Cp53M0 Coupling Module
Areas of application Rack coupling Coupling module CP53M0 is used to couple a SIMATIC TDC system to a SIMADYN D system for high-speed data exchange, e.g. when expanding SIMADYN D systems. CP53M0 is equipped with a buffer memory for data exchange between the CPU modules in the rack.
Page 164 ICS1 on CS14. If less than four slave modules are connected to an ICS1, the fiber-optic cables can be inserted as required in pairs. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 165: Cp53M0 As Master
Figure 6-16 Options for connecting the CS22 to CP53M0 that is operating in master mode Table 6- 22 Pin assignment of two CS22 on a CP53M0 CP53M0 CS22(1) CS22(2) SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 166 Example 2 Coupling SIMATIC TDC racks CP53M0 can be used to couple up to three SIMATIC TDC racks. In this case, CP53M0 is parameterized for operation in master mode in one rack and in slave mode in the other two racks.
Page 167: Control And Display Elements
Data transmission to X1/X2 H5 (green) Status startup frame to X3/X4 H6 (yellow) Data transmission to X3/X4 H7 (green) Status fiber-optic cable link to X1/X2 H8 (green) Status fiber-optic cable link to X3/X4 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 168 Aotewell Ltd www.aotewell.com Industry Automation Communication modules 6.6 CP53M0 coupling module Front panel Figure 6-18 Front panel of CP53M0 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 169: Status And Fault Displays
Slave mode: No function Master mode: CP53M0 is transmitting startup frames at X3/4 Slave mode: No function Master mode: No acknowledgement of data access from the slave at X3/X4 Slave mode: No function SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 170 Slave mode: No function Master mode: Receiver FOC interface X3/X4 has valid receive signal Slave mode: No function The brightness of the LED indicates the intensity of periodic data traffic. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 171: Application Notes And Immunity To Interference
See also: • For more information on fan operation, refer to chapter "Rack (Page 39)". • For more information on EMC and environmental conditions, refer to chapter "General technical specifications (Page 37)". SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 172: Connection Options
SIMATIC NET, STANDARD FIBER-OPTIC CABLE, SPLITTABLE, DRESSED WITH 4 x BFOC CONNECTORS Article number: 6XV1820-5Bxyz (xyz: length code) For information on available lengths, refer to the interactive catalog in the A&D MALL. The max. cable length is 300 m. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 173: Pin Assignments
1 (slave mode) 96 Mbps Data transmission speed • 5B/6B Code • Voltage, currents Rated voltages at 25 °C Typical current consumption +5 V 0.3 A 3.3 V 0.5 A SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 174 Typical power losses 3.1 W Fan required Dimensions Number of slots required in the rack Dimensions W x H x D [mm] 20 x 233 x 160 Weight 0.6 kg SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 175: Interface Module
6DD1681-0AE2 Description The interface module transfers digital signals from SIMATIC TDC components to the system, or receives digital signals from the system and transfers these to SIMATIC TDC components. The connection to SIMATIC TDC components is realized via the cables SC62 or SC66 and via terminals on system side.
Page 176 Industry Automation Interface module 7.1 Interface module SB10 Green LED The voltage supply on SIMATIC TDC side is indicated by a green LED (P). Red LED The supply voltage on SIMATIC TDC side (1P, 1M) is short-circuited (fault). Test socket Voltages 1P and 1M can be used via the double test socket (G;...
Page 177: Signals
The reference points of the signals may be derived from 1M or 1P potential. The polarity is selected on the module by means of soldering bridge: Figure 7-1 Soldering bridge for setting the signal reference points Note Bridge 1M-1W is inserted in the factory SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 178: Application Notes
Figure 7-2 Application example of an SB10 interface module on the digital I/O module SM500 The digital signals on system side are connected directly to the SIMATIC TDC modules via the interface module. A cable SC62 is used accordingly. SIMATIC TDC hardware...
Page 179: Technical Specifications
The maximum current of 1 A may not be exceeded on connector X3 if the supply of several terminal blocks is routed via this connector. Digital signals Number Rated voltage 24 V DC Maximum current per channel 30 mA SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 180: Pin Assignment
7.1 Interface module SB10 7.1.4 Pin assignment Ribbon cable connector X1 The cables SC62 or SC66 are used to connect the interface modules to the SIMATIC TDC components (for more information, refer to the SIMATIC TDC Documentation). Terminal block X2 Table 7- 1...
Page 181: Block Diagram
Aotewell Ltd www.aotewell.com Industry Automation Interface module 7.1 Interface module SB10 7.1.5 Block diagram Figure 7-3 Block diagram of interface module SB10 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 182: Interface Module Sb60
The eight digital inputs and the SIMATIC TDC rack are electrically separated. The eight digital inputs are electrically isolated with respect to one another. The cables SC62 or SC66 are used to connect the interface modules to the SIMATIC TDC components (for more information, refer to the SIMATIC TDC Documentation).
Page 183 Green LED The voltage supply (1P, 1M) on SIMATIC side is displayed by a green LED (P). Red LED The supply voltage on SIMATIC TDC side (1P, 1M) is short-circuited (fault). SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 184: Signals
Signals up to a maximum of 120 V (nominal value) DC or AC can be connected at the SB60 interface module. Yellow LED The status of the binary interface module outputs (binary inputs for SIMATIC TDC) is indicated using yellow LEDs (1...8). Terminal block X2 provides two screw terminals for each signal: ●...
Page 185: Technical Specifications
Input current (‘1signal’) Max. 3 mA Dielectric strength Safety isolation guaranteed: - between inputs and outputs Electrical isolation guaranteed: - between input circuits Test voltage 1125 V AC or open-circuit input SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 186: Pin Assignment
7.2.4 Pin assignment Flat connector X1 The cables SC62 or SC66 are used to connect the interface modules to the SIMATIC TDC components (for more information, refer to the SIMATIC TDC Documentation). Digital inputs terminal block X2 Table 7- 2...
Page 187: Block Diagram
Aotewell Ltd www.aotewell.com Industry Automation Interface module 7.2 Interface module SB60 7.2.5 Block diagram Figure 7-4 Block diagram of interface module SB60 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 188: Interface Module Sb61
Interface module SB61 is used to adapt 8 digital input signals with electrical isolation to the signal level of SIMATIC TDC components. The cables SC62 or SC66 are used to connect the interface modules to the SIMATIC TDC components (for more information, refer to the SIMATIC TDC Documentation).
Page 189 Industry Automation Interface module 7.3 Interface module SB61 Green LED The voltage supply (1P, 1M) on SIMATIC TDC-side is indicated by a green LED (P). Red LED The supply voltage on SIMATIC TDC-side (1P, 1M) is short-circuited (fault). SIMATIC TDC hardware...
Page 190: Signals
There are three screw connections on terminal strip X2 for each signal: ● terminals 1 to 8 for 24 V binary signals ● terminals 11 to 18 for 48 V binary signals ● Terminals 51 to 58 for reference potential SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 191: Application Notes
Inputs, electrically isolated Figure 7-5 Position of the jumpers for electrically isolated inputs Inputs with common reference potential Figure 7-6 Position of the jumpers for inputs with common reference potential SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 192 = number of input 1 to 8 Note The potential reference can be set separately for each input. The interface module is designed only for vertical mounting positions due to thermal losses to be dissipated. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 193 For more information on EMC and environmental conditions, refer to section "General technical specifications (Page 37)"! The following figure shows a typical application: Figure 7-7 Application example of an SB61 interface module on digital I/O module SM500 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 194: Technical Specifications
13 V DC to 30 V DC 26 V DC to 60 V DC '0 signal' -3 V to +6 V -3 V to +12 V Input current (‘1signal’) 6 mA 6 mA or open-circuit input SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 195: Pin Assignment
7.3 Interface module SB61 7.3.4 Pin assignment Flat connector X1 Use cable SC62 and SC66 to connect the interface module to the SIMATIC TDC components (for further information, refer to the documentation for the SIMATIC TDC components). Digital inputs, terminal block X2...
Page 196: Block Diagram
Aotewell Ltd www.aotewell.com Industry Automation Interface module 7.3 Interface module SB61 7.3.5 Block diagram Figure 7-8 Block diagram of interface module SB61 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 197: Interface Module Sb70
6DD1681-0AG2 Description Interface module SB70 is used to adapt eight digital output signals from SIMATIC TDC to the signal level of the plant by means of relay circuits. The voltage of the output signal may amount up to max. 120 V DC or AC.
Page 198 Red LED The supply voltage on SIMATIC TDC side (1P, 1M) is short-circuited (fault). Test socket The SIMATIC TDC supply voltage is available on the double test socket X5 (G; +): Double test socket X5 Voltage SIMATIC side + (1P of X3)
Page 199: Signals
- n1 n: 1...8, depending on the channel number Note When wiring the signal voltage to the relay contacts, observe the “Installation and EMC Directives” chapter in the User Manual. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 200: Application Notes
The following figure shows a typical application: Figure 7-9 Application example of an SB70 interface module on digital I/O module SM500 The digital inputs of the interface module are connected via cable SC62 to the SIMATIC TDC outputs. SIMATIC TDC hardware...
Page 201: Technical Specifications
< 35 V DC Switching frequency Max. 20 Hz Dielectric strength Safety isolation guaranteed: - between inputs and outputs Electrical isolation guaranteed: - between input circuits Test voltage 1125 V AC SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 202: Pin Assignment
7.4 Interface module SB70 7.4.4 Pin assignment Flat connector X1 Use the SC62 cable to connect the interface module to the SIMATIC TDC components (for more information, refer to the SIMATIC TDC documentation). Digital inputs, terminal block X2 Table 7- 5...
Page 203: Block Diagram
Aotewell Ltd www.aotewell.com Industry Automation Interface module 7.4 Interface module SB70 7.4.5 Block diagram Figure 7-10 Block diagram of interface module SB70 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 204: Interface Module Sb71
6DD1681-0DH1 Description Interface module SB71 is used to adapt eight digital DC signals from SIMATIC TDC to the signal level on plant side in an electrically isolated circuit. Cable SC62 is used to connect the interface module to the SIMATIC TDC components (for further information, refer to the documentation for the SIMATIC TDC components).
Page 205 (article number: 6DD1680-0BB0) The maximum conductor cross-section at terminal X4 is 2.5 mm². Test socket The SIMATIC TDC supply voltage is available on the double test socket X5 (G; +): Double test socket X5 Voltage SIMATIC side + (1P of X3)
Page 206: Signals
Application notes The interface module is equipped with a ribbon cable connector X1 that is used to connect the output signals of the SIMATIC TDC system, as well as a terminal block X2 for wiring the plant signals. The interface module is designed only for vertical mounting positions due to thermal losses to be dissipated.
Page 207 Industry Automation Interface module 7.5 Interface module SB71 The following figure shows a typical application: Figure 7-11 Application example of an SB71 interface module on digital I/O module SM500 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 208: Technical Specifications
30 mA output current -2.7 V) -2.9 V) Output voltage for '0 signal' Max. output current (for '1 signal') 30 mA 30 mA The digital outputs are sustained short circuit-proof. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 209: Pin Assignment
7.5.4 Pin assignment Flat connector X1 Cable SC62 is used to connect the interface module to the SIMATIC TDC components (for further information, refer to the documentation for the SIMATIC TDC components). Digital outputs, terminal strip X2 Table 7- 6...
Page 210: Block Diagram
Aotewell Ltd www.aotewell.com Industry Automation Interface module 7.5 Interface module SB71 7.5.5 Block diagram Figure 7-12 Block diagram of interface module SB71 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 211: Interface Modules Su12 Und Su13
10 spring-loaded terminals for analog or digital signals on plant side 6 unused spring-loaded terminals 10-pole connectors X1. SU13 50 screw terminals (X2) Connection of 50 signals 50-pole connector X1. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 212: Function Description
Function description Interface modules SU12 and SU13 are used to wire a ribbon cable connector X1 on SIMATIC TDC side 1:1 to the terminal blocks X2 on plant side, with the exception of the following terminals. The following signal lines are fused at the terminals (0.5 A slow-blow, internal resistance 0.25 Ω):...
Page 213: Additional Components
The interface modules are suitable for vertical and horizontal mounting positions. The modules must be installed on mounting rails. Other information For more information on EMC and environmental conditions, refer to section "General technical specifications (Page 37)" SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 214: Pin/Terminal Assignment X1/X2
X2 SU12 0.2 mm² 2.5 mm². SU13 0.2 mm² 1.5 mm². SU12 Figure 7-13 SU12 circuit diagram The components are described in chapter Function description (Page 212). SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 215 Aotewell Ltd www.aotewell.com Industry Automation Interface module 7.6 Interface modules SU12 und SU13 SU13 Figure 7-14 SU13 circuit diagram The components are described in chapter Function description (Page 212). SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 216: Technical Specifications
7.6 Interface modules SU12 und SU13 7.6.5 Technical specifications General data Dimensions W x H x D [mm] 45 x 129 x 160 mm Weight Approx. 0.28 kg Ambient temperatures Ambient temperatures max. 60°°C SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 217: Submodules
The volume of configuration data to download to the memory module (compressed to approx. 50 %) and the free program memory space can be viewed in the CFC by selecting: PLC / Load / Info SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 218 Flash memory is non-volatile and can be electrically programmed and erased. Dimensions Dimensions W x H x D [mm] 24 x 1.4 x 32 Weight 1.5 g SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 219: Program Memory Modules Cpu550/551
8 KB Flash memory is non-volatile and can be electrically programmed and erased. Dimensions Dimensions W x H x D [mm] 54 x 85.6 x 3.3 mm Weight 30 g SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 220 Aotewell Ltd www.aotewell.com Industry Automation Submodules 8.2 Program memory modules CPU550/551 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 221: Service & Support
Our Service & Support accompanies you worldwide in all matters concerning automation and drive technology from Siemens. We provide direct on-site support in more than 100 countries through all phases of the life cycle of your machines and plants.
Page 222 Repairs Downtimes cause problems in the plant as well as unnecessary costs. We can help you to reduce both to a minimum – with our worldwide repair facilities. SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com...
Page 223 Industry Automation and Drive Technologies. You can find your personal contact in our contacts database at: Internet (http://www.siemens.com/automation/partner). SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 224 Aotewell Ltd www.aotewell.com Industry Automation Service & Support A.1 Service & Support SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 225: Index
Status and fault displays, 139 GlobalDataMemory CP52M0 Technical specifications/performance features, 147 CP52M0 GDM memory module, areas of CP53M0 application for CP52M0, 137 Additional components, 172 Application notes and immunity to interference, 171 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 226 Status and fault displays, 105 Fan monitor, 47, 48 Technical specifications/performance features, 116 Power supply, 42 SU10, SU11, and SU12 PS6021, mechanical layout, 40 Process signals, 212 Status and fault displays, 42 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 227 Aotewell Ltd www.aotewell.com Industry Automation Index Technical specifications, 51 Voltage monitoring, 44 SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...
Page 228 Aotewell Ltd www.aotewell.com Industry Automation Index SIMATIC TDC hardware System Manual, 08/2017, A5E01114865-AL HongKong|UK|China sales@aotewell.com +86-755-8660-6182...

Siemens SIMATIC TDC System Manual

1 Installation and EMC Guidelines

2 General Technical Specifications

3 Rack

4 CPU Modules

5 Signal Modules

6 Communication Modules

7 Interface Module

8 Submodules

Quick Links

Related Manuals for Siemens SIMATIC TDC

Summary of Contents for Siemens SIMATIC TDC
