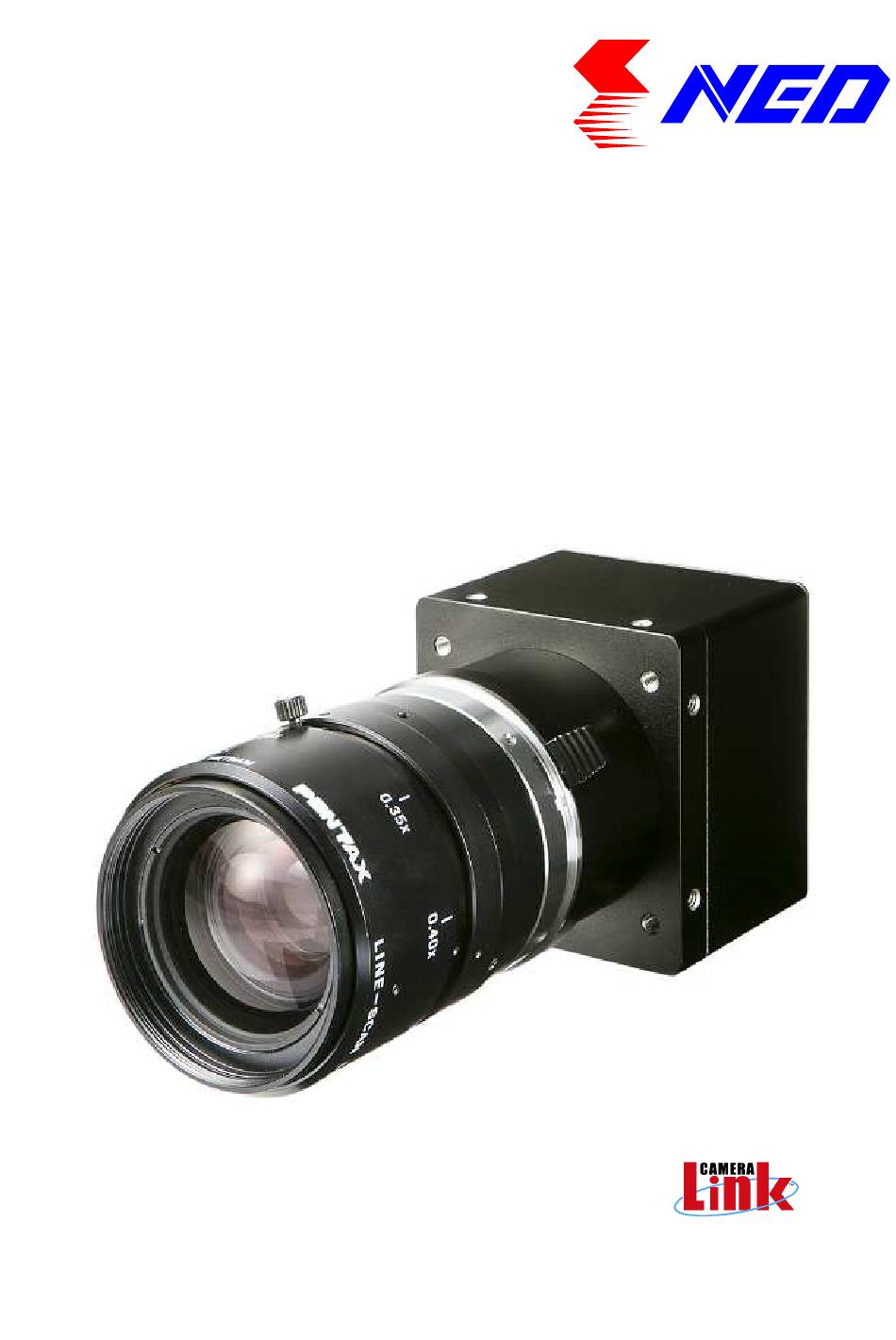

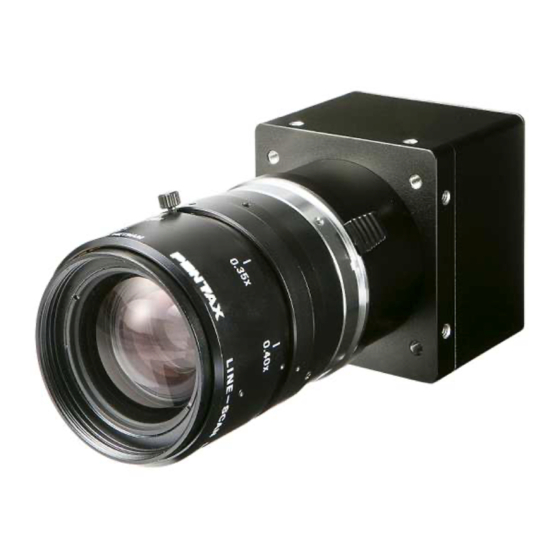

  • Page 1 User’s Manual Line Scan Camera Type: SUi7450T2 NIPPON ELECTRO-SENSORY DEVICES CORPORATION...
  • Page 2 Directive on Waste Electrical and Electronic Equipment (WEEE) Please return all End of Life NED products to the distributor from whom the product was purchased for adequate recycling and / or disposal. All costs of returning the Product to NED are borne by the shipper.

  • Page 3: Safety Precaution

    Introduction Thank you for purchasing NED’s Line Scan Camera. We look forward to your continued custom in the future. For safety use For your protection, please read these safety instructions completely before operating the product and keep this manual for future reference.
  • Page 4 Design the system configuration so that a loop will not be formed by the ground potential differential. Do not disconnect the camera while rewriting the embedded memory. When you change the exposure mode that is set at the NED factory, input control signal (CC1) from the capture board. SUi7450T2...

  • Page 5: Product Warranty

    Product Warranty Warranty Period The product warranty period, as a general rule, is two years from purchase; however for detailed conditions please contact the sales representative for your region/country. However, in some cases due to the usage environment, usage conditions and/or frequency of use, this warranty period may not be applicable.
  • Page 6 On request, arrangements can be made separately. Scope of Repair Service The above assumes business dealings and usage to take place in the customer’s region / country. In cases of business dealings and/or usage outside the customer’s region/country, separate consultation is required. SUi7450T2 UME-0033-01...

  • Page 7: Table Of Contents

    Table of Contents 1 Product Outline ......................10 1.1 Features ........................... 10 1.2 Applications ..........................10 1.3 Image Sensor........................... 11 1.4 Performance Specifications ....................11 2 Camera Setting and Optical Interface ................. 14 2.1 Setting Camera ........................14 2.2 Fixing Camera ......................... 14 2.3 Camera dimension ........................
  • Page 8 7.1 No Image ..........................47 7.2 Noise on Image ........................49 7.3 Camera becomes hot ......................51 8 NCCtrl ..........................52 8.1 Overview ..........................52 8.2 System Requirements ......................52 8.3 Installaton ..........................53 8.4 Uninstall ........................... 53 SUi7450T2 UME-0033-01...
  • Page 9 8.5 Operation ..........................53 8.5.1 General description ......................53 8.5.2 Starting NCCtrl02 ........................53 8.5.3 Open the control setting file ....................54 8.5.4 Selecting interface and Timeout setting ................55 8.5.5 Connect ..........................58 8.5.6 Disconnect and exit program ....................58 8.5.7 Check the contents of communication ................

  • Page 10: Product Outline

    Inspection of glass and sheet-like objects Printed circuit board inspection This camera utilizes an Intelligent Transportation System Outdoor surveillance An example of Visual Inspection of PCBs is shown below. Power Supply LED incident PCB pattern lighting Figure 1-2-1 Visual Inspection of PCBs SUi7450T2 UME-0033-01...

  • Page 11: Image Sensor

    Applicable Work Printed circuit board Performance 1. Printed circuit board size: 150mm×150mm 2. Resolution: 20µm 3. Inspection time: less than 30 seconds Unit Configuration 1. Camera: line scan camera 2. Controller: Dedicated software for PC system 3. Size: L930 x D500 x H500 (mm) Applicable Fields Inspection of patterns on film PCBs 1.3 Image Sensor...
  • Page 12 Mass (g) (Camera only) Under 380 1. Pixel correction 2. Scan Rate Programmable time setting ( at the time of Free run exposure mode ) Additional Functions 3. Test Pattern Output 4. Data level transforming 5. Scan Direction Switching SUi7450T2 UME-0033-01...
  • Page 13 The spectral Responsivity is shown below. （Ta=25℃） Figure 1-4-1 Spectral Responsivity UME-0033-01 Sui74450T2...

  • Page 14: Camera Setting And Optical Interface

    The dimensions for the cameras are shown below. 90.3 64.0 36.2 54.1 32.0 CCD中心画素 CAMERA LINK BASE SCAN CCD　１画素目 DC 12V ＬＥＤ MADE IN JAPAN NIPPON ELECTRO SENSORY DEVICES CORP. 12.0 50.0 10.6 22.5 カメラリンクコネクター 　　電源コネクター ｶﾒﾗ固定用ﾈｼﾞ穴 M4－深ｻ　6mm　、4箇所 1/4"-20UNC(有効深ｻ6) Figure 2-3-1 Dimensions(Nikon F Mount) SUi7450T2 UME-0033-01...

  • Page 15: Optical Interface

    2.4 Optical Interface For SUi7450T2, M84.5×0.5 screw mount is used. The amount and wavelengths of light required to capture useful images depend on the intended use. Factors include the property, speed, the object’s spectral characteristics, exposure time, the light source characteristics, the specifications of the acquisition system and so on.

  • Page 16: Hardware

    Other than the above, a personal computer, a frame grabber board, a photographic lens, a photographic lens mount, a light source and an encoder are necessary, depending on the situation. Line sensor camera 　　SUi7450T2 Camera Link　Cable ＰＣ ３Ｍ：１４Ｂ２６－ＳＺＬＢ－xxx－０ＬＣ Camera Link...

  • Page 17: Input / Output Connectors And Indicator

    <Note: Choosing the appropriate Camera Link cable length > According to the Camera Link Specification, the maximum cable length is 10 m. But the maximum cable length to be able to transfer data depends on the type of cable performance and clock speed. The actual maximum transmission distance becomes less than 10 m at faster clock speeds, though the transmission distance of 10 m is feasible at slower clock speeds.

  • Page 18: Connectors / Pin Assignments / Cables

    5 Xclk- 18 Xclk+ 6 X3- 19 X3+ 7 SerTC+ 20 SerTC- 8 SerTFG- 21 SerTFG+ 9 CC1- 22 CC1+ 10 CC2+ 23 CC2- 11 CC3- 24 CC3+ 12 CC4+ 25 CC4- 13 Inner Shield 26 Inner Shield SUi7450T2 UME-0033-01...
  • Page 19 Explanation of Signals Inner Shield: Shield cable (GND) X0+, X0-…X3+, X3-: Data output (Channel Link) Xclk+,Xclk- : Clock output for above data output synchronization (Channel Link) SerTC+, SerTC- : Serial data input (LVDS) SerTFG+, SerTFG- : Serial data output (LVDS) CC1+,CC1- : External synchronous signal input (LVDS) *When using External Trigger CC2+,CC2- :...

  • Page 20: Power Supply

    The LED lamp illuminates when +12 V power is being supplied to the camera. If the lamp fails to illuminate even after power is supplied, turn OFF power immediately. Inspect wiring. Check the voltage and capacity of the supplied power source. SUi7450T2 UME-0033-01...

  • Page 21: Camera Control

    4 Camera Control The camera can be controlled through serial communication. Two methods can be used to change the camera’s parameters. The first approach is to change parameters using NCCtrl (Camera control software). Or you can also change the parameters directly from your application by using binary read/write commands to set values in the camera register.

  • Page 22: Camera Control Commands

    Offset (3701 ~ 7400pixel) 0 ~ 15 10 bit : 0 ~ 60 LSB (4 LSB/STEP) 12 bit : 0 ~ 240 LSB 8 bit 2 Tap Video Output Switching 10 bit 2 Tap 12 bit 2 Tap SUi7450T2 UME-0033-01...
  • Page 23 Pixel Correction Off（CCD raw output） Activate Factory White Pixel Correction Select Pixel correction Data user pixel correction data valid Set Pixel Correction Target Data Level Pixel Correction target level 0 ~ 255 (DN) User Pixel Correction data Acquire User White Pixel Correction Data acquisition 1 User Pixel...

  • Page 24: Memory Setup Values (Factory Settings)

    Data Level Adjustment Minimum Set Data Level Adjustment Minimum Value Value to 0DN Data Level Adjustment Set Data Level Adjustment Maximum Maximum Value Value to 4095DN Scanning direction reverse invalid : Forward Test Pattern Table 4-1-5-1 Memory Setup Values (Factory Settings) SUi7450T2 UME-0033-01...

  • Page 25: Details On Commands

    4.2 Details on Commands 4.2.1 Exposure Mode Sets Exposure Mode • Format 2 CMD VAL CR • CMD • VAL <Example> t0CR (Free run selection) >OK >t0 4.2.2 Free run Exposure Mode Scanning Sets the exposure time. • Format 2 CMD VAL CR •...

  • Page 26: Setting Odd Gain (3701 ~ 7400 Pixel)

    • VAL 0 ~ 15 <Example> o5CR >OK >o5 4.2.8 Setting Even Offset (1~3700 pixel) Sets Even offset in 0 to 15. • Format 2 CMD VAL CR • CMD • VAL 0 ~ 15 <Example> O5CR >OK >O5 SUi7450T2 UME-0033-01...

  • Page 27: Setting Odd Offset (3701 ~ 7400 Pixel)

    4.2.9 Setting Odd Offset (3701 ~ 7400 pixel) Sets odd offset in 0 to 15. • Format 2 CMD VAL CR • CMD • VAL 0 ~ 15 <Example> p5CR >OK > p5 4.2.10 Setting Even Offset (3701~7400 pixel) Sets Even offset in 0 to 15. •...

  • Page 28: Pixel Correction Target Level

    • Format 1 CMD CR • CMD <Example> >OK >K 4.2.16 User Pixel Correction data Save Acquires current pixel correction data and saves it in the flash memory. • Format 1 CMD CR • CMD <Example> >OK >L SUi7450T2 UME-0033-01...

  • Page 29: Data Level Conversion Selection

    4.2.17 Data level conversion selection Selects the data level conversion. CMD VAL CR Format 2 <Example> （the data level conversion valid） c1CR >OK >c1 4.2.18 Data Level Adjustment Minimum Value Set Data Level Adjustment Minimum Value 書式 2 CMD VAL CR 0 ～...

  • Page 30: Generating Test Pattern

    Reads out the camera settings from the flash memory. • Format 1 CMD CR • CMD <Example> >OK >l 4.2.24 Memory Initializing (Initializing Camera Settings) Reset the flash memory to the factory default. • Format 1 CMD CR • CMD <Example> >OK >z SUi7450T2 UME-0033-01...

  • Page 31: Digital Processing Flow In Fpga

    4.3 Digital Processing flow in FPGA The figure below shows the digital processing flow in the FPGA. After the CCD output passes through A/D conversion, data is processed in the digital domain and converted to Camera Link Medium Configuration (for 8 bit output) for output. power ＋１２Ｖ...

  • Page 32: Saving And Loading Camera Settings

    Serial communication is performed through the Camera Link Interface. The table below shows the serial communication settings. Table 4-6-1 Serial Communication Settings Parameter Items Setup Value Communication Speed (Baud rate) 9600bps Data Length 8bit Parity Bit None Stop bit 1bit Flow Control None SUi7450T2 UME-0033-01...

  • Page 33: Video Output Format

    4.7 Video Output Format The camera outputs 8-bit or 10-bit digital data. ８ｂｉｔ（標準） １０ｂｉｔ　 ｂｉｔ11 ｂｉｔ11 ｂｉｔ10 ｂｉｔ10 ｂｉｔ９ ｂｉｔ９ ｂｉｔ８ ｂｉｔ８ ｂｉｔ７ ｂｉｔ７ ８ｂｉｔ １０ｂｉｔ ｂｉｔ６ ｂｉｔ６ ｂｉｔ５ ｂｉｔ５ ｂｉｔ４ ｂｉｔ４ ｂｉｔ３ ｂｉｔ３ ｂｉｔ２ ｂｉｔ２ ｂｉｔ１ ｂｉｔ１ ｂｉｔ０ ｂｉｔ０ １２ｂｉｔ　...

  • Page 34: Exposure Mode And Timing Chart

    Exposure Readout (LVAL) Figure 4-8-1-1 Free Run Exposure Mode The scan cycle (Programmable setting) can be set in the range 80µs～20.9715ms (4000～ 1048575CK） Scan Rate（us）＝ Clocks ｘ 0.02 Scan Rate calculating formula SUi7450T2 UME-0033-01...

  • Page 35: External Trigger Exposure Mode

    4.8.2 External Trigger Exposure Mode In external trigger exposure mode, the line period and the exposure time is determined by the setting made through the external trigger pulse (CC1) cycle. Each exposure starts with the rising edge is determined by the time from rising edge to rising edge of the trigger pulse.

  • Page 36: Setting Offset

    By setting the offset, you can set the Y-intercept arbitrarily. DF shows the digital offset value. The gradient of the line does not change. DF : Offset Value Output Amount of Incident Light (lx・s) Figure 4-9-2 Offset Adjustment Adjust amount of offset in accordance with the requirements of your camera system. SUi7450T2 UME-0033-01...

  • Page 37: Setting Gain

    4.10 Setting Gain It is possible to adjust the gain setting of this camera (x1 ~ 6). This is done by adjusting the slope of the line in the figure below. The slope becomes steeper when you raise the gain, and saturation occurs at a lower light exposure level. On the other hand, at a lower light level, the output increases, so the sensitivity is said to have increased.

  • Page 38: Data Level Adjustment

    <Example> Data Level Adjustment Settings: Minimum 23DN, Maximum 129DN Image Before Adjustment Profile of the left image at the red line Image Before Adjustment Profile of the left image at the red line Noise may increase due to data level adjustment SUi7450T2 UME-0033-01...

  • Page 39: Pixel Correction

    4.12 Pixel Correction Generally speaking, image sensors (CCD, CMOS and so on) have fixed pattern noise and photo response non-uniformity. When you use a lens, lens shadings and light sources also can cause non-uniformity. The camera is factory set to the optimal correction before shipping in order to provide images of high grade.

  • Page 40: Command Settings

    ※If the target data level is not set higher than the acquired User White data, the full range of 8 bit data may not be used even at saturation. ⑨ Send「C2 CR」via the COM port. This activates the User Pixel Correction. ※Send「C1 CR」to activate Factory White Correction Data. SUi7450T2 UME-0033-01...

  • Page 41: Test Pattern

    4.13 Test Pattern From pixel 1 to 3700, the pattern 0-255DN repeats, and pixel 3700 is 115DN. From pixel 3701 to 7400, the output is 115-0DN, then repeating 255-0DN, so that pixel 7400 is 0DN. Pixel number Figure 4-12-1 Test Pattern UME-0033-01 Sui74450T2...

  • Page 42: Confirming Camera Settings

    (2) Confirm the direction and the channel of the cables. Some Camera Link cables are directional. If one of the connectors says “Camera side”, connect this to the camera. side Camera side Frame grabber Figure 5-1-2 Connection Direction of Camera Cable SUi7450T2 UME-0033-01...

  • Page 43: After Power-On

    The connection channel of in the case of using a “Solios” board: CL1 = CHANNEL #0 CL2 = CHANNEL #1 CAMERA LINK BASE SCAN CL1 = CHANNEL # 0 CL2 = CHANNEL # 1 DC 12V MADE IN JAPAN NIPPON ELECTRO SENSORY DEVICES CORP. Figure 5-1-3 Channel of Camera Link Cables 5.2 After Power-on (1) Confirm sent and received commands using the camera control utility.
  • Page 44 If you have your own application to check the images, select suitable settings. (3) Capture images using a camera interface board utility. In the case of Matrox’s Solios, it is convenient to use Intellicam. Figure 5-2-3 Solios Window SUi7450T2 UME-0033-01...

  • Page 45: During Operation

    5.3 During Operation (1) Does an acquisition time out error occur? <Cause> <1> Captured images are too large. If there are many filtering processes, the assignments to the driver may be insufficient. <2> The cable is detached from the connector Ensure that the power cable and Camera Link cables are connected to the camera firmly.

  • Page 46: Sensor Handling Instructions

    Oil: Wipe the window with a lint-free cloth wiper moistened with ethyl alcohol carefully and slowly. When there is dust or smudges on the sensor window, it appears in the same way as noise on the image. Please remove it appropriately. SUi7450T2 UME-0033-01...

  • Page 47: Troubleshooting

    7 Troubleshooting The following pages contain several troubleshooting charts that can help you find the cause of problems users sometimes encounter. 7.1 No Image The camera has the correct connections The indicator is glowing. with the power source and the frame grabber.
  • Page 48 The optical axes of the camera and Check the light source. If the the image sensor are aligned. images are too dark, try to increase the light intensity, and vice versa. The camera may be out of order. Please contact us for service. SUi7450T2 UME-0033-01...

  • Page 49: Noise On Image

    7.2 Noise on Image The camera has been used for 3 or Noise is present from more years, ambient the beginning. temperature is higher than room temperature. servomotor magnetic valve is placed There are some consumable parts near the camera. in the camera.
  • Page 50 When the camera gain is on a high level, bright spots occur without incident light. The camera may be out of order. Please Secondary radiation (rays) contact us for service. could cause bright spots, but this is not a malfunction. SUi7450T2 UME-0033-01...

  • Page 51: Camera Becomes Hot

    7.3 Camera becomes hot The consumption current of the power supply is larger than the rating. The camera is too hot to touch. The camera will become hotter than the ambient temperature while in operation because of self-heating. Allow sufficient air circulation around the camera to give it a longer life.

  • Page 52: Ncctrl

    8 NCCtrl 8.1 Overview NCCtrl02 is software designed for line scan cameras that support the NED camera control protocol (NCCP). This software enables you to remotely control line scan cameras from a PC. The following interface connections are available: 1) COM port (RS232C) 2) Camera Link 8.2 System Requirements...

  • Page 53: Installaton

    8.3 Installaton Insert the FD or CD-ROM (or other media) provided by NED into your PC. Copy the NCCtrl02 folder into the desired location in your hard disk drive. Note: In case you copy from CD-ROM you should cancel the read only attribute.

  • Page 54: Open The Control Setting File

    Note: If the parameters displayed are gray, this indicates that the camera does not support the function. NCCtrl02 memorizes automatically the setting file name that was last opened. This file is automatically opened when NCCtrl02 is booted up. SUi7450T2 UME-0033-01...

  • Page 55: Selecting Interface And Timeout Setting

    Note: NCCtrl02 memorizes settings automatically. So you do not have to repeat this operation every time. 8.5.4.2 Setting the COM port 1) Set each item as follows. (NED standard) Unless in cases where different settings have been specified. UME-0033-01 Sui74450T2...
  • Page 56 Note: NCCtrl02 memorize settings automatically. So you do not have to repeat this operation every time. 8.5.4.3 Setting Camera Link 1) Enter the DLL file name of Camera Link API in the edit-box, or click “Browse” button and select DLL file. SUi7450T2 UME-0033-01...
  • Page 57 2) Enter value corresponding to the position of Camera Link cable to connect into the “Serial Index” column. 3) Click on the “OK” button to complete this operation. Click on the “Cancel” button to cancel this operation. Note: NCCtrl02 memorize settings automatically. So you do not have to repeat this operation every time.

  • Page 58: Connect

    Click on tool-bar button E. Then click the “X” button in the top right of the window. 8.5.7 Check the contents of communication Click on the "Console" tab at the bottom of the window to confirm the settings. 8.5.8 Export Parameters to text file 1) Click on tool-bar button B. SUi7450T2 UME-0033-01...

  • Page 59: Import Parameters From Text File

    2) Input the desired file name and click on the “Save” button. The current settings value of each item is saved in text format. 8.5.9 Import Parameters from text file 1) Select menu “File” – “Text Load” 2) Select the file name and click on the “Open” button. Each command written in the text file is executed sequentially.

  • Page 60: Gain And Offset

    8.6.1 Gain and Offset Enter the value directly into the edit-box or click on the spin-button to set the value. Then, click on the “Send” button to send the command to the camera. SUi7450T2 UME-0033-01...

  • Page 61: Clock, Video Output, Video Shift, Exposure Mode

    8.6.2 Clock, Video output, Video shift, Exposure mode Every time you choose from the Drop-down-list-box, the command is sent to the camera. 8.6.3 Camera Memory a) “Load”: Load data from camera memory b) “Save”: Save data into camera memory c) “Factory default”: Restore camera memory data to factory settings. 8.6.4 Pixel Correction ①Input the pixel correction target level「M xxx」in the input box on the console screen, and set it by pressing the Send button.

  • Page 62: Software Upgrades

    8.7 Software Upgrades When you received the newest software from NED, Please execute the following procedure. 8.7.1 NCCtrl02 upgrades 1) Check the old version of NCCtrl is not in operation. 2) Uninstall old version. (See “8.4.Uninstall”) 3) Install new version. (See “8.3.Software installation”) 8.7.2 Adding/Replacing control setting file...

  • Page 63: Data Transmission Programming

    2) Reverse engineering, decompiling, disassembling and modifying without notice part or all of this software is prohibited. 3) The specification of this software and the contents of this manual may be changed by NED at any time without notice. UME-0033-01 Sui74450T2...

  • Page 64: Others

    Contents of this document are subject to change without prior notice. Every care has been taken in the preparation of this User’s Manual. If you should discover any errors or omissions, please notify your nearest NED representative. 9.2 Contact for support...

  • Page 65: Product Support

    If there is still a problem with your camera after checking it in accordance with the troubleshooting guide, turn off the power and call your NED representative. In such case, please inform us of the status of the camera. You can get the status by executing the “l”...

  • Page 66: Revision History

    Revision History Revision Number Date Changes 10 Apr. 2014 Initial release SUi7450T2 UME-0033-01...
