  • Page 1 SPO – Systems support Epson TM-T20II User Guide SPO-NA-EN-115, V3.0...

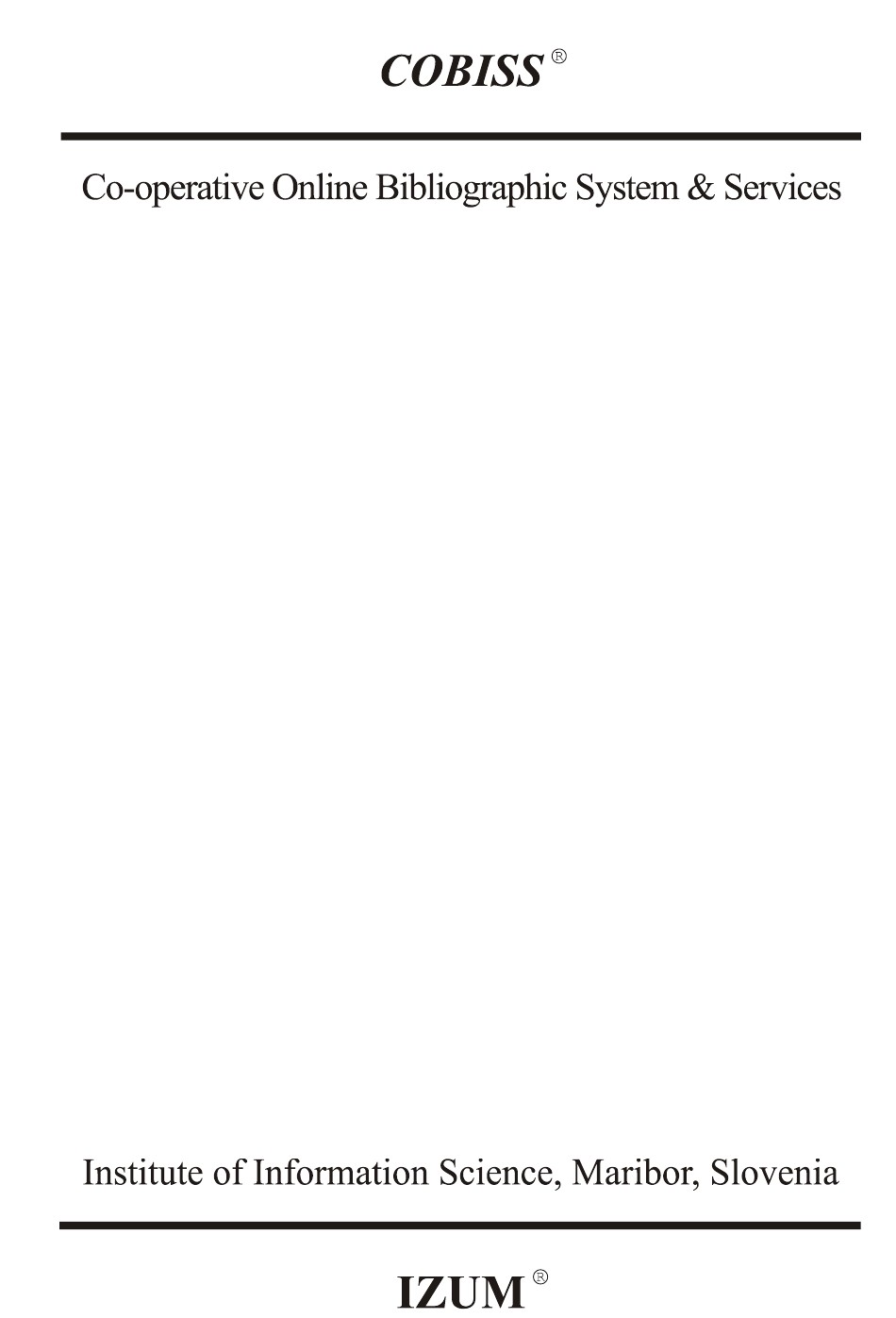

  • Page 2 © IZUM, 2019 IZUM, COBISS, COMARC, COBIB, COLIB, CONOR, SICRIS, E-CRIS are registered trademarks owned by IZUM.

  • Page 3: Table Of Contents

    CONTENTS 1 Printer description ....................1 2 Connecting the printer ..................2 3 Printer use ......................3 3.1 Installing roll paper ......................3 3.2 Cleaning the thermal head ....................4 4 Technical specifications ..................5 5 Driver installation and printer settings ..............5 5.1 Driver installation......................
  • Page 4 Figure 7: Thermal head ........................4 Figure 8: Technical specifications of the printer ................5 Figure 9: Epson TM-T20II Ver 5.07E software ................6 Figure 10: Epson TM-T20II Utility Ver.1.20 ................. 6 Figure 11: EPSON TM-T20II printer icon ..................7 Figure 12: EpsonNet Config Ver 4.9.4 ...................

  • Page 5: Printer Description

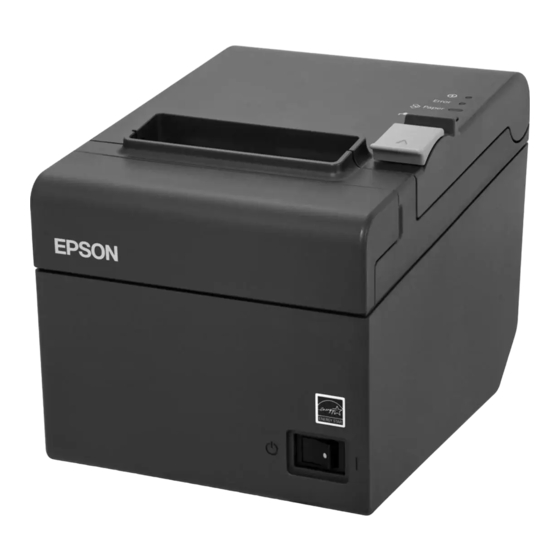

    Epson TM-T20II User Guide Printer description The following items are included in the printer package: 1. printer 2. installation disc 3. AC adapter 220V 4. AC cable 220V 5. USB interface cable 6. accessories for wall mounting and vertical installation...

  • Page 6: Connecting The Printer

    Epson TM-T20II User Guide 3. power switch 4. cover open lever 5. control panel Figure 2: Printer parts Connecting the printer The printer can have the following interfaces: 1. RS-232 serial interface 2. USB interface 3. 10BASE-T/100BASE-TX Ethernet interface 4. drawer kick-out connector Figure 3: Interface types ©...

  • Page 7: Printer Use

    Epson TM-T20II User Guide Connect the AC cable to DC24V (see Figure 3 and Figure 4). Figure 4: Power supply connection Printer use Installing roll paper How to install the roll paper correctly: 1. Use the cover open lever to open the roll paper cover. Insert the roll paper facing in the right direction (see Figure 5).

  • Page 8: Cleaning The Thermal Head

    Epson TM-T20II User Guide 2. Pull out some paper and close the roll paper cover. When the printer power is on, the roll paper is automatically cut. Figure 6: Closing the roll paper cover Cleaning the thermal head The manufacturer recommends cleaning the thermal head periodically every three months of regular daily use.

  • Page 9: Technical Specifications

    After you click on the link, follow these steps: 1. Click the Windows Printer Driver row and download the EPSON Advanced Printer Driver for TM-T20II Ver.5.07E installer. Install the driver to the computer by following the installation procedure. © IZUM, 3. 4. 2019, SPO-NA-EN-115, V3.0...

  • Page 10: Figure 9: Epson Tm-T20Ii Ver 5.07E Software

    Epson TM-T20II User Guide Figure 9: Epson TM-T20II Ver 5.07E software 2. After clicking the Setting Utility for Products row, select and install the TM-T20II Utility Ver.1.20. Figure 10: Epson TM-T20II Utility Ver.1.20 © IZUM, 3. 4. 2019, SPO-NA-EN-115, V3.0...

  • Page 11: Setting Up The Printer Ip Address Via The Network Connection

    Epson TM-T20II User Guide After installing the driver and the utility, connect the printer to the computer. In the Devices and Printers window, an icon of the printer with the installed EPSON TM- T20II Receipt5 driver will appear. Figure 11: EPSON TM-T20II printer icon...

  • Page 12: Figure 13: Installing And Registering The Epsonnet Config Software

    Epson TM-T20II User Guide Figure 13: Installing and registering the EpsonNet Config software Figure 14: Selecting the printer in the EpsonNet Config software © IZUM, 3. 4. 2019, SPO-NA-EN-115, V3.0 8/15...

  • Page 13: Printer Settings

    Figure 16: Dialog box for the communication with printer 5. Close the EpsonNet Config software. Printer settings Printer settings are managed with the TM-T20II Utility tool. Run Start – All Programs – EPSON – TM-T20II Software – TM-T20II Utility. The TM-T20II Utility Ver 1.20 window will open.

  • Page 14: Figure 17: Tm-T20Ii Utility Window

    Epson TM-T20II User Guide Figure 17: TM-T20II Utility window Select the installed printer (indicated in blue) and confirm your selection by clicking the OK button. The Current settings window will open. Figure 18: Current settings window The following settings should be selected under Font settings: •...

  • Page 15: Lending Form Print Settings

    Epson TM-T20II User Guide Figure 19: Font settings window When you click the Set button, the settings will be transmitted to the printer. A dialog box will open and your will hear the printer click. After that you can close the application.

  • Page 16: Figure 21: Advanced

    The required setting, which is suitable for printing all lending forms, is Roll Paper 80 x 3276 mm, which you set in the printer's driver. In the Printer Properties, select the Advanced tab and click the Printing Defaults… button. In the new EPSON TM-T20II Receipt5 Printing Defaults window, click the Advanced… button to proceed.

  • Page 17: Using The Printer Within The Cobiss3 System

    Epson TM-T20II User Guide In the EPSON TM-T20II Receipt5 Advanced Options window, select the Paper Size option in the Paper/Output drop-down menu and then select the value Roll Paper 80 x 3276. Confirm your selection by clicking the OK button and close the printer driver window.

  • Page 18: Figure 25: Select The Epson Tm-T20Ii Printer

    Epson TM-T20II User Guide The User destinations window will open. Click the Add printer button. In the new window, select the Epson TM-T20II printer, which you intend to use for printing lending forms, from the drop-down list. Figure 25: Select the EPSON TM-T20II printer Once you select the printer, click the Details button to check if the detailed settings for this type of printer are correct.

  • Page 19: Figure 28: Refresh The Settings

    Epson TM-T20II User Guide Figure 28: Refresh the settings © IZUM, 3. 4. 2019, SPO-NA-EN-115, V3.0 15/15...
