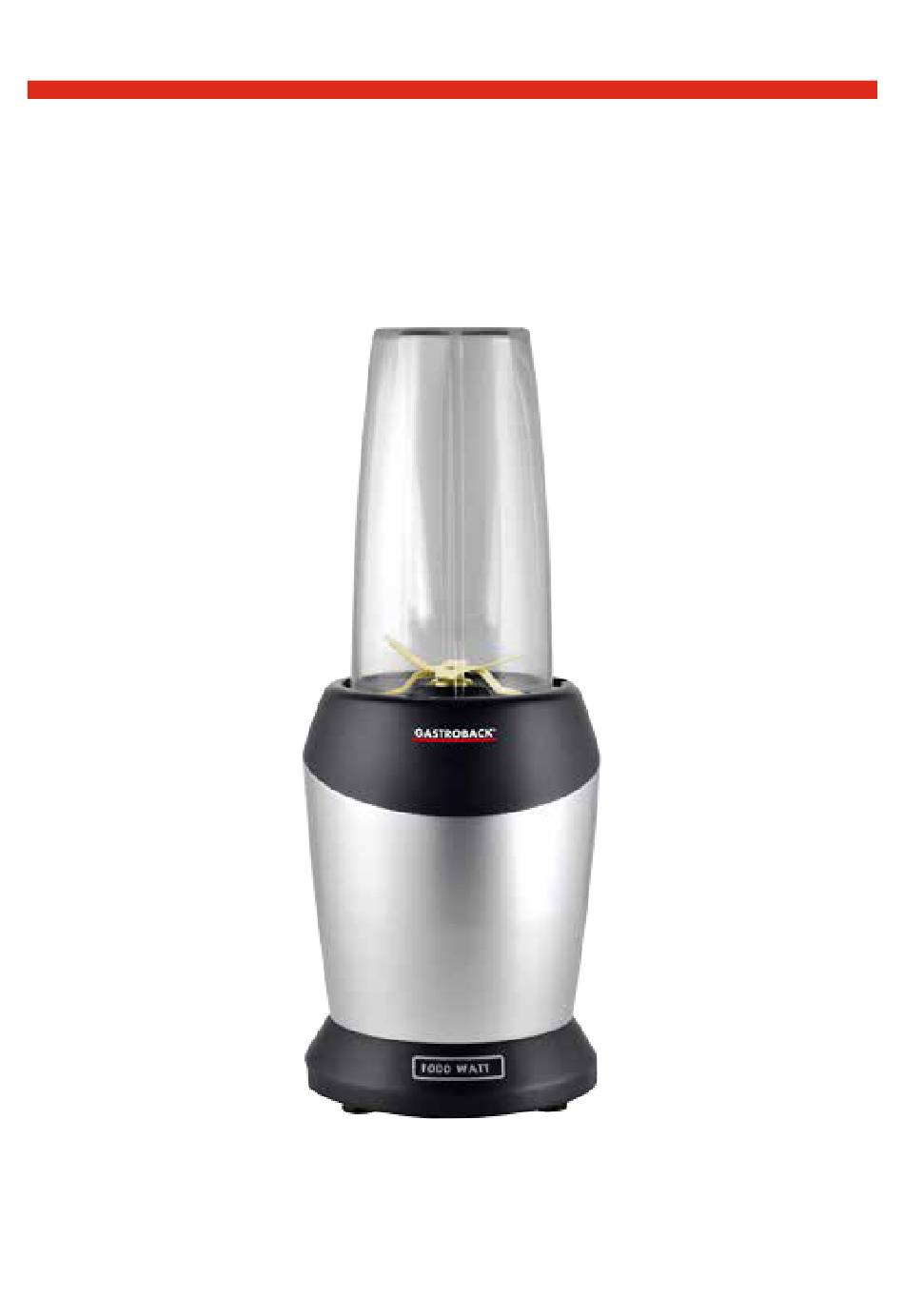

- Page 1 GASTROBACK ® Operating Instructions DESIGN MICRO BLENDER Art.-No. 41029 »Design Micro Blender« Read all provided instructions before first use! Model and attachments are subject to change! For household use only!
-
Page 2: Table Of Contents
Important Safeguards .................29 General Safety Instructions ................29 Important Safeguards for Electrical Appliances ..........31 Moving Parts—Risk of Injuries ..............32 Technical Specifications ................33 Properties of Your New »Design Micro Blender« ...........34 Before First Use ..................36 Operation ....................37 Solving Problems ..................40 Care and Cleaning ..................42 Cleaning the Motor Base ................42... - Page 3 Congratulations! Your new »Design Micro Blender« will make the preparation of your dishes and delightful beverages much more easier. The »Design Micro Blender« is a high powered innovative tool with a compact design and outstanding performance. It is perfect for ice crushing, chopping, blending, and nutrient and vitamin extraction.
-
Page 4: Knowing Your New »Design Micro Blender

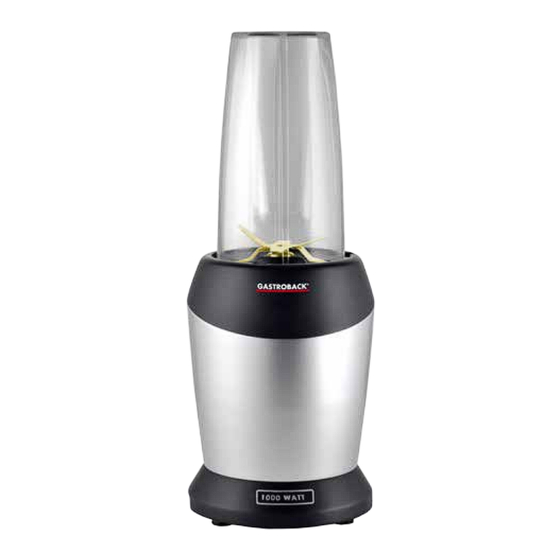

KNOWING YOUR NEW »DESIGN MICRO BLENDER« Small jar* – 0.8 litres Powerful 1000 -1200 W motor base with non-slip sucker feet. Large jar* – 1 litres Titan coated blade assembly – for crushing, chopping and mixing in a rush. Convenient Sip & Seal lid – simply fold up the flap and pour. -
Page 5: Important Safeguards
IMPORTANT SAFEGUARDS Carefully read all instructions before operating this appliance and save for further reference. Do not attempt to use this appliance for any other than the intended use, described in these instructions. Any other use, especially mis- use, can cause severe injuries or damage by electric shock, moving parts, or fire. These instructions are an essential part of the appliance. - Page 6 at least 20 cm on each side. Leave at least 50 cm of free space above the appliance. • This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, including children aged from 8 years and above, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 7: Important Safeguards For Electrical Appliances
• Do not process hot food. Always leave hot food cool down to room temperature before filling it into the jar. • Do not leave the appliance unattended, when it is connected to the power supply. Always unplug the appliance, before moving or cleaning the appliance, or when the appliance is not in use. -
Page 8: Moving Parts-Risk Of Injuries
See: 'Preparation'. MOVING PARTS—RISK OF INJURIES WARNING! The »Design Micro Blender« is designed for processing food. For this purpose, extremely sharp blades are rotating on high speed. Thus, improper handling could cause severe injuries and damage. Please keep this in mind. -
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS Model: Art.-No.: 41029 »Design Micro Blender« Power supply:: 220-240 V AC, 50/60 Hz Maximum power consumption: 1000 - 1200W Length of power cord: Approx. 110 cm Weight (motor base): Approx. 1.96 kg Dimensions: approx. 14.5 cm x 14.5 cm x 20.5 cm... -
Page 10: Properties Of Your New »Design Micro Blender
(e.g. nuts) or even crushing ice as well. For this, your new »Design Micro Blender« is agitating very sharp knives on high speed. Conveniently, the blade assembly is screwed on top of the jar, and for operation, the jar is placed upside down on the motor base. - Page 11 Suggested Uses You may use your new »Design Micro Blender« for several types of food. Adhere to the following table to get an overview. Purpose Type of Food Chopping Nuts, almonds, chocolate Grating Cheese, bread crumbs (use the small jar)
-
Page 12: Before First Use
BEFORE FIRST USE WARNING: DO NOT let young children play with the appliance, or any part of it, or the packaging! The blades of the blade assembly are very sharp. Only touch the blade assembly by its base. Ensure that the ratings of your power supply are as indicated on the model label of the appliance. -
Page 13: Operation
OPERATION WARNING – Risk of Injuries: Always ensure that the appliance and all its parts and accessories are out of reach of young children. The appliance is inten- ded for cutting and blending food. For this, the appliance is using sharp blades in high speed rotation. - Page 14 PREPARATION 1. Prepare your food. Remove all inedible parts and cut your food in cubes of approx. 1 cm in size. Do not overfill the jar to avoid overflow during operation. At the IMPORTANT: maximum, fill to the MAX FILL line on the jar. Do not fill in hot ingredients to avoid a build-up of high pressure during operation.
- Page 15 10. With most types of food you will get best results by pulsing. For this, shortly press down the jar several times. 11. If you wish to process your food continuously for several seconds, while holding the jar pressed down turn the jar clockwise to lock it safely in place. The jar may not wobble or tilt.
-
Page 16: Solving Problems
›Preparation‹. Food is too finely chopped or too The food has been over processed. The »Design Micro Blender« needs watery. only a few seconds for achieving best results. Try short pulses. - Page 17 Problem Reason The Solution You cannot get snow from ice cubes. The ice has not been cold enough For best result use ice straight from and has been thawed already. the freezer. You are not pulsing properly. Try operating in short intervals. The jar has been wet, when filling Ensure that the jar is completely dry, in the ice.
-
Page 18: Care And Cleaning
CARE AND CLEANING WARNING: Always unplug the appliance, before moving or cleaning the appli- ance. Do not hold your hands or any foreign objects into the coupling on the motor base with the appliance still connected to the power supply. Always handle the blade assembly with caution to avoid injuries, as the blades are very sharp. -
Page 19: Cleaning Jar, Lids And Blade Assembly Separately
Always handle the blade assembly with caution to avoid injuries, WARNING: Only touch the blade assembly by its base. Do as the blades are very sharp. not fill the jar over the MAX filling line to avoid overheating. Do not fill in hot The dishwater for cleaning may be hand-warm at the maximum. -
Page 20: Storage
2. Unscrew the blade assembly from the jar. Only touch the blade assembly by its base to avoid getting cut. CAUTION: Do not clean the motor base or power cord in an automatic dish- washer. Do not use any hard or sharp-edged objects for cleaning. Do not use any aggressive or abrasive cleaners. -
Page 21: Notes For Disposal
Always handle the power cord with care. Cables may never be knotted, twisted, pulled, strained, or squeezed. Do not use any parts or accessories of the appliance for any other appliance or any other purpose than described in this booklet. Always clean the appliance and all its parts before storing to avoid accumulation of dried-on food (see: ›Care and Cleaning‹). -
Page 22: Information And Service
INFORMATION AND SERVICE Please check www.gastroback.de for further information. For technical support, please contact Gastroback Customer Care Center by phone: +49 (0)4165/22 25-0 or e-mail info@gastroback.de. WARRANTY We guarantee that all our products are free of defects at the time of purchase. Any... -
Page 23: Recipe Ideas
RECIPE IDEAS FRUIT SMOOTHIE Ingredients: • Fruits of your choice (apples, bananas, pears, berries…) • Some pieces of chocolate, almonds or nuts to garnish Preparation: 1. Fill chocolate, almonds or nuts in the jar and process until grated coarsely. Take out of the jar. - Page 24 GASTROBACK GmbH Gewerbestraße 20 . 21279 Hollenstedt / Germany Telefon +49 (0)41 65/22 25-0 . Telefax +49 (0)41 65/22 25-29 info@gastroback.de . www.gastroback.de...
