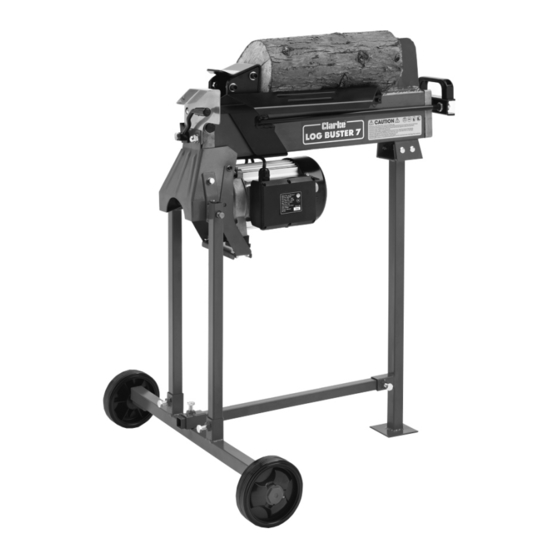

- Page 1 LB7S Log Buster Stand.fm Page 1 Friday, September 16, 2011 4:25 PM STAND FOR LOGBUSTER 7 MODEL NO: LB7S PART NO: 3402047 OPERATION & MAINTENANCE INSTRUCTIONS LS0911...
-
Page 2: Specifications
LB7S Log Buster Stand.fm Page 2 Friday, September 16, 2011 4:25 PM INTRODUCTION Thank you for purchasing this CLARKE Log Buster Stand. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. - Page 3 LB7S Log Buster Stand.fm Page 3 Friday, September 16, 2011 4:25 PM PART IDENTIFICATION UNPACKING The following items should be supplied in the carton. If any parts are missing or damaged, please consult your Clarke dealer where you purchased the stand.
- Page 4 LB7S Log Buster Stand.fm Page 4 Friday, September 16, 2011 4:25 PM ASSEMBLY PREPARING THE LOG BUSTER 1. Remove the 4 nuts that secure the front foot of the log buster and remove the foot. 2. Remove the wheel hub using a flat screwdriver.
- Page 5 LB7S Log Buster Stand.fm Page 5 Friday, September 16, 2011 4:25 PM 6. Remove any other nut/bolts that are securing the wheel mount / pump cover assembly to the log buster. 7. Remove the wheel mount / pump cover assembly and replace it with the one you purchased.
- Page 6 LB7S Log Buster Stand.fm Page 6 Friday, September 16, 2011 4:25 PM FRAME ASSEMBLY AND FIXING THE LOGBUSTER 1. Assemble the frame as shown. 2. Attach the wheels you removed from the log buster to the log buster stand. 3. Fix the vertical support columns to the wheel mount / pump cover assembly as shown.
- Page 7 LB7S Log Buster Stand.fm Page 7 Friday, September 16, 2011 4:25 PM NOTES Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 8 LB7S Log Buster Stand.fm Page 8 Friday, September 16, 2011 4:25 PM...
