Connections
There are 6 ESC outputs for 2-6 Motors.
The first 4 ESC Outputs are in place for use on the most common QuadX Copter type

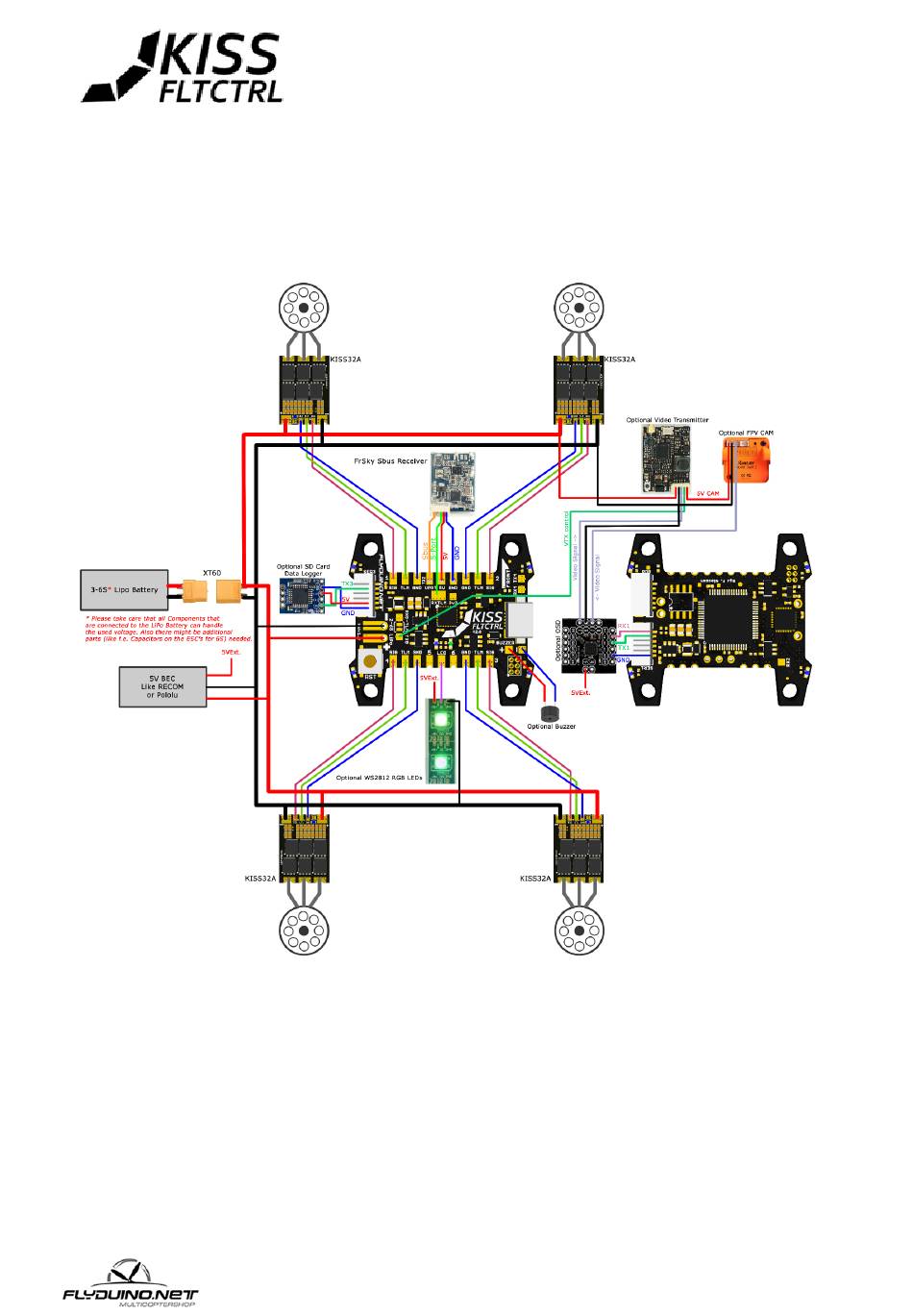

Here's a recommended wiring diagram:
Please note that all Parts that are used together with the KISS FC V2 should be connected referring to their
specifications that can be found in their manuals.
6
