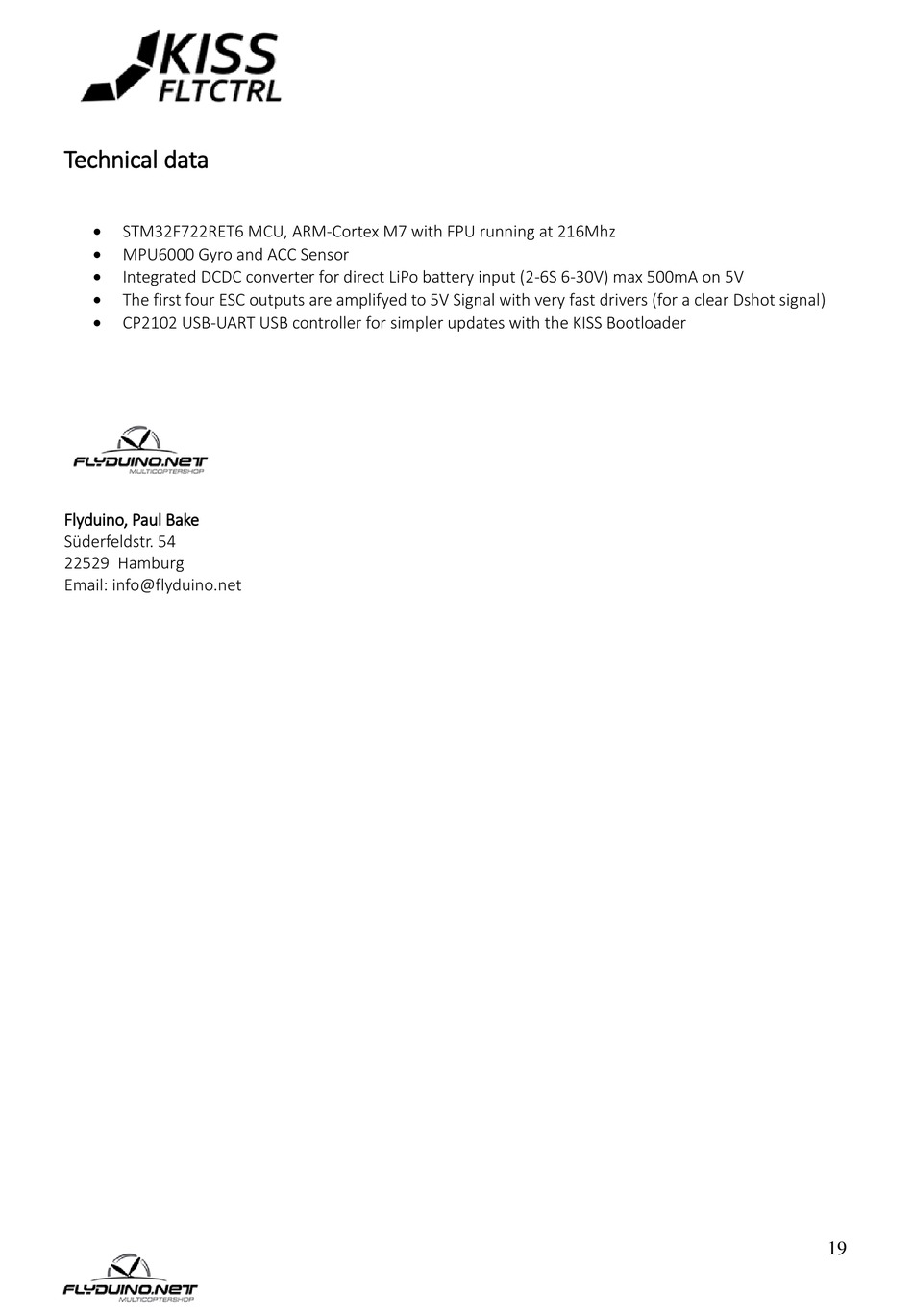

Technical data


STM32F722RET6 MCU, ARM-Cortex M7 with FPU running at 216Mhz

MPU6000 Gyro and ACC Sensor

Integrated DCDC converter for direct LiPo battery input (2-6S 6-30V) max 500mA on 5V

The first four ESC outputs are amplifyed to 5V Signal with very fast drivers (for a clear Dshot signal)

CP2102 USB-UART USB controller for simpler updates with the KISS Bootloader
