Firmware Updates; Air Mode Activation - KISS FLTCTRL Flyduino KISS Flight Controller V2 Manual

Firmware updates

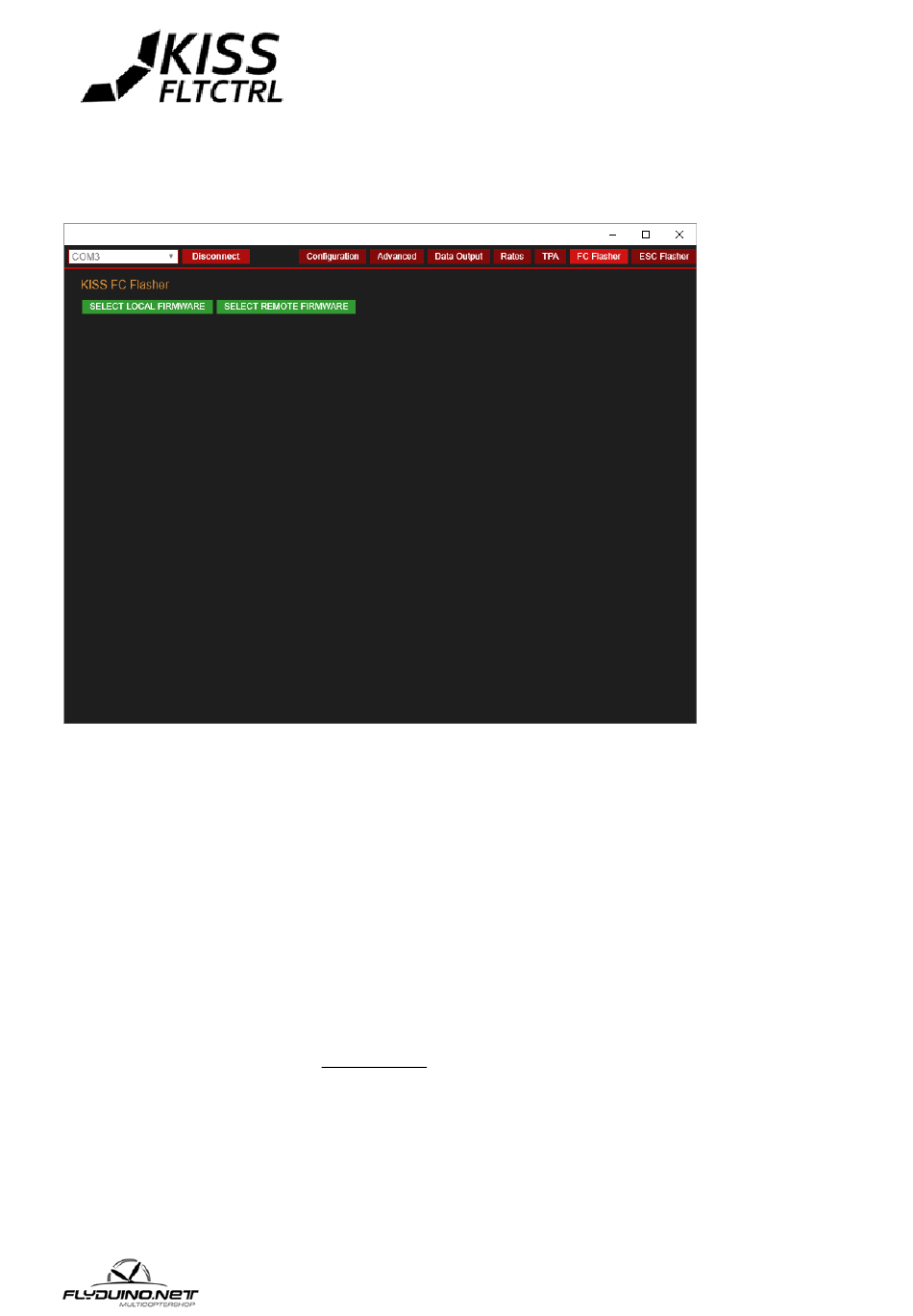

The KISS FC V2 can be updated using the GUI on PC and MAC (stand-alone versions available)
Note: in case the flashing process failed, or there is a damaged FW on the FC, you can always switch to the
FC's Bootloader with pressing the "RST" reset button once.
Important! After flashing the FC you might need to reboot and connect it to the PC with internet connection.
It will read your serial number and activate the FC. If the FC is not activated you will see the blue LED flashing
once every second.

Air Mode activation

If Min Command is set lower than TX Throttle cut, the PIC controller won't be shut off
If Min Command is set to 1000 and the Arm function is assigned to a switch on your radio, the Air Mode is
activated automatically. In Airmode on the Ground you might find the FC trying to regulate "something"
though it is sitting still. However the Airmode only makes sense in flight.
