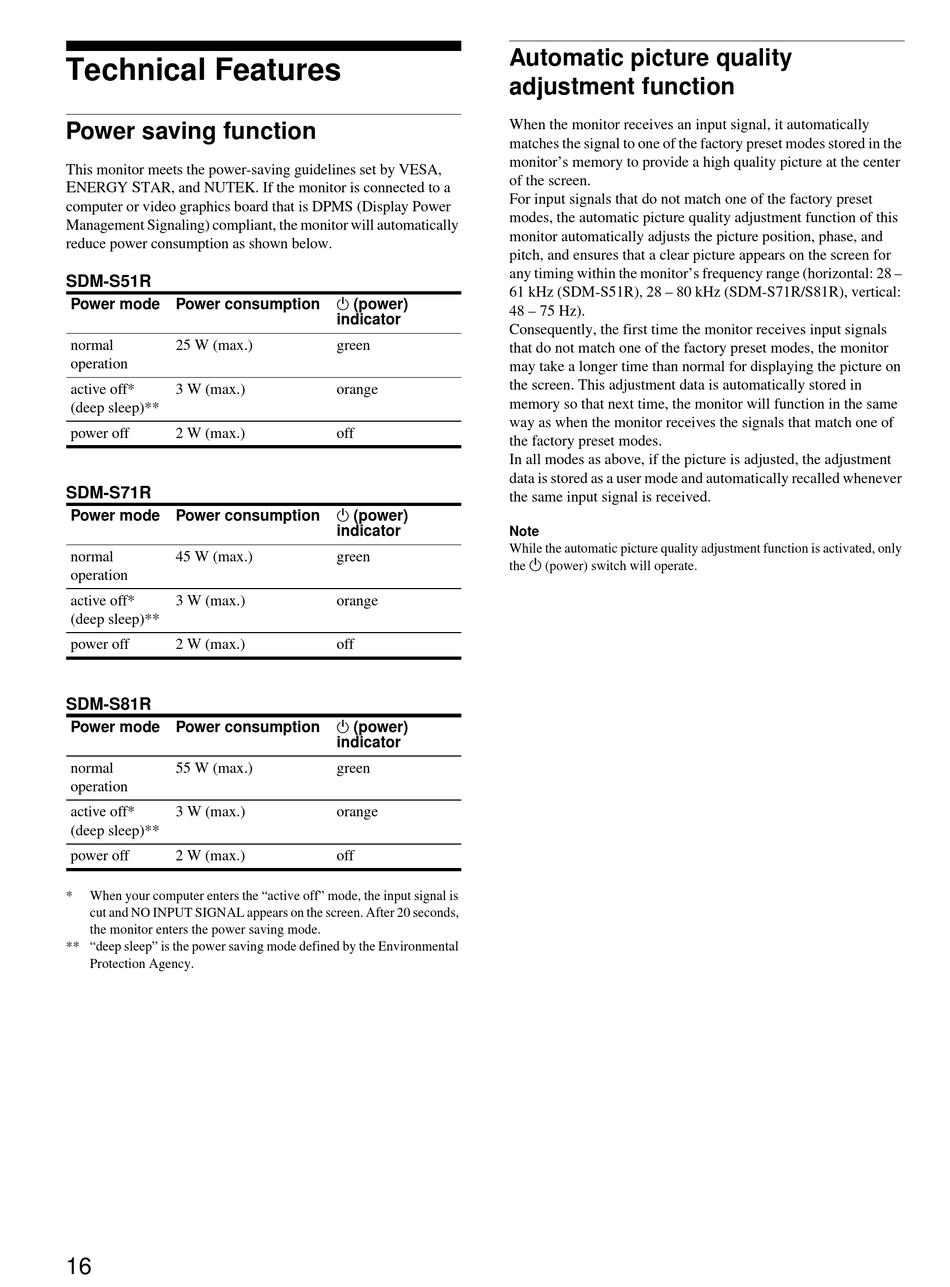

Technical Features

Power saving function

This monitor meets the power-saving guidelines set by VESA,
E S
NERGY TAR, and NUTEK. If the monitor is connected to a
computer or video graphics board that is DPMS (Display Power
Management Signaling) compliant, the monitor will automatically
reduce power consumption as shown below.
SDM-S51R
Power mode Power consumption
normal 25 W (max.)
operation
active off* 3 W (max.)
(deep sleep)**
power off 2 W (max.)
SDM-S71R
Power mode Power consumption
normal 45 W (max.)
operation
active off* 3 W (max.)
(deep sleep)**
power off 2 W (max.)
SDM-S81R
Power mode Power consumption
normal 55 W (max.)
operation
active off* 3 W (max.)
(deep sleep)**
power off 2 W (max.)
* When your computer enters the "active off" mode, the input signal is
cut and NO INPUT SIGNAL appears on the screen. After 20 seconds,
the monitor enters the power saving mode.
** "deep sleep" is the power saving mode defined by the Environmental
Protection Agency.
16
Automatic picture quality
adjustment function
When the monitor receives an input signal, it automatically
matches the signal to one of the factory preset modes stored in the
monitor's memory to provide a high quality picture at the center
of the screen.
For input signals that do not match one of the factory preset
modes, the automatic picture quality adjustment function of this
monitor automatically adjusts the picture position, phase, and
pitch, and ensures that a clear picture appears on the screen for
any timing within the monitor's frequency range (horizontal: 28 –
61 kHz (SDM-S51R), 28 – 80 kHz (SDM-S71R/S81R), vertical:
(power)
1
48 – 75 Hz).
indicator
Consequently, the first time the monitor receives input signals
green
that do not match one of the factory preset modes, the monitor
may take a longer time than normal for displaying the picture on
the screen. This adjustment data is automatically stored in
orange
memory so that next time, the monitor will function in the same
way as when the monitor receives the signals that match one of
off
the factory preset modes.
In all modes as above, if the picture is adjusted, the adjustment
data is stored as a user mode and automatically recalled whenever
the same input signal is received.
(power)
1
indicator
Note
While the automatic picture quality adjustment function is activated, only
green
the 1 (power) switch will operate.
orange
off
(power)
1
indicator
green
orange
off
