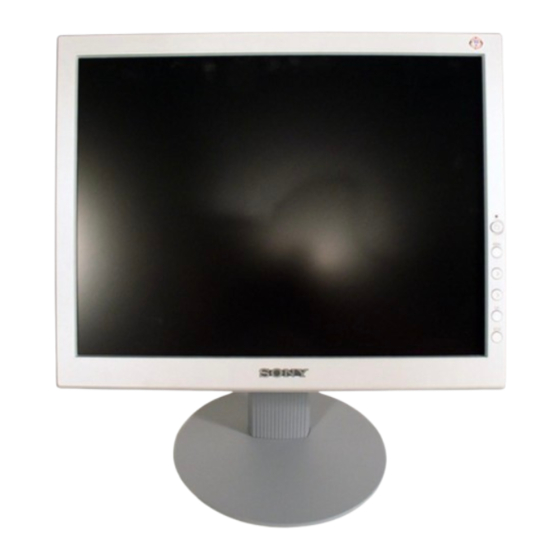

Sony S9 Manual

Tft lcd color computer display
Hide thumbs
Table of Contents

Advertisement

Quick Links

TFT LCD Color
Computer Display
SDM-S53
SDM-S73
SDM-S93
© 2003 Sony Corporation

Advertisement

Table of Contents
loading

Related Manuals for Sony S9

Summary of Contents for Sony S9

  • Page 1 TFT LCD Color Computer Display SDM-S53 SDM-S73 SDM-S93 © 2003 Sony Corporation...
  • Page 2 If you have any questions about this product, you may call: Sony Customer Information Center 1-800-222-SONY (7669) or write to: Sony Customer Information Center 1 Sony Drive, Mail Drop #T1-11, Park Ridge, NJ 07656 Declaration of Conformity Trade Name: SONY Model No.: SDM-S53/S73/S93 Responsible Party: Sony Electronics Inc.

  • Page 3: Table Of Contents

    Precautions..........4 Identifying parts and controls .

  • Page 4: Precautions

    Precautions Warning on power connections • Use the supplied power cord. If you use a different power cord, be sure that it is compatible with your local power supply. For the customers in the U.S.A. If you do not use the appropriate cord, this monitor will not conform to mandatory FCC standards.

  • Page 5: Identifying Parts And Controls

    Identifying parts and controls See the pages in parentheses for further details. Front of the LCD display MENU Side view of the LCD display MAIN POWER 1 1 (Power) switch and 1 (power) indicator (pages 8, 15, 20) This switch turns the monitor on when the 1 (power) indicator lights up in red.

  • Page 6: Setup

    SDM-S53/S73 The illustration of the back of the monitor show here is the SDM-S53. SDM-S93 8 AC IN connector (page 7) This connector connects the power cord (supplied). 9 HD15 (RGB) input connector This connector inputs analog RGB video signals (0.700 Vp-p, positive) and sync signals.

  • Page 7: Setup 2: Connect The Power Cord

    x Connecting to an IBM PC/AT or compatible computerp to the computer’s HD15 output connector (analog RGB) HD15-HD15 video signal cable (analog RGB) IBM PC/AT or (supplied) compatible computer x Connecting to a Macintosh computer to the HD 15 input connector (analog RGB) to the computer’s HD15 output connector...

  • Page 8: Setup 3: Secure The Cords And Close The

    Setup 3: Secure the cords and close the back cover Slide up the back cover. Remove the stand cover. Secure the power cord and video signal cable using the cable holder on the cabinet (SDM-S53/S73). Secure the video signal cable using the cable holder on the cabinet (SDM-S93).

  • Page 9: Setup 5: Adjusting The Tilt

    Turn on the computer. The installation of your monitor is complete. If necessary, use the monitor’s controls to adjust the picture (page 10). If no picture appears on your screen • Check that the power cord and the video signal cable are properly connected.

  • Page 10: Customizing Your Monitor

    Customizing Your Monitor Before making adjustments Connect the monitor and the computer, and turn them on. For the best results, wait for at least 30 minutes before making adjustments. You can make numerous adjustments to your monitor using the on-screen menu. Navigating the menu Press the MENU button to display the main menu on your screen.

  • Page 11: Adjusting The Backlight (Backlight)

    x Using the MENU, M/m, and OK buttons Display the main menu. Press the MENU button to display the main menu on your screen. MENU Select the menu you want to adjust. Press the M/m buttons to display the desired menu. Press the OK button to select the menu item.

  • Page 12: Adjusting The Picture's Sharpness And Centering (Screen)

    Adjusting the picture’s sharpness and centering (SCREEN) x Automatic picture quality adjustment function When the monitor receives an input signal, it automatically adjusts the picture’s position and sharpness (phase/pitch), and ensures that a clear picture appears on the screen (page 15). Note While the automatic picture quality adjustment function is activated, only the 1 (power) switch will operate.

  • Page 13: Adjusting The Color Temperature (Color)

    x Adjust the picture’s position manually (H CENTER/V CENTER) If the picture is not in the center of the screen, adjust the picture’s centering as follows. Set the resolution to 1024 768 (SDM-S53) 1280 1024 (SDM-S73/S93) on the computer. Load the CD-ROM. Start the CD-ROM, select the area and model, and display the test pattern.

  • Page 14: Changing The Gamma Setting (Gamma)

    Changing the gamma setting (GAMMA) You can associate the picture’s color shade on the screen with the picture’s original color shade. Press the MENU button. The main menu appears on the screen. Press the M/m buttons to select press the OK button. The GAMMA menu appears on the screen.

  • Page 15: Technical Features

    Technical Features Power saving function This monitor meets the power-saving guidelines set by VESA, NERGY TAR, and NUTEK. If the monitor is connected to a computer or video graphics board that is DPMS (Display Power Management Signaling) compliant, the monitor will automatically reduce power consumption as shown below.

  • Page 16: Troubleshooting

    Horizontal frequency: 28–61 kHz (SDM-S53) 28–80 kHz (SDM-S73/S93) Vertical frequency: 48–75 Hz Consequently, the first time the monitor receives input signals that do not match one of the factory preset modes, the monitor may take a longer time than normal to display the picture on the screen.
  • Page 17 If “CABLE DISCONNECTED” appears on the screen This indicates that the video signal cable has been disconnected. I NFORMA T I ON CAB L E D I SCONNECT ED GO TO POWER SAVE “GO TO POWER SAVE” The monitor will enter the power saving mode after about 5 seconds from the time the message is displayed.

  • Page 18: Trouble Symptoms And Remedies

    • If you replaced an old monitor with this monitor, reconnect the old monitor and do the following. Select “SONY” from the “Manufacturers” list and select “SDM-S53,” “SDM- S73” or “SDM-S93” from the “Models” list in the Windows device selection screen. If the model name of this monitor does not appear in the “Models”...
  • Page 19 Symptom Check these items Picture is fuzzy • Adjust the brightness and contrast (page 11). • Adjust the pitch and phase (page 12). x Problems caused by a computer or other equipment connected, and not • Set the resolution to 1024 Picture is ghosting •...

  • Page 20: Self-Diagnosis Function

    Count the number of seconds between orange flashes of the 1 (power) indicator and inform your authorized Sony dealer of the monitor’s condition. Be sure to note the model name and serial number of your monitor. Also note the make and model of your computer and graphics board.

  • Page 21: Specifications

    Specifications SDM-S53 LCD panel Panel type: a-Si TFT Active Matrix Picture size: 15.0 inch Input signal format RGB operating frequency* Horizontal: 28 – 61 kHz Vertical: 48 – 75 Hz Resolution Horizontal: Max.1024 dots Vertical: Max.768 lines Input signal levels RGB video signal 0.7 Vp-p, 75 , positive SYNC signal...
  • Page 22 こ の 装 置 は 、 情 報 処 理 装 置 等 電 波 障 害 自 主 規 制 協 議 会 V C C I （ ） の基準に基づくクラス 情報技術装置です。 この装 置は、 家庭環境で使用することを目的としていますが、 この 装置がラジオやテレビジョン受信機に近接して使用される と、 受信障害を引き起こすことがあります。 取扱説明書に従って正しい取り扱いをしてください。 当社は国際エネルギースター...
  • Page 23 If you have any questions about this product, you may call: Sony Customer Information Center 1-800-222-SONY (7669) or write to: Sony Customer Information Center 1 Sony Drive, Mail Drop #T1-11, Park Ridge, NJ 07656 Declaration of Conformity Trade Name: SONY Model No.: SDM-S53/S73/S93 Responsible Party: Sony Electronics Inc.

  • Page 24: Environmental Requirements

    TCO’99 Eco-document x Congratulations! You have just purchased a TCO’99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
