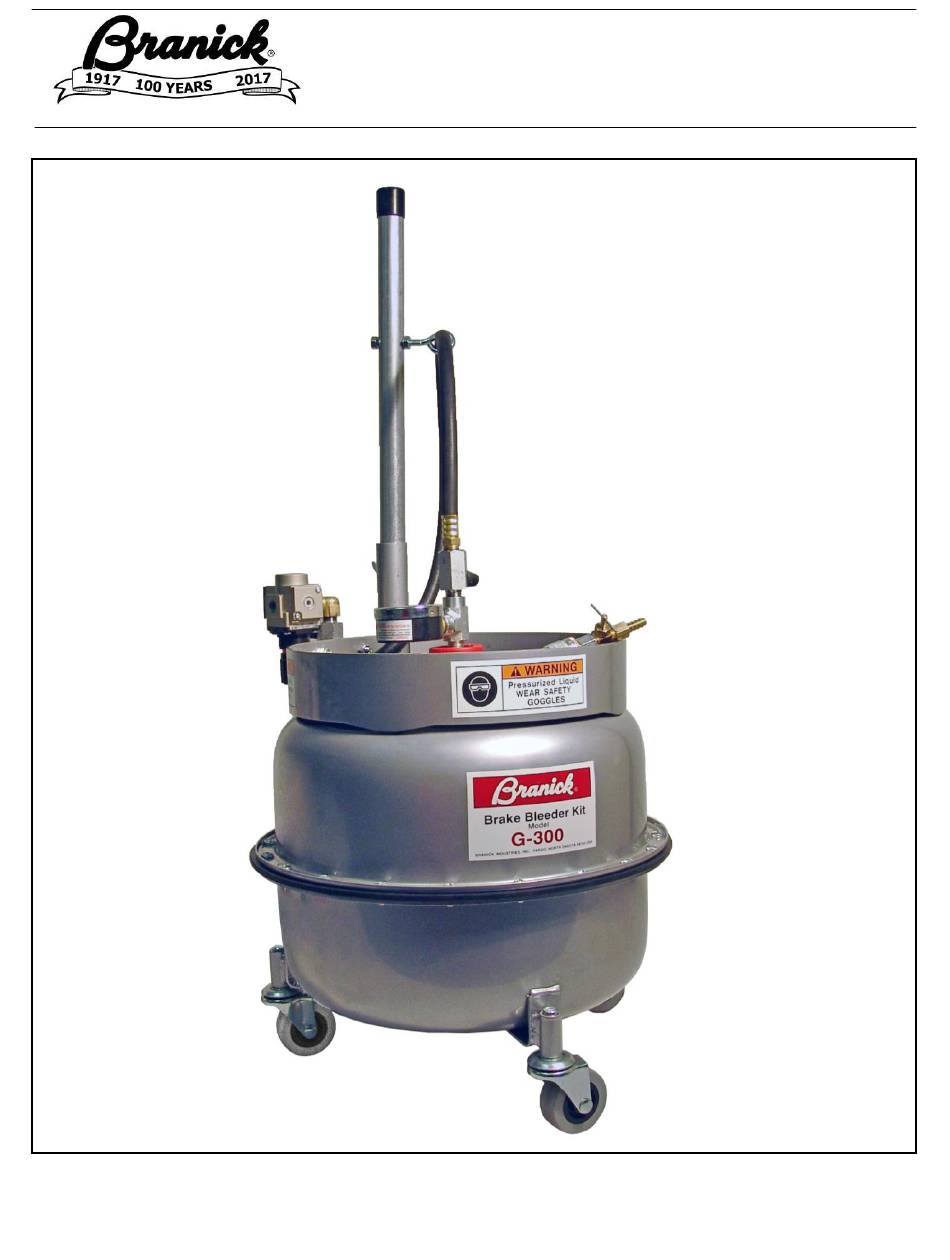

- Page 1 Installation, Operation MODEL G300 & Repair Parts BRAKE BLEEDER Information Branick Industries, Inc. • 4245 Main Avenue • Fargo, North Dakota 58103 P/N: 81-0035H REV050918...
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 3: Table Of Contents
TABLE OF CONTENTS _______________________________________________________ SAFETY INSTRUCTIONS DEFINITIONS SPECIFICATIONS INTENDED USE INSTALLATION INSTRUCTIONS COMPONENT IDENTIFICATION OPERATING INSTRUCTIONS MAINTENANCE BRAKE BLEEDER REPAIR PARTS ADAPTER REPAIR PARTS ADAPTER INSTRUCTIONS WARRANTY SAFETY INSTRUCTIONS _____________________________________________________ ▪ NEVER allow unauthorized personnel to operate this product. ▪ NEVER use this product for anything other than its intended use. -
Page 4: Specifications
Weight: 26 lbs (11.8 kgs) INTENDED USE _____________________________________________________________ The G300 Brake Bleeder is a pneumatic diaphragm device designed to replace old brake fluid with new while purging air bubbles from automotive hydraulic brake systems. INSTALLATION INSTRUCTIONS _______________________________________________ 1. Unpack and remove unit from shipping carton. -
Page 5: Component Identification
COMPONENT IDENTIFICATION ________________________________________________ ITEM DESCRIPTION ___________________________________________________________________________________________ Handle Air Purge Valve Assembly Bleeder Hose Bleeder Valve Pressure Gauge Air Inlet Valve Air Inlet Filler Port Adapter Filler Port Safety Relief Valve Reservoir Pressure Regulator Quick Coupler Air Inlet Line ___________________________________________________________________________________________... -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS ________________________________________________ Filling Fluid Reservoir 1. If connected, disconnect the air line from the air inlet. Open the air inlet valve to allow remaining air to escape (Fig. 1). 2. Remove the bleeder hose from the top of reservoir by unscrewing (counterclockwise) the filler port adapter under the red plastic cap and moving the hose away from the filler port (Fig. -
Page 7: Maintenance
Brake Bleeding Procedure 1. Refer to vehicle service manual to determine appropriate pressure and adjust accordingly by adding or removing pressure. 2. If a new master cylinder is being installed, bench bleed it before installation. 3. Fill the vehicle master cylinder to its maximum level or approximately ½” below master cylinder reservoir rim. -
Page 8: Brake Bleeder Repair Parts
REPAIR PARTS _____________________________________________________________ ITEM PART NO DESCRIPTION ITEM PART NO DESCRIPTION 03-0626 Reservoir Top 106-022 Swivel Caster 861-010 Reservoir Bottom 901-063 Air Purge Valve Assembly 041-076 Bleeder Diaphragm 885-098 Syringe 028-392 #12-24 X 1/2 Machine Screw 646-230 Bleeder Tube - 1/4 Dia. 055-174 #12-24 Square Nut 646-229... -
Page 9: Adapter Repair Parts
BRAKE BLEEDER ADAPTER REPAIR PARTS_____________________ 45G9 901-058 47G 901-059 29G 901-053 26G 901-052 36G (lg) 901-066 41G9 901-056 35G 901-054 36G (sm) 901-065 #20 901-051 42G 901-057 39GC 01-0071 22A 901-062 ITEM PART NO DESCRIPTION ITEM PART NO DESCRIPTION 096-418 1/4-28 Quick Coupler Nipple 096-422 1/8 NPT Quick Coupler Nipple... -
Page 10: Adapter Instructions
BRAKE BLEEDER ADAPTER INSTRUCTIONS_____________________ CAUTION WHEN USING ADAPTERS, CHECK TO ENSURE NO WIRING, HOSES, OR OTHER COMPONENTS ARE BETWEEN CHAIN AND MASTER CYLINDER BODY. 36G / 39GC NOTE: 39GC can be used singly or paired as needed to fit application. Pairing requires #20 Dual Bleeding Attachment (p/n 901-051). - Page 11 NOTES_____________________________________________________...
-
Page 12: Warranty
During the warranty period, at the discretion of Branick management, if the product is found to be defective, it will be repaired or replaced without charge. For service, contact Branick (800-437-4394) to obtain an RMA.
