Winmate M900P Quick Start Manual

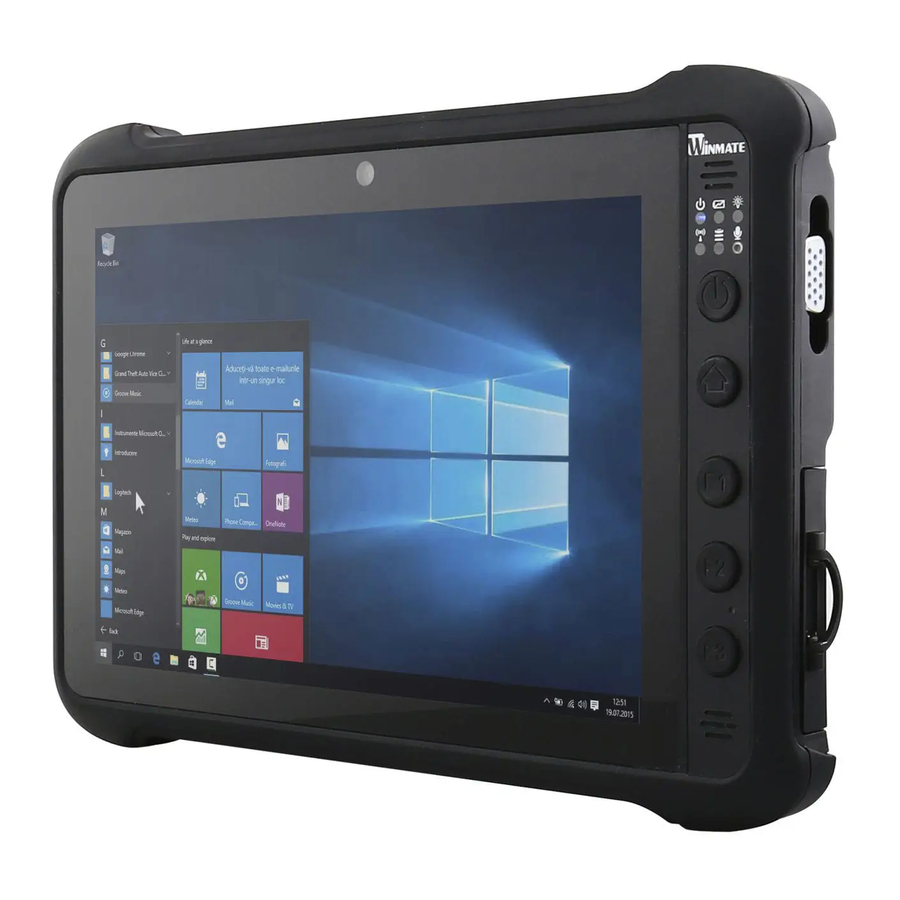

8-inch rugged windows tablet intel apollo lake pentium n4200 windows 10 iot enterprise
Hide thumbs Also See for M900P:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
M900P
8-inch Rugged Windows Tablet
Intel® Apollo Lake Pentium N4200
Windows 10 IoT Enterprise

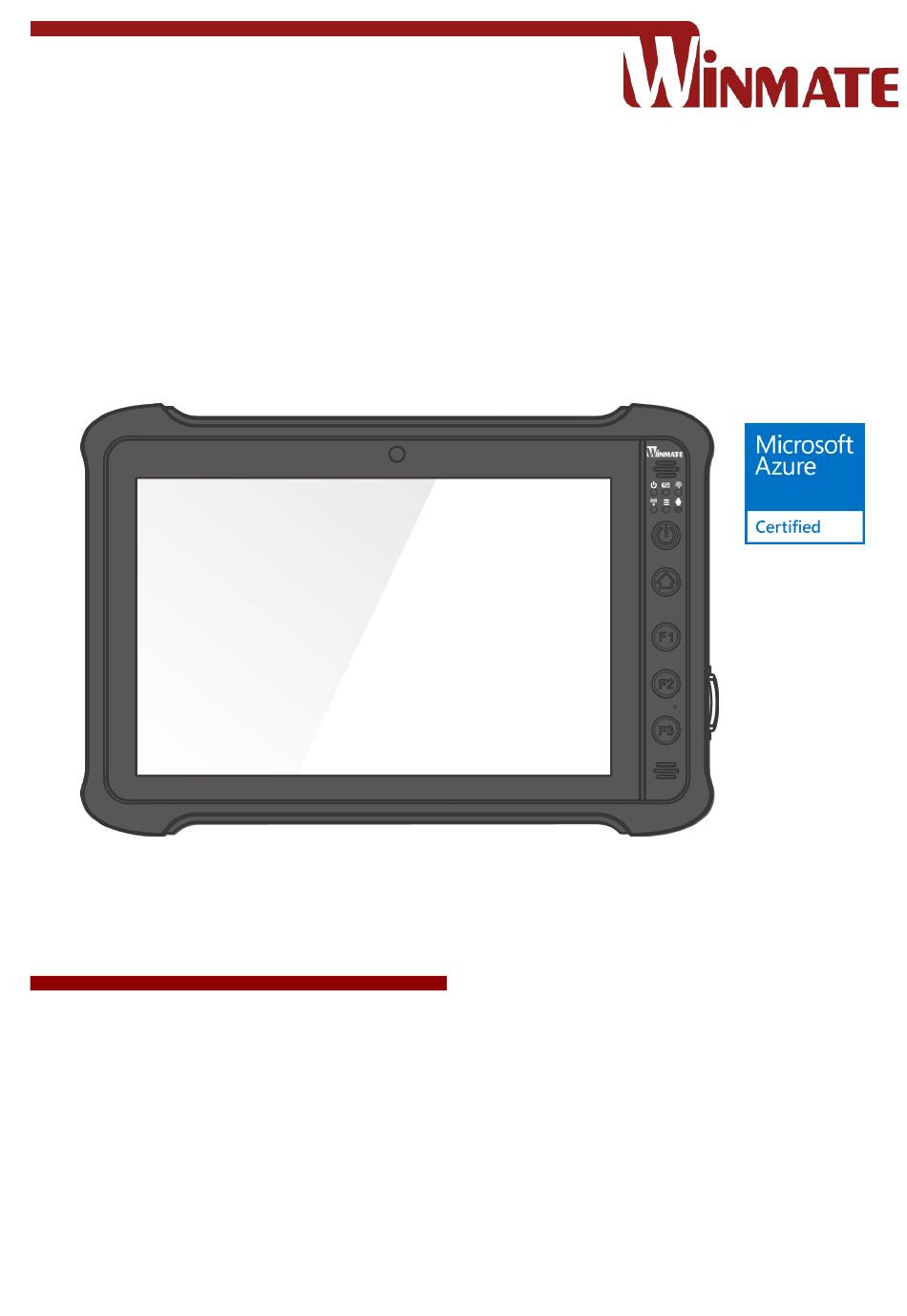

Quick Start Guide
Version 1.0
Document Part Number: 91521110104A
Please read these instructions carefully before using this product, and save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M900P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winmate M900P

Summary of Contents for Winmate M900P

  • Page 1 M900P 8-inch Rugged Windows Tablet Intel® Apollo Lake Pentium N4200 Windows 10 IoT Enterprise Quick Start Guide Version 1.0 Document Part Number: 91521110104A Please read these instructions carefully before using this product, and save this manual for future use.

  • Page 2: Table Of Contents

    8-inch Rugged Windows Tablet M900P Quick Start Guide M101P Table of Contents Preface Chapter 1: Introduction 1.1 Overview 1.2 Unpacking 1.3 Description of Parts 1.4 Indicators 1.5 Hotkey for Specific Functions Chapter 2: Getting Started 2.1 First-Time Operation 2.2 Installing SIM Card (For 4G/LTE Equipped Devices) 2.3 Installing Battery...

  • Page 3: Preface

    Preface Preface Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. Note: A note is used to emphasize helpful information Important: An important note indicates information that is important for you to know.
  • Page 4 8-inch Rugged Windows Tablet M900P Quick Start Guide M101P standards. Product also complies with the Council directions. Safety Information Precaution on Battery Pack Do Not Expose the Battery Pack to Excessive Heat, Précaution avec le bloc-pile or Extreme Heat (Near Fire, in Direct Sunlight for...
  • Page 5 Preface General Product Safety  Use only with its transport carriage, stand, tripod, Sécurité générale des console or table specified by the manufacturer or sold with the product. When using a carriage, produits move the carriage assembly with the product carefully to avoid damage from falling over.
  • Page 6 8-inch Rugged Windows Tablet M900P Quick Start Guide M101P Handling and Maintenance Gently wipe the display with a soft, lint-free cloth. Do not use alcohol or detergent on the General Guideline product. [FR] Essuyer délicatement l'écran avec un Guide Général chiffon doux non pelucheux.

  • Page 7: Chapter 1: Introduction

    Thank you for purchasing 8-inch Rugged Windows Tablet Computer M900P. The M900P is a compact rugged tablet PC with robust set of features designed to withstand industrial use while providing high tech solutions that increase productivity, improve safety, and reduce operational costs.

  • Page 8: Description Of Parts

    8-inch Rugged Windows Tablet M900P Quick Start Guide M101P 1.3 Description of Parts Item Description Item Description D-Sub To connect a Vehicle Camera 2 MP Webcam. Connector Gateway. 8” Touch Display and act as one of the Mic In/Line Out...

  • Page 9: Indicators

    Quick Start Guide 1.4 Indicators Indicator Icon Description Power Indicator Blue– Tablet is on. No light– Tablet is off. Battery Status Orange–AC adapter is plugged in and charging. Green–AC adapter is plugged in and battery is full charged. Solid Red - Low battery (<10%). Blinking Red –...

  • Page 10: Chapter 2: Getting Started

    8-inch Rugged Windows Tablet M900P Quick Start Guide M101P Chapter 2: Getting Started 2.1 First-Time Operation To get started: 1. Install SIM card. 2. Install storage card. 3. Install the battery. 4. Charge your tablet. 5. Start the tablet. 2.2 Installing SIM Card (For 4G/LTE Equipped Devices) The Tablet Computer supports 4G/LTE data connection and fits a Micro-SIM card.

  • Page 11: Installing Battery

    Quick Start Guide 2.3 Installing Battery To install the battery pack: 1. Disconnect any cords connected to the tablet computer. 2. Turn the tablet over, back facing up. 3. Locate the Battery Lock Latch and push it to the “Unlocked” position. 4.

  • Page 12: Starting The Tablet

    6 seconds or longer. 2.6 Replacing the Battery The M900P Tablet supports hot-swap, meaning the tablet doesn’t need to be powered off to replace the main battery. To support hotswap, there is a backup battery inside the tablet that is charged together with the main battery.

  • Page 13: Chapter 3: Operating The Device

    Note: Please download the SDK from Winmate Download Center. >> M900P >> Development Kit or check the Driver CD which is shipped with the tablet. Please notice that HF RFID reader, Barcode reader, MSR & Contact EMV reader are optional module, please make sure user have ordered the module before using the SDK.

  • Page 14: Using The Camera

    8-inch Rugged Windows Tablet M900P Quick Start Guide M101P 3.2 Using the Camera To take photos or videos: 1. Open the Hottab application. The on-screen Hottab Camera Indicator lights orange. 2. Point the camera at an object. 3. Touch the on-screen shutter button to take a photo or video record button to record a video.

  • Page 15: Scanning Barcodes

    Quick Start Guide b. Press (Menu) button on the front to open HotTab, or launch HotTab Utility application. Choose “Device ON/OFF, and then click “Touch Set” icon.   3.5 Scanning Barcodes Depending upon configuration, barcode scanning can be performed using the built-in1D/2D barcode scanner (Note: barcode scanner is an optional feature).

  • Page 16: Reading Msr/ Emv Cards

    8-inch Rugged Windows Tablet M900P Quick Start Guide M101P 3.7 Reading MSR/ EMV Cards The MSR/ EMV Card Reader is an optional feature of M900P tablet and is designed to allow magnetic stripe (MSR) card transactions and ICC (Chip) card transactions from your tablet computer.

  • Page 17: Basic Troubleshooting

    Quick Start Guide 3.8 Basic Troubleshooting Problem Solution  The removable battery is not Make sure the AC adapter is properly connected, and that charging. the removable battery is properly inserted.  Nothing appears on the screen. The tablet computer may be in sleep mode. Press the power button to wake up the display.
  • Page 18 8-inch Rugged Windows Tablet M900P Quick Start Guide M101P Problem Solution  Barcode scanner does not emit Make sure the Barcode scanner device is enabled in laser beam and does not seem to Hottab utility.  work. Make sure under Windows, the Barcode Reader is set to COM 15 port, so that Hottab can trigger the Barcode Reader hardware.

  • Page 19: Chapter 4: In-Vehicle Applications

    Quick Start Guide Chapter 4: In-Vehicle Applications 4.1 Installing Vehicle Cradle Use a vehicle cradle to mount a tablet on the vehicle. Follow the instructions below to install M900P rugged tablet on the vehicle cradle. Highlights: •Keeps the tablet securely fastened on a moving vehicle •...

  • Page 20: Installing Vehicle Gateway Vg-100

    8-inch Rugged Windows Tablet M900P Quick Start Guide M101P 4.2 Installing Vehicle Gateway VG-100 The VG-100 is a gateway in a waterproof IP-65 rated enclosure designed to be integrated into vehicles. It provides communications across in-vehicle by the CANbus, RS-485 and GPIO interfaces. It can also control I/O based upon message and signals received from the vehicle network.

  • Page 21: Appendix

    Quick Start Guide Appendix Appendix A: Specifications Model Name M900P Size 8-inch Resolution 1280 x 800 Brightness 510 nits Display Specification Contrast Ratio 800:1 Viewing Angle 85/85/85/85 Touch 10-point projected capacitive multitouch Intel® Pentium N4200 Apollo Lake, 1.10 GHz, up to 2.50 GHz with turbo boost technology...

  • Page 22: Appendix B: Order Information

    M900PT-LA M900P-LA (North America) M900P-LE (Europe) M900P-LEBH M900P-LEHF M900PT-LE Appendix C: Accessories The M900P accessories provide a variety of product support capabilities. Table below lists the accessories available. Accessory Part Number Description Standard Provides power 100-240VAC to Adapter and Power Cord 922D065W19V1 19VDC@3.42A...

  • Page 23: Appendix D: Docking Connector Pin Definition

    Quick Start Guide Appendix D: Docking Connector Pin Definition M900P tablet computer supports one 19-pin docking connector at the bottom side. The pin definition is listed as the following table. 19 Pin Docking Connector Pin No. Description Pin No. Description...
  • Page 24 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © 2018 Winmate Inc. All rights reserved.
