Remove the LCD module

Make sure the following FRUs (CRUs) have been removed.
"Remove the lower case" on page 31
"Remove the battery pack" on page 32
Step 1. Disconnect the LCD cable.

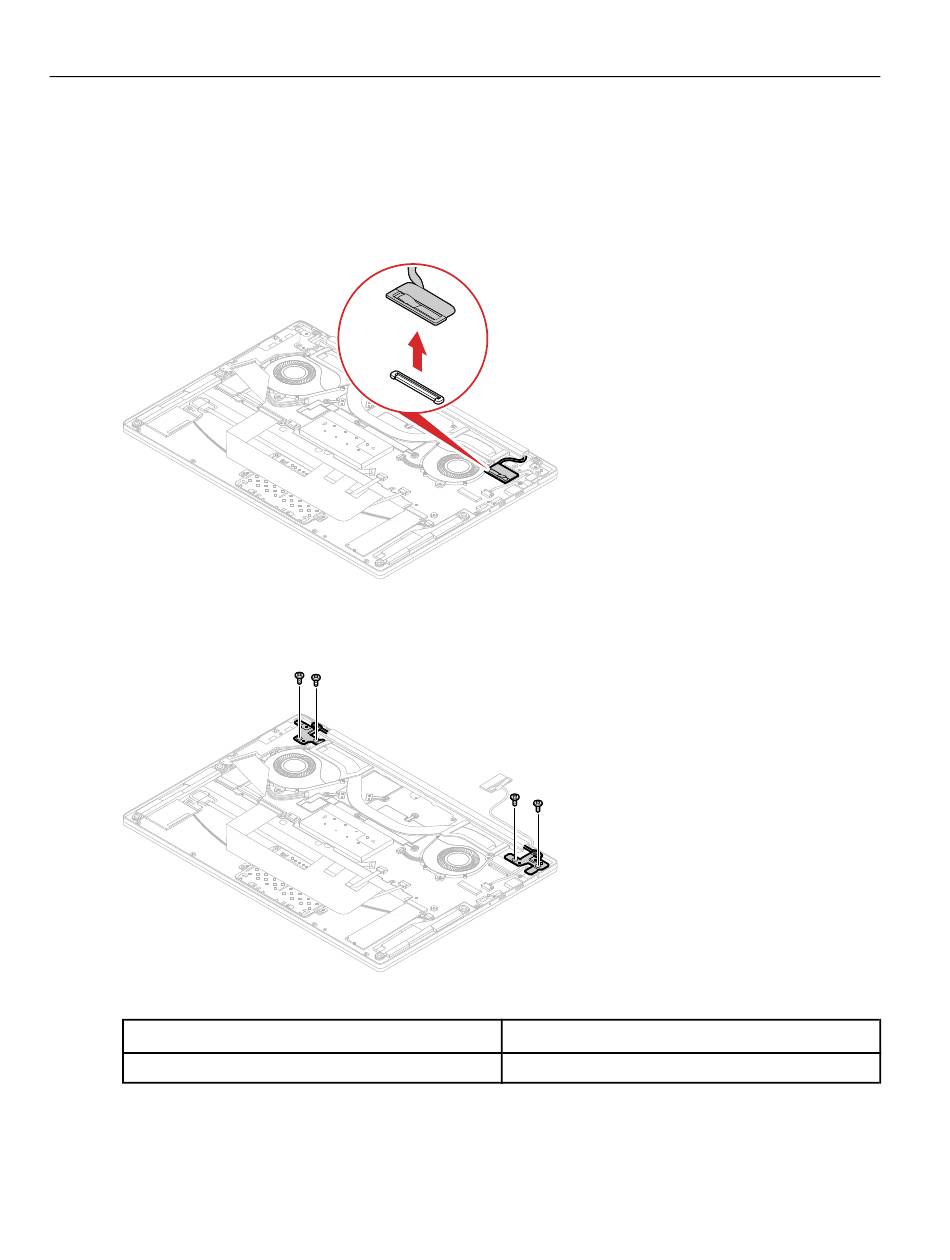

Figure 28. Disconnect the LCD cable
Step 2. Remove the 4 screws that secure the hinges to the upper case.
Figure 29. Remove the 4 screws
Screw specifications
M2.5 x 4.5
Step 3. Open the hinges.
44
Hardware Maintenance Manual
Number of screws
4
