Fermax LYNX SKYLINE Quick Start Manual

COD. 970019I V12_16

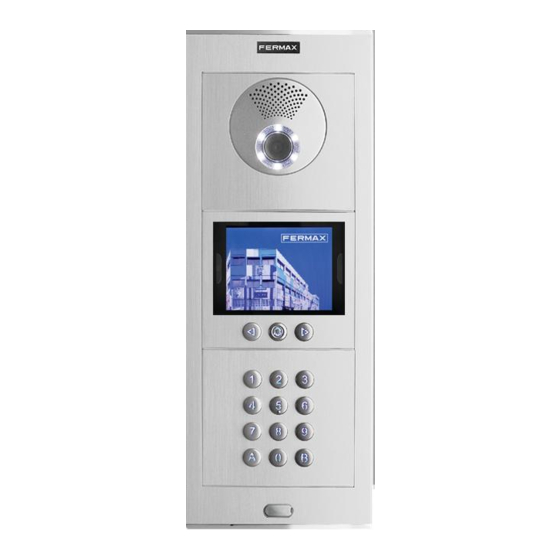

DESCRIPTION OF THE LYNX MODULE
1. Insert the modules in the SKYLINE frame as
seen in the image (the amplifier on top, the
Lynx Display next to the amplifier and then
the remaining modules.
2. Use the included cables to wire the system
(see examples below).
1. TFT screen
1
2. "Left arrow" key
2
3. "Bell" key
3 4. "Right arrow" key
5. CN1 connector (to the amplifier)
4
6. CN2 connector (from the amplifier)
5
7. CN3 connector (to the keypad)
6
7
EXAMPLES OF PRE-WIRING
MIC
AMPLIFICADOR - AMPLIFIER
LYNX AMPLIFICATEUR - VERSTÄRKER
TYPE:
PROG
ADDRESS:
BOTTOM CONNECTORS PANEL
R E +AB- RESET FBOOT
P
M
A DISPLAY READER KEYPAD
T
12 Vdc RL1 RL2
+ - C NO NC C NO NC BS - SP
+ - -
C NO NC C NO NC BS S
FINGERPRINT
TAMPER CN5
CI95294-REV2-21506
VIDEO READER CN3 KEYPAD
CN2
CN7
CN1 CN2
CONNECTOR DESCRIPTION MÓDULO DIRECTORIO LYNX
LYNXDISPLAY MODULE
UP
CN1 AMP-VIDEO MODULE AFFICHEUR LYNX
LYNXNAMENSVERZEICHNISMODUL
CN2 AMP-KEYPAD
CN3 KEYPAD
ADJ.
SENSOR
CÓDIGO
CN3
VERSIÓN
CN1
INPUT
MÓDULO TECLADO
KEYPAD MODULE
MODULE CLAVIER
TASTATURMODUL
UP
CÓDIGO
OUTPUT
CN2
SW2 1 2
1 2 3 OFF OFF Data /C lock
1 2
MÓDULO PROXIMIDAD OFF ON STAND ALONE
PROXIMITY MODULE ON OFF WIEGAND-26
REF: 7440 ON ON PROX.MDS-AC+
4 5 6
SW2 SW1
12V
7 8 9 DT CK R G B
NO C NC + - Sa Sb S - B A
A 0 B
CN2
CN3
KEYBOARD
+
-
PROXIMITY ACCESS CONTROL
WITH PROXIMITY
READER
PROGRAMMING ACCESS
1. From the information screen press "A" on the keypad.
The screen will display an invitation to enter the
ACCESS CODE.
2. Enter AB21AB.
If the system is configured to use 4 or 5 digit access
codes, the code to enter is AB21 and AB21A
respectively.
After performing this properly, the symbol of an open
chain appears.
3.Enter the INSTALLER CODE.
This code is 19025 by default.
If it has been changed and you do not remember the new
code, you can restore the default value via the procedure
indicated in the Programming Manual for LYNX PANELS
Cod. 970020.
4. After this step, the CONFIGURATION MENU appears,
from which you can choose the desired option by
pressing the corresponding number via the keypad.
The general procedure consists in using the numeric keypad to select the desired option.
Following the indications, use the "right and left" arrows keys to move through the successive
fields, press "B" to confirm and return to the previous step, or press "A" to delete.

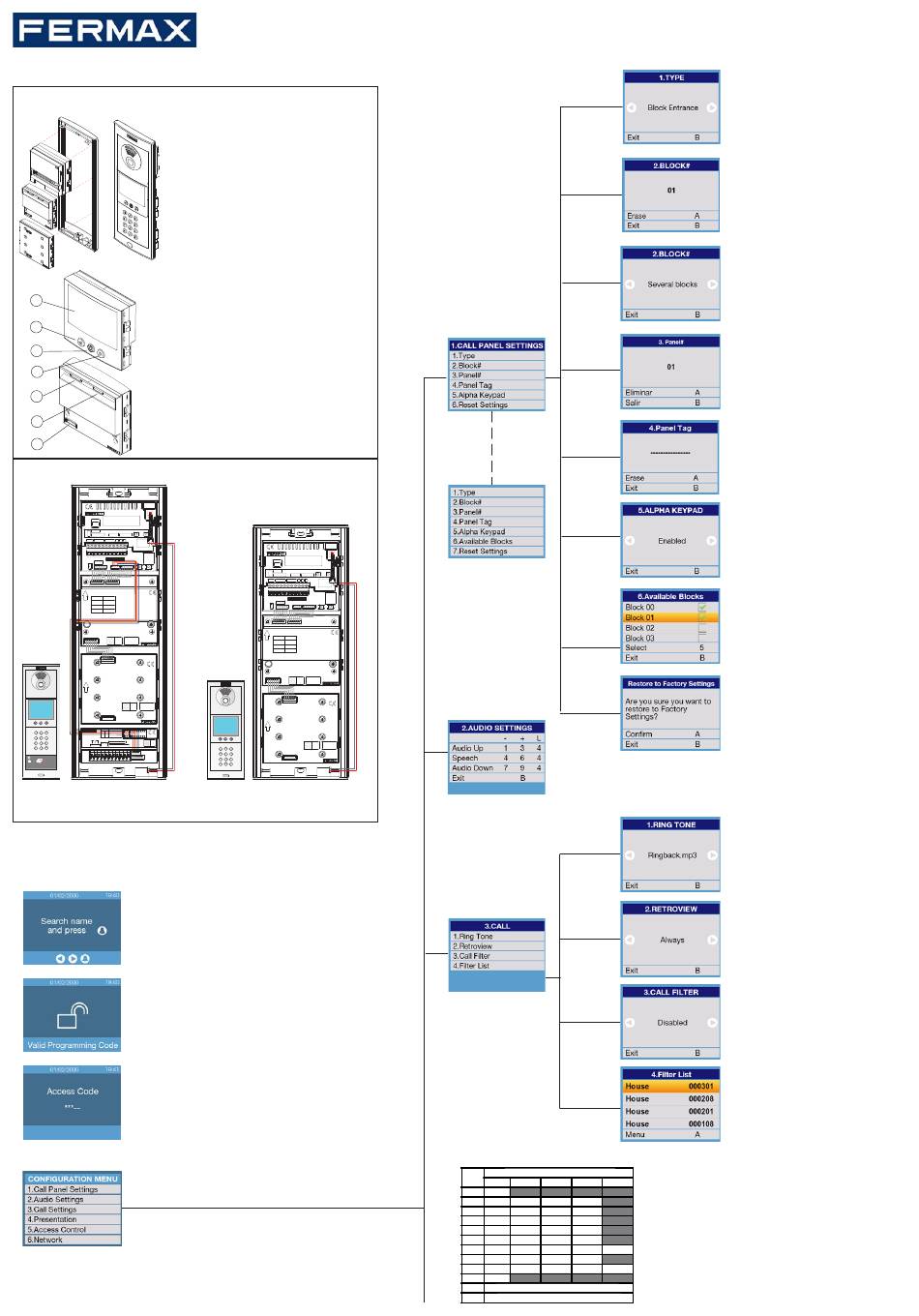

QUICK START MANUAL FOR THE LYNX SKYLINE MODULE
MIC
AMPLIFICADOR - AMPLIFIER
LYNX
AMPLIFICATEUR - VERSTÄRKER
TYPE:
PROG
ADDRESS:
BOTTOM CONNECTORS PANEL
RESET FBOOT
R E +AB-
P
M DISPLAY READER KEYPAD
T A
12 Vdc RL1 RL2
+ - C NO NC C NO NC BS - SP
- -
+ C NO NC C NO NC BS S
FINGERPRINT
TAMPER
CN5 CI95294-REV2-21506
VIDEO READER KEYPAD
CN3 CN2
CN7
CN1 CN2
CONNECTOR DESCRIPTION MÓDULO DIRECTORIO LYNX
LYNXDISPLAY MODULE
UP
CN1 AMP-VIDEO MODULE AFFICHEUR LYNX
LYNXNAMENSVERZEICHNISMODUL
CN2 AMP-KEYPAD
CN3 KEYPAD
ADJ.
SENSOR
CÓDIGO
CN3
VERSIÓN
CN1
INPUT
MÓDULO TECLADO
KEYPAD MODULE
MODULE CLAVIER
TASTATURMODUL
UP
CÓDIGO
1 2 3
OUTPUT
4 5 6
CN2
7 8 9
A 0 B
WITHOUT PROXIMITY
READER
(*) Only if it has been
established
BLOCK# = Several blocks
Set the audio level
according to the
location´s acoustic
conditions.
Use the number
indicated to raise/
lower the volume and
"B" to confirm.
L indicates the current
level (from 1 to 7).
PULSACION PRESS
K E Y
TECLA
1st 2nd 3rd 4th 5th
1ª 2ª 3ª 4ª 5ª
1 1
2 A B C 2
3 D E F 3
4 G H I 4
5 J K L 5
6 M N O 6
7 P Q R S 7
8 T U V 8
9 W X Y Z 9
0 0
A FUNCIÓN SEGUN PARAMETRO A PROGRAMAR
FUNCTION RELATIVE TO THE PARAMETER TO PROGRAM
B FUNCIÓN SEGUN PARÁMETRO A PROGRAMAR FUNCTION RELATIVE TO THE PARAMETER TO PROGRAM
Indicate if the panel will be installed as a
general entrance or as an entrance to a
specific block.
Options
-Block entrance
-General entrance
(*) Only if TYPE=Block Entrance
Indicate the block number, according to the
installation´s overall characteristics
Options
-Between 00 and 99
(*) Only if TYPE=General Entrance
Indicate if this is a general entrance to the
development or a specific section
options
-The complete development
- Several Blocks
Indicate the panel number according to the
installation´s overall characteristics
Options
-Between 00 and 99
Indicate the text that will appear in the
panel display when in standby and user
mode.
Use the numeric keypad to write up to 16
characters.
Indicate if you want to disable the
alphanumeric keypad, if so you can call the
apartments via a search with the "arrow"
keys.
(*) Only if BLOCK# = Some blocks
Select the blocks that may be called from
here, G. E.
Use this option if you want to restore the
panel to its programming factory settings.
The panel will disconnect and reconnect
automatically within 30 to 60 seconds
with the IP 10.200.100.0 (General
Entrance and Panel 0).
Select the type of confirmation ring tone on
the panel.
Options
You can select from 5 different ring tones,
along with 5 other pre-recorded ones.
Indicate if if you want the picture taken by
its camera to appear on the display .
Options
- Always
- Disabled
- Until answered
Indicate if you want only the information
from users on a filtered list of a maximum
of 200 users to appear.
Options
- Enabled
- Disabled
It allows you to add, edit and delete the
users' filter list (if the option has been
enabled).
This table shows the way to select the letter associated to each
of the number keys on the keypad.
You can also enter a space with the "bell" key.
You can go from upper to lower case via the "right arrow" key.
