MDS SKYLINE DIGITISER REF. 2460
97694 I. V11_12
TECHNICAL BOOK

Advertisement

Table of Contents
loading

Related Manuals for Fermax 2460

Summary of Contents for Fermax 2460

  • Page 1 MDS SKYLINE DIGITISER REF. 2460 97694 I. V11_12 TECHNICAL BOOK...
  • Page 2 PAG. %p PAG. 2...

  • Page 3: Table Of Contents

    GENERAL INDEX DESCRIPTION OF THE MDS DIGITISER REF. 7460--------------------------04 PROGRAMMING-------------------------------------------------------------------------10 EXAMPLES OF CHANNELING DIAGRAMS-------------------------------------21 GENERAL ENTRANCE DIAGRAMS -----------------------------------------------27 INTERIOR BLOCKS DIAGRAMS ---------------------------------------------------37 FLOOR DIAGRAMS --------------------------------------------------------------------51 PAG. 3...

  • Page 4: Description Of The Mds Digitiser Ref. 7460

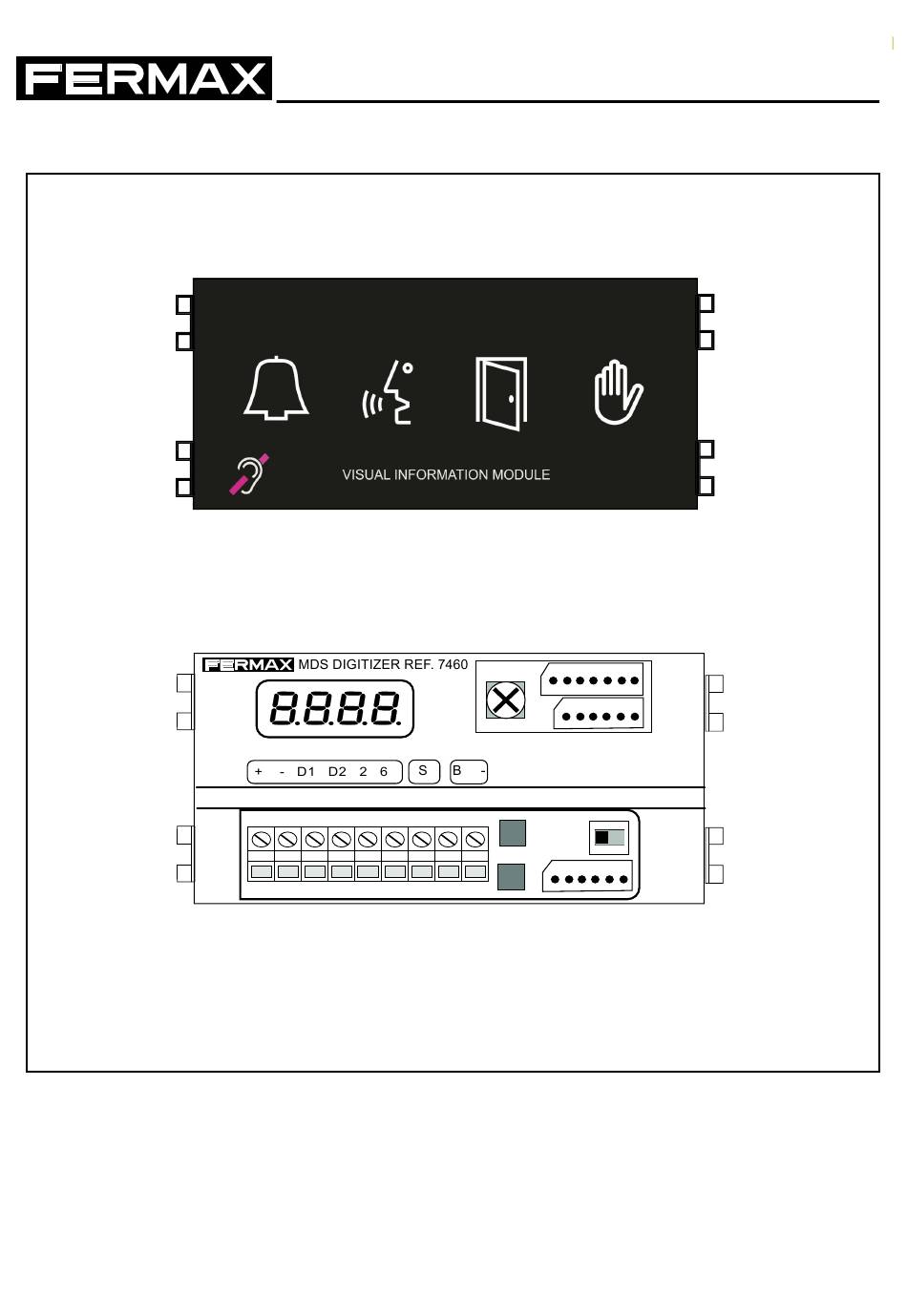

    DESCRIPTION OF THE MDS DIGITISER REF. 7460 INTRODUCTION DESCRIPTION OF THE SKYLINE MODULE REF. 7460 1. Call indicator. 2. "In conversation" indicator. 3. "Open door" indicator 4. "System busy" indicator 5. Programming display. 6. Acoustic volume indicators regulator 7. CN1 Connector. 8.
  • Page 5 DESCRIPTION OF THE MDS DIGITISER REF. 7460 ASSEMBLY OPTIONS BUTTON ONLY PANELS INPUT VDS/BUS2 OUTPUT INPUT VDS/BUS2 OUTPUT KEYPAD ONLY PANEL INPUT VDS/BUS2 OUTPUT PAG. 5...
  • Page 6 DESCRIPTION OF THE MDS DIGITISER REF. 7460 BUTTONS + KEYPAD PANEL (buttons "before" the keypad) INPUT VDS/BUS2 OUTPUT INPUT VDS/BUS2 OUTPUT KEYPAD + BUTTONS PANEL (keypad "before" the buttons) INPUT OUTPUT VDS/BUS2 INPUT VDS/BUS2 OUTPUT INPUT INPUT VDS/BUS2 VDS/BUS2 OUTPUT OUTPUT INPUT INPUT...
  • Page 7 DESCRIPTION OF THE MDS DIGITISER REF. 7460 TECHNICAL FEATURES Observations: PAG. 7...
  • Page 8 DESCRIPTION OF THE MDS DIGITISER REF. 7460 +, - D1, D2 2, 6 B, - For more details, see corresponding installation diagram. TECHNICAL SPECIFICATIONS PAG. 8...
  • Page 9 DESCRIPTION OF THE MDS DIGITISER REF. 7460 START-UP ROUTINE Version of the Digititiser (1.0) This is repeated as long as no module is detected The indicators blink (keypad and/or buttons) connected to the Digitiser RESTORING DEFAULT SETTINGS Before 1 minute PAG.
  • Page 10 DESCRIPTION OF THE MDS DIGITISER REF. 7460 RESTORING NIGHT MODE 0000 0000 3141 OPENING THE DOOR WITH THE PIN XXXX XXXX: Current code PAG. 10...
  • Page 11 DESCRIPTION OF THE MDS DIGITISER REF. 7460 3141 XXXX YYYY XXXX: Current conde YYYY: New code (do not use 3141) XXXX 3141 3141 XXXX: Current code CALLING THE GUARD UNIT - Panels with keypad: - In panels with buttons PAG. 11...

  • Page 12: Programming

    PROGRAMMING ENTRADA GENERAL/BLOQUE INTERIOR: GENERAL ENTRANCE/INTERIOR BLOCK: En el caso en que se instale en un edificio individual (que no sea una urbanización), se debe considerar como If installed in an individual building (not a development) it must be considered as an INTERIOR BLOCK. BLOQUE INTERIOR.
  • Page 13 PROGRAMMING PANEL NUMBER: The possible values to assign are 01 to 05 (if the panel is configured as a GENERAL ENTRANCE, or from 01 to 09 if the panel is assigned as an INTERIOR BLOCK. Use correlative numbers starting with 01. Default value is 01.
  • Page 14 PROGRAMMING MAIN MENU NECESSARY GENERAL DISPLAY OBSERVATIONS MODULES OPTION The reader will automatically exit programming mode after 120 seconds of inactivity. PAG. 14...
  • Page 15 PROGRAMMING Configuration of Parameters OBSERVATIONS DISPLAY INDICATIONS PAG. 15...
  • Page 16 PROGRAMMING Decoder Programming Repeat these steps for all Decoders to be programmed Repeat with all Decoder outputs Audio is established between the panel and the decoder, so you can communicate via the panel and decoder by connecting a telephone jack to this.. DISPLAY INDICATIONS OBSERVATIONS...
  • Page 17 PROGRAMMING If a VDS DECODER configured as a range Useful for cases in which there is no interior panel. DISPLAY INDICATIONS PAG. 17...
  • Page 18 PROGRAMMING Enable and assign the PIN to open the door Do not use 3 1 4 1. Assign a telephone number to a button (Example, 28). Repeat if you want to assign more buttons Inverse programming of buttons Telephone not programmed Telephone number to assign.
  • Page 19 PROGRAMMING Sequential programming of buttons Panel prepared (Example 9). Repeat if you want to assign more buttons Programming of telephones Telephone ready not yet assigend Panel prepared previous number (Example 93). NOTE: if the panel is part of an Repetir si se desea programar mas teléfonos INTERIOR BLOCK, the Block number automatically precedes the telephone numb...
  • Page 20 PAG. 20...

  • Page 21: Examples Of Channeling Diagrams

    EXAMPLES OF CHANNELING DIAGRAMS THREE GENERAL VIDEO ENTRANCES TO 4 MDS INTERIOR BLOCKS--------------22 TWO GENERAL VIDEO ENTRANCES TO 8 SINGLE FAMILY HOMES------------------23 TWO GENERAL VIDEO ENTRANCES TO 2 VDS INTERIOR BLOCKS -----------------24 POWER AND RECOMMENDED SECTIONS POWER SUPPLY-----------------------------------------------------------------------------------------25 SECTION AND DISTANCES FOR MDS WIRING -----------------------------------------------25 SECTION AND DISTANCES FOR VDS WIRING ------------------------------------------------25 PAG.

  • Page 22: Three General Video Entrances To 4 Mds Interior Blocks

    EXAMPLES OF CHANNELING DIAGRAMS THREE GENERAL VIDEO ENTRANCES TO 4 MDS INTERIOR BLOCKS PAG. 22...

  • Page 23: Two General Video Entrances To 8 Single Family Homes

    EXAMPLES OF CHANNELING DIAGRAMS DOS ENTRADAS GENERALES DE VIDEO A 8 VIVIENDAS UNIFAMILIARES TWO GENERAL VIDEO ENTRANCES TO 8 SINGLE-FAMILY HOMES PAG. 23...

  • Page 24: Two General Video Entrances To 2 Vds Interior Blocks

    EXAMPLES OF CHANNELING DIAGRAMS DOS ENTRADAS GENERALES DE VIDEO A 2 BLOQUES INTERIORES VDS TWO GENERAL VIDEO ENTRANCES TO 8 SINGLE-FAMILY HOMES NOTE: The guard unit is always inserted between the EG1 panel and the interior blocks. PAG. 24...

  • Page 25: Power Supply

    POWER SUPPLY AND RECOMMENDED SECTIONS Power supplies MDS GENERAL ENTRANCES (UP TO 5 PANELS) INTERIOR BLOQUES MDS (UP TO 40 HOMES) INTERIOR BLOCKS (UP TO 60 HOMES) Section and distances for MDS wiring DISTANCE Wire section (cables) based on the distance Coaxial video (in metres) SECTION AND DISTANCES FOR VDS WIRING...
  • Page 26 PAG. 26...

  • Page 27: General Entrance Diagrams

    GENERAL ENTRANCE DIAGRAMS GENERAL VIDEO ENTRANCE INSTALLATION WITH VARIOUS ACCESSES - FIRST ACCESS--------------------28 INSTALLATION WITH VARIOUS ACCESSES- INTERMEDIATE ACCESS -------29 INSTALLATION WITH VARIOUS ACCESSES- LAST ACCESS ---------------------30 INSTALLATION WITH A SINGLE ACCESS------------------------------------------------31 GENERAL AUDIO ENTRANCE INSTALLATION WITH VARIOUS ACCESSES- FIRST ACCESS---------------------32 INSTALLATION WITH VARIOUS ACCESSES- INTERMEDIATE ACCESS -------33 INSTALLATION WITH VARIOUS ACCESSES- LAST ACCESS ---------------------34 INSTALLATION WITH A SINGLE ACCESS------------------------------------------------35...

  • Page 28: General Video Entrance

    GENERAL VIDEO ENTRANCE INSTALLATION WITH VARIOUS ACCESSES- FIRST ACCESS REF. 2443 4 + n VIDEO S + - V M + - V M + - V M +18 - CT V M Cp C NO 1 2 3 6 + - D1 D2 2 6 REGISTER CABINET 18 Vdc...

  • Page 29: Installation With Various Accesses- Intermediate Access

    GENERAL VIDEO ENTRANCE INSTALLATION WITH VARIOUS ACCESSES- INTERMEDIATE ACCESS REF. 2443 4 + n VIDEO S + - V M + - V M + - V M +18 - CT V M Cp C NO 1 2 3 6 + - D1 D2 2 6 PAG.

  • Page 30: Installation With Various Accesses- Last Access

    GENERAL VIDEO ENTRANCE INSTALLATION WITH VARIOUS ACCESSES- LAST ACCESS 4 + n VIDEO +18 - CT V M Cp C NO 1 2 3 6 + - D1 D2 2 6 PAG. 30...

  • Page 31: Installation With A Single Access

    GENERAL VIDEO ENTRANCE INSTALLATION WITH A SINGLE ACCESS 4 + n VIDEO +18 - CT V M Cp C NO 1 2 3 6 + - D1 D2 2 6 REGISTER CABINET 18 Vdc 12 Vdc + - + - + - + - 110-240V 110-240V...

  • Page 32: General Audio Entrance

    GENERAL AUDIO ENTRANCE INSTALLATION WITH VARIOUS ACCESSES- FIRST ACCESS 4 + n AUDIO C NO 1 2 3 6 + - D1 D2 2 6 REGISTER CABINET 12 Vdc + - + - 110-240V REF. 4813 PAG. 32...

  • Page 33: Installation With Various Accesses- Intermediate Access

    GENERAL AUDIO ENTRANCE INSTALLATION WITH VARIOUS ACCESSES- INTERMEDIATE ACCESS 4 + n AUDIO C NO 1 2 3 6 + - D1 D2 2 6 PAG. 33...

  • Page 34: Installation With Various Accesses- Last Access

    GENERAL AUDIO ENTRANCE INSTALLATION WITH VARIOUS ACCESSES- LAST ACCESS 4 + n AUDIO C NO 1 2 3 6 + - D1 D2 2 6 PAG. 34...

  • Page 35: Installation With A Single Access

    GENERAL AUDIO ENTRANCE INSTALLATION WITH A SINGLE ACCESS 4 + n AUDIO C NO 1 2 3 6 + - D1 D2 2 6 REGISTER CABINET 12 Vdc + - + - 110-240V REF. 4813 PAG. 35...

  • Page 36: Mds Direct Central Guard Unit

    GENERAL AUDIO ENTRANCE MDS DIRECT CENTRAL GUARD UNIT 18 Vdc + - + - 110-240V REF. 4830 PAG. 36...

  • Page 37: Interior Blocks Diagrams

    INTERIOR BLOCKS DIAGRAMS VIDEO MDS INTERIOR BLOCKS FIRST OR INTERMEDIATE BLOCK ACCESS --------------------------------------------38 FINAL BLOCK ACCESS ------------------------------------------------------------------------39 INTERIOR AUDIO MDS BLOCKS FIRST OR INTERMEDIATE BLOCK ACCESS --------------------------------------------40 FINAL BLOCK ACCESS ------------------------------------------------------------------------41 VIDEO VDS INTERIOR BLOCKS FIRST OR INTERMEDIATE BLOCK ACCESS --------------------------------------------42 FINAL BLOCK ACCESS ------------------------------------------------------------------------43 INTERIOR BLOCK AUDIO VDS FIRST OR INTERMEDIATE BLOCK ACCESS --------------------------------------------44...

  • Page 38: First Or Intermediate Block Access

    VIDEO MDS INTERIOR BLOCKS FIRST OR INTERMEDIATE BLOCK ACCESS 4 + n VIDEO REF. 2443 S + - V M + - V M + - V M +18 - CT V M Cp C NO 1 2 3 6 + - D1 D2 2 6 REGISTER CABINET +18 4 3...

  • Page 39: Final Block Access

    VIDEO MDS INTERIOR BLOCKS FINAL BLOCK ACCESS 4 + n VIDEO REF. 2443 +18 - CT V M Cp C NO 1 2 3 6 S + - V M + - V M + - V M + - D1 D2 2 6 REGISTER CABINET 18 Vdc 12 Vdc...

  • Page 40: First Or Intermediate Block Access

    AUDIO MDS INTERIOR BLOCKS FIRST OR INTERMEDIATE BLOCK ACCESS 4 + n AUDIO C NO 1 2 3 6 + - D1 D2 2 6 REGISTER CABINET 12 Vdc + - + - 110-240V REF. 4813 + - D1 D2 2 6 PAG.

  • Page 41: Final Block Access

    AUDIO MDS INTERIOR BLOCKS FIRST OR INTERMEDIATE BLOCK ACCESS 4 + n AUDIO C NO 1 2 3 6 + - D1 D2 2 6 REGISTER CABINET 12 Vdc + - + - 110-240V REF. 4813 + - D1 D2 2 6 PAG.

  • Page 42: Video Vds Interior Blocks

    VIDEO VDS INTERIOR BLOCKS FIRST OR INTERMEDIATE BLOCK ACCESS VIDEO + - L V M +12 C NO NC BS S CT REGISTER CABINET 18 Vdc + - + - 110-240V REF. 4830 +18 4 3 REF. 2448 REF. 2450 REF.

  • Page 43: Final Block Access

    VIDEO VDS INTERIOR BLOCKS LAST BLOCK ACCESS VIDEO + - L V M +12 C NO NC BS S CT REGISTER CABINET 18 Vdc + - + - 110-240V REF. 4830 REF. 2450 REF. 2409 S + L V M + L V M + L V M + - D1 D2 2 6...

  • Page 44: First Or Intermediate Block Access

    AUDIO VDS INTERIOR BLOCKS FIRST OR INTERMEDIATE BLOCK ACCESS AUDIO + - L +12 C NO NC BS S CT REGISTER CABINET 18 Vdc REF. 2409 + - + - 110-240V REF. 4830 + - D1 D2 2 6 Ct S + L - PAG.

  • Page 45: Final Block Access

    AUDIO VDS INTERIOR BLOCKS LAST BLOCK ACCESS AUDIO + - L +12 C NO NC BS S CT REGISTER CABINET 18 Vdc REF. 2409 + - + - 110-240V REF. 4830 + - D1 D2 2 6 Ct S + L - PAG.

  • Page 46: Single Family Homes With Video Vds Kit

    SINGLE FAMILY HOMES WITH VIDEO VDS KIT FIRST OR INTERMEDIATE HOME VIDEO + - L V M +12 C NO NC BS S CT REGISTER CABINET 18 Vdc + - + - 110-240V REF. 4830 +18 4 3 REF. 2448 REF.

  • Page 47: Last Home

    SINGLE FAMILY HOMES WITH VIDEO VDS KIT LAST HOME VIDEO + - L V M +12 C NO NC BS S CT REGISTER CABINET 18 Vdc + - + - 110-240V REF. 2450 REF. 4830 REF. 2409 S + L V M + L V M + L V M + - D1 D2 2 6...

  • Page 48: Single Family Homes With Audio Vds Kit

    SINGLE FAMILY HOMES WITH AUDIO VDS KIT FIRST OR INTERMEDIATE HOME VIDEO + - L V M +12 C NO NC BS S CT REGISTER CABINET 18 Vdc + - + - 110-240V REF. 2409 REF. 4830 + - D1 D2 2 6 Ct S + L - PAG.

  • Page 49: Last Home

    SINGLE FAMILY HOMES WITH VIDEO VDS KIT LAST HOME VIDEO + - L V M +12 C NO NC BS S CT REGISTER CABINET 18 Vdc + - + - 110-240V REF. 2409 REF. 4830 + - D1 D2 2 6 Ct S + L - PAG.
  • Page 50 PAG. 50...

  • Page 51: Floor Diagrams

    FLOOR DIAGRAMS VIDEO DISTRIBUTION 2 BRANCH DISTRIBUTION --------------------------------------------------------------------52 4 BRANCH DISTRIBUTION --------------------------------------------------------------------53 CASCADING INSTALLATION MONITORS IN CASCADE ----------------------------------------------------------------------54 INSTALLATION DISTRIBUTED BY FLOOR VDS MONITORS WITH 2 OUTPUT DISTRIBUTORS -----------------------------------55 VDS MONITORS WITH 4 OUTPUT DISTRIBUTORS -----------------------------------56 VDS TELEPHONES ------------------------------------------------------------------------------57 INSTALLATION WITH MDS DECODER MDS DECODER WITH MONITORS 4+n----------------------------------------------------58 PAG.

  • Page 52: Video Distribution

    VIDEO DISTRIBUTION 2 BRANCH DISTRIBUTION REF. 2448 +18 4 3 +18 4 3 PAG. 52...

  • Page 53: Branch Distribution

    VIDEO DISTRIBUTION 4 BRANCH DISTRIBUTION REF. 2449 +18 4 3 +18 4 3 PAG. 53...

  • Page 54: Cascading Installation

    CASCADING INSTALLATION MONITORS IN CASCADE PAG. 54...

  • Page 55: Installation Distributed By Floor

    INSTALLATION DISTRIBUTED BY FLOOR VDS MONITORS WITH 2 OUTPUT DISTRIBUTORS REF. 2448 +18 4 3 +18 4 3 REF. 2448 +18 4 3 +18 4 3 PAG. 55...

  • Page 56: Vds Monitors With 4 Output Distributors

    INSTALLATION DISTRIBUTED BY FLOOR VDS MONITORS WITH 4 OUTPUT DISTRIBUTORS REF. 2449 +18 4 3 +18 4 3 REF. 2449 +18 4 3 +18 4 3 PAG. 56...

  • Page 57: Vds Telephones

    INSTALLATION DISTRIBUTED BY FLOOR VDS TELEPHONES PAG. 57...

  • Page 58: Installation With Mds Decoder

    INSTALLATION WITH MDS DECODER MDS DECODER WITH MONITORS 4 +n PAG. 58...
