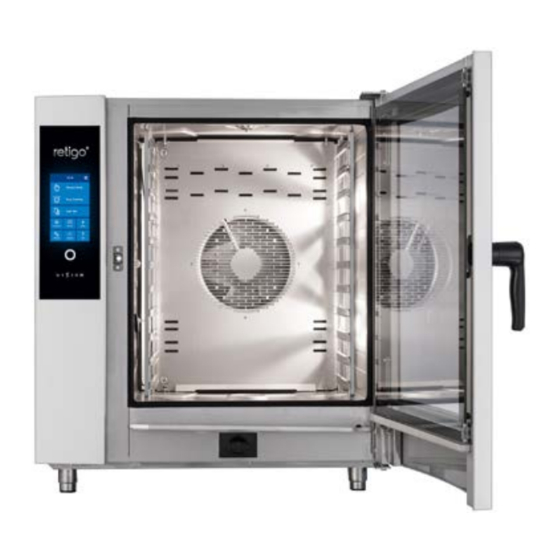

  • Page 1 Combi ovens Blue Vision OPERATING MANUAL READ THIS MANUAL BEFORE USE...
  • Page 2 DESCRIPTION OF THE MOST COMMON SCREENS A BASIC SCREEN B MANUAL MODE Current time Manual cooking setup Cooking with the Cooking chamber assistance of Easy preheating cooking Cooking mode Previously used selection programs/cooking Humidity selection process selection Setting the time Selection from Setting the programs marked as...

  • Page 3: Table Of Contents

    CONTENTS FOREWORD ABOUT THIS MANUAL 01 I  BASIC INFORMATION ON THE COMBI OVEN 1.1 USE: WHAT IT’S FOR 1.2 DESCRIPTION COMBI OVEN 1.3 OPTIONAL ACCESSORIES 1.4 CONTROLS: BASICS 02 I  SAFETY DURING USE 2.1 SAFE OPERATION 2.2 SAFETY EQUIPMENT 2.3 PROTECTIVE ELEMENTS OF THE COMBI OVEN 2.4 DANGEROUS LOCATIONS AND RESIDUAL HAZARDS 2.5 USING ACCESSORIES 03 I ...

  • Page 4: Foreword

    User manual  |  Blue Vision Combi Ovens  |  FOREWORD FOREWORD Dear customer, Thank you for purchasing a product from Retigo s.r.o. We are a manufacturer and supplier of specialized professional culinary appliances with a long track record of success. We believe this appliance will help you bring your ideas to outstanding fruition in your daily work.

  • Page 5: About This Manual

    “WARNING”. They inform you of things that may cause serious injury to the user and/or damage RETIGO s.r.o. to the machine. Furthermore, they indicate an important instruction, Rope 2310 feature, method or issue that 756 61 Rožnov pod Radhoštěm...
  • Page 6 User manual | Blue Vision Combi Ovens | ABOUT THIS MANUAL MAIN TOPICS IN THE TRANSPORT AND INSTALLATION INSTRUCTIONS APPLIANCE IDENTIFICATION - Basic information: describes the functions and main parts of the The model plate is on the right side of the appliance at the bottom. The model appliance relevant to its installation plate lists the appliance manufacturer, technical data on the appliance and the CE mark, indicating that the product complies with all requirements of...

  • Page 7: Basic Information On The Combi Oven

    Self-winding hand shower – The standard configuration includes a pleasant climate in your kitchen thanks to strong exhaust performance and a shower hung on the left side of the machine. intelligent switching. Vision Vent is designed for the combi ovens RETIGO Vision 623, 611, 1011, 2011. Control panel...

  • Page 8: Controls: Basics

    VISION SMOKER The Vision Smoker is a  simple accessory compatible with all Retigo combi ovens. Thanks to simple controls, with the option to smoke up to three hours non-stop and simple maintenance, the Vision Smoker will enable you to liven up the meals you offer or expand the menu with smoked specialities.

  • Page 9: Safety During Use

    User manual | Blue Vision Combi Ovens | 02 SAFETY DURING USE 02 I  SAFETY DURING USE BEFORE USING THE COMBI OVEN The combi oven cannot be operated without a  certain amount of caution, alertness and common sense. Even though the combi oven has been Before starting the appliance, it is absolutely necessary to learn the chapter •...

  • Page 10: Safety Equipment

    User manual | Blue Vision Combi Ovens | 02 SAFETY DURING USE If the floor is very uneven, loading trolleys must not be used for entering External main switch • or leaving the combi oven. Never leave the trolley handle inside a closed External covers combi oven.

  • Page 11: Dangerous Locations And Residual Hazards

    User manual | Blue Vision Combi Ovens | 02 SAFETY DURING USE CONTROL PANEL The control panel is located outside the area prone to high temperatures and In the combi oven’s cooking chamber, behind the internal wall, there are one or more circulating fan wheels. makes it possible to quickly turn off the appliance using the STOP button.
  • Page 12 User manual | Blue Vision Combi Ovens | 02 SAFETY DURING USE EXHAUST DISCHARGE Do not place any part of the body above these parts and always use safety gear (gloves, safety glasses, etc.). If you think that the appliance is incorrectly installed in regard to •...

  • Page 13: Using Accessories

    User manual | Blue Vision Combi Ovens | 02 SAFETY DURING USE When the probe is not in use, keep it in the probe holder. • Never leave the temperature probe hanging outside the cooking chamber • — the door may close on it and damage it. Avoid direct contact with detergents.

  • Page 14: Controls

    User manual | Blue Vision Combi Ovens | 03 CONTROLS 03 I  CONTROLS 3.1 TOUCHSCREEN PANEL 3.3 KEYBOARD The meanings of buttons (icons) found on the most common screens is The system also has keyboards. Their control is the same in all modes and provided on figures A, B, C, D.

  • Page 15: Cooking

    User manual | Blue Vision Combi Ovens | 04 COOKING| 4.1 MANUAL MODE 04 I  COOKING 4.1 MANUAL MODE This option is utilised by users, who want to have the cooking process parameters set exactly according to their requirements. Set the cooking parameters manually according to your own discretion and experience.
  • Page 16 User manual | Blue Vision Combi Ovens | 04 COOKING| 4.1 MANUAL MODE Fully closed flap valve; all the humidity OVERVIEW OF PROGRAM STEPS stays in the cooking chamber. Shows an overview of all the set cooking parameters. Enables the changing of settings, adding another step or reading of chef's tips.
  • Page 17 User manual | Blue Vision Combi Ovens | 04 COOKING| 4.1 Manual mode OPTION: EXTEND THE TIME OF THE LAST COOKING STEP Press OPTION: SAVE THE PROCEDURE TO THE PROGRAMS Press Select the folder for storing the new program. Enter the name of the program Press You can add a pictogram/image as you wish 4/4.2.5, point 4.1...

  • Page 18: Programs

    User manual | Blue Vision Combi Ovens | 04 COOKING| 4.2 PROGRAMS 4.2 PROGRAMS PROGRAM MODE SYMBOL SYSTEM The Program mode enables the combi oven to be used to the maximum extent possible, with ultimate control comfort ensuring that the final products are repeatedly of the highest quality.
  • Page 19 User manual | Blue Vision Combi Ovens | 04 COOKING| 4.2 PROGRAMS 4.2.2 Creating a new program ENTER THE PROGRAMS SELECT A PROGRAM CATEGORY IN WHICH YOU WISH TO CREATE A NEW PROGRAM PRESS PRESS ENTER THE NAME OF THE PROGRAM OPTION: CHANGE PICTOGRAM You may assign any pictogram/picture to the program 4/4.2.5, point 4.1 OPTION: FAVOURITE PROGRAM...
  • Page 20 User manual | Blue Vision Combi Ovens | 04 COOKING| 4.2 PROGRAMS OPTION: ADDING CHEF TIPS OR INFORMATION TO THE PROGRAM Press Enter information or program tips Press PRESS THE NEW PROGRAM IS SAVED RETURN TO PROGRAM 4.2.3 Editing a saved program ENTER THE PROGRAMS SELECT A PROGRAM CATEGORY IN WHICH YOU WISH TO EDIT A PROGRAM...
  • Page 21 User manual | Blue Vision Combi Ovens | 04 COOKING| 4.2 PROGRAMS 4.2.4 Creating a program on a PC and loading it on to the combi oven from a USB drive. Programs for the combi oven can also be created and edited using your computer in a special software program VisionCombi software. If you wish to load your own program created on your computer onto the combi oven using a USB drive, enter the Settings menu and select USB drive.
  • Page 22 User manual | Blue Vision Combi Ovens | 04 COOKING| 4.2 PROGRAMS 4.2.6 Editing a program category ENTER THE PROGRAMS SELECT THE CATEGORY YOU WISH TO EDIT AND HOLD IT DOWN FOR LONGER THAN 2 SECONDS. FROM THE MENU, SELECT THE MODIFICATION THAT YOU WISH TO MAKE EDITING A CATEGORY For editing the name of a category and changing or removing...
  • Page 23 User manual | Blue Vision Combi Ovens | 04 COOKING| 4.2 PROGRAMS 4.2.7 Creating a new Rack timing program ENTER THE PROGRAMS PRESS PRESS ENTER THE NAME OF THE TIMING PROGRAM OPTION: CHANGE PICTOGRAM You may assign any pictogram/picture to the program 4/4.2.5, point 4.1 OPTION: FAVOURITE PROGRAM Tick this option to add the program to the favourite programs...
  • Page 24 User manual | Blue Vision Combi Ovens | 04 COOKING| 4.2 PROGRAMS 4.2.9 Favourites The Favourites function allow creation of a  list of programs that you used most often or like the most to use. Then you have quick access to these saved programs without having to search for them among the program groups.
  • Page 25 User manual | Blue Vision Combi Ovens | 04 COOKING| 4.2 PROGRAMS OPTION: VIEWING AUTOMATIC START ITEMS Tap the desired program After viewing, press OPTION: EDITING AUTOMATIC START ITEMS After making changes, press DELETING AN AUTOMATICALLY STARTED PROGRAM At the program that you wish to delete, press Select Confirm deletion The program is removed from the list of automatically started...
  • Page 26 User manual | Blue Vision Combi Ovens | 04 COOKING| 4.2 PROGRAMS The reminder will display as one full white square near the selected date, even if you enter more than one reminder for one day. OPTION: VIEW REMINDERS Select the calendar viewing mode (Month or Plan) - In the calendar view, choose the desired day.
  • Page 27 User manual | Blue Vision Combi Ovens | 04 COOKING| 4.2 PROGRAMS ENTER INFORMATION OR PROGRAM TIPS PRESS 4.2.12.3 Creating chef tips for a new program To create tips for a new program, see 4.2.2/ step 7.5...

  • Page 28: Easy Cooking

    User manual | Blue Vision Combi Ovens | 04 COOKING| 4.3 EASY COOKING 4.3 EASY COOKING You may enter the cooking process at any phase and edit the pre-set Cooking in the Easy Cooking mode enables even a less experienced chef to achieve excellent results.

  • Page 29: Multitasking

    User manual | Blue Vision Combi Ovens | 04 COOKING| 4.4 MULTITASKING 4.4 MULTITASKING The Retigo Blue Vision combi oven enables you to work on multiple levels at once, without having to interrupt a  cooking process that is running. For example, you may be cooking and at the same time, use Multitasking to switch to the programs section and prepare a ...

  • Page 30: Extras

    User manual | Blue Vision Combi Ovens | 05 EXTRAS| 5.1 LOW-TEMPERATURE BAKING 05 I  EXTRAS 5.1 LOW-TEMPERATURE BAKING The EXTRAS functional group (button A10) contains special cooking programs for modern culinary methods, which allows you to use the combi oven for unusual procedures.

  • Page 31: Drawer Timing

    User manual | Blue Vision Combi Ovens | 05 EXTRAS| 5.2 DRAWER TIMING 5.2 DRAWER TIMING For individual drawers that you prepare in the same cooking mode (steam, hot air or combination), the drawer timing function allows you to assign different processing times or different final temperatures for the centre of the food.
  • Page 32 User manual | Blue Vision Combi Ovens | 05 EXTRAS| 5.2 DRAWER TIMING 9.1.2 OPTION: DELETING A TIMER For the timer that you wish to delete, press Select option OPTION: NEEDLE TEMPERATURE SETTINGS Press Set the temperature in the centre of the food to stop the timer Press Enter the name of the timer Press...
  • Page 33 User manual | Blue Vision Combi Ovens | 05 EXTRAS| 5.2 DRAWER TIMING 5.2.2 Cooking in Drawer timing – according to preparation type ENTER EXTRAS PRESS SELECT FOOD MODIFICATION Basic parameters, like mode, humidity, temperature, space and fan settings are already pre-set, but they can be easily changed. PRESS Set the time or temperature for the needle according to the procedure in the chapter, steps 9 to 13.2.

  • Page 34: Extras (Further Functions)

    User manual | Blue Vision Combi Ovens | 05 EXTRAS| 5.3 OTHER EXTRA FUNCTIONS 5.3 EXTRAS (FURTHER FUNCTIONS) The EXTRAS functional group still contains these special programs: Drying Program appropriate for traditional drying of fruit, vegetables and meat. Sous-vide Warming and maintenance Modern cooking technology in which the food is inserted into a ...

  • Page 35: Help

    User manual | Blue Vision Combi Ovens I 06 HELP 06 I  HELP Part of the main screen A is the Help function in the form of important contacts and a simplified operating manual for the combi oven. You can use the contacts at times when you’re not sure of the procedure or need detailed advice from an experienced person.

  • Page 36: Settings

    User manual | Blue Vision Combi Ovens I 07 SETTINGS 07 I  SETTINGS 7.1 BASIC SETTINGS - Increasing the temperature allows setting how many degrees higher than the set temperature the cooking chamber should preheat to. The default setting is 15°C. Example: If the set temperature is 150°, the combi oven 1.
  • Page 37 User manual | Blue Vision Combi Ovens I 07 SETTINGS Rack timing After activation, it will not be possible to change any of the planned events or automatic starts. Number of racks – here you can select the number of racks shown on the •...
  • Page 38 7.1.1 Saving programs to the USB drive If you want to save combi oven items to an external USB drive, do the following: PRESS PRESS PRESS A MESSAGE APPEARS Connect a USB drive ( 1.2, point 6) A MESSAGE APPEARS If the USB drive is damaged or incompatible, “USB drive was not recognized”...
  • Page 39 5.2.2 OPTION: SAVING SPECIFIC PROGRAMS Tapping on the file name shows a menu of all programs, along with tick boxes. Tapping on any tick box selects the desired programs After selecting ingredients or programs, press The default output file is displayed. You can overwrite the file name as you need to.
  • Page 40 7.1.2 Copying files from a USB drive to the appliance If you want to copy programs from an external USB drive into the combi oven’s memory, do as follows: PRESS PRESS PRESS SELECT A MESSAGE APPEARS Connect a USB drive ( 1.2, point 6) CONTENT OF USB DRIVE DISPLAYS Displays only files with the suffix “br2”.
  • Page 41 6.2.2 OPTION: ADDING SPECIFIC PROGRAMS Tapping on the file name shows a menu of all programs, along with tick boxes. Tapping on any tick box selects the desired programs If you want to select programs from other folders, go back to a higher level using the “Back”...

  • Page 42: Profiles

    7.2 PROFILES Retigo Blue Vision combi ovens offer a unique option to adapt the main screen (A). Based on your own needs, on the main screen you may, for example, change the button size, their arrangement, remove or add buttons, change their colour, change the background colour, etc. You can save the change as your custom PROFILE.

  • Page 43: Maintenance

    User manual | Blue Vision Combi Ovens I 08 MAINTENANCE 08 I MAINTENANCE GENERAL INSTRUCTIONS MAINTENANCE OVERVIEW For the entire period of operation, the appliance must undergo INTERVAL DESCRIPTION DESCRIPTION OF TASK regular inspections, tests and updates for operating this type of appliance in accordance with applicable regulations in the country Cleaning with the of use.

  • Page 44: Weekly Maintenance

    User manual | Blue Vision Combi Ovens I 08 MAINTENANCE After the cleaning program is done, check whether cleaning was CLEANING THE DOOR SEAL adequate. If not, repeat the wash. If residue of a  cleaning agent After the cooking chamber has been cleaned, wipe around the door sticks to the surface of the cooking chamber or its accessories, seal with a ...
  • Page 45 User manual | Blue Vision Combi Ovens I 08 MAINTENANCE HAND CLEANING OF THE SPACE BEHIND THE INNER WALL 1. Clean out the left and right racks (does not apply to appliances with a loading system). In rare cases, even repeated automatic cleaning and descaling may be ineffective against tough grime behind the inner wall.

  • Page 46: Six-Month Maintenance

    User manual | Blue Vision Combi Ovens I 08 MAINTENANCE CLEANING THE DOOR, GLASS AND DRIP TRAY 7. Wipe the seal of the middle glass with a damp cloth and then dry 1. Open the appliance door. 2. Check the drip tray at the bottom of the door. If it is dirty, clean it with a soft cloth and detergent.

  • Page 47: Automatic Washing

    2011 2021 Important: Rinse with If a  detergent other than the original Retigo Active Cleaner is used • water* (or Manual Cleaner, Vision Descaler), Retigo takes no responsibility for any damage, and the warranty does not apply to damage caused in Express this way.

  • Page 48: Start Wash

    User manual | Blue Vision Combi Ovens I 09 AUTOMATIC CLEANING 9.2 START WASH ENTER THE WASHING MODE When the washing process has finished, check the cooking chamber. • Remove any remaining detergent by thoroughly rinsing with the hand shower or washing with water. If this isn’t done, the stainless-steel SELECT THE APPROPRIATE MODE surface of the cooking chamber can distort and discolour when the appliance is used at high temperatures.

  • Page 49: Table Of Error Messages

    User manual | Blue Vision Combi Ovens I 10 ERROR MESSAGE TABLE 10  I   TABLE OF ERROR MES- SAGES When you work with the appliance, the display may show error messages. Their meanings are as follows: Err 18 When draining the boiler, the ERROR DESCRIPTION SOLUTION...
  • Page 50 User manual | Blue Vision Combi Ovens I 10 ERROR MESSAGE TABLE Err 40 Outage of the chamber thermal fuse, boiler (boiler combi ovens only), draught interrupter (only gas combi Contact an authorised ovens with a draught service company. interrupter) or switchboard thermal fuse.

  • Page 51: Service Life, Decommissioning And Warranty

    The appliance's end user must choose among three of the following disposal options: Disposal by RETIGO s.r.o. Order disposal of the equipment by RETIGO by calling the telephone number +420 571 665 511 or by email at info@retigo.cz How to prepare the combi oven for disposal: Professionally disconnect the electrical equipment from the media •...
  • Page 52 PERFECTION IN COOKING AND MORE... RETIGO s.r.o. Rope 2310 756 61 Rožnov pod Radhoštěm Email: info@retigo.cz Tel.: +420 571 665 511 version TSD-15-B-MAN-CZ_R04 www.retigo.cz version SW: 2.75...
