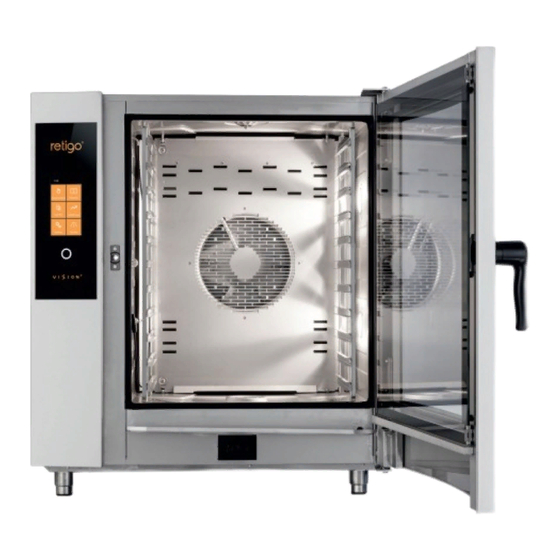

- Page 1 PERFECTION IN COOKING AND MORE... Retigo Orange Vision Plus USER’S MANUAL READ THIS MANUAL BEFORE USE...
- Page 2 DESCRIPTION OF THE MOST COMMON SCREENS A MAIN SCREEN B MANUAL MODE Manual cooking 12:00 Option Current time Preheat/Cool Manual cooking setup Cooking mode Selecting previously 190°C selection used programs / Humidity selection baking or cooking Setting the time methods Manual cooking Programs Setting the...
-
Page 3: Table Of Contents
TABLE OF CONTENTS FOREWORD ABOUT THIS MANUAL 01 I BASIC INFORMATION ABOUT THE APPLIANCE 1.1 USE: WHAT IT’S FOR 1.2 DESCRIPTION OF THE APPLIANCE 1.3 OPTIONAL EQUIPMENT AND ACCESSORIES 1.4 CONTROLS: BASICS 02 I SAFETY DURING USE 2.1 SAFE OPERATION 2.2 PROTECTIVE AIDS 2.3 PROTECTIVE ELEMENTS OF THE APPLIANCE 2.4 DANGEROUS LOCATIONS AND RESIDUAL HAZARDS 2.5 USING ACCESSORIES... -
Page 4: Foreword
User's manual I Retigo Orange Vision Plus I FOREWORD FOREWORD Dear customer, Thank you for purchasing a product from Retigo s.r.o. We are a manufacturer and supplier of specialised professional culinary appliances with a long track record of success. We believe this appliance will help you implement your ideas with outstanding results in your daily work. -
Page 5: About This Manual
User's manual I Retigo Orange Vision Plus I ABOUT THIS MANUAL ABOUT THIS MANUAL This manual should help you to easily understand how to operate the Orange The complete technology documentation for the appliance Vision Plus and inform you about its options and capabilities. can be found at the manufacturer’s website. - Page 6 User's manual I Retigo Orange Vision Plus I ABOUT THIS MANUAL MAIN TOPIC TRANSPORT INSTALLATION APPLIANCE IDENTIFICATION INSTRUCTIONS The model plate is on the right side of the appliance at the bottom. The model - Basic information: describes the functions and main parts of the plate lists the appliance's manufacturer, technical data on the appliance and...
-
Page 7: Basic Information About The Appliance
1.3 OPTIONAL EQUIPMENT AND ACCESSORIES 1.2 DESCRIPTION OF THE APPLIANCE OPTIONAL EQUIPMENT The standard configuration of Retigo Orange Vision Plus combi ovens includes automatic cleaning. and 99 programs with 9 steps. Optional equipment that can be purchased: - Temperature probe... -
Page 8: Controls: Basics
The Vision Vent condensation hood will enable you to comfortably maintain a pleasant climate in your kitchen thanks to strong exhaust performance and intelligent switching. The Vision Vent is designed for the combi ovens Retigo Vision 623, 611, 1011 and 2011. -
Page 9: Safety During Use
User's manual I Retigo Orange Vision Plus I 02 SAFETY DURING USE 02 I SAFETY DURING USE The appliance cannot be operated without a certain amount of caution, BEFORE USING THE APPLIANCE alertness and common sense. Even though the appliance has been designed Before starting the appliance, it is absolutely necessary to study the chapter •... -
Page 10: Protective Aids
User's manual I Retigo Orange Vision Plus I 02 SAFETY DURING USE In the event that the floor is very uneven, ride-in trolleys must not be used External main switch • for riding into or out of the appliance. Never leave the trolley handle inside External covers a closed appliance. -
Page 11: Dangerous Locations And Residual Hazards
User's manual I Retigo Orange Vision Plus I 02 SAFETY DURING USE CONTROL PANEL The control panel is located outside the area prone to high temperatures and In the appliance’s cooking chamber, behind the internal wall, there are one or more circulating fan wheels. makes it possible to quickly turn off the appliance using the STOP button. The display also shows malfunctions. - Page 12 User's manual I Retigo Orange Vision Plus I 02 SAFETY DURING USE HAND SHOWER When handling the appliance, adhere to the the relevant regulations for tying loads and the handling of lifting equipment. Scalding hazard from hot steam or hot fat when spraying a hot cooking •...
-
Page 13: Using Accessories
User's manual I Retigo Orange Vision Plus I 02 SAFETY DURING USE FOOD CONTAMINATION Never spray water from the hand shower on to hot door glass — this can • destroy it! When cleaning or descaling agents are used incorrectly, the area around the appliance, where food is usually prepared, may become contaminated. This After use, always place the hand shower in its holder. -
Page 14: Controls
User's manual I Retigo Orange Vision Plus I 03 CONTROLS 03 I CONTROLS 3.1 TOUCHSCREEN PANEL 3.3 KEYBOARD The meanings of buttons (icons) found on the most common screens is The system also has keyboards. They are controlled in the same way in all provided on figures A, B, C, D. The basic button functions are selected by modes and functions of the appliance. -
Page 15: Cooking
User's manual I Retigo Orange Vision Plus I 04 COOKING 04 I COOKING 4.1 MANUAL MODE This option is utilised by users, who want to have the cooking process parameters set exactly according to their requirements. Set the cooking parameters manually according to your own discretion and experience. - Page 16 User's manual I Retigo Orange Vision Plus I 04 COOKING OVERVIEW OF PROGRAM STEPS Shows an overview of all the set cooking parameters. Enables the changing of settings, adding another step or reading of chef's tips. For a detailed description, see screen C. TEMPERATURE PROBE Setting the temperature probe...
- Page 17 User's manual I Retigo Orange Vision Plus I 04 COOKING AT THE END OF THE COOKING PROCESS, SELECT AN ACTION WITH WHICH TO CONTINUE (screen D) OPTION: EXTEND THE TIME OF THE LAST COOKING STEP Press Extra time OPTION: SAVE THE PROCEDURE TO THE PROGRAMS...
-
Page 18: Programs
User's manual I Retigo Orange Vision Plus I 04 COOKING 4.2 PROGRAMS PROGRAM SYMBOLS The Program mode enables the combi oven to be utilised to the maximum extent possible, with ultimate control comfort ensuring that the final products Main category according to meal type (category). - Page 19 User's manual I Retigo Orange Vision Plus I 04 COOKING START THE COOKING PROCESS BY PRESSING Start AT THE END OF THE COOKING PROCESS, SELECT AN ACTION WITH WHICH TO CONTINUE (screen D) 4.2.2 Create a new program ENTER THE PROGRAMS Press Programs SELECT A PROGRAM CATEGORY IN WHICH Programs YOU WISH TO CREATE A NEW PROGRAM...
- Page 20 User's manual I Retigo Orange Vision Plus I 04 COOKING PRESS Programs Meat Oven-baked dishes Vegetables THE NEW PROGRAM IS SAVED RETURN TO THE PROGRAMS Back 4.2.3 Editing a saved program ENTER THE PROGRAMS Press Programs SELECT A PROGRAM CATEGORY IN WHICH YOU WISH TO EDIT Programs A PROGRAM...
- Page 21 User's manual I Retigo Orange Vision Plus I 04 COOKING 4.2.4 Create a program on a PC and load it on to the appliance from a USB disk. Programs for the appliance can also be created and edited using your computer in a special software program VisionCombi software. If you wish to load your own program created on your computer on to the appliance using a USB disk, enter the Settings menu and select USB disk.
- Page 22 User's manual I Retigo Orange Vision Plus I 04 COOKING OPTION: MOVE UP/DOWN Move any category to a different location in the category list. Return to the category list and press Select Move up/down Press and hold down any category and drag your finger to move it to a new location.
- Page 23 User's manual I Retigo Orange Vision Plus I 04 COOKING 4.2.8 Automatic program start It is possible to set each program to start automatically and under the conditions that you set. This setting can be performed in any mode in which screen B, C or D is displayed and also on the cooking progress screen.
- Page 24 User's manual I Retigo Orange Vision Plus I 04 COOKING 4.2.8.2 Viewing, editing or deleting an automatically started program ON THE MAIN SCREEN, PRESS The list of programs set for automatic start-up is displayed. OPTION: VIEW AUTOMATIC START ITEMS Automatic start Tap the desired program...
-
Page 25: Multitasking
User's manual I Retigo Orange Vision Plus I 04 COOKING 4.3 MULTITASKING The Orange Vision Plus enables you to work on multiple levels at once, without having to interrupt a cooking process that is running. For example, you may be cooking and at the same time, use Multitasking to switch to the programs section and prepare a new program. -
Page 26: Other
User's manual I Retigo Orange Vision Plus I 05 OTHER 05 I OTHER 5.1 LOW-TEMPERATURE BAKING The category Other offers special cooking programs for modern culinary methods, which allows you to use the appliance for unusual procedures. This mode is especially appropriate for slow, gentle roasting of various meats. -
Page 27: Settings
User's manual I Retigo Orange Vision Plus I 4 SETTINGS 06 I SETTINGS 6.1 BASIC SETTINGS - Increasing the temperature allows setting how many degrees higher than the set temperature the cooking chamber should preheat to. The default setting is 15°C. Example: When a temperature of 150° is set, the appliance 1. - Page 28 User's manual I Retigo Orange Vision Plus I 4 SETTINGS Cleaning From the appliance to a USB disk • Cleaning programs - Programs – A detailed description of saving programs is given in the • separate chapter 6.1.1. Function is only available for service technicians - Errors - the filename has the format "ErrorReport_Blue Vision_0-rrrr_mm_dd.txt"...
- Page 29 User's manual I Retigo Orange Vision Plus I 4 SETTINGS 6.1.1 Saving programs to the USB drive If you wish to save programs of the appliance to an external USB drive, proceed as follows: PRESS Settings PRESS USB disk PRESS Oven to USB SELECT THE PROGRAMS Programs A MESSAGE APPEARS...
- Page 30 User's manual I Retigo Orange Vision Plus I 4 SETTINGS 6.2.2 OPTION: SAVE SPECIFIC PROGRAMS Meat Tapping on the folder name shows a menu of all programs, along Beef with tick boxes. Pork Poultry Minced meat Fish Back Tap on any tick box to select the desired programs.
- Page 31 User's manual I Retigo Orange Vision Plus I 4 SETTINGS 6.1.2 Copying files from a USB drive to the appliance If you wish to copy programs from an external USB drive to the memory of the appliance, proceed as follows: PRESS Settings PRESS USB disk PRESS...
- Page 32 User's manual I Retigo Orange Vision Plus I 4 SETTINGS 6.2.2 OPTION: ADD SPECIFIC PROGRAMS Meat Tapping on the folder name shows a menu of all programs, along Beef with tick boxes. Pork Poultry Minced meat Fish Back Tap on any tick box to select the desired programs.
-
Page 33: Data Haccp
User's manual I Retigo Orange Vision Plus I 4 SETTINGS 6.2 DATA HACCP The HACCP system (Hazard Analysis and Critical Control Points) automatically records everything that happens inside your appliance. The saved data can be subsequently shown directly on the display or downloaded on to a computer. - Page 34 6.2.2 Copying HACCP data to the USB drive PRESS Settings PRESS USB disk SELECT Oven to USB SELECT HACCP A MESSAGE APPEARS Connect USB disk Connect a USB drive ( 1.2, point 6) A MESSAGE APPEARS USB disk connected If the USB drive is damaged or incompatible, "USB drive was not recognized"...
-
Page 35: Maintenance
User's manual I Retigo Orange Vision Plus I 07MAINTENANCE 07 I MAINTENANCE GENERAL INSTRUCTIONS MAINTENANCE OVERVIEW For the entire period of operation, the appliance must undergo INTERVAL DESCRIPTION DESCRIPTION OF TASK regular inspections, tests and updates for operating this type of Cleaning with the appliance in accordance with applicable regulations in the country... - Page 36 User's manual I Retigo Orange Vision Plus I 07MAINTENANCE After the cleaning program has finished, check whether the cleaning was adequate. If not, repeat the cleaning process. If residue of a cleaning agent sticks to the surface of the cooking chamber or its accessories, rinse it with the hand shower or start the Rinse with water program.
-
Page 37: Weekly Maintenance
User's manual I Retigo Orange Vision Plus I 07MAINTENANCE 7.2 WEEKLY MAINTENANCE Open the inner wall by pulling on the left side. DESCALING THE COOKING CHAMBER If a crust of limescale appears on the surface areas of the cooking chamber, descale the cooking chamber using the "Cooking chamber descaling"... - Page 38 User's manual I Retigo Orange Vision Plus I 07MAINTENANCE Unlock the internal glass and tilt the glass up. Remove the filter toward the closer side of the appliance and thoroughly clean it with detergent or in a dishwasher. After cleaning, allow it to dry well. 5. Clean all glass surfaces with a clean rag and detergent intended for glass.
-
Page 39: Half-Yearly Maintenance
User's manual I Retigo Orange Vision Plus I 07MAINTENANCE 8. Gradually return the middle and inner glass to their original position and secure them with the lock by gently pressing the inner glass near the lock. 7.3 HALF-YEARLY MAINTENANCE DESCALING THE BOILER Even though appliances with a boiler are equipped with an... -
Page 40: Automatic Cleaning
Important: Water If a detergent other than the original Active Cleaner is used (or Manual • rinse* Cleaner, Vision Descaler), Retigo takes no responsibility for any damage, and the warranty does not apply to damage caused in this Express way. cleaning Basic Keep the detergent out of the reach of children. -
Page 41: Starting The Cleaning Process
User's manual I Retigo Orange Vision Plus I 08 AUTOMATIC CLEANING 8.2 STARTING THE CLEANING PROCESS ENTER THE CLEANING MODE When the cleaning process has finished, check the cooking chamber. • Remove any remaining detergent by thoroughly rinsing with the hand Cleaning shower or cleaning with water. If this isn’t done, the stainless-steel... -
Page 42: Error Message Table
User's manual I Retigo Orange Vision Plus I 09 ERROR MESSAGE TABLE 09 I ERROR MESSAGE TABLE When working with the appliance, the display may show error messages. Their meanings are as follows: ERROR DESCRIPTION SOLUTION Modbus communications Disconnect the power 60-79 error. supply to the appliance... -
Page 43: Service Life, Taking Out Of Operation And Warranty
User's manual I Retigo Orange Vision Plus I 10 SERVICE LIFE, TAKING OUT OF OPERATION AND WARRANTY 10 I SERVICE LIFE, TAKING OUT OF OPERATION AND WARRANTY Disposal on your own If you decide to dispose of the appliance on your own, comply with applicable SERVICE LIFE national waste disposal regulations. - Page 44 PERFECTION IN COOKING AND MORE... RETIGO s.r.o. Láň 2310 756 61 Rožnov pod Radhoštěm Email: info@retigo.cz ver.: TSD_15_EG_CZ_R00 Tel.: +420 571 665 511 model: Orange Vision Plus www.retigo.cz version SW: 2.102...
