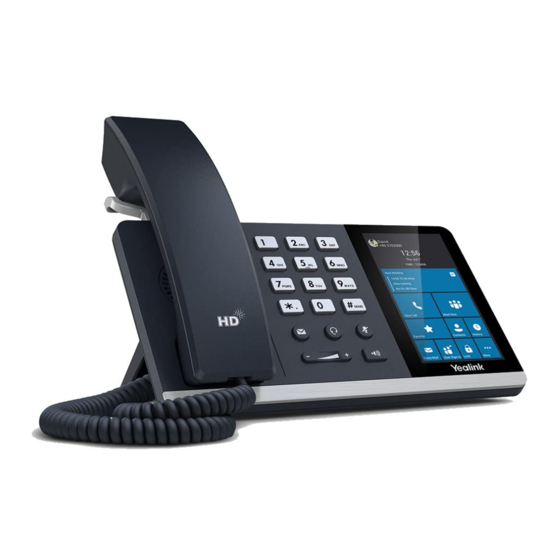

T55A-Skype for Business Edition
Quick Start Guide(V9.9)
www.yealink.com
Applies to firmware 55.9.0.9 or later

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T55A-Skype for Business Edition and is the answer not in the manual?

Questions and answers

Summary of Contents for Yealink T55A-Skype for Business Edition

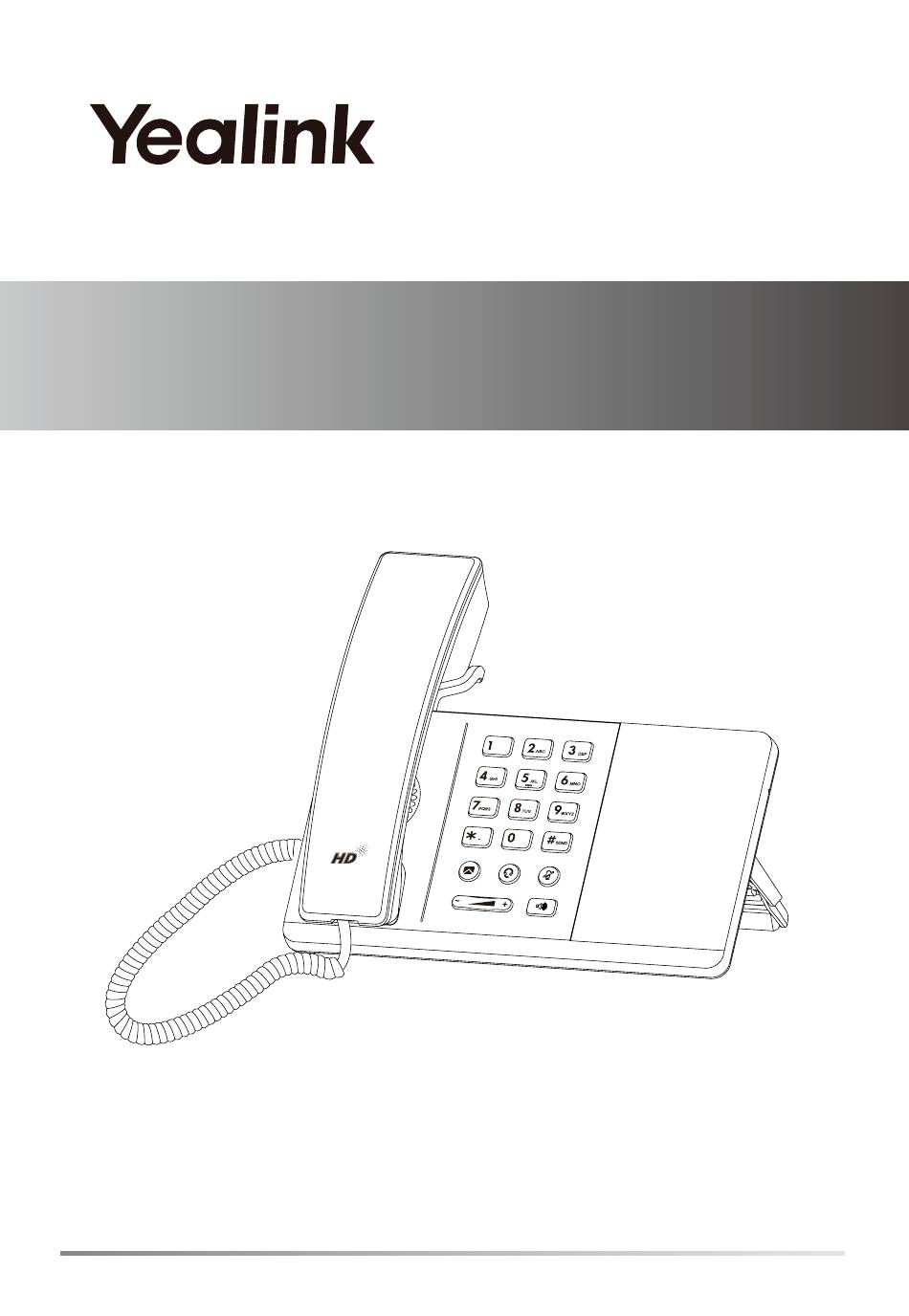

  • Page 1 ® T55A-Skype for Business Edition Quick Start Guide(V9.9) www.yealink.com Applies to firmware 55.9.0.9 or later...
  • Page 3: Package Contents

    Power Adapter Wallmount Bracket (Optional) (Optional) Note: We recommend that you use the accessories provided or approved by Yealink. The use of unapproved third-party accessories may result in reduced performance. Assembling the Phone 1. Attach the stand, as shown below: 2.
  • Page 4 Ethernet ) Option IEEE 802.3af compliant PoE Hub/Switch Note: The IP phone should be used with Yealink original power adapter (5V/2A) only. The use of the third-party power adapter may damage the phone. 5. Connect to the network, as shown below:...
  • Page 5: Hardware Component Instructions

    Hardware Component Instructions Item Power LED Indicator Touch Screen HEADSET Key MUTE Key Speakerphone Key Volume Key MESSAGE Key Speaker Keypad Handle Holder USB2.0 port...
  • Page 6: Phone Lock

    Startup After the Skype for Business phone is connected to the network and supplied with power, it automatically begins the initialization process. After startup, the phone Welcome enters the sign-in screen. nitializing... Please wait Sign into or Sign out of Your Skype for Business Account You can sign into or sign out of your Skype for Business account on the phone.
  • Page 7: Basic Call Features

    3. Enter a unique contact name in the Name field and other information in the corresponding fields. 4. Tap Save to accept the change. Local favorites display consecutively, according to their index number. The contact with the lowest number is displayed first. If you select Null from the pull-down list of Index, the contact id displayed first.
  • Page 8 Initiate a Conference Call You can initiate a Skype for Business conference call by meet now or calling a group of Skype for Business contacts. To initiate a conference call: 1. Tap Meet Now->Add. 2. Enter the number and then tap You can also select a desired contact from the search result list, favorites screen, history screen or contacts screen.
  • Page 9 Better Together over Ethernet (BToE) enables you to place, hold, and answer calls on your phone and Skype for Business client on your computer. You can download the Yealink BToE Connector application from the Yealink Website and install the application on your computer.
  • Page 10 包装清单 包装箱包含以下配件。如果发现遗失任何配件,请联系你的系统管理员。 手柄线 以太网线 底座 (2 米 FTP 超五类以太网线 ) Skype for Buisness 话机 手柄 快速入门指南 电源适配器 挂墙架 (可选) (可选) 说明:我们推荐使用由 Yealink 提供或经 Yealink 认可的配件,使用未经认可的第三方配件可能会导致性能 的下降。 安装电话 1. 安装底座: 2. 连接挂墙架(可选): 说明:连接挂墙架前,需要先将挂墙扣安装在挂墙架上,勾住手柄防止手柄滑落。...
  • Page 11 I n t e r n e t P C I n t e r n e t IEEE 802.3af 标准 PoE 集线器 / 交换机 说明:我们要求使用 Yealink 原装电源(5V/2A),使用第三方电源可能会导致话机损坏。 5. 连接网络: 与 PC 机相连 ( 可选 ) P C I n t e r n e t...
  • Page 12 硬件介绍 Item 电源指示灯 触摸屏 耳麦键 静音键 免提键 音量调节键 信息键 扬声器 键盘 手柄架 USB 2.0 接口...
  • Page 13 启动 在话机连接上网络并且进行供电后,话机会自动启动。 启动完成后,话机进入登录界面。 Welcome nitializing... Please wait 登录和登出 你可以在话机上登录和登出 Skype for Business 账号。 登录 Skype for Business 账号: 1. 按登入,选择相应的登录方式。 2. 根据界面提示进行操作。 登出 Skype for Business 账号: 1. 按话机液晶界面右上角的头像。 2. 从弹出的下拉框中选择注销。 键盘锁 如果管理员在 Skype for Business 服务器上为账号开启了键盘锁功能,初次登录账号时你需要为话 机设置键盘锁密码。 设置键盘锁密码: 1. 在新的 PIN 码区域输入键盘锁密码。 2.
  • Page 14 5. 按保存。 本地常用联系人根据优先级排列,优先级最小的排列在最前面,本地常用联系人带有 图标。如果你 在优先级区域选择空,该本地常用联系人排在最前面。 搜索联系人: 1. 按联系人 -> 。 2. 在搜索框中输入联系人姓名或号码的前几个字符。 液晶界面显示搜索结果。 查看联系人: 1. 按联系人。 2. 选择相应的联系人组。 3. 按联系人后的 查看联系人具体信息。 呼叫联系人: 1. 按联系人。 2. 选择相应的联系人组。 3. 按联系人的头像直接呼出联系人。 基本功能 拨打电话: 1. 使用下述任意一种方式: - 拿起手柄。 - 按话机上的 。 - 连接好耳麦,按话机上的 激活耳麦模式。 - 在话机空闲界面,按新呼出。...
  • Page 15 创建会议 你可以通过现在开会或者呼叫 Skype for Business 群组创建会议。 通过现在开会创建会议: 1. 按现在开会 -> 添加。 2. 输入号码,按 。 你也可以从搜索结果,常用联系人界面,历史记录界面或者联系人界面中选择一个联系人。 3. 按添加添加更多成员入会。 通过呼叫 Skype for Business 群组创建会议: 1. 按联系人。 2. 按 Skype for Business 联系人组后的 呼叫该组内所有成员。、 界面提示是否确定要开始一个会议。 3. 点击确定开始会议。 呼叫转移 你可以启用呼叫转移功能将所有来电转移到指定的目的地。 启用呼叫转移: 1. 按更多 -> 功能 -> 呼叫转移。 2.
  • Page 16 联动(BToE) 联动功能允许话机与电脑上的 Skype for Business 客户端进行互操作,实现第三方呼叫控制。你可 以同时在话机和电脑上的 Skype for Business 客户端进行拨打电话、接听来电或保持通话等操作。 要使用联动功能,你需要访问 Yealink 官网下载 Yealink BToE Connector 软件,并将软件安装在你 的电脑上。 开启联动功能: 1. 执行以下任一操作: - 用以太网线连接话机的 PC 口和电脑的网口。 - 手动输入话机的 IP 地址,点击确定。 2. 如果话机上没有登录账号, 电脑上会弹出登录提示框。 如果没有弹出, 在话机的登录界面按登入软键, 选择联动登录。 3. 在弹出的登录提示框中填写登录信息,点击确定。 话机自动登录和 Skype for Business 客户端上一样的账号,联动功能开启。...
  • Page 17 As one of the best providers in more than 140 countries and regions including the US, the UK and Australia, Yealink ranks No.1 in the global market share of SIP phones shipments.
