2 .3

Condensation line

The condensation line has a 15 mm internal thread connection and is connected to the underneath of the heat recovery unit. The conden-
sation line is supplied with a water seal before the line runs to the outlet funnel.
2 .4

Electrical Installation

Electrical connection
The Vent heat recovery unit is classed as a drip proof variant.
Air handling system group B according to the high current regulations.
The unit is supplied with a plug and must be connected to an earthed, 1 phase 230 V wall socket.
Switch
The unit is started and stopped using the switch, located under the control panel.
In position 0 the unit's electrical components should be treated as conductors.
Electrical connection circulation pump
Circulation pump, CP, for Vent is not electrically connected at delivery.
The circulation pump in the Vent heat recovery unit must not be electrically connected until the system has been filled with water.
Connect the circulation pump electrically as follows:
NOTE! The system must be filled with water .
1 Remove the cover marked "FILTER ".
2 You will now see the circulation pump behind the cover.
3 Electrically connect the circulation pump in the Vent heat recovery unit by connecting the joint connectors.
4 – Vent – 086L0874 rev. 3

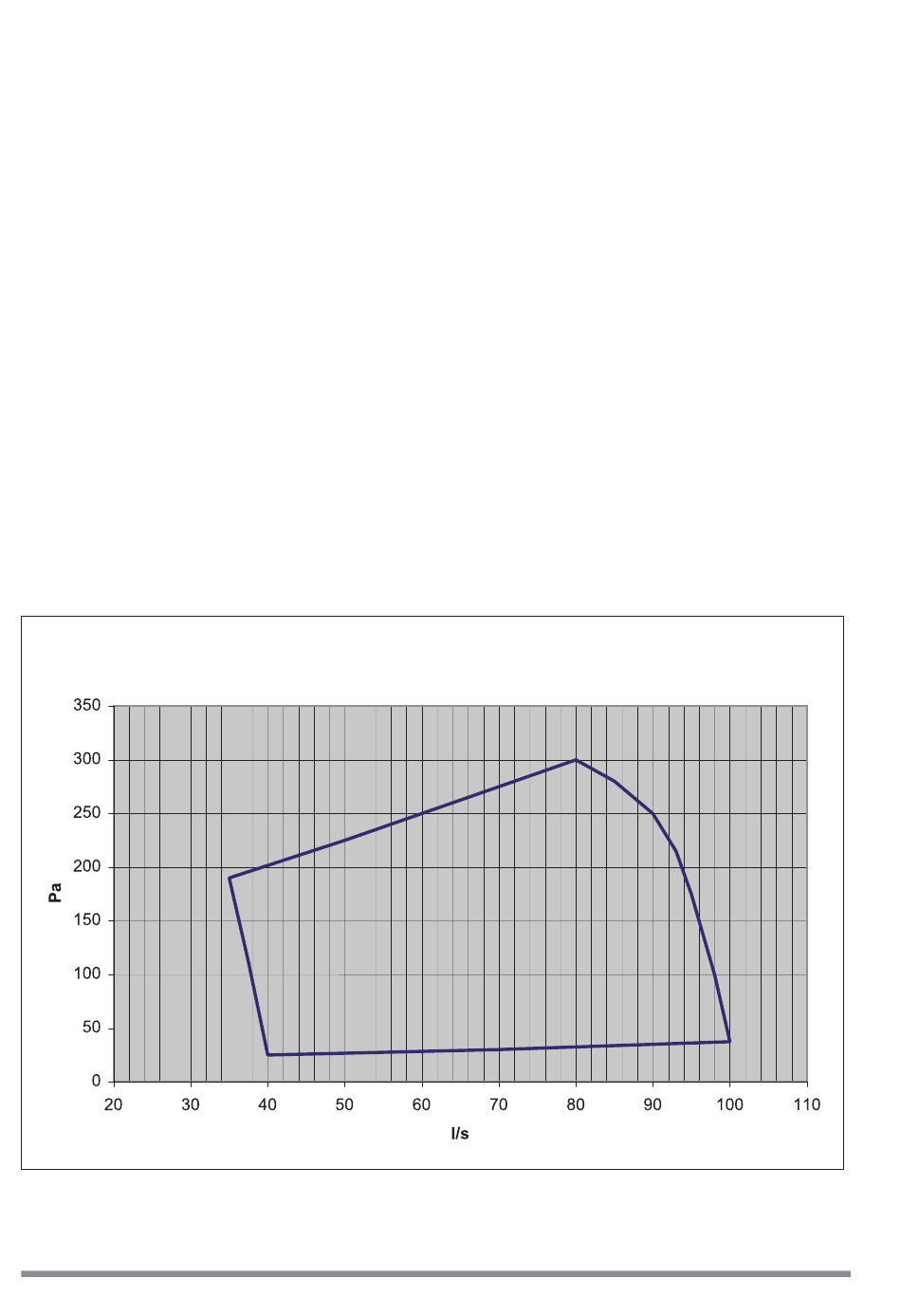

Capacity diagram Fan 83W
