Creative Sound Blaster X-Fi Surround 5.1 Pro v3 User's Guide
1.3 About Your Hardware
Refer to the Quick Start leaflet for instructions on setting up your audio device.
To learn more about your product, refer to the relevant section below:
•
Your Audio Device
•
Your Remote Control
1.3.1 Your Audio Device

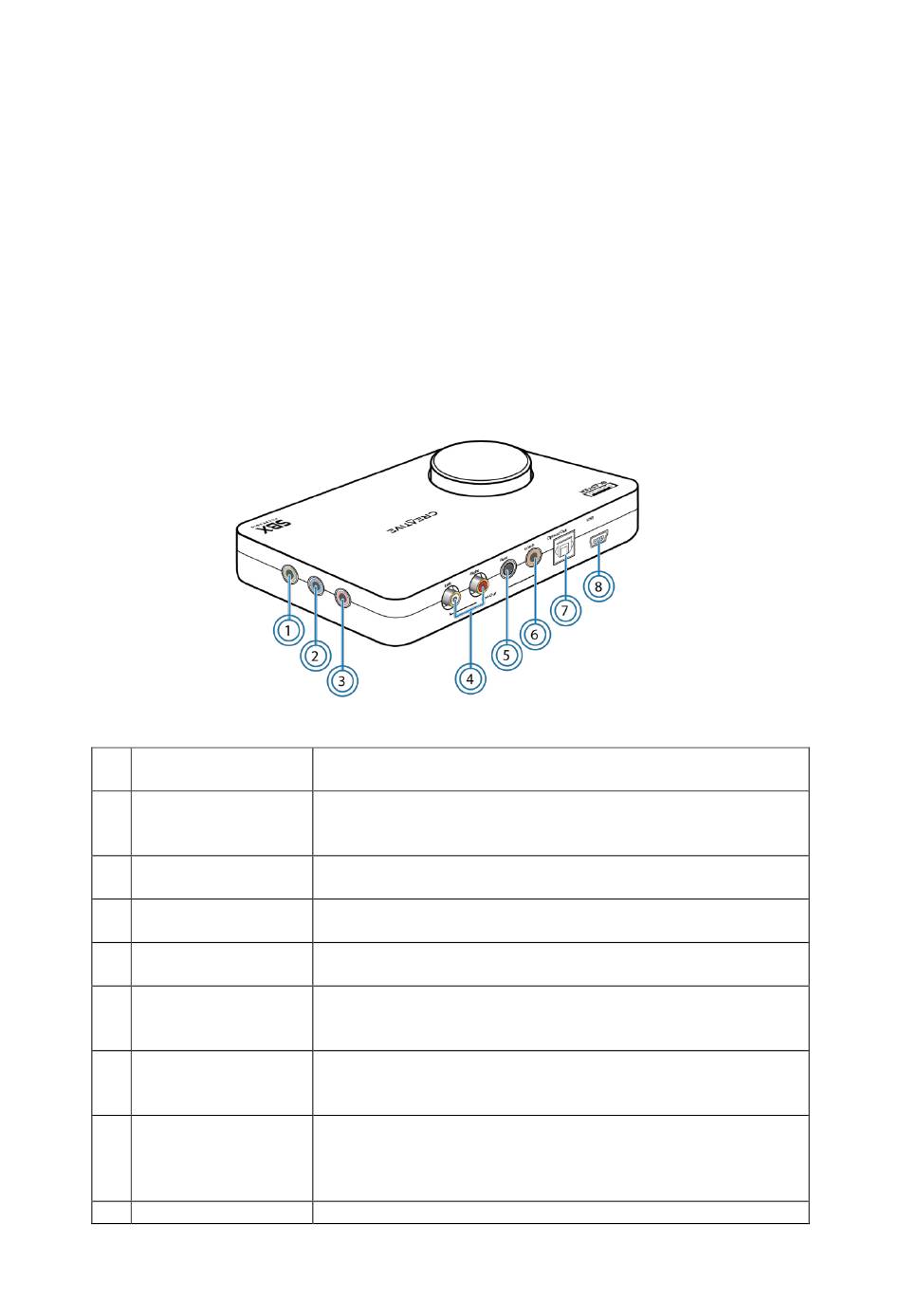

Your USB audio device has the following indicators and control dials to adjust
and monitor operational status.
Jack or
Connector
1
Headphone Jack
2
Line In Jack
3
Mic In Jack
4
RCA Front Out
Jacks
5
Rear Out Jack
6
Center/Subwoofer
Out Jack
7
Optical S/PDIF Out
Connector
8
USB Port
Creative Sound Blaster X-Fi Surround 5.1 Pro v3 User's Guide
Connects to stereo headphones using a 3.5mm (1/8-inch)
stereo jack. Speaker output is muted when the jack is
Connects to the line output of external stereo sources
(such as an MP3 player or CD player)
Connects to a microphone using a 3.5mm (1/8-inch) mono
Connects to amplified stereo or multi-channel speaker
systems, or to an external amplifier
Connects to rear or surround channel inputs of an
amplified multi-channel speaker system or to the multi-
channel inputs of a home theater receiver
Connects to center/subwoofer channel inputs on an
amplified 5.1 speaker system or to the multi-channel
inputs of a home theater receiver
Connects to the Optical In connector of
recording/playback devices with optical connectors (for
example, MiniDisc recorders, Digital Audio Tape
recorders or external amplifiers)
Connects to the computer with the USB cable
Description
detected
jack
5
