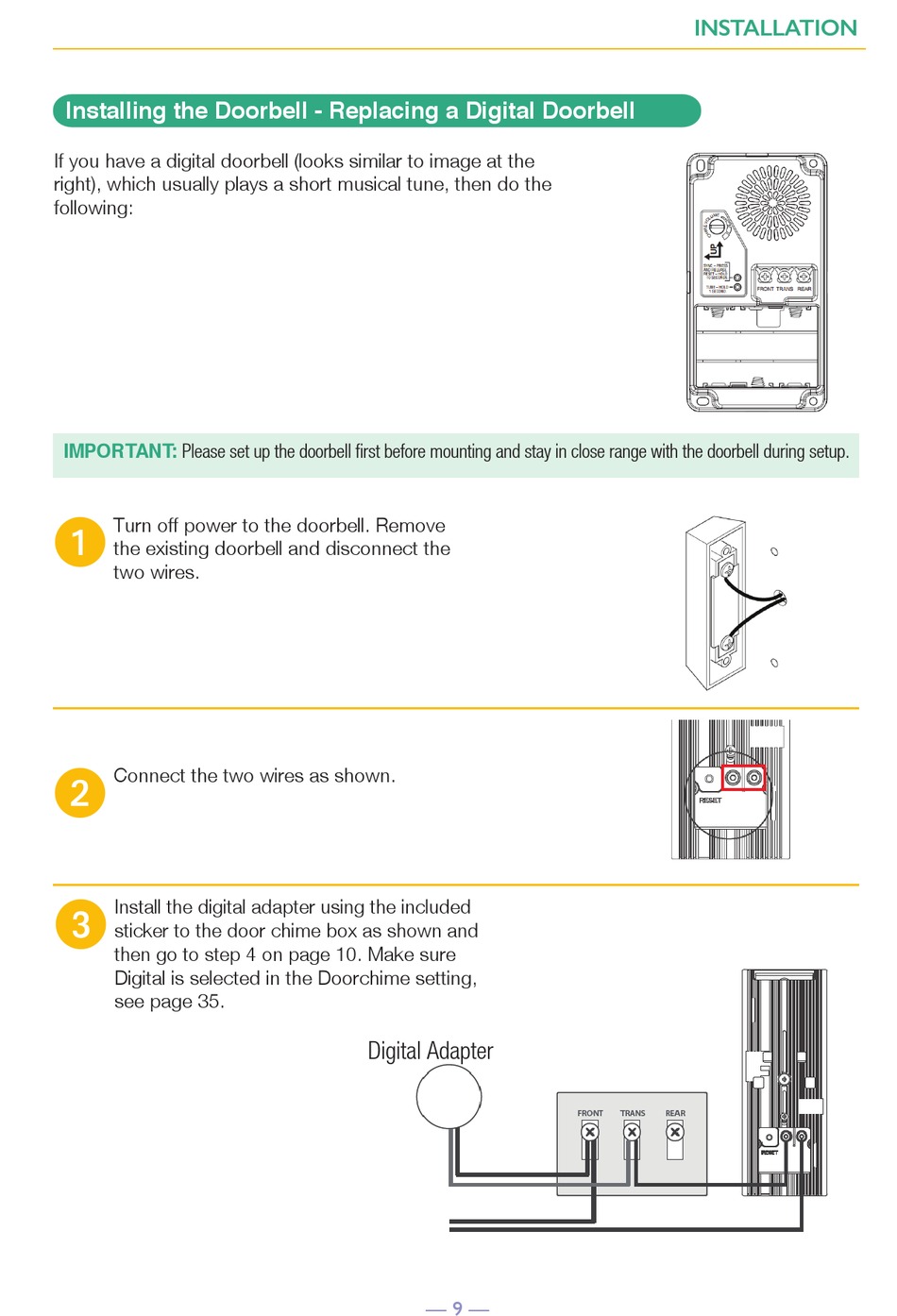

Installing the Doorbell - Replacing a Digital Doorbell
If you have a digital doorbell (looks similar to image at the
right), which usually plays a short musical tune, then do the
following:
IMPORTANT:
Please set up the doorbell first before mounting and stay in close range with the doorbell during setup.
Turn off power to the doorbell. Remove
u
the existing doorbell and disconnect the
two wires.
Connect the two wires as shown.
v
Install the digital adapter using the included
w
sticker to the door chime box as shown and
then go to step 4 on page 10. Make sure
Digital is selected in the Doorchime setting,
see page 35.
Digital Adapter
— 9 —
INSTALLATION
