INSTALLATION

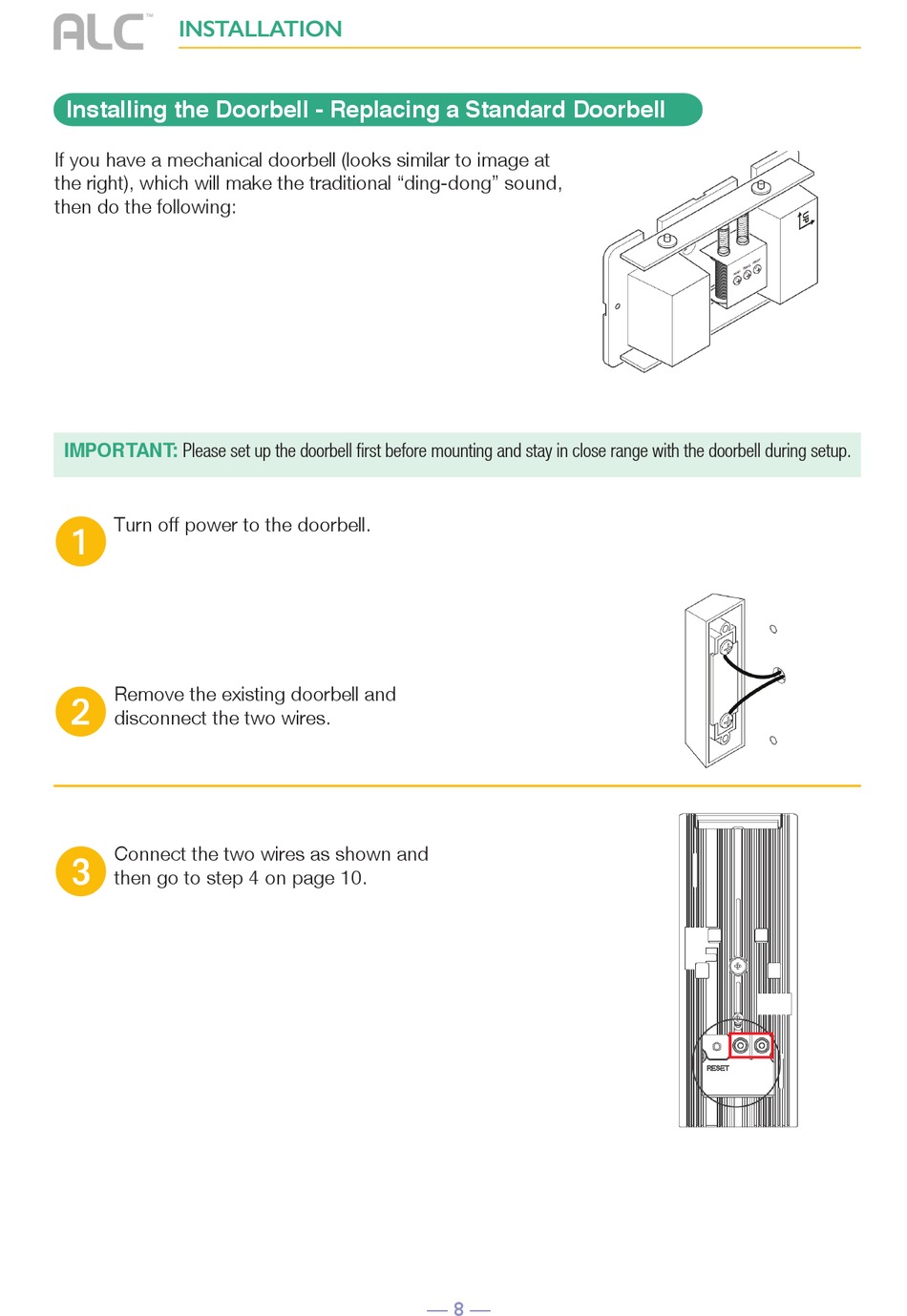

Installing the Doorbell - Replacing a Standard Doorbell
If you have a mechanical doorbell (looks similar to image at
the right), which will make the traditional "ding-dong" sound,
then do the following:
IMPORTANT:
Please set up the doorbell first before mounting and stay in close range with the doorbell during setup.
Turn off power to the doorbell.
u
Remove the existing doorbell and
v
disconnect the two wires.
Connect the two wires as shown and
w
then go to step 4 on page 10.
— 8 —
