DeDietrich Cor-email General Information Manual

Cor-émail Electric Water Heaters
Capacity: 10 - 500 litres
Purpose
Heating and storage of domestic hot water
1. General Information
All Cor-émail water heaters have an internal lining made of vitreous enamel
with a high quartz content which is appropriate for food use. The enamel pro-
tects the tank from corrosion and ensures that the hot water is well preser-
ved and kept clean. This protection is optimized by the Integrated Anti Corro-
sion system (ACI) non-consumable titanium anode and efficiency indicator
light. (Except on 400 and 500 l floor-standing models, which are fitted with a
magnesium anode)
In most Cor-émail water heaters (except 400 and 500 L and compact
Vertical wall-mounted water heaters:
(p. 4). These highly aesthetic heaters may be mounted on a wall or placed on a
stand. Thanks to their small dimensions, they may also be fitted inside a wall cup-
board. They are equiped with the ACI System which is fully corrosion proof system.
It ensures that the tank is kept well protected from corrosion.
Compact water heaters:
These aesthetic heaters heat the water very quickly and may be installed with
an inlet control system, either in an overhead location (above the sink, 10, 15
and 30 litres) or in a low position (below the sink, 10 or 15 litres). They may
also be pressurised and used to supply hot water to several tapping points.
D E D I E T R I C H
BOITE POSTALE 30 • 57, RUE DE LA GARE • F 67580 MERTZWILLER • TELEPHONE : 03 88 80 27 00 • FAX : 03 88 80 27 99
50 - 200 litre standard heaters
10 - 30 litres (p. 3).
T H E R M I Q U E
Power used
Electricity
models), the resistor is coiled on a steatite support and inserted in a sleeve
which protects it from scale. In this way, there is no need to drain the water
heater to have access to the resistor.
The anti-splash plug fitted on the cold water inlet ensures that layers of hot
and cold water are stratified perfectly, thereby optimising the quantity of hot
water available.
Cor-émail electric water heaters are available in different versions which
cover all applications.
8971Q002
Free-standing water heaters:
These are designed to be placed directly on the floor (in garages, base-
ments, boiler rooms etc.) especially when the walls are not strong enough to
take a 150 or 200-litre wall-mounted model.
8971Q001

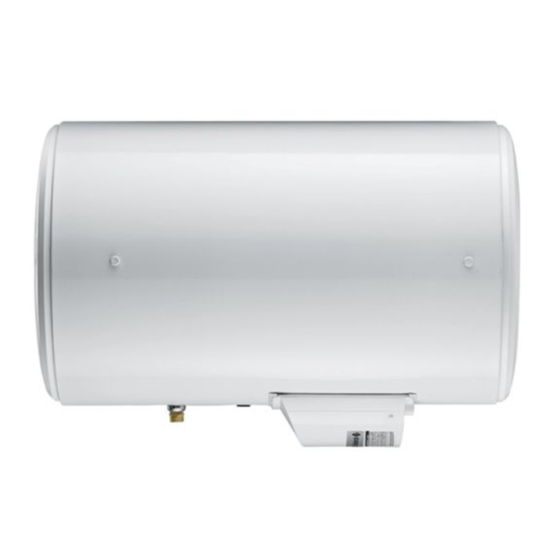

Horizontal water heaters:
Their multiple position support makes it possible to mount them on a wall or
under the ceiling or place them on the floor.
Société Anonyme
150-500 litres (p. 6).
75 - 200 litres (p. 5).
au Capital de 21 686
8971Q003
8971Q004
370,- Euros
