Z-5R NET
External buzzer
LED
lock
door sensor
+12 V
power
Note: External buzzer, LED and door opening sensor are optional elements.
Entrance
+12V
GND
DATA 0
Note: To get the reader working at specified distance, please use a UTP cable, such as
CAT5e:
- When connecting via iButton, one wire is connected to GND, another to DATA0 terminals.
- When connecting via Wiegand-26, first twisted pair is attached to GND and DATA0, and
second to GND and DATA1.
ZUMM
TM
TM
GND
EXIT
button
LED
LOCK
+12V
GND
DOOR
ADD
CLR

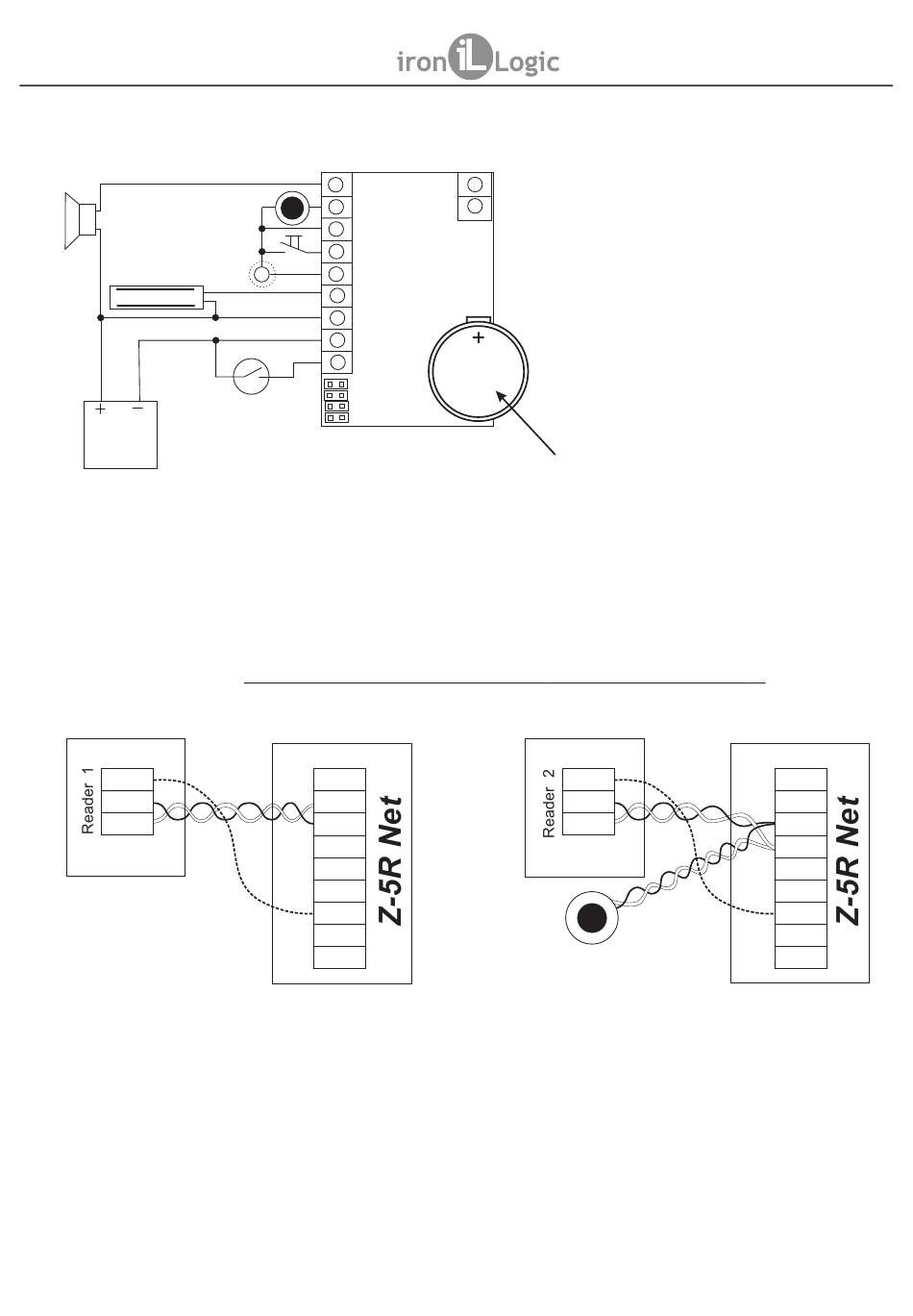

Figure 3. Connecting the accessories.
Connecting readers via iButton (Dallas Touch Memory) .
ZUMM
TM
GND
EXIT
LED
LOCK
+12V
GND
DOOR
Figure 4. Connecting readers.
www.ironlogic.me
Socket Terminals:
1. ZUMM External buzzer
2. TM TM central input
3. GND Common ground (-)
4. EXIT Door release button
5. LED External LED (+)
6. LOCK Lock
7. +12V +12 V power
8. GND Common ground (-)
9. DOOR Door sensor (reed switch)
Battery holder
Exit
+12V
GND
DATA 0
Door
button
ZUMM
TM
GND
EXIT
LED
LOCK
+12V
GND
DOOR
