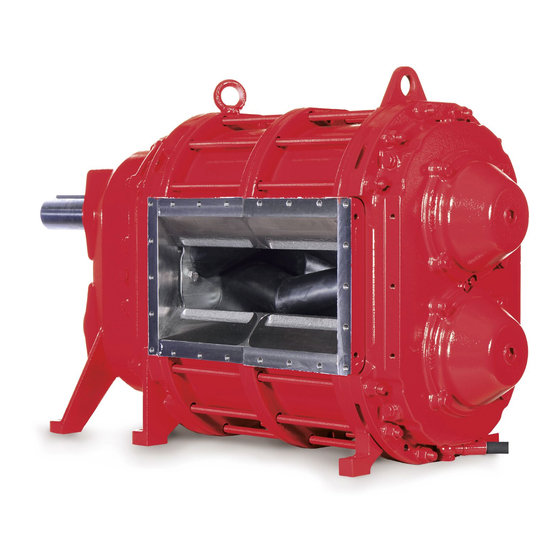

Vogelsang VX136Q..QD..QDM2 Series Manual

Rotary lobe pumps
Hide thumbs
Table of Contents

Advertisement

Quick Links

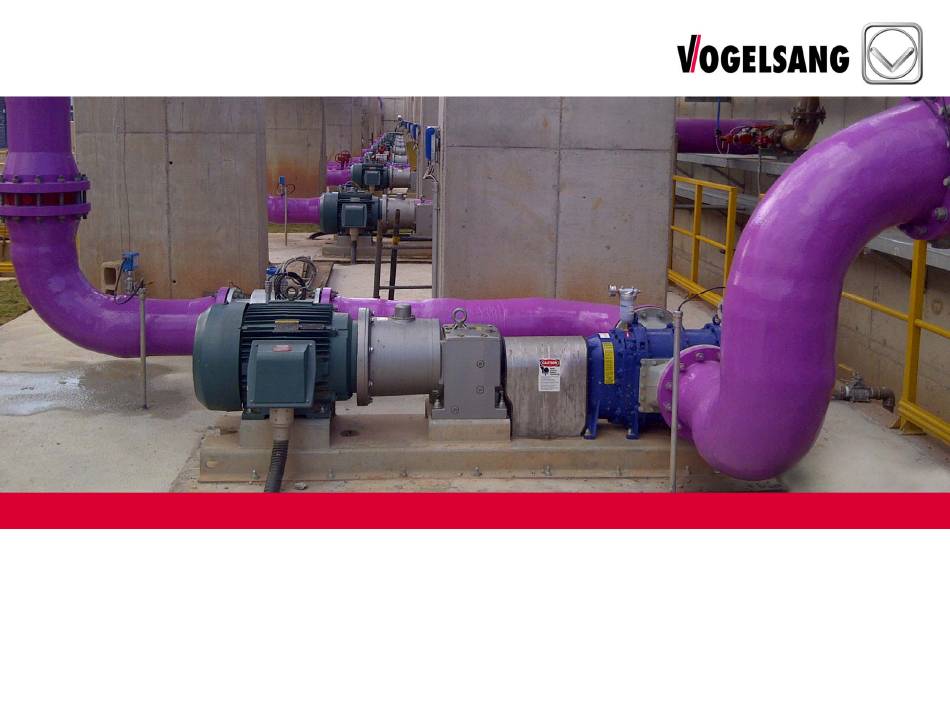

WELCOME TO VOGELSANG FACTORY TRAINING
Best Practices for Installation of
VX Rotary Lobe Pumps

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VX136Q..QD..QDM2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vogelsang VX136Q..QD..QDM2 Series

Summary of Contents for Vogelsang VX136Q..QD..QDM2 Series

  • Page 1 WELCOME TO VOGELSANG FACTORY TRAINING Best Practices for Installation of VX Rotary Lobe Pumps...
  • Page 2 Vogelsang Service Webinar | Storage Storage If you are not installing your new pump right away, there are steps you must take to ensure the pump remains in working condition when it comes time for startup.
  • Page 3 Vogelsang Service Webinar | Storage Short Term Storage 1. Flush pump with clean water (or water glycol mix), empty and allow it to dry. 2. Lightly grease bare metal surfaces and shafts. 3. Store the pump assembly in horizontal position in a dry area.
  • Page 4 Vogelsang Service Webinar | Storage Long Term Storage 1. Flush pump with clean water (or water glycol mix), empty and allow it to dry. 2. Store the unit in a low humidity environment, allowing excess moisture to evaporate 3. Open the cover plate of pump and spray a long-term preservative (e.g. SHELL ENSIS) on all bright pump internals and the inside of the cover plate.
  • Page 5 Vogelsang Service Webinar | Storage Recommissioning 1. Remove long-term rust preservative. 2. Drain the gear oil of the pump gear box to the rated oil level according to the O&M manual. 3. Drain the gear oil of the drive gear box to the rated oil level according to the O&M manual.
  • Page 6 Preparing for Installation Follow all best practices for safety when working on Vogelsang Equipment.
  • Page 7 Vogelsang Service Webinar | Safety Lockout & Tagout Important: 1. Follow all Lockout & Tagout procedure before any work is performed on the pump. 2. This sticker (or one similar on older models) came with your pump. Make sure your pump is ready to be serviced by performing steps 1-7.
  • Page 8 Vogelsang Service Webinar | Safety Over Pressurization Risk of injury from bursting components and liquid spraying out under high pressure. • The maximum operating pressure must not be exceeded at any time. • Observe and implement the recommendations in for installation in pipelines.
  • Page 9 Vogelsang Service Webinar | Safety Run Dry Even though our pumps are allowed to run dry from time to time, a brand new pump may develop friction during the break-in period. Friction could lead to heat and should be avoided.
  • Page 10 Vogelsang Service Webinar | Offloading Moving the Pump Depending on the chosen configuration, assemblies may be moved in a variety of ways. • Always follow basic safety practices when moving heavy equipment. • All assemblies come with factory installed lifting...
  • Page 11 Vogelsang Service Webinar | Offloading Moving a Bare Shaft Q Pump Simply lift a Q-Series pump by the lifting ring located in the center. Removing the Oil Bottle is a best practice when moving the pump but is not always necessary for...
  • Page 12 Vogelsang Service Webinar | Offloading Moving a Bare Shaft QD Pump Larger QD-Series pumps will have two lifting points. One is the same as the Q-Series and the other will be located on the outboard end of the pump. The fitting at the outboard end may be a ring or a tab depending on pump model.
  • Page 13 Vogelsang Service Webinar | Offloading Moving an Inline Assembly Moving a complete assembly will require a bridle to be composed of four cables or chains connected to the four slots located in the channel base. Do not use the lifting rings to move a completed assembly.
  • Page 14 Vogelsang Service Webinar | Offloading Moving a Belt Drive Piggy Back Assembly Moving a complete assembly will require straps to be threaded under the motor mounting plate. Make sure your straps are rated for the weight of the complete assembly.
  • Page 15 Installation...
  • Page 16 Vogelsang Service Webinar | Installation Mounting Flanges Most pumps come complete with a set of flanges. The flanges will be mounted to the skid to prevent damage during shipping. All hardware will be included such as hex bolts, washers and flange gaskets.
  • Page 17 Vogelsang Service Webinar | Installation Optional Grouting Our customers sometimes prefer to bolt inline assemblies to the pad and then apply grout above the flange to secure the pump and prevent any vibration. Our pumps are pulsation-free which means grouting is not a requirement but is an acceptable installation method.
  • Page 18 Vogelsang Service Webinar | Alignment Coupling Alignment Vogelsang offers two basic assemblies for most applications. The belt drive configuration must be aligned by verifying that both sheaves are aligned using a straight edge. Inline assemblies use a three part coupling device that must also be aligned to avoid any vibration or unnecessary wear.
  • Page 19 Vogelsang Service Webinar | Alignment Coupling Alignment for Inline Assemblies The alignment of the coupling must be periodically checked. If there is vibration during operation, alignment is sometimes the cause. Alignment can be verified by using a straight edge or other...
  • Page 20 Vogelsang Service Webinar | Alignment Surflex Coupling Alignment Check parallel alignment by placing a Parallel Alignment straight edge across the two flanges and measuring the maximum offset at various points around the periphery without rotating the coupling.
  • Page 21 Vogelsang Service Webinar | Alignment Surflex Coupling Alignment Check the angular alignment with a Angular Alignment micrometer or caliper. Measure from the outside of one flange to outside of the other at intervals around the periphery of the coupling. Don’t rotate...
  • Page 22 Vogelsang Service Webinar | Alignment Surflex Coupling Alignment Tolerances (Dimensions in inches) Sleeve Maximum Types JE, JN, JES, JNS, E & N Type H & HS Size Parallel Angular Parallel Angular 9200 .010 .035 1.188 7600 .010 .043 1.500 …...
  • Page 23 Vogelsang Service Webinar | Alignment V-Belt Drive Alignment Aligning the V-Belt or Piggy Back configuration requires that the sheaves are in line with each other. Once the pump is mounted, the orientation of the motor is controlled via four mounting bolts as shown.
  • Page 24 Pressurizing the Pump...
  • Page 25 Vogelsang Service Webinar | Pressurized Oil Bottle What is the Pressurized Oil Bottle? Vogelsang applies positive pressure inside the buffer chamber. The pressure is achieved via a semi-opaque bottle where air is pumped inside the bottle creating pressure on the oil inside the bottle and buffer chamber.
  • Page 26 Vogelsang Service Webinar | Pressurized Oil Bottle What is the Pressurized Oil Bottle? The oil bottle consists of: 1. Metal Cap with integrated Pressure Gauge 2. Threaded Ring to hold the cap to the bottle. 3. A Plastic Bottle with integrated threaded fitting on the...
  • Page 27 Vogelsang Service Webinar | Pressurized Oil Bottle Where is the Pressurized Oil Bottle Located? The pressurized oil bottle must Gear Box Buffer Wet End Chamber Chamber be connected to the Buffer Chamber Port Port Chamber Port. Not the Gear Box Chamber Port.
  • Page 28 Vogelsang Service Webinar | Pressurized Oil Bottle Where is the Pressurized Oil Bottle Located? The pressurized oil bottle must Gear Box Buffer Buffer Chamber Chamber Chamber be connected to the Buffer Port Port Port Chamber Port. Not the Gear Box Chamber Port.
  • Page 29 Vogelsang Service Webinar | Pressurized Oil Bottle Where is the Pressurized Oil Bottle Located? On piggy-back assemblies or installations where the top of the pump is obstructed, the bottle is threaded to an external mount and connected to the pump via a...
  • Page 30 Vogelsang Service Webinar | Pressurized Oil Bottle Section 4. Pressurizing the Pump Adding pressure to the buffer chamber and QD Door buffer for QD pump models. 1.Fill the Buffer Chamber completely using a factory recommended oil. 2.Attached the Pressurized Oil bottle to the buffer chamber or assemble the hose and bottle assembly for piggy back installations.
  • Page 31 Vogelsang Service Webinar | Pressurized Oil Bottle Determining the Correct Pressure The proper pressure to be set varies. The pressure in the buffer chamber is determined by your normal suction and discharge pressure. A simple formula is used to determine the pressure. You need to know your suction and discharge pressure.
  • Page 32 Vogelsang Service Webinar | Pressurized Oil Bottle Determining the Correct Pressure Formula: Suction Discharge Operating Plus Equals Step Pressure Pressure Pressure Operating ½ Differential Equals Pressure Divided by Pressure ÷ ½ Differential Gauge Plus Equals Pressure Pressure 7psi...
  • Page 33 Vogelsang Service Webinar | Pressurized Oil Bottle Troubleshooting 1. If the oil level drops during operation or at idle, then it is likely that the pressure in the buffer chamber is too high. Add oil to ¼ full and reduce the pressure in increments of 7psi until the level stabilizes.
  • Page 34 Vogelsang Service Webinar | Pressurized Oil Bottle Factory Recommended Oils Acceptable Oils that match Exxon Mobil Spartan EP220: • Exxon Mobile Mobilgear 600 XP220 • Lubrication Engineers’1605 Duolec Vari-Purpose Gear Lubricant • NAPA SAE 80W-90 GL5 Gear Oil • Shell Spirax 80W-90 Gear Oil •...
  • Page 35 Please have the Serial Number of this pump ready when you call for service. Model: VX186-130H4Q Assembly Serial #: 11-05027 Each pump ships with a data card Vogelsang Work Order # : 5766, Sales Order #: 3961400 Customer PO #: 00404432-FonDuLac WWTP Owner Information: mounted to the pump. Distributor Information: Manufacturer Information: JF Ahern Co - Brian Horejs J.F.
  • Page 36 Startup Direction of flow, Startup Checklist...
  • Page 37 Vogelsang Service Webinar | Direction of Flow Motor Driven Pumps Most pumps are configured with a single shaft electric motor as the drive unit for VX Series Pumps. The rotation of the shaft determines the direction of flow. The wiring configuration and/or VFD setting will determine which way the shaft will spin.
  • Page 38 Direction of Flow Direction of Flow Rotary Lobe Pumps are all reversible by design. Most Vogelsang pumps can easily be reversed on the fly. If your pump has standard or injection housings, the pump can run in either direction. However, our injection II housing is asymmetrical and should be run in the direction that the pump was configured for.
  • Page 39 Vogelsang Service Webinar | Wiring Direction of Flow The flow direction is initially determined by the way the motor is wired. Refer to the wiring diagram on the motor for instructions on which way to wire the motor.
  • Page 40 Vogelsang Service Webinar | Controls Control Panels Operating parameters are set by a certified controls representative per the motor specification. All panels must be set to constant torque.
  • Page 41 Vogelsang Service Webinar | Startup Checklist Startup Checklist Vogelsang requires a completed checklist to be filled out and submitted back to us. The warranty on the product does not initiate until we receive the startup form back. This form confirms to us that the product we installed properly.
  • Page 42 Vogelsang Service Webinar | Identification Pump Indentification Each Vogelsang product has an affixed tag that shows the model and serial number. • Always have the model and serial number ready when making a service call. • This will ensure that...
  • Page 43 Vogelsang Service Webinar | Operation & Troubleshooting Troubleshooting • Troubleshooting Matrix • Service Web Page • Contact Service at (330) 510-1557, (330) 296-3820 x226 or service@vogelsangusa.com. • Download this presentation at: www.vogelsangusa.com/pumpinstall.pdf...
  • Page 45 2012-12-19 *WBV.PU.002.EN* WBV.PU.002.EN V5.0 Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD *WBV.PU.002.EN* 2012-12-19 WBV.PU.002.EN V5.0 1/68...
  • Page 46 © 2012 Hugo Vogelsang Maschinenbau GmbH Registered trademarks of Vogelsang Vogelsang, Vogelsang Logo, RotaCut, HiFlo, ACC, CFC, BioCrack, XTill and EnergyJet are registered trademarks of Hugo Vogelsang Maschinenbau GmbH. ®...

  • Page 47: Table Of Contents

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Contents User information ............................. 5 Using the operating instructions ......................5 Warning signs, danger symbols, information ..................5 Presentation convention ........................5 Intended purpose ........................... 6 Safety ............................... 6 General safety notes ........................... 6 Training of persons..........................
  • Page 48 Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Change of wear plates ........................50 Change of cartridge mechanical seal ....................51 8.9.1 Change of cartridge mechanical seal on the gearbox ..............51 8.9.2 Cartridge mechanical seal change on the QD cover ..............53 8.10 Adjusting of pump housing segments ..................

  • Page 49: User Information

    Vogelsang does not accept any liability for damage resulting from failure to comply with these maintenance and operating instructions. Warning signs, danger symbols, information This warning warns you of possible hazards to the health and life of yourself and other people resulting from the handling and operation of this machine.

  • Page 50: Intended Purpose

    In some cases the pump must be reconfigured. Any other use is contrary to the intended purpose. Vogelsang is not liable for any damage resulting from incorrect use.
  • Page 51 Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Risk of injury from bursting components and medium spraying out under high pressure • The maximum operating pressure must not be exceeded  Chap. “Technical data" . • Observe and implement the recommendations in the  Chap. “Installation in pipelines". •...
  • Page 52 Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Check safety devices Qualified personnel must connect and check safety devices on a regular basis for proper function, especially after doing maintenance and repair work, before restarting. Risk of injury when loading and transporting the pump or the pump unit •...

  • Page 53: Training Of Persons

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Training of persons Only trained and instructed persons may work with and on the pumps. The operator must clearly define the responsibilities of the persons for operating, servicing and maintaining equipment. A person to be trained may only work with and on the pump under the supervision of an experienced person.

  • Page 54: Warning And Safety Notes On The Pump

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Warning and safety notes on the pump Warning and safety stickers on the machine provide important information for safe operation. Heeding the stickers promotes the safety of persons who work with and on the pump. The warning and safety stickers must not be removed and must be replaced immediately if damaged or lost.
  • Page 55 Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Key Fig. "Warning and safety stickers" Pos. Sticker Part no. Meaning Before starting up the pump, read the operating VAU.133 instructions! VAU.138 Buffer fluid tank or quenching fluid tank (Only used for pumps with a mechanical seal consisting of the mating materials SiC-SiC) Text –...

  • Page 56: Direction Of Flow

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Direction Of Flow The pump is suited for both flow directions. Please observe the following machine and safety technology exceptions in which the flow direction is predefined: • Marathon pumps VX136QDM2, VX186QDM2  Chapter “Marathon pump". •...

  • Page 57: Marathon Pumps

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Danger from rotating shaft end In order to prevent the hands or the work clothing from getting caught on the rotating shaft end (without . cardan shaft), the pump may only be operated with a suitable PTO shaft guard. Please contact us Operating torque limitation for PTO drive In order to prevent overloading the pump drive shaft, the operating torque must be limited: With cardan shafts with a...

  • Page 58: Pump Systems

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Pump systems The pressure and suction sides are rigidly defined by the rotation of the pumps. When there are suction difficulties, it is possible to draw in through the discharge side. A reversal of the pumping direction is not possible if the pipelines are protected by automatic check valves/return valves.

  • Page 59: Assembly

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Assembly Transport VX230Q VX100Q, VX136Q, VX186Q Dismount buffer fluid tank prior to transport and then screw back in again. Fig. 7: Transport aids - pump type Q VX136QD VX136QDM2 size 420 VX136QDM2 up to size 280 VX186QD,VX186QDM2, VX230QD Fig.

  • Page 60: Fig. 9: Transport Aids - Pump With Flange-Mounted Electric Motor

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD VX100Q Fig. 9: Transport aids - pump with flange-mounted electric motor Fig. 10: Transport aids - pump on base, type inline Fig. 11: Transport aids - pump on base, type belt drive 16/68...
  • Page 61 Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Risk of injury when loading and transporting the pump or the pump unit • Use the lifting eye bolts on the pumps only for lifting the pump without mounted parts (for example, the motor).

  • Page 62: Pump And Motor On Base

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Pump and motor on base Noise and vibration hazard Wear Noise, vibrations and oscillations can cause impairment of communication and discomfort. To avoid wear, vibration and generation of noise: • the base for the pump and motor must not be tensioned during installation. •...

  • Page 63: Installation In Pipe Systems

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Installation in pipe systems • The pump can be installed upright, horizontal, vertical or suspended  Fig. "Installation variants".  With a horizontal installation, the inlet should be on the bottom and the outlet on the top. ...

  • Page 64: Pipes And Connectors

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Pipes and connectors • Only use the pipe diameters, wall thicknesses and materials recommended by us or by our representatives. The sealing material must be compatible with the medium. • Position the pressure and suction connections pointing upwards. This will ensure that the fluid remains in the pump after it is switched off.

  • Page 65: Suction Lines

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 5.4.1 Suction lines To protect from high pressure losses and cavitation, heed the advice for laying the suction lines • The maximum suction height is 8 m. This is the maximum distance between the lowest and highest points of the suction pipe.

  • Page 66: Notes On The Control

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Notes on the control Controls We recommend our control system, which is specially designed for use with the pump in order to provide optimum service life for the pump . All connections necessary for connecting the pump to a control system are available.

  • Page 67: Connection To The Power Supply

    • Observe the permissible hydraulic pressure and the permissible delivery rate. • Replace hydraulic hose lines that show signs of damage or ageing. Only use genuine Vogelsang hydraulic hose lines of the manufacturer. • The date of manufacture of the hydraulic hose line is displayed on the pressing component of the connector.

  • Page 68: Start-Up

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Start-up Personnel for start-up and operation We recommend starting up the machine in the presence of persons who are responsible for further operation of the machine. Check list before start-up  Are the inlet and outlet lines connected? ...

  • Page 69: Maintenance

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Maintenance Risk of injury from stumbling on slippery floor • Keep work station clean and clean up any auxiliary materials, operating materials and medium residue that may be present, especially before maintenance and repair work on the pump or the pump unit. •...

  • Page 70: Buffer Or Quenching Fluid - Inspection And Change

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 7.1.3 Buffer or quenching fluid - inspection and change Buffer fluid or quenching fluid • Check:  After the first 20 operating hours  Every 200 operating hours . Electronic buffer chamber monitoring is possible. Ask us •...

  • Page 71: Buffer Chamber Assemblies

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Buffer chamber assemblies 7.2.1 Pressurisable buffer fluid tank The pressurisable buffer fluid tank (hereinafter “tank”) with manual air pump ensures a constant and defined buffer chamber pressure (buffer chamber pressure = tank pressure). The tank is for safely monitoring the buffer chamber.

  • Page 72: Depressurised Quenching Fluid Tank

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 7.2.2 Depressurised quenching fluid tank The quenching fluid tank must always be a quarter full with quenching fluid to allow for thermal expansion. The level of quenching fluid in the tank can vary because of operational conditional heating of the pump. Unscrew the upper housing of the quenching fluid tank to top up the tank (hold the union nut tight so that the lower screw connection does not come loose).

  • Page 73: Pressure Valve

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 7.2.3 Pressure valve  Fig. “Pump with pressure valve, without buffer fluid tank” Dismount pressure valve for inspection of buffer fluid and for topping up small quantities in the buffer chamber. Skin and eye irritation caused by auxiliary materials, operating materials and medium •...

  • Page 74: Dry Buffer Chamber

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 7.2.5 Dry buffer chamber This sealing system is only used if buffer chamber fluid must not get into the pump medium. It is used for pumps that pump pure, non-abrasive media, e.g. water. Health hazard from contamination Attention! In order to avoid contamination of the pump medium on pumps with a dry buffer chamber as a sealing system, no fluid may be added into the buffer chamber.

  • Page 75: Fig. 19: Installation Example - Dry Buffer Chamber

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Assembly  Fig. "Installation example - dry buffer chamber" Connect the buffer chamber tank (3) with connecting pipe (4) at the bottom of the buffer chamber. The buffer chamber tank must be installed below the buffer chamber in order to collect leakage. The fluid level in the buffer chamber tank should come up no further than the bottom edge of the buffer chamber.

  • Page 76: Circulation System On The Cartridge Mechanical Seal

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 7.2.6 Circulation system on the cartridge mechanical seal With a circulation system on the cartridge mechanical seal, the buffer chamber is located only in the cartridge mechanical seal housing. Only the cartridge mechanical seal is flushed. The surrounding hollow space is not a part of the buffer chamber with this circulation system.

  • Page 77: Draining And Cleaning The Buffer Chamber

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD We recommend the flushing operation as specified in  Fig. “Flushing operation - parallel": • Every cartridge mechanical seal is flushed with clean flushing fluid. • A possible defect of the single cartridge mechanical seal is detected. Alternatively, the flushing operation can be done as indicated in ...

  • Page 78: Gearbox

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Gearbox 7.4.1 Gear oil - grade We recommend the oils listed in  Chapter "Oils and lubricants". 7.4.2 Gear oil - quantity Series Litres [l] VX100 0.65* VX100 with flange-mounted electric motor** VX136 VX186 VX230...

  • Page 79: Fig. 21: Gear Oil Change Vx100

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD VX100: Upright installation Horizontal installation VX100 with flange-mounted electric motor: Upright installation Fig. 21: Gear oil change VX100 Hexagon head screw plug fill magnetic hexagon head screw plug drain alternatively empty via B1 check •...

  • Page 80: Fig. 22: Gear Oil Change Vx136, Vx186, Vx230

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD VX136/VX186: Upright installation Horizontal installation VX230: Upright installation Fig. 22: Gear oil change VX136, VX186, VX230 Hexagon head screw plug fill magnetic hexagon head screw plug drain alternatively empty via B1 Grease nipple (at gearbox side) Grease nipple (at the VX186QD cover) check...

  • Page 81: Greasing Of Sealing Prechamber

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Greasing of sealing prechamber (on VX136, VX186 and VX230 series)  Grease nipples are primarily used for long-fibred media. They can be retrofitted upon request The sealing prechamber can be greased through the grease nipples (if applicable)  Fig. "Changing gearbox oil".

  • Page 82: Oils And Lubricants

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Oils and lubricants Standard Vogelsang oil for pump gearboxes and buffer chamber Part number BSS.006 Description EP (Extreme Pressure) gear oil Trade name (Fuchs) Titan Gear MP 90 Characteristics Test acc. to...
  • Page 83 Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Alternative oils for the buffer chamber Part number BSS.014 Description Mineral oil based hydraulic and lubricating oil Trade name (Fuchs) Renolin B 15 Characteristics Test acc. to ISO VG DIN 51519 Viscosity index DIN ISO 2909 Kinematic viscosity...
  • Page 84 Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Oils for the buffer chamber with electronic buffer chamber monitoring Part number BSS.021 Description Fully synthetic EP industrial gear oil on the basis of selected polyglycols (PAG) Trade name (Fuchs) Renolin PG 100 Characteristics Test acc.

  • Page 85: Repair

    Conversion and spare parts Modifications or changes to the pump are only permissible after consultation with Vogelsang. Only accessory parts approved by Vogelsang or original spare parts can be used. The use of other parts invalidates the guarantee for any resulting damage.

  • Page 86: Before Opening The Q Or Qd Cover

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Before opening the Q or QD cover Before opening the Q and QD cover: • Depressurise the pump assembly. • Shut off the connected pipes. • Empty the pipe as much as possible using drain cocks. Attention! The remaining liquid flows out of the pump when the cover is opened.

  • Page 87: Opening The Qd Cover

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Opening the QD cover  Fig. "Opening/Closing the QD cover" Depressurise buffer chambers. Loosen hexagon nuts (1) of the twelve hexagon head screws or threaded rods on the QD cover (5). Remove the hexagon head screw plugs (2) carefully, as medium could spurt out due to pressure in the housing.

  • Page 88: Closing The Cover Plate For Qd/Qd Marathon-Pumps

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Closing the cover plate for QD/QD Marathon-pumps  Fig. "Opening/Closing the QD cover" Before assembly of the QD cover (5) thoroughly clean the components and also oil them if necessary  Fig. "Cleaning before the QD cover assembly". Pull O-ring (6) onto the QD cover.

  • Page 89: Rotary Lobe Change

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Rotary lobe change HiFlo arrangement HiFloplus arrangement Marathon arrangement (VX136QDM2, VX186QDM2) Fig. 26: Arrangement of HiFlo and HiFloplus (L = left rotary lobe, R = right rotary lobe) 45/68...

  • Page 90: Rotary Lobe Change - Vx100Q, Vx136Q, Vx186Q, Vx230Q Series

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD HiFloplus HiFloplus-rotary lobes, in contrast to HiFlo rotary lobes, have a second groove. The groove, which in the “arrangement HiFloplus" is not to be used, is marked in red. 8.7.1 Rotary lobe change - VX100Q, VX136Q, VX186Q, VX230Q series ...

  • Page 91: Fig. 28: Position Of Pressure Disc And Spring Washer

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 8.7.1.1 Position of pressure disk and spring washer VX136Q series Correct position: Attention! Incorrect assembly: VX100Q, VX186Q and VX230Q series Correct position: Attention! Incorrect assembly: Fig. 28: Position of pressure disc and spring washer Pressure disc Spring washer (1 piece for VX100Q, VX186Q and VX230Q and 2 pieces for VX136Q) 47/68...

  • Page 92: Rotary Lobe Change - Vx136Qd, Vx186Qd, Vx230Qd Series

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 8.7.2 Rotary lobe change - VX136QD, VX186QD, VX230QD series  Fig. “Rotary lobe change, Q series" Open QD cover (5)  chap. "Opening the QD cover". 1. 2. Pull the rotary lobes (11) from the shafts using a rotary lobe puller (see spare parts list). ...

  • Page 93: Rotary Lobe Change - Vx136Qdm2, Vx186Qdm2 Series

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 8.7.3 Rotary lobe change - VX136QDM2, VX186QDM2 series  Fig. "Rotary lobe change, QDM2 series" Rotary lobe change of the 2nd stage (B) in  Fig. "Rotary lobe change QDM2 series" The rotary lobe change of the 2nd stage is done as described in ...

  • Page 94: Change Of Wear Plates

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 8.7.3.1 Tightening torques of the hex socket head screw or strain screw for mounting the pressure disk VVA = All steel and cast parts of the machine coming in contact with the medium are made of stainless steel. Series Hexagon socket head Tightening torque...

  • Page 95: Change Of Cartridge Mechanical Seal

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Change of cartridge mechanical seal Material Duronit for seal rings Mechanical seals made of 'Duronit' can only be used up to an operating pressure of 10 bar. Please note the maximum operating pressure  Chap. “Technical data". 8.9.1 Change of cartridge mechanical seal on the gearbox ...

  • Page 96: Fig. 32: Cartridge Mechanical Seal On The Gearbox

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Hexagon socket set screw Hexagon socket head cap screw Hexagon head screw O-ring (bearing seal housing) O-ring (seal carrier) Installation tool Complete kit part no. VX100 WKZ0455 VX136 WKZ0456 VX186 WKZ0457 VX230 WKZ0462 Fig.

  • Page 97: Cartridge Mechanical Seal Change On The Qd Cover

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 8.9.2 Cartridge mechanical seal change on the QD cover 1. Depressurize both buffer chambers. 2. Emptying and cleaning the buffer chamber at the QD cover. Remove any flushing connections and circulation system  chap. "Circulation system on the cartridge 3....

  • Page 98: Adjusting Of Pump Housing Segments

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 8.10 Adjusting of pump housing segments Should the pump housing segments be worn, they can be readjusted as follows. Remove Q or QD cover  Chapter "Opening the Q cover" or “Opening the QD cover". Loosen the connector and screws at the pump housing segments.

  • Page 99: Reducing The Starting Torque

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 8.11 Reducing the starting torque With the VX100Q, VX136Q and VX186Q series, the starting torque can be reduced by installation of thin wear plates (except for …QVVA series) or by the installation of shims between rotary lobes and wear plates. Increasing the gaps between rotary lobes and wear plates however reduces the volumetric efficiency.
  • Page 100 Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Gap increase by installing shims Increasing the gap on the Q cover (each with a new shim)  Table “Increasing the gap using shims" • Put one new shim on each of the four distance nuts of the Q cover. Increasing the gap on the gearbox (each with a new shim) ...

  • Page 101: Maintenance Plan

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD Maintenance plan Lubricate grease nipple Check belt tension for pumps with belt drive acc. to accompanying sheet Tighten the screws for the base Checking buffer fluid tank or quenching fluid tank Changing buffer fluid or quenching fluid Change gearbox oil...

  • Page 102: Service Plan

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 10 Service plan Warranty is valid only when service intervals acc. to  Chap. "Service instructions" have been followed and performed. Serial number (nameplate): Date Name Signature 58/68...

  • Page 103: Trouble-Shooting

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 11 Trouble-shooting 11.1 Troubleshooting Help  Chapter "Help" Troubleshooting • No pump delivery A, B, D, G, J, R • Pump stops after start J, K, M, R, S, V • Intake flow breaks away after start D, E, G, S, V •...

  • Page 104: Help

    Reduce gaps Gap too large "Maintenance" starting torque" in reversed procedure Medium temperature above Reduce medium temperature. "Designated use", the nominal value "Material description for Medium temperature below Increase medium temperature (after consulting rotary lobes" the nominal value Vogelsang) 60/68...

  • Page 105: Specifications

    (solid material) 200°C* petrochemical chemical resistance consult Vogelsang in the event of the combination of "high pressure and high temperatures" ** drinking water approvals: KTW, DVGW-Arbeitsblatt, W 270, WRAS, BELAQUA Please consult us   if you require combinations with high pressure and high temperatures, see * in table ...

  • Page 106: Vx100 - Technical Data

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 12.2 VX100 – Technical data Pump size of series Theoretical capacity* Max. operating Theoretical operating torque with VX100Q = 1000 min pressure** max. operating pressure and water (valid for NBR elastomers) ALU*** [l/min] [bar]...

  • Page 107: Vx136 - Technical Data

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 12.4 VX136 – Technical data Pump size of series: Theoretical Max. operating pressure** Theoretical operating torque with capacity* max. operating pressure and water VX..QD VX..Q VX..QD VX..QD VX..Q VX...QD VX136QD Marathon Marathon VX136 Marathon...

  • Page 108: Vx230 - Specifications

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 12.6 VX230 – Specifications Pump size of theoretical max. operating theoretical operating torque with max. series: capacity* pressure** operating pressure and water = 540 [min VX..QD VX..Q VX..QD VX..Q VX230 [bar] [bar] [Nm] [Nm]...

  • Page 109: Long-Term Storage

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 13 Long-term storage Complete pumps, cartridge mechanical seals, individual O-rings and seal components If not stored and handled properly, the physical characteristics of products made of rubber may change. Possible consequences include excessive hardening, softening, lasting deformation, peeling, cracking or other surface damage.

  • Page 110: Putting Out Of Operation And Disposal

    Operating instructions Rotary lobe pump VX100Q, VX136Q..QD..QDM2, VX186Q..QD..QDM2, VX230Q..QD 14 Putting out of operation and disposal Disconnect pump from the power supply or the PTO drive.  With electric or hydraulic drive: Observe notes and safety notes  Chapter "Connection to the power supply".

  • Page 111: Declaration Of Installation

    The technical documents according to annex VII B have been prepared and can be obtained if necessary. The person authorized to compile the technical documentation is: Ms Ilona Ballmann; Hugo Vogelsang Maschinenbau GmbH; Holthöge 10-14; D-49632 Essen/Oldb. The manufacturer is obliged to electronically forward the relevant technical documentation for the partly completed machine to national authorities upon justified request.
  • Page 112 Irland Vogelsang Italy Srl Vogelsang CZ s.r.o. Vogelsang Irland vogelsang-srl.it vogelsang-czech.cz vogelsang.ie Polen Dänemark Deutschland - Niederlassung Ost Vogelsang Poland Sp. z o.o. Vogelsang A/S Vogelsang Lutherstadt Eisleben vogelsang.pl vogelsang-as.dk vogelsang-gmbh.com Rumänien Brasilien Vogelsang Romania SRL Vogelsang Brasil Ltda. vogelsang.ro vogelsang.com.br...
  • Page 113 Service Manual Service Manual Pump Models: Series Q Pumps Preventative Maintenance Inspection & Routine Adjustment New Pump w/Mechanical Seal combination of metals: SiC-Si/TC. One Rotation when not in service Remove plastic plug from breather on V100 QHD Pumps. Check belt tension for belt drive pumps according to specification for all pumps configured with...
  • Page 114 Service Manual Service Manual Pump Models: Series Q Pumps Man Hours Required for Preventative & Routine Maintenance All Q Series Pumps – Time in Hours Title Electrician Mechanic Operator Laborer Lobe Change Seal Change Wear Plate Change Housing Adjustment Complete Wet-End Rebuild (all of the above tasks) Check Oils Change Oils...
  • Page 115 Service Manual Service Manual Pump Models: Series Q Pumps Frequency of Preventative & Routine Maintenance New Pump w/Mechanical Seal combination of metals: SiC-Si/TC. One Rotation when not in service Tighten all mounting bolts Check buffer chamber oil level Change buffer chamber oil Change Gear Oil Check Gear Oil Level...
  • Page 116 There is a specific section in this manual that deals with safety concerns related to the Vogelsang Pump. Make sure you read and understand this section completely prior to starting any repair. If you have questions, please contact: 800.984.9400...
  • Page 117 Vogelsang positive displacement rotary lobe pumps can operate in both forward and reverse directions of flow. If you are in doubt about the functionality of your Vogelsang product, please ask us. Any other use is contrary to the intended purpose. The manufacturer is not liable for damages or wear...
  • Page 118 VX Series Q Pumps Identification Each Vogelsang pump is tagged with an identification label on the gearbox end of the pump. This tag shows the full model designation, serial number, year of manufacture and maximum operating conditions, if applicable. Refer to the illustrations below.
  • Page 119 Service Manual Service Manual Pump Models: VX Series Q Pumps Normal Operation Information Pre-startup Normal Emergency Startup Shutdown checks Operation Shutdown Properly install and pressurize buffer chamber using the pressurized oil bottle. Follow instructions outlined in this document. For direct drive assemblies: Confirm the pump and drive unit are properly coupled and aligned.
  • Page 120 Service Manual Service Manual Pump Models: VX Series Q Pumps Pre-startup Normal Emergency Startup Shutdown checks Operation Shutdown Rotate the pump one complete turn each month, to insure proper lubrication of mechanical seals. Clean wet-end of unit to insure a smooth re-start.
  • Page 121 Service Manual Service Manual Pump Models: VX Series Q Pumps...
  • Page 122 Service Manual Service Manual Pump Models: VX Series Q Pumps...
  • Page 123 Service Manual Service Manual Pump Models: VX Series Q Pumps...
  • Page 124 Service Manual Service Manual Pump Models: VX Series Q Pumps Sequence of Operations Open all suction and discharge valves Assure completion of all startup checks in table above Assure compliance with any electrical checklist for this application Engage pump Assure normal operation parameters Upon shutdown, observe shutdown advisories in chart above...
  • Page 125 VX Series Q Pumps Installation, Maintenance, Calibration & Repair Installation Vogelsang does not install equipment supplied as this is the responsibility of the contractor. See section 2.A.1 for installation advice. However, when designing your system, keep in mind the below guidelines.
  • Page 126 Service Manual Service Manual Pump Models: VX Series Q Pumps Equipment Alignment – Base plate The base frame of motor driven units must not be out of alignment or under stress by the mounting bolts to prevent noise and wear of coupling. After mounting, the alignment of coupling must be checked and corrected prior to operation.
  • Page 127 Pump Models: VX Series Q Pumps Trade Levels for installation Consult with General Contractor as Vogelsang does not install equipment. Special Rigging Pump/Motor assemblies may exceed 3090 lbs. and so require some lifting device with chain and hooks to engage lifting eyes on pump and motor. Assemblies should never be lifted by pump alone, or by motor alone.
  • Page 128 Service Manual Service Manual Pump Models: VX Series Q Pumps Safety Identify all safety and tag-out procedures Before setting into operation read and observe the contents of the operating instructions and the safety advisories. Warning and information stickers provide important information for safe operation. They may not be removed.
  • Page 129 Service Manual Service Manual Pump Models: VX Series Q Pumps Lubrication Lubrication Points & Lubrication Reservoirs There is a buffer chamber on the VX Q pump that is filled with oil and pressurized using a pressurized oil bottle. The gearbox is filled halfway with oil to lubricate the drive gears.
  • Page 130 • Every 2000 operating hours, however not more than 3 months between fill ups. • See section 2.F.1 for information on using the pressurized oil bottle Lubricant: Vogelsang Standard Oil Mineral Oil Titan Gear MP90, SAE 90, Combustion point: 215°C, Art-No. BSS.006 See the table of alternative oils on the following page.
  • Page 131 Service Manual Service Manual Pump Models: VX Series Q Pumps Lubrication Chart Lubrication Chart – VX Q Series Pumps Lubrication Location Supplier Product Specification Fuchs RENOLIN EP 220 Valvoline HP Gear Oil 80W-90 MP90 Quaker State FCIGL-5 MT-1 80W-90 Gearbox Mineral Oil BP Oil BP HYPO-U 80W-90...
  • Page 132 Service Manual Service Manual Pump Models: VX Series Q Pumps Operational Startup & Testing Shown below is the standard we use to test each pump before it leaves the factory.
  • Page 133 Service Manual Service Manual Pump Models: VX Series Q Pumps Operational Startup & Testing (continued)
  • Page 134 Certified Factory tests will be conducted on all products per the specification, and approved by the engineer, prior to shipment. Field tests will be conducted by the contractor per the specification. Vogelsang will witness these tests.
  • Page 135 Service Manual Service Manual Pump Models: VX Series Q Pumps Preventative Maintenance Inspection & Routine Adjustment New Pump w/Mechanical Seal combination of metals: SiC-Si/TC. One Rotation when not in service Remove plastic plug from breather on V100 QHD Pumps. Check belt tension for belt drive pumps according to specification for all pumps configured with...
  • Page 136 Service Manual Service Manual Pump Models: VX Series Q Pumps Man Hours Required for Preventative & Routine Maintenance All Q Series Pumps – Time in Hours Title Electrician Mechanic Operator Laborer Lobe Change Seal Change Wear Plate Change Housing Adjustment Complete Wet-End Rebuild (all of the above tasks) Check Oils...
  • Page 137 Service Manual Service Manual Pump Models: VX Series Q Pumps Frequency of Preventative & Routine Maintenance New Pump w/Mechanical Seal combination of metals: SiC-Si/TC. One Rotation when not in service Tighten all mounting bolts Check buffer chamber oil level Change buffer chamber oil Change Gear Oil Check Gear Oil Level...
  • Page 138 There is a specific section in this manual that deals with safety concerns related to the Vogelsang Pump. Make sure you read and understand this section completely prior to starting any repair. If you have questions, please contact: 800.984.9400...
  • Page 139 Service Manual Service Manual Pump Models: VX Series Q Pumps Depressurize Buffer Chamber IMPORTANT: Your pump is equipped with a pressurized oil canister. When you are working on the mechanical seals you must depressurize the buffer chamber before you remove the seals.
  • Page 140 Service Manual Service Manual Pump Models: VX Series Q Pumps Repressurizing Pump after completed maintenance The pressurized buffer chamber canister (oil bottle) provides a constant pressure against the mechanical seal helping to prevent infiltration of material from a higher pressure in the pumping chamber.
  • Page 141 Service Manual Service Manual Pump Models: VX Series Q Pumps Drain Pump Oil Reservoirs NOTE: Your pump is supplied Fig. 1 with a pressurized oil bottle. Release pressure and unscrew oil bottle from the pump. To begin service to the pump wet-end drain oil from the buffer chamber by loosening and removing the bottom drain plug.
  • Page 142 Service Manual Service Manual Pump Models: VX Series Q Pumps Remove Rotary Lobes Note: Take care to insure the pump oil chambers have been drained prior to removing lobes. Remove the 4 door retention nuts and washers, and place in a safe place for re-use (Fig.
  • Page 143 Service Manual Service Manual Pump Models: VX Series Q Pumps Some pumps are equipped with plastic caps to protect the lobe retention bolts (strain screws). If your pump is equipped with these plastic covers, simply pry them loose with a flathead screwdriver, and discard (Fig.
  • Page 144 Service Manual Service Manual Pump Models: VX Series Q Pumps Once you feel the bolt begin to move in the hole freely, pull the bolt toward you, until it stops, then continue to unscrew it through the locking (Fig. 7). When several threads have been engaged, use the strain screw to pull the washer assembly out of...
  • Page 145 Service Manual Service Manual Pump Models: VX Series Q Pumps Using the lobe puller, loosen the arm bolts, and place the end of the arms into the groove provided in the lobe. Tighten the arm bolts on the lobe puller. Tighten the extraction bolt on the lobe puller to pull the lobes from the pump.
  • Page 146 Service Manual Service Manual Pump Models: VX Series Q Pumps Removing Cartridge Mechanical Seals Before continuing with cartridge seal replacement: Surface is free of gouges or elastomer Important! Once you’ve fragments. removed the lobes, you must evaluate the condition of the lobe core that will contact the Block Ring.
  • Page 147 Service Manual Service Manual Pump Models: VX Series Q Pumps With the aid of a hammer and Fig. 13 chisel, carefully tap the keys (Fig 13) from their keyway, and remove from the pump. Remove any burrs from the shaft with the aid of a file or emery cloth.
  • Page 148 Service Manual Service Manual Pump Models: VX Series Q Pumps Using a dental pick, o’ring puller Fig. 15 or similar sharp instrument, remove and discard the o-ring (Fig 15 & 16) located around the pump shaft. Note: Never re-use this o-ring. Fig.
  • Page 149 Service Manual Service Manual Pump Models: VX Series Q Pumps Loosen and remove the two bolts Fig. 17 (Fig 17) holding the rear wear plate. Inspect the bolts for wear. If in good condition, retain for re-use. If damaged, discard and replace during re-assembly.
  • Page 150 Service Manual Service Manual Pump Models: VX Series Q Pumps Remove the o-ring (Fig 19) at the Fig. 19 top of the mechanical seal cartridge assembly. Discard the o-ring and replace. This o-ring is provided with the mechanical seal assembly if the cartridge is being replaced.
  • Page 151 Service Manual Service Manual Pump Models: VX Series Q Pumps Place the cartridge removal tool Fig. 21 ring over the shaft of one cartridge assembly at a time. Install two retaining screws to attach the ring to the outer edge of the carrier on the seal assembly, and thread three jacking screws into the removal...
  • Page 152 Service Manual Service Manual Pump Models: VX Series Q Pumps Remove the o-ring (Fig 23) from Fig. 23 the case. This is the same size o-ring as the one on the outer circumference of the seal assembly. Caution: The large o-rings used with the mechanical seal assembly are all the same size.
  • Page 153 Service Manual Service Manual Pump Models: VX Series Q Pumps Installing Block Ring Mechanical Seals Each Block Ring Mechanical Seal Kit Includes: Block Ring Mechanical Seal, 4 o-rings, & flat washer. Do not reuse your old parts. Note: If you are upgrading to our new Block Ring mechanical seal, you may have...
  • Page 154 Service Manual Service Manual Pump Models: VX Series Q Pumps Before continuing with cartridge seal replacement: Surface is free of gouges or elastomer Important! Once you’ve fragments. removed the lobes, you must evaluate the condition of the lobe core that will contact the Block Ring.
  • Page 155 Service Manual Service Manual Pump Models: VX Series Q Pumps Installing Block Rings Seals: Replace the o-ring inside the blocking chamber casing. Install a new o-ring around O-ring the outer body of the new mechanical seal cartridge, liberally coating the o-ring and the inside race of the seal assembly with buffer chamber oil (Fig 27), and...
  • Page 156 Service Manual Service Manual Pump Models: VX Series Q Pumps Liberally coat seal outer o-ring with buffer chamber oil, and set o-ring in place. Do not attempt to seat the o-ring between the seal body and the pump body. This will occur upon final assembly and tightening of the wear plates (Fig 31).
  • Page 157 Service Manual Service Manual Pump Models: VX Series Q Pumps Place wear plate (Fig 34) into the pump, insuring that the chromed or ceramic side is facing both you and the wet-end of the pump. Install the two screws (Fig 35) that hold the wear plate in place, and tighten securely.
  • Page 158 Service Manual Service Manual Pump Models: VX Series Q Pumps Rotary Lobe Installation Install a key or keys (Fig 36) into the shaft keyway. Take care to insure it is flush with the front end of the shaft. With the aid of a brush, lubricate the shaft, key, and insides of the lobes with oil.
  • Page 159 Service Manual Service Manual Pump Models: VX Series Q Pumps Remove and replace the o-rings on the pressure disk (Fig. 38). With the aid of a brush, lube the inside of the lobes, and the inside and outside o-ring of the pressure disk with hydraulic oil.
  • Page 160 Service Manual Service Manual Pump Models: VX Series Q Pumps Note: Strain Screws CANNOT be re-used. Install only new Strain Screws. Lubricate the thread of the strain screw with oil, and install by hand only until it cannot be tightened any further by hand.
  • Page 161 Service Manual Service Manual Pump Models: VX Series Q Pumps Front Cover Installation Replace the o-ring, and inspect Fig. 42 the wear plate for signs of wear. If wear is present, replace the wear plate. Place the cover on the pump, insure it is seated into it’s groove, and securely tighten the four locking nuts (Fig.
  • Page 162 Service Manual Service Manual Pump Models: VX Series Q Pumps Adding Lubricants Double-check that all drain plugs are installed in the bottom of the pump. Remove the side bolt from the pumps gear box. From the top, fill the gearbox with oil until begins to run out of the side hole, which translates to filling the gearbox up about halfway.
  • Page 163 Service Manual Service Manual Pump Models: VX Series Q Pumps Disassembly of Gearbox To service the gear end of the pump remove 10 M10x40 metric cap screws around the perimeter of the gear case. Use an 8mm allen wrench extended socket if available.
  • Page 164 Service Manual Service Manual Pump Models: VX Series Q Pumps Use a blunt drift in the recesses provided between the gear case (Fig. 47) and the pump body. Never hammer against the feet of the pump. The gear case uses four dowels to position and hold the case to the body.
  • Page 165 Service Manual Service Manual Pump Models: VX Series Q Pumps Once loosened, the case can be Fig. 49 lifted off the shafts and put aside. Two bearings reside in the case, as well as the lip seal for the outboard shaft end and the cap seal for the inboard shaft opening.
  • Page 166 Service Manual Service Manual Pump Models: VX Series Q Pumps Remove the case sealing o-ring (Fig. 50). Vogelsang recommends replacing this seal whenever the case is removed, but if it is undamaged and does not indicate excessive compression it may be re-used.
  • Page 167 Service Manual Service Manual Pump Models: VX Series Q Pumps Pump body with shafts removed (Fig. 52). Use a hammer and chisel to bend the locking washers away from the retainer bolts (Fig. 53). The bolts may be re-used. Fig. 52 Fig.
  • Page 168 Service Manual Service Manual Pump Models: VX Series Q Pumps Use a 17mm wrench to remove the bolts around the bearing retainers (Fig. 54). Discard the locking washers and replace with new. Drive the roller bearings from the pump body (Fig. 55). Note use of special tool to avoid damaging the bearing if it is to be re-used.
  • Page 169 Service Manual Service Manual Pump Models: VX Series Q Pumps The bearing assembly should emerge from the pump body bore intact (Fig. 56). Thoroughly clean the area with a fast-drying solvent. We typically use a good quality brake cleaning product to remove all traces of old oil and grease (Fig.
  • Page 170 Service Manual Service Manual Pump Models: VX Series Q Pumps Reassembly of Gearbox Apply liberal coats of oil to all parts during re-assembly of pump (Fig. 58). Drive bearing assembly fully into the pump body using an appropriate tool to avoid damage to bearing (Fig.
  • Page 171 Service Manual Service Manual Pump Models: VX Series Q Pumps The bearing housing should be flush with the pump housing when fully seated (Fig. 60). Install bearing retainers using new locking washers (Fig. 61). Bolts may be re-used if undamaged. Fig.
  • Page 172 Service Manual Service Manual Pump Models: VX Series Q Pumps Use a hammer and chisel, or similar tool, to bend one edge of the locking washer up against the retainer bolt head (Fig. 62). Inspect assembly to assure that no locking washer edge extends over the o-ring seat on the corners, as this may impede the re-assembly of the gear case.
  • Page 173 Service Manual Service Manual Pump Models: VX Series Q Pumps Align the shaft key with the gear keyway and drive the shaft through the gear until the key aligns with the face of the gear (Fig. 64). The shaft must be driven through the gear so that the keyways are aligned with the “X”...
  • Page 174 Service Manual Service Manual Pump Models: VX Series Q Pumps Install spacer on the gearbox end of the shaft, up against the gear face. Then drive the bearing race for the bearing over the shaft and past the cut groove in the shaft (Fig.
  • Page 175 (Fig. 68). Generally speaking, most Vogelsang pumps are top shaft driven, which puts the idle shaft at the bottom, closest to the feet of the pump. Be sure to verify the position of the shafts when re-assembling the pump.
  • Page 176 Service Manual Service Manual Pump Models: VX Series Q Pumps When installing the second shaft, proper timing of the gears must be maintained by aligning the single tooth marked with an X on one gear between the two teeth marked with an X on the second gear (Fig 70).
  • Page 177 Service Manual Service Manual Pump Models: VX Series Q Pumps To prepare the gear box for re- assembly, remove the retainer clip (Fig. 72) on the lip seal for the outboard shaft. This clip fits snugly in the machined groove just above the lip seal (Fig.
  • Page 178 Service Manual Service Manual Pump Models: VX Series Q Pumps Pry the lip seal out of the bore in the gear box. Discard the seal; it will be replaced in a later step (Fig. 74). If the case bearing must be replaced, it will have to be removed with a blunt drift against the bearing housing.
  • Page 179 Service Manual Service Manual Pump Models: VX Series Q Pumps The bearing is removed through the inside of the gearbox case. Note the broken roller cage (Fig.76). This is typical when attempting to remove the bearing, therefore remove this bearing only when it will be replaced with a new part.
  • Page 180 Service Manual Service Manual Pump Models: VX Series Q Pumps If the packing disk is to be removed drive it out through the outside of the gearbox case using a suitable tool to avoid bending the disk (Fig. 78). Replace the o-ring before re- installing the packing disk.
  • Page 181 Service Manual Service Manual Pump Models: VX Series Q Pumps Seat the packing disk fully into the bore until it bottoms against the casing. Use a suitable tool to avoid damaging the packing disk. Re-install the retaining clip (Fig. 80). Place new lip seal in the appropriate bore and seat fully against the gearbox casing.
  • Page 182 Service Manual Service Manual Pump Models: VX Series Q Pumps Apply a thin coating of lithium grease around the seat for the o-ring and set the o-ring in place. The grease will keep the o-ring in place during assembly. Be sure the o-ring is seated all the way around the pump body (Fig.
  • Page 183 Service Manual Service Manual Pump Models: VX Series Q Pumps Re-install the drain plug on the gearbox taking care to also re- install the copper washer (Fig. 83). Note: Proceed to next section regarding the proper method to add lubricants. Fig.
  • Page 184 Service Manual Service Manual Pump Models: VX Series Q Pumps Adding Lubricants Double-check that all drain plugs are installed in the bottom of the pump. Remove the side bolt from the pumps gear box. From the top, fill the gearbox with oil until its begins to run out of the side hole.
  • Page 185 Service Manual Service Manual Pump Models: VX Series Q Pumps 2.F.2 Normal Clearances Because rotary lobes pumps begin to wear on start-up, there is no “normal” clearance between lobe and housing segment or wear plate. When new these clearances are less than 1mm. As the lobes and wear plates wear these clearances increase.
  • Page 186 Service Manual Service Manual Pump Models: VX Series Q Pumps 2.F.5 Troubleshooting Causes Solution Incorrect direction of Reverse Motor rotation Expel gas from supply line and pumping Pump not primed chamber to introduce liquid. Increase supply line diameter. Increase Insufficient NPSH suction head.
  • Page 187 Flexible coupling Adjust flange alignment. misaligned. Insecure pump drive Add lock washers and mountings retighten. Shaft bearing wear or Call Vogelsang or failure. distributor for advice. Worn unsynchronized Call Vogelsang or timing gears distributor for advice. Gear case oil level Refer to oil level incorrect.
  • Page 188 Service Manual Service Manual Pump Models: VX Series Q Pumps Causes Solution Metal to metal contact of Check rated and duty pumping element. pressures. Worn pumping element. Install new components Adjust pressure setting. Examine & clean seating Relief valve leakage surfaces.
  • Page 189 Service Manual Service Manual Pump Models: VX Series Q Pumps Warranties 4.A.1 Warranty Information...
  • Page 190 Service Manual Service Manual Pump Models: VX Series Q Pumps Field Testing Records 5.A.1 Documents for Testing at Initial Startup...
  • Page 191 Service Manual Service Manual Pump Models: VX Series Q Pumps 5.A.1 Documents for Testing at Initial Startup (continued)
  • Page 192 Service Manual Service Manual Pump Models: VX Series Q Pumps 5.A.1 Documents for Testing at Initial Startup (continued)
  • Page 193 Service Manual Service Manual Pump Models: VX Series Q Pumps 2.F.5 Troubleshooting Causes Solution Incorrect direction of Reverse Motor rotation Expel gas from supply line and pumping Pump not primed chamber to introduce liquid. Increase supply line diameter. Increase Insufficient NPSH suction head.
  • Page 194 Flexible coupling Adjust flange alignment. misaligned. Insecure pump drive Add lock washers and mountings retighten. Shaft bearing wear or Call Vogelsang or failure. distributor for advice. Worn unsynchronized Call Vogelsang or timing gears distributor for advice. Gear case oil level Refer to oil level incorrect.
  • Page 195 Service Manual Service Manual Pump Models: VX Series Q Pumps Causes Solution Metal to metal contact of Check rated and duty pumping element. pressures. Worn pumping element. Install new components Adjust pressure setting. Examine & clean seating Relief valve leakage surfaces.
  • Page 196 Specification Sheet (1/2) PROCESS CONDITIONS Customer Number 131703 Abrasion None Customer Name Cloacina, LLC Abrasiveness (1-10) not Provided Project 40 GPM - UF Membrane Pumps Suction Condition 0.0 ft. flooded Quote Number 8441202 Requested Capacity 40 gpm Quote Position Number Discharge Pressure 22.0 psi Number of Pumps...
  • Page 197 Specification Sheet (2/2) GEARED MOTOR INFORMATION Manufacturer NORD Gear Corp. Insulation Class Vendor Part Number SK372.1-100LP/4 TW-651 AGMA Class Voltage 230/460 KVA Code Frequency 60 Hz VFD Turndown 10:01 Ratio Phase Duty Continuous 3 HP Thermistors Efficiency % 90.0 Thermostats Motor Speed 1800 RPM Weight...
  • Page 198 W = 20.63 inch required, 32.44 inch recommended Bolt Size: 5/8" Thread UNC / Length min.2.25" DN 2.5 " D 7 " k 5.5 " d 0.75 " Hole number 4 " inches Vogelsang Data 37.25 Customer Cloacina, LLC 15.83 Quote ID 8441202 1.89 Sales Order No 4.80...
  • Page 199 40 GPM - UF Membrane Project: Flowrate / Speed at Constant Pressure Quote No.: 8441202 VX100-45Q NPSH-R: 6.82 ft. 3.00 2.50 40.9 2.00 1.50 23.8 1.00 0.50 0.00 Medium: Theorethical Flowrate New Pump Speed in RPM Permeate Pump with Gap Operating Points 22 PSI Differential Pressure Water Curve...
  • Page 200 Buyer incurs such expenses under expressed written authorization, from Vogelsang, PRIOR TO THE COMMENCEMENT OF WORK. Unless a freight carrier is noted on the buyer ’s purchase order, Vogelsang will send all shipments at its own discretion, using fully insured commercial carriers.
  • Page 201 Vogelsang USA, LLC., is notified promptly in writing failure to object to any term or condition contained in Buyer's of the suit and, at Vogelsang USA, LLC. request and at its purchase order or other communication shall not be deemed to expense, is given control of said suit and all requested assistance be acceptance of such term or condition.
  • Page 202 REASON. orders may be terminated, changed or delayed by Buyer only WAIVER: The failure of Vogelsang USA, LLC. to insist, in any one with the specific approval of Vogelsang USA, LLC. and shall be or more instances, upon the performance of any of the terms,...
