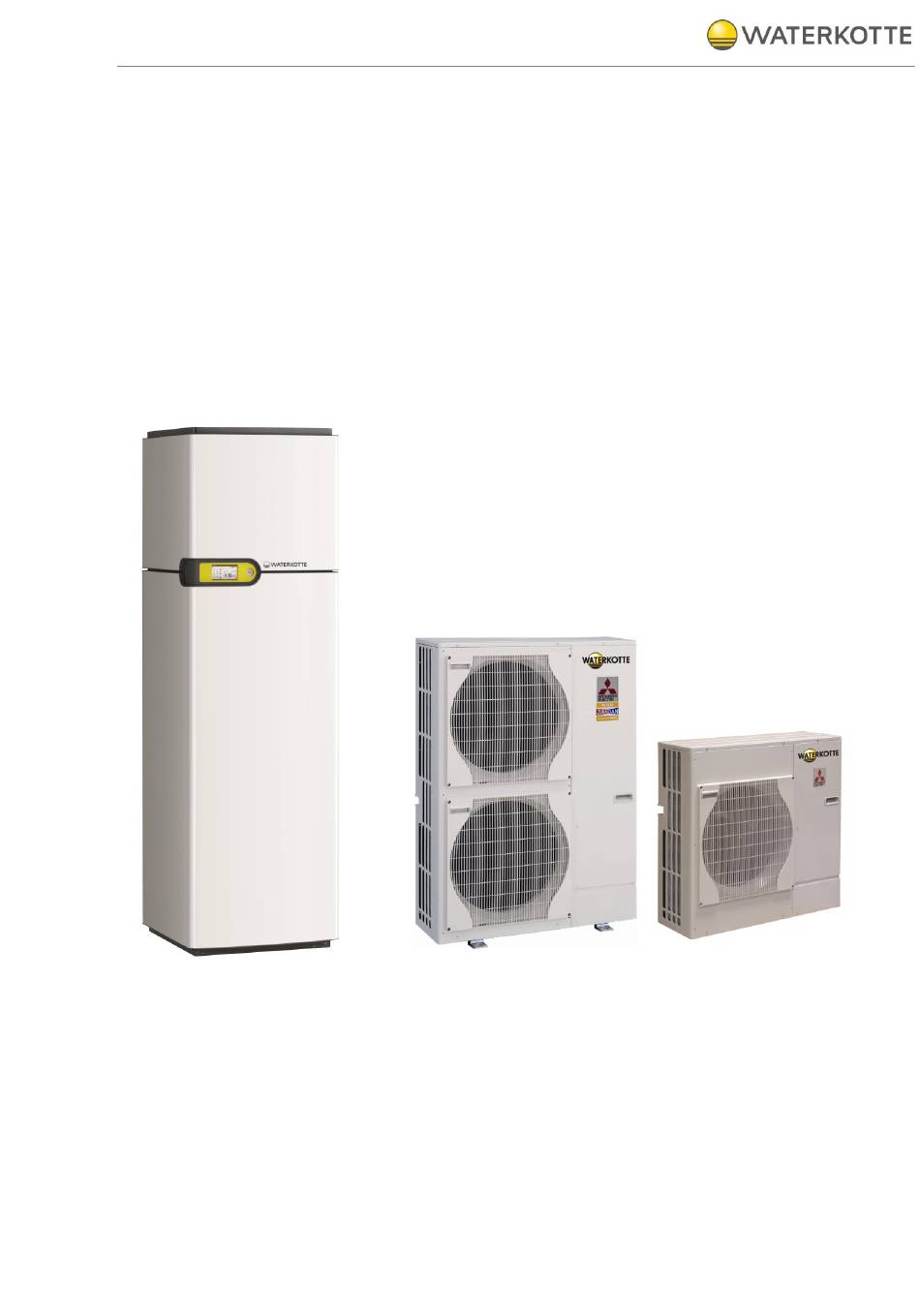

Planning and installation
EcoTouch Ai1 Air
Zubadan and Power Inverter
Electrical connection types: 230 V, 400 V, 230 V/400 V
Heating station
EcoTouch Ai1 Air, Indoor unit
Outdoor units: EcoTouch Ai1 Air
(Zubadan and Power Inverter)
WATERKOTTE GmbH, Gewerkenstraße 15, D-44628 Herne
Tel.: 0049/(0)2323/9376-0, Fax: 0049/(0)2323/9376-99, E-Mail: info@waterkotte.de
Internet: http://www.waterkotte.de
05.06.2015 / Z20655
